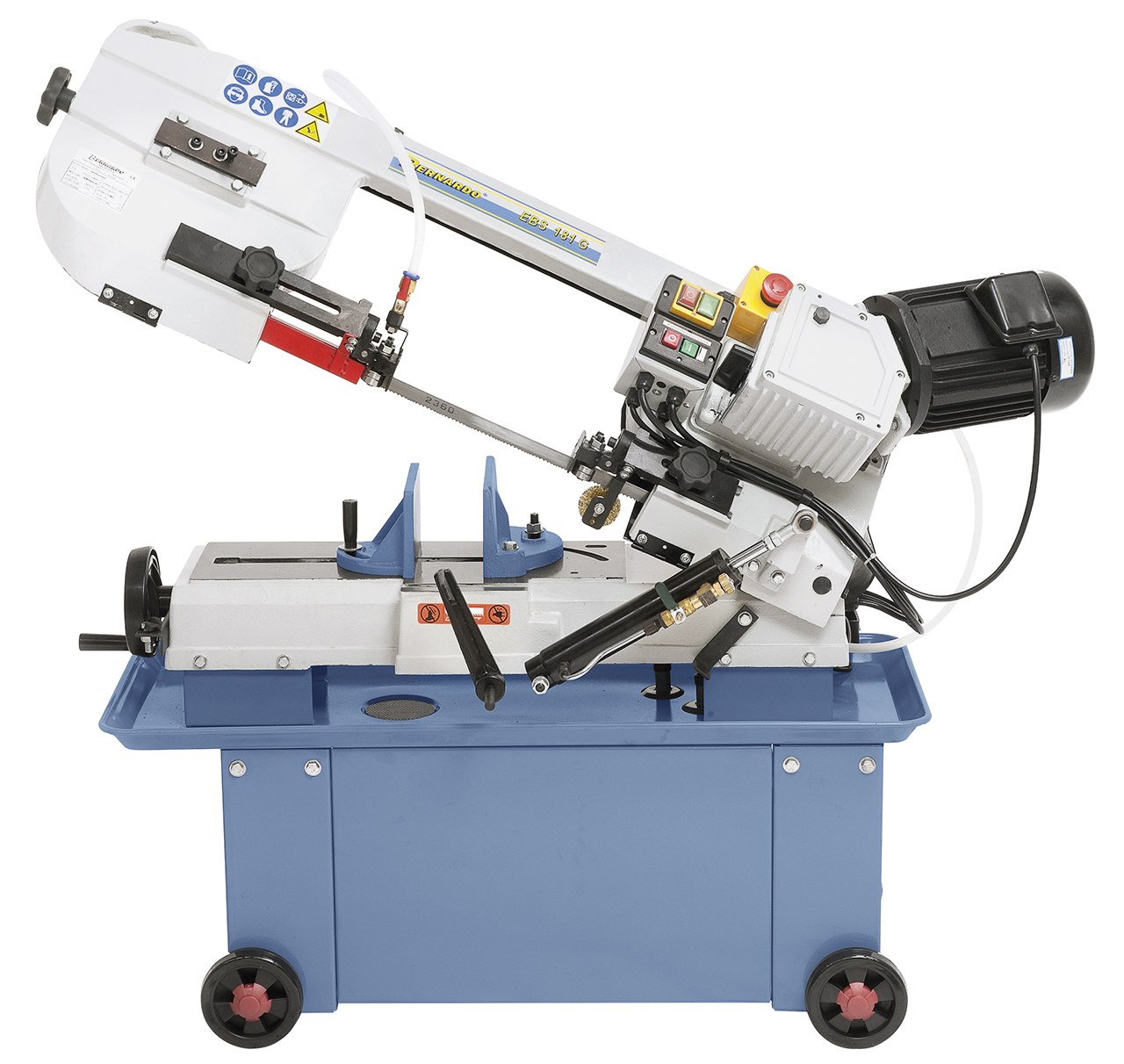

Metal bandsaw EBS 181 G / 400 V
Art.Nr.: 04-1131The EBS 181 G metal bandsaw allows quick and easy speed adjustment due to the 3-gear transmission. The machine is designed specifically for craftsmen and training workshops.
€1,620.00
Availability
Out of Stock
Product Properties
- Vice tilt up to 45° for mitre cutting
- 3 speed settings adjustable by gear transmission
- For cutting of hollow profile and full rivet material, stainless steel, tool steel, ...
- Automatic shut-down at cutting end
- Coolant device and chip tray included
- Torsion-free cast iron saw frame guarantees high cutting accuracy
- Ideal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
Product Specifications
|
Cutting capacity round 90° |
180 mm |
|
Cutting capacity flat 90° |
180 x 210 mm |
|
Cutting capacity round 45° |
90 mm |
|
Cutting capacity flat 45° |
140 x 80 mm |
|
Working height |
560 mm |
|
Bandsaw blade dimension |
2360 x 20 x 0,9 mm |
|
Cutting speeds |
31 / 50 / 60 m/min |
|
Coolant tank |
9 Liter |
|
Coolant pump |
25 W |
|
Motor power output S1 100% |
1,1 kW |
|
Motor power input S6 40% |
1,5 kW |
|
Voltage |
400 V |
|
Machine dimension (L x D x H) |
1250 x 520 x 1000 mm |
|
Weight approx. |
136 kg |
Delivery Contents
- Bandsaw blade
- Coolant device
- Motor protection switch

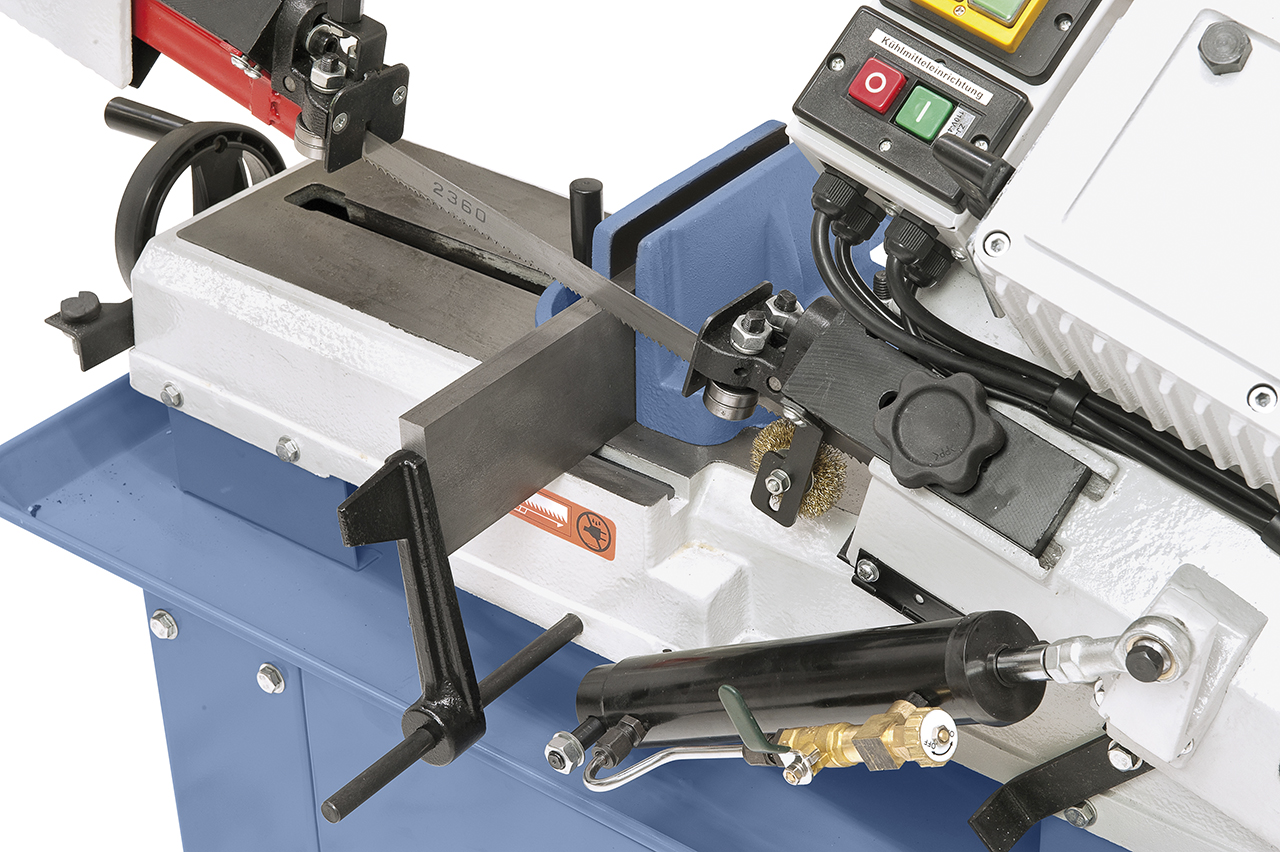

- Quick clamping vice
- Moveable machine stand
- Material fence

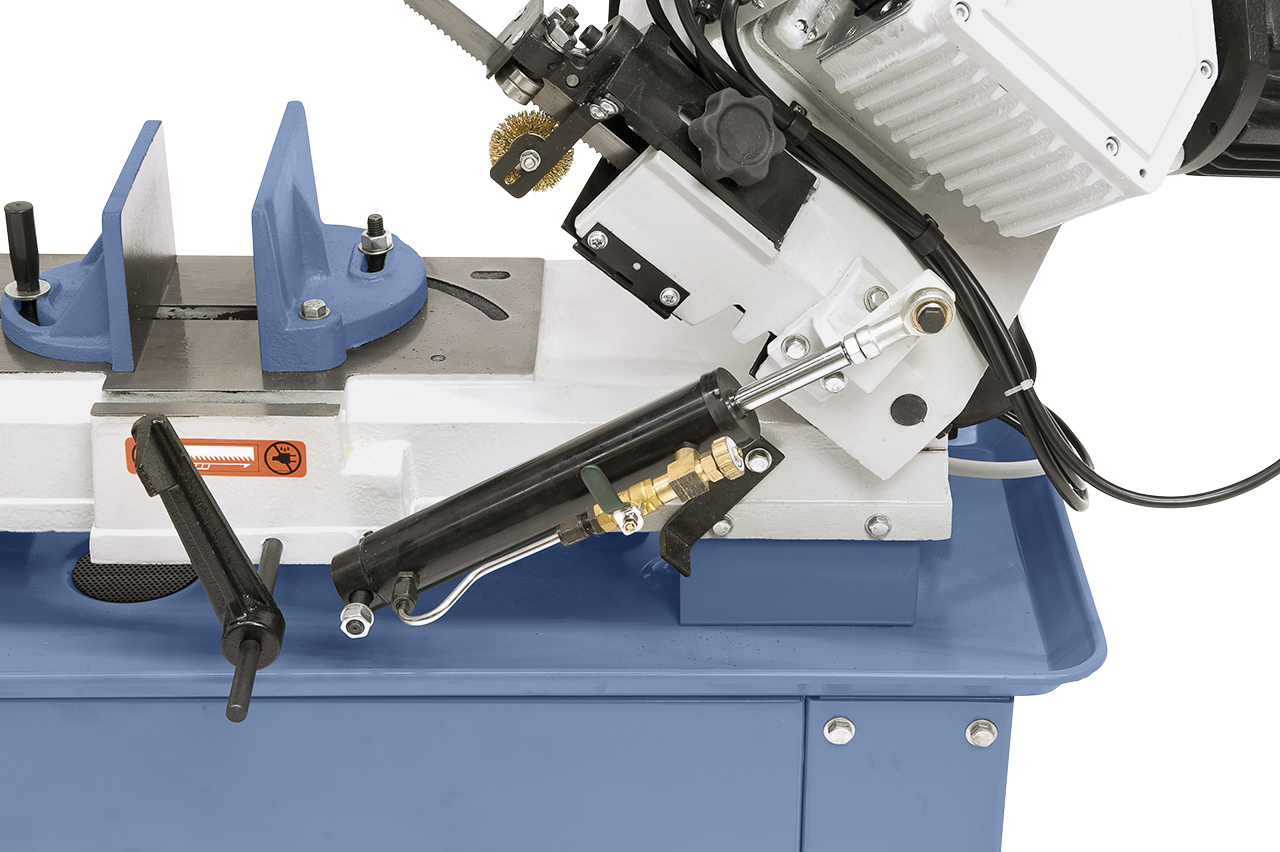

- Hydraulic cylinder
- Separate emergency stop switch according
