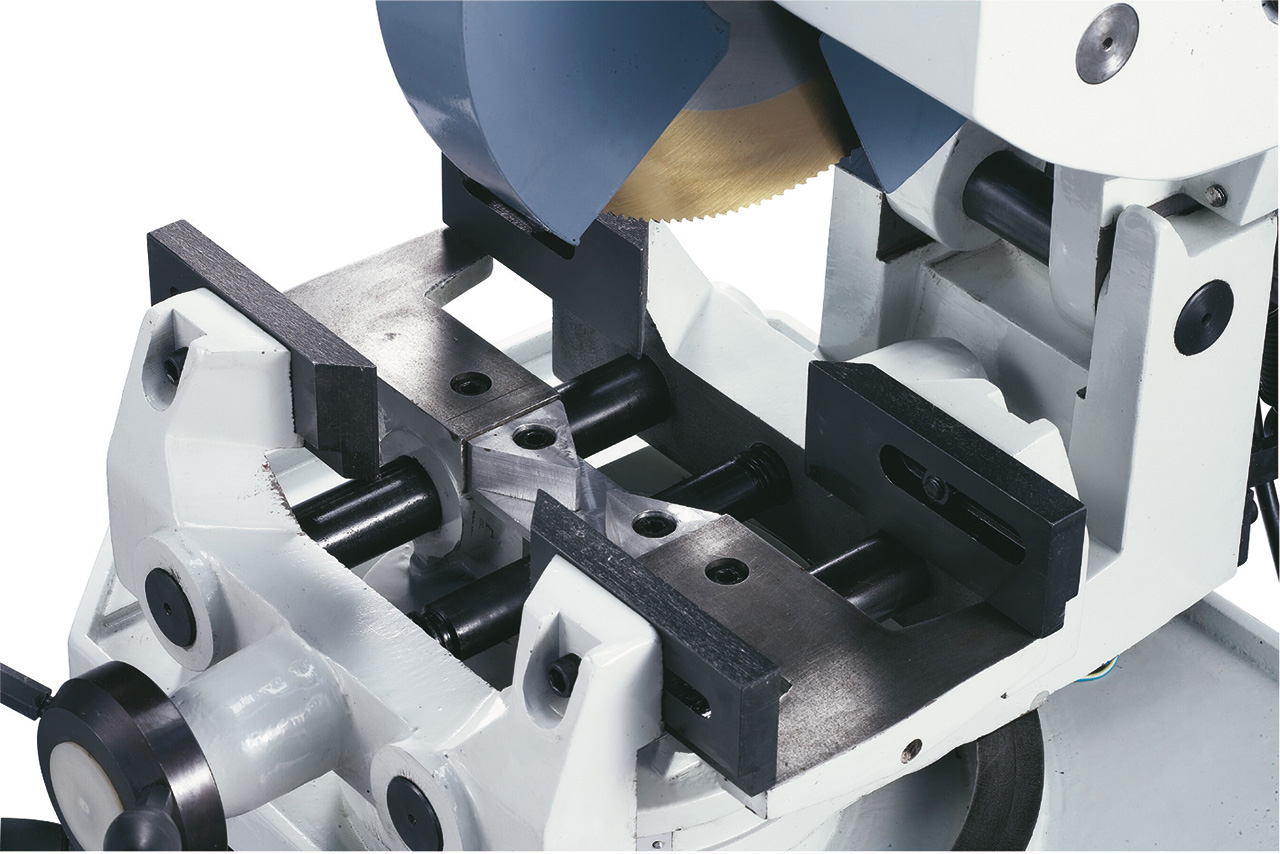

Large, self-centering vice complete with longitudinally adjustable jaws.

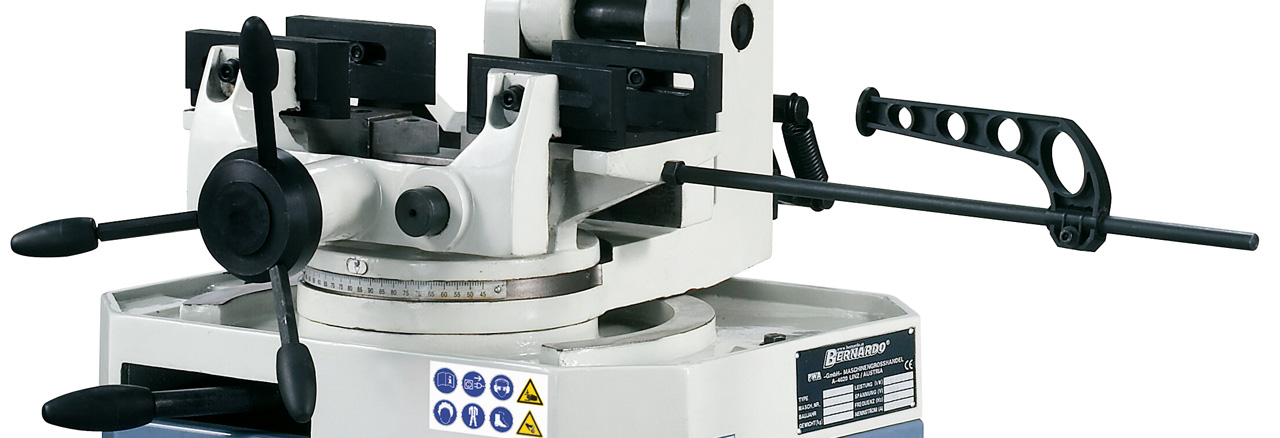

Gear head swivels 60° left and right for mitre cutting.

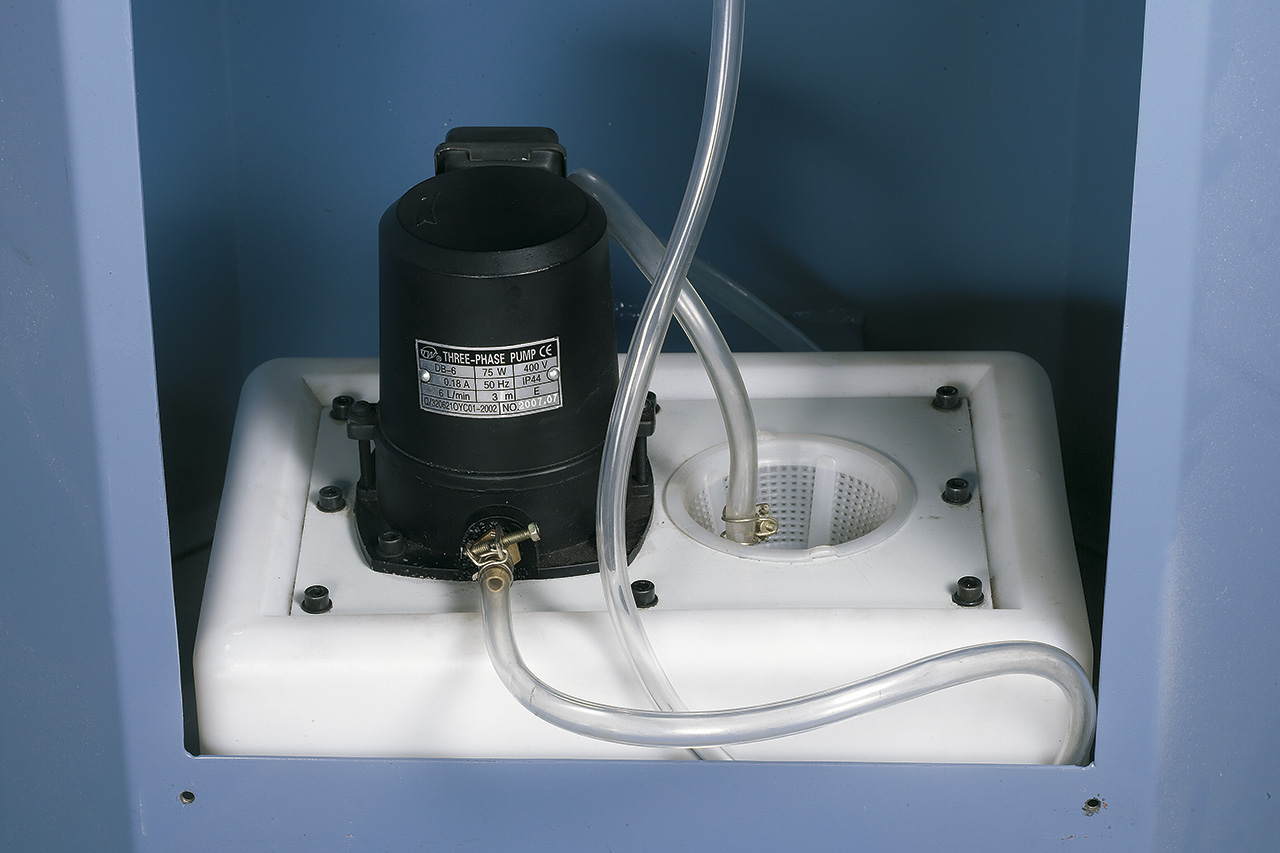

The coolant device is positioned inside the machine frame, requiring minimum space.

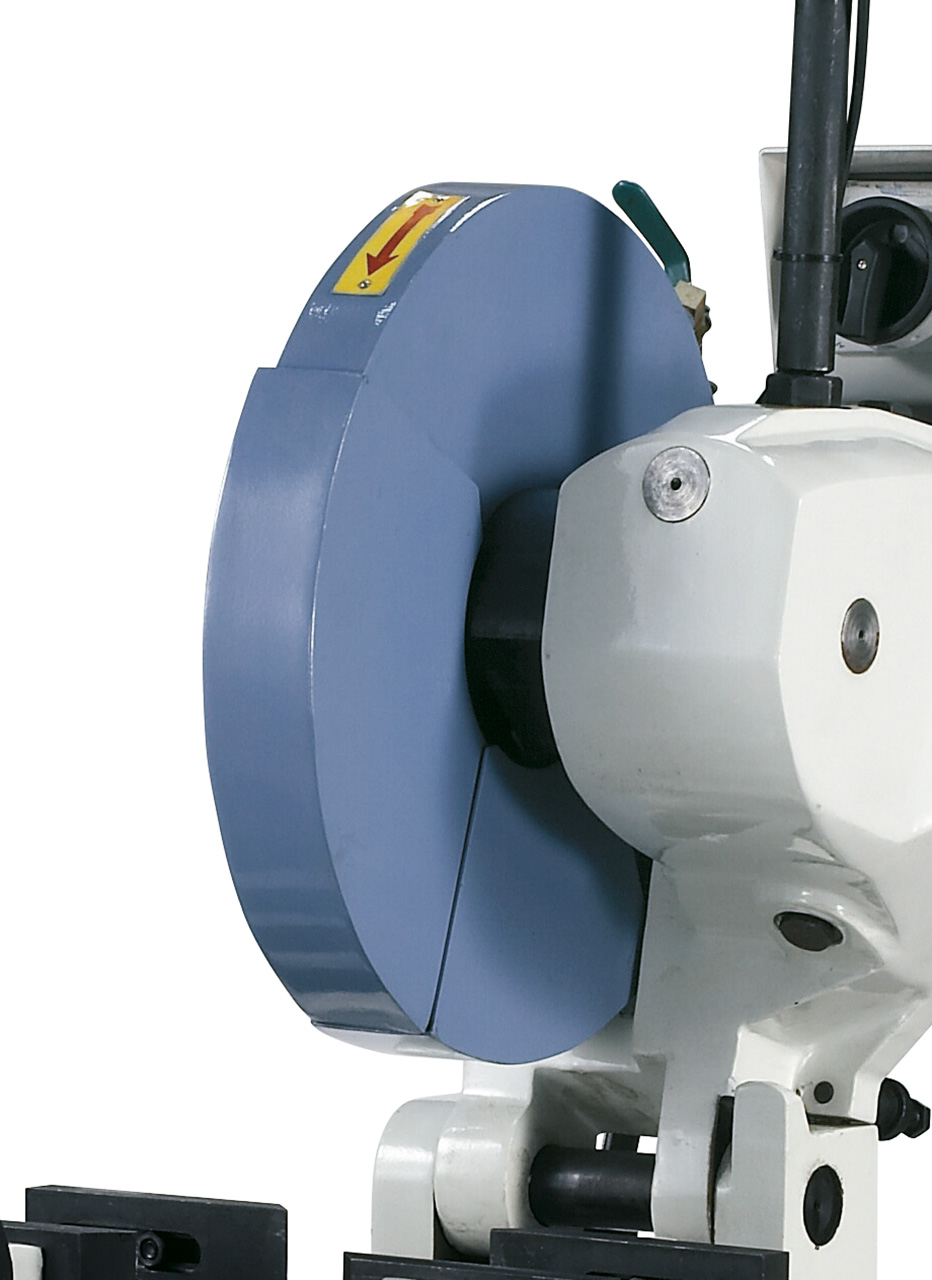

Saw blade cover according to CE, closes automatically when lifting the saw arm.

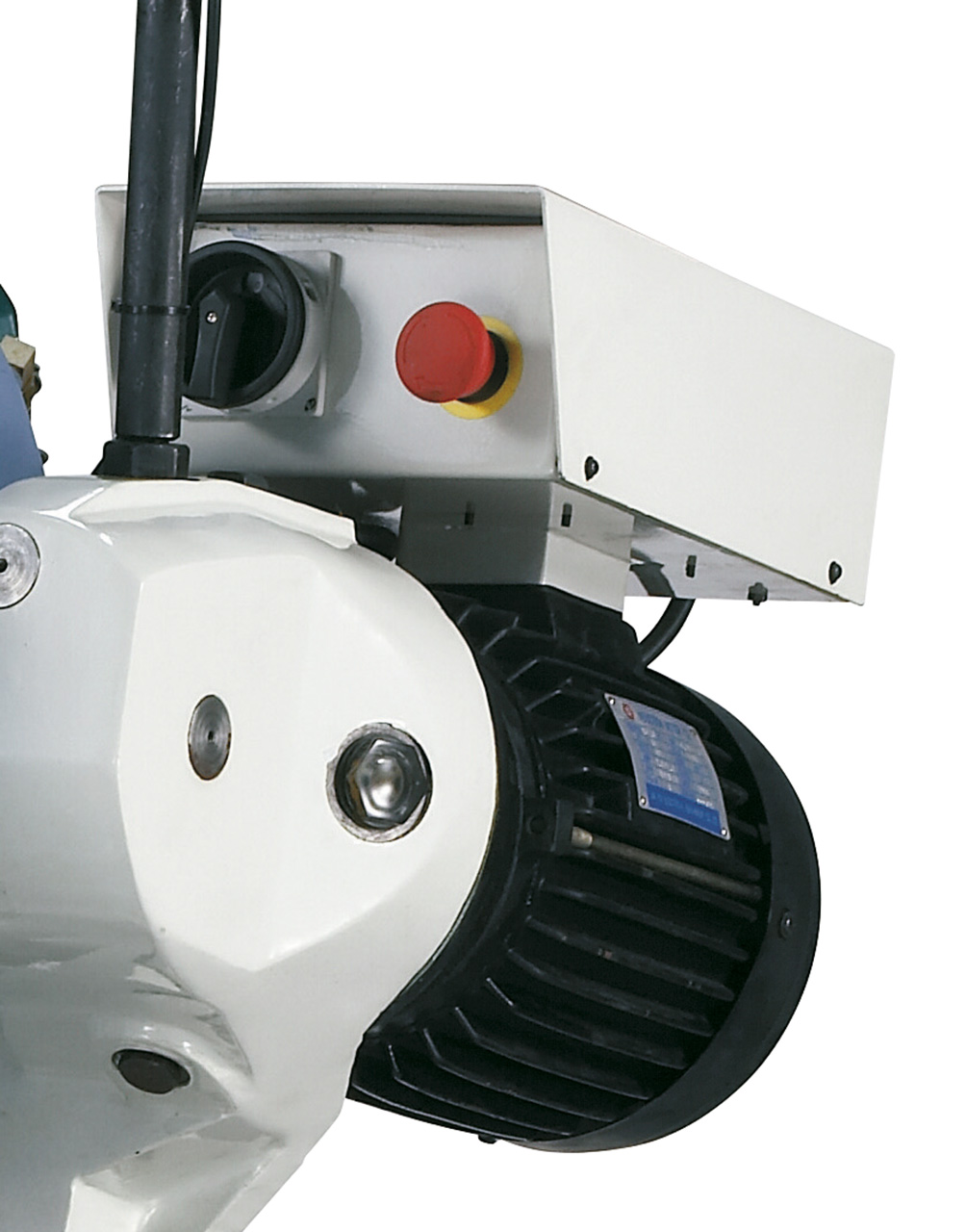

Ergonomically mounted control box on the gear head.

Double vice with material fence, for mitre cutting up to 45°

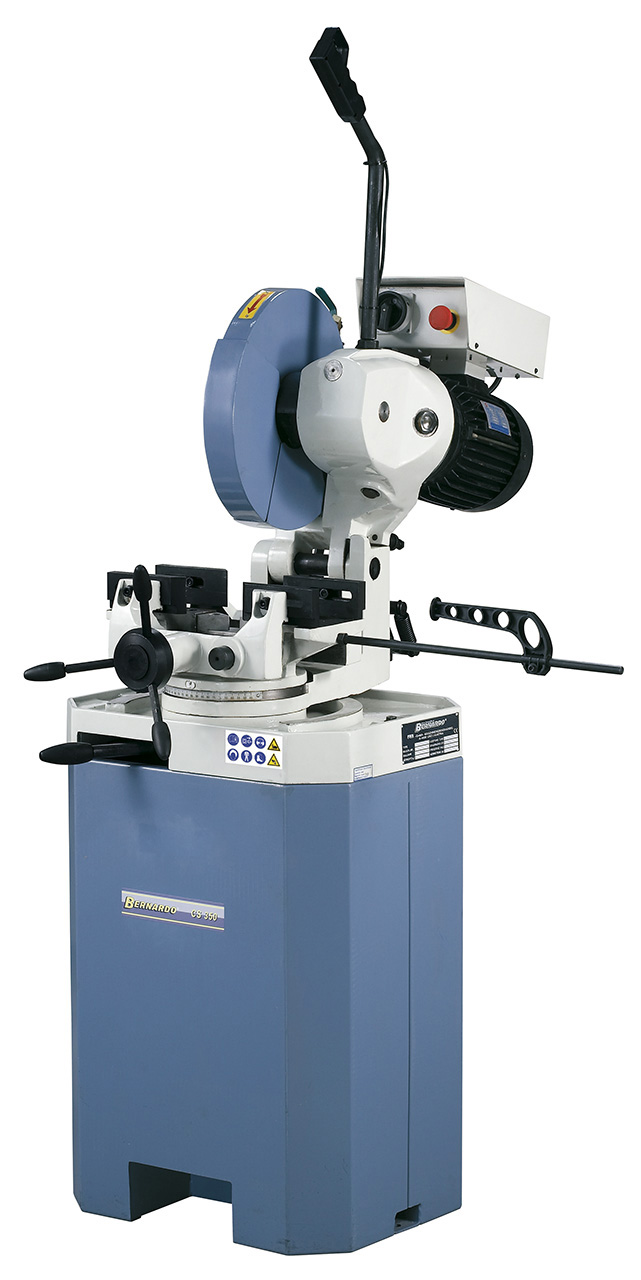

Manual metal circular saw CS 350 L

Art.Nr.: 04-1887

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The cold circular saw CS 350 L comes with a wide range of standard equipment. Unbeatable in terms of price-to-performance ratio, this machine is ideal for metal workshops. The special vice guarantees precise, burr-free cutting.

€2,844.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Double vice with material fence, for mitre cutting up to 45°
Ideal for cutting of steel, light metals and plastics
Sawblade cover according to CE, closes automatically when lifting the saw arm
Ergonomic control handle with 24 V safety switch

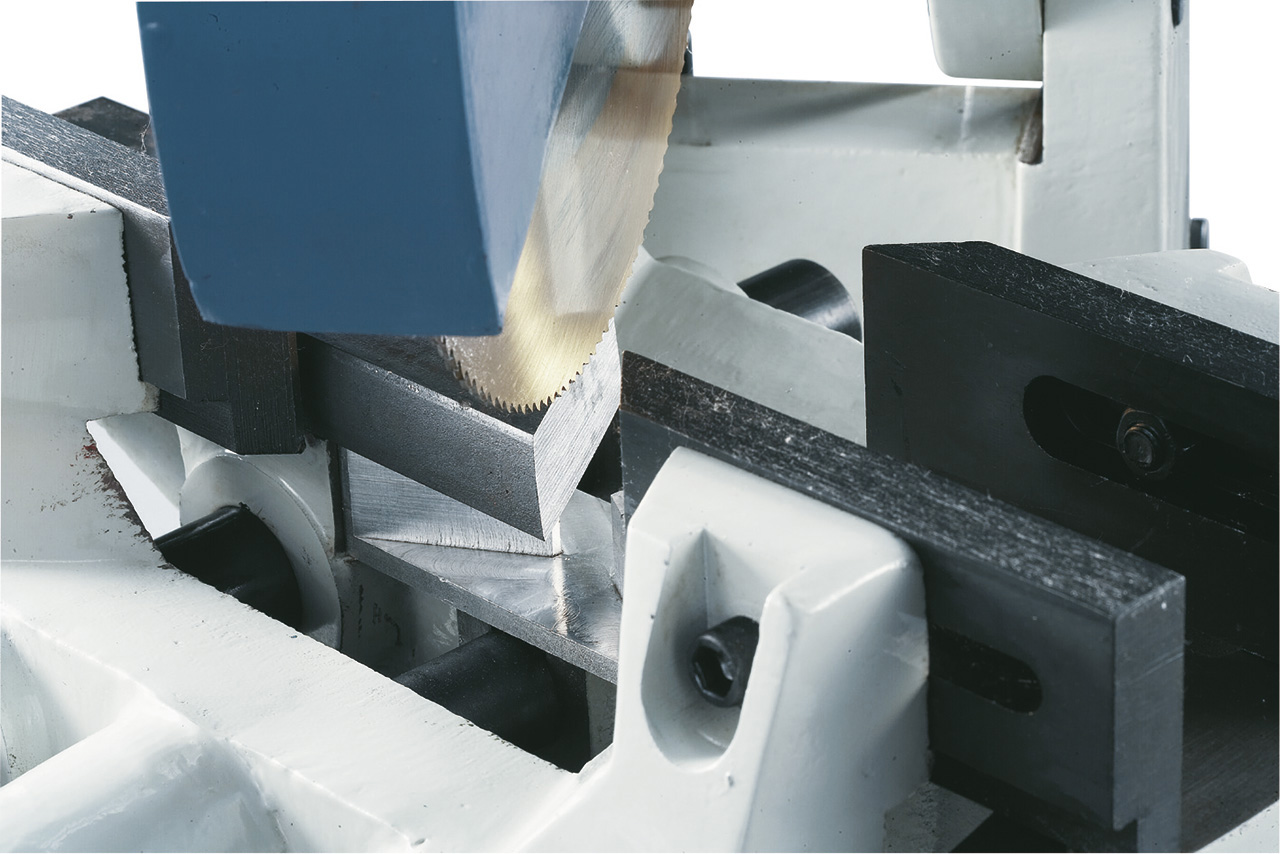

Precise cutting results due to the special vice which clamps workpiece on the right and left side of the sawblade
Serially equipped with TiN-coated sawblade
Low speed range of the sawblade is ideal for cutting of stainless steel
Hardened and ground gears in oil bath
Coolant device is positioned inside the machine frame, requiring minimum space

Product Specifications

Sawblade dimensions	350 x 32 mm
Speeds	18 / 36 rpm
Max. opening	145 mm
Working height	960 mm
Motor power output S₁ 100%	0,75 / 1,3 kW
Motor power input S₆ 40%	1,1 / 1,8 kW
Voltage	400 V
Machine dimensions (L x D x H)	550 x 1000 x 1910 mm
Weight approx.	215 kg
