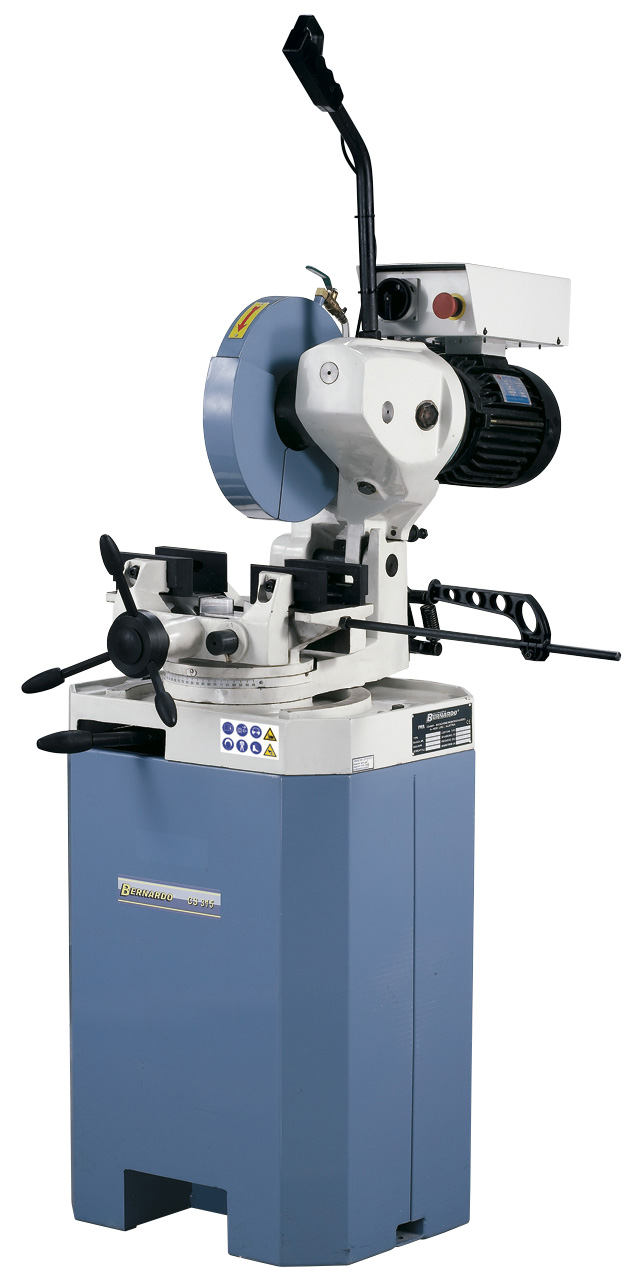

Manual metal circular saw CS 315 L
Art.Nr.: 04-1885The cold circular saw CS 315 L comes with a wide range of standard equipment. Unbeatable in terms of price-to-performance ratio, this machine is ideal for metal workshops. The special vice guarantees precise, burr-free cutting.
€2,688.00
incl. 20% VATAvailability
Product Properties
- Double vice with material fence, for mitre cutting up to 45°
- Ideal for cutting of steel, light metals and plastics
- Sawblade cover according to CE, closes automatically when lifting the saw arm
- Ergonomic control handle with 24 V safety switch

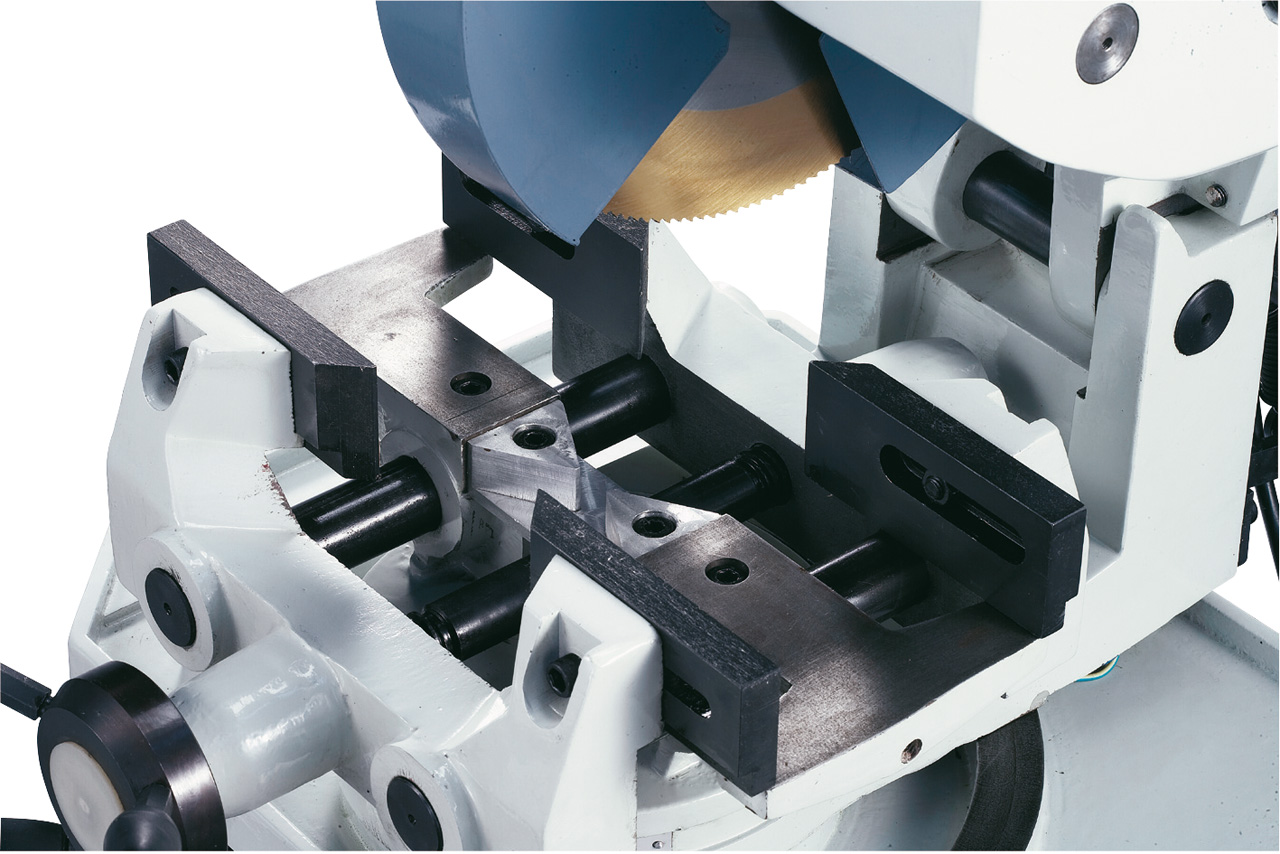

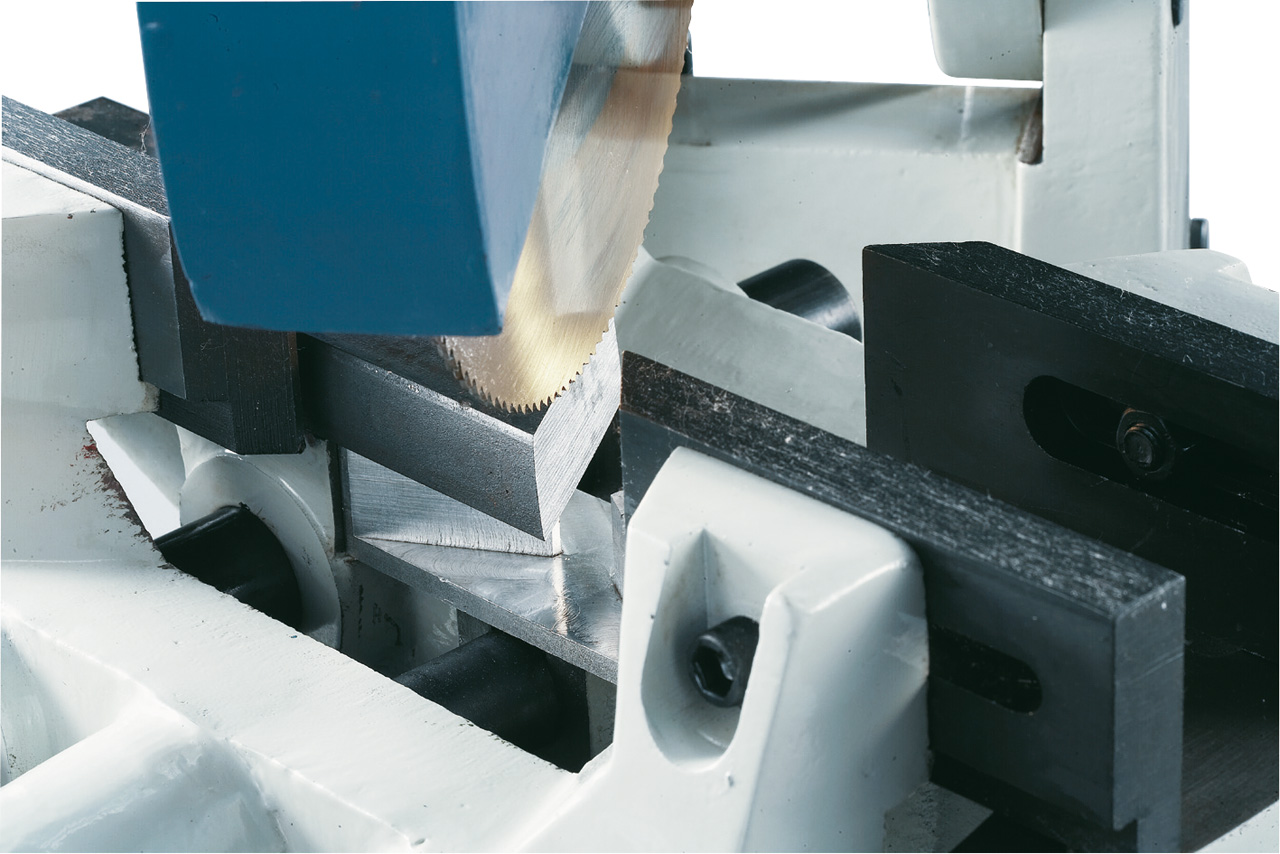

- Precise cutting results due to the special vice which clamps workpiece on the right and left side of the sawblade
- Serially equipped with TiN-coated sawblade
- Low speed range of the sawblade is ideal for cutting of stainless steel
- Hardened and ground gears in oil bath
- Coolant device is positioned inside the machine frame, requiring minimum space
Product Specifications
|
Sawblade dimensions |
315 x 32 mm |
|
Speeds |
18 / 36 rpm |
|
Max. opening |
140 mm |
|
Working height |
960 mm |
|
Motor power output S1 100% |
0,75 / 1,3 kW |
|
Motor power input S6 40% |
1,1 / 1,8 kW |
|
Voltage |
400 V |
|
Machine dimensions (L x D x H) |
550 x 1000 x 1860 mm |
|
Weight approx. |
210 kg |
|
|
Full rivet material square |
Full rivet material round |
|
|
90° |
50 × 50 mm |
55 mm |
|
|
60° |
40 × 40 mm |
45 mm |
|
|
45° |
40 × 40 mm |
45 mm |
|
|
Pipe rectangular |
Pipe square |
Pipe round |
|
90° |
140 × 85 mm |
95 × 95 mm |
100 mm |
|
60° |
110 × 90 mm |
90 × 90 mm |
100 mm |
|
45° |
100 × 90 mm |
90 × 90 mm |
100 mm |
Delivery Contents
- Coolant device with filter
- Self-centering vice
- TiN-coated sawblade
- Material fence
- Stand
