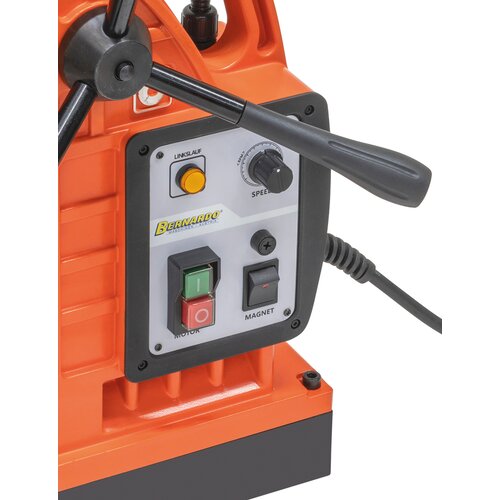

Clearly arranged controls and perfect adjustment of the spindle speed via potentiometer
Clearly arranged controls and perfect adjustment of the spindle speed via potentiometer

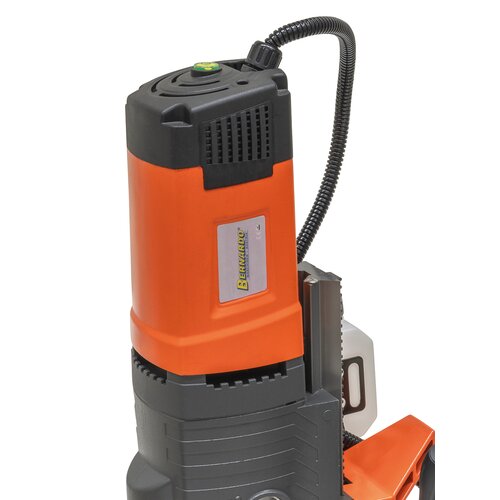

High-performance drive motor designed for continuous use
High-performance drive motor designed for continuous use

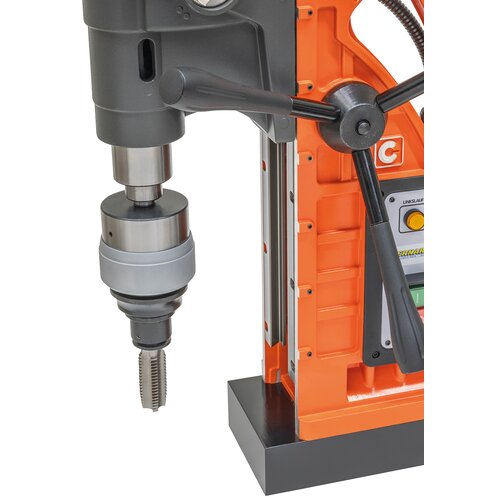

Optionally available: Quick-change threading chuck
Optionally available: Quick-change threading chuck

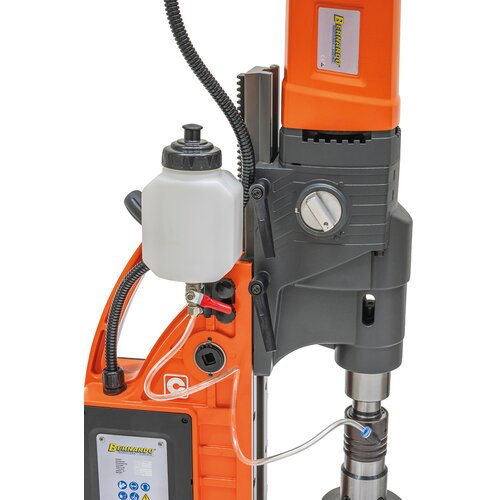

Automatic internal lubrication; the coolant is directed straight to the tip of the core drill.
Automatic internal lubrication; the coolant is directed straight to the tip of the core drill.

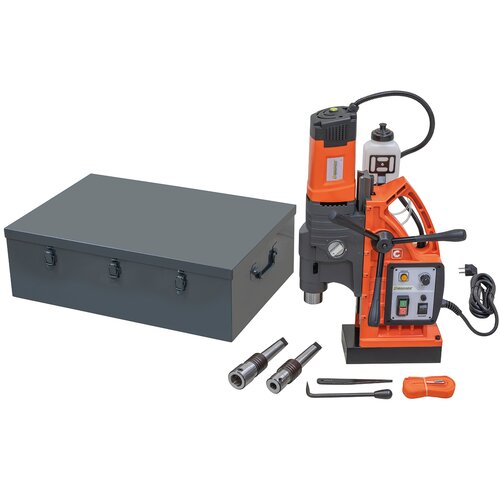

Extensive accessories included in the scope of delivery
Extensive accessories included in the scope of delivery
Clearly arranged controls and perfect adjustment of the spindle speed via potentiometer
High-performance drive motor designed for continuous use
Optionally available: Quick-change threading chuck
Automatic internal lubrication; the coolant is directed straight to the tip of the core drill.
Extensive accessories included in the scope of delivery

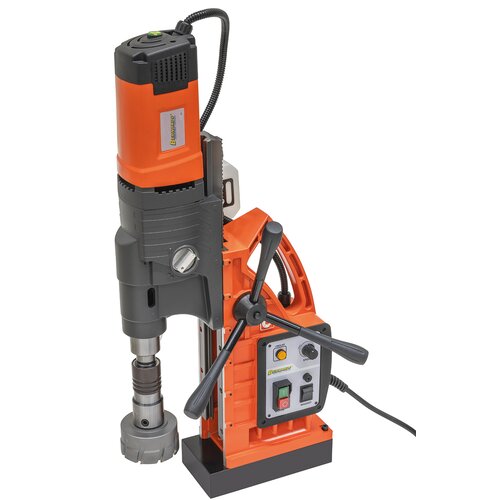

Magnetic-core drilling machine TPC 3500 Vario *

Art. No.: 01-1386
Wishlist Comparison List

€1,548.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Automatic internal lubrication, the coolant is directed directly to the tip of the core drill
  • Variable speed setting for optimal adjustment of cutting speed during core drilling, threading, sinking and reaming
  • Perfect positioning with standard can vial
  • Including tool holders for core drills with 19 (standard) or 32 mm Weldon shank
  • High-torque, oil-stored drive motor with soft start and overload protection
  • Powerful electromagnet ensures maximum magnetic holding force
  • Robust workmanship for the highest demands

Product Specifications

Core drill max. Ø

100 mm

Core drill max. drilling depth

100 mm

Spiral drill max. Ø

38mm

Drilling head travel distance max.

275mm

Thread cutting max.

HIGHWAY M35

idle speed, stepless

50 - 800 rpm **

Spindle mount

MK 4

Weldonschaft admission

19 mm/32 mm

Distance between spindle and base plate max.*

290mm

Distance between weldon mount and base plate max.*

165mm

magnetic holding force

20500 N

Magnetic base dimensions (L x W x H)

245 x 125 x 50mm

engine power

2580 W

voltage

230 V

Machine dimensions (W x D x H)

330 x 430 x 830 mm

Weight ca.

31.5 kg

*Expandable by up to 90 mm

** 1. 50 — 110/2. 20 — 200/
3. 200 — 500/4. 320- 800 rpm

Delivery Contents

  • Seatbelt
  • Metal box
  • Canned dragonfly
  • Refrigerant container
  • Tool holder with automatic
  • Internal cooling MK 4/Weldon shaft 19 mm/32 mm
  • Operating instructions
  • Operating tool
