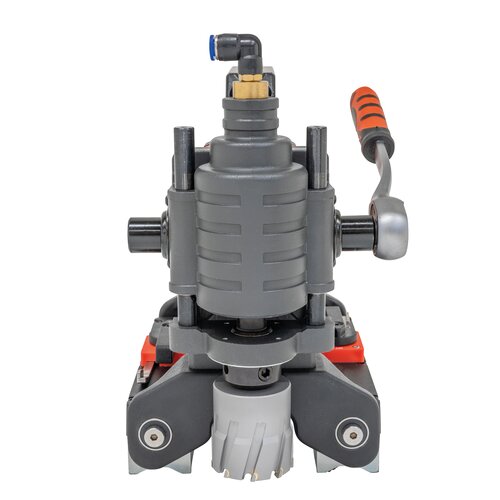

Ratchet can be mounted on either side
Ratchet can be mounted on either side

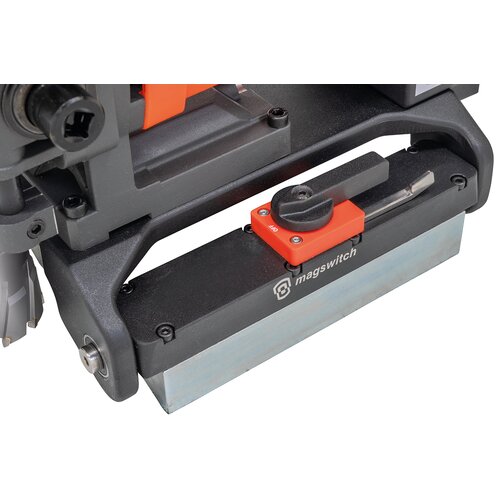

Intuitively operable switches for activating and deactivating the magnetic holding force
Intuitively operable switches for activating and deactivating the magnetic holding force

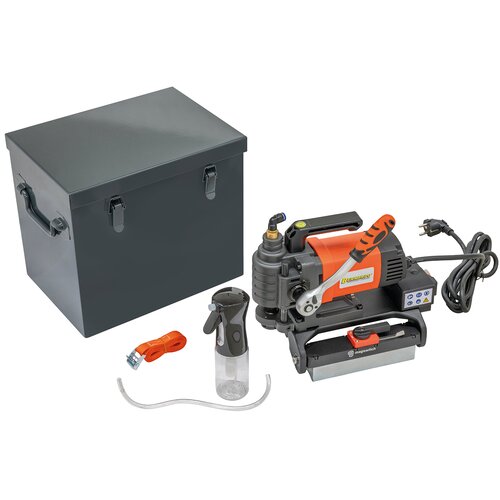

Perfect protection thanks to the metal transport box
Perfect protection thanks to the metal transport box
Ratchet can be mounted on either side
Intuitively operable switches for activating and deactivating the magnetic holding force
Perfect protection thanks to the metal transport box

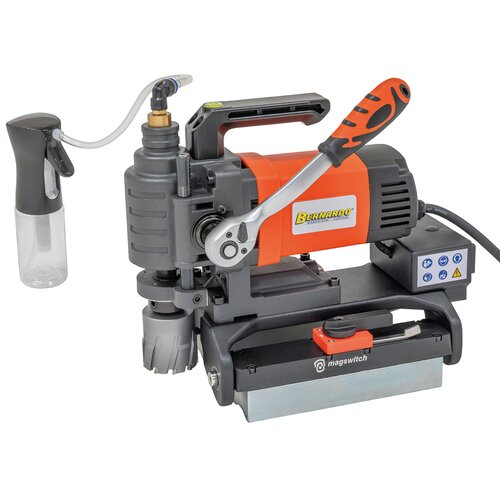

Magnetic-core drilling machine MD 5568 PL *

Art. No.: 01-13692
Wishlist Comparison List

The MD 5568 PL core drilling machine offers a wide range of applications. The compact design, in conjunction with the powerful, flexible magnets, allows it to be used on a wide variety of surfaces, such as pipes of various sizes.

€1,284.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Long life thanks to high-quality components
  • The tool holder is designed for core drills with 19 mm Weldon shank
  • Comes with safety belts as standard for vertical or overhead applications
  • Ergonomic one-handed operation thanks to clearly arranged control elements
  • Control lever can be mounted on both sides, guarantees maximum ease of use
  • High magnetic holding force thanks to flexible magnets, for safe work
  • Ideal for steel construction, vehicle construction, mechanical engineering, etc.
  • Continuously adjustable height adjustment of the drill head

Product Specifications

Core drill max. Ø

55mm

Core drill max. drilling depth

68mm

Drilling head travel distance max.

75mm

Idle speed

750 rpm

Weldonschaft admission

19mm

Distance between weldon mount and
base plate max.

95mm

magnetic holding force

15500 N

Magnetic base dimensions (L x W x H) 2 pcs

185 x 40 x 50mm

engine power

1900 W

tension

230 V

Machine dimensions (W x D x H)

170 x 330 x 290 mm

Weight ca.

11 kg

Delivery Contents

  • Metal box
  • Refrigerant container
  • Canned dragonfly
  • Carrying handle
  • Reversible ratchet
  • Lubrication pump
  • Flexible magnets
  • Operating instructions
  • Operating tool
