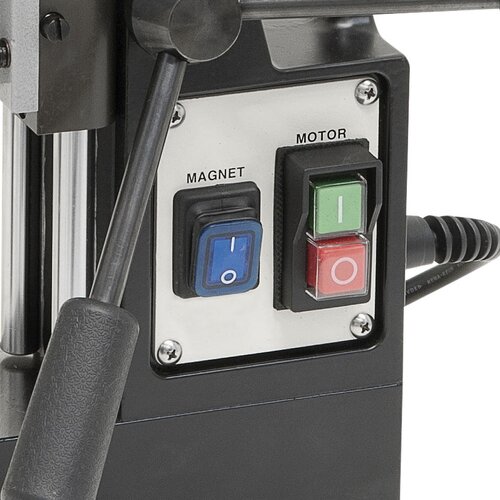

Clearly arranged control elements.
Clearly arranged control elements.
Patented guiding system for increased stability.
Patented guiding system for increased stability.
Picture shows complete range of standard equipment
Picture shows complete range of standard equipment
Clearly arranged control elements.
Patented guiding system for increased stability.
Picture shows complete range of standard equipment

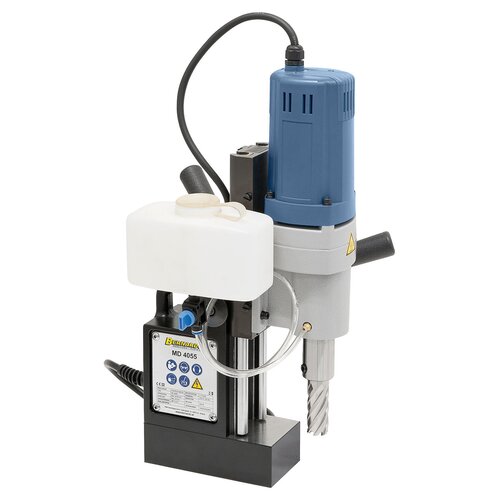

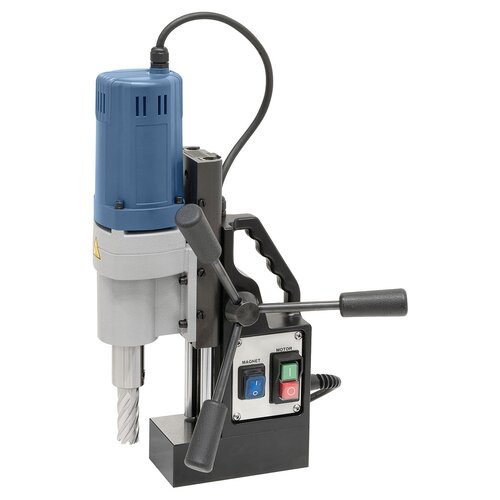

Magnetic-core drilling machine MD 4055 *

Art.Nr.: 01-1370
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MD 4055 magnetic core drilling machine is suitable for core drilling from 12 – 40 mm. Its low weight (12.7 kg) makes this model very mobile and great for vertical or over head operation.

€756.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Stepless, drill head height adjustment, ideal when using long drill bits
  • Automatic internal lubrication – coolant spreads direct on core drill
  • Tool holder designed for core drills with 19 mm weldon shaft

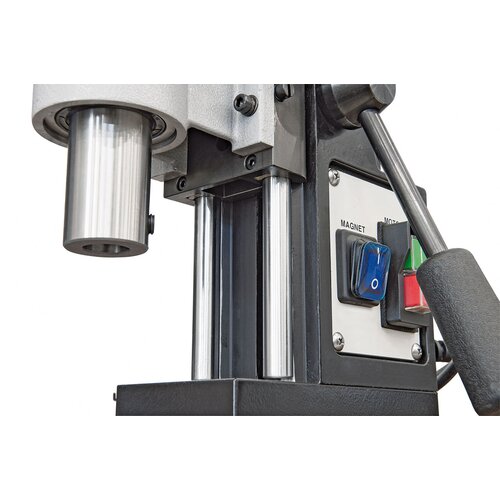

  • Round rod guiding ensures accurate drill head travel
  • High-quality component ensure long life span
  • Solid drill guide ensures optimal results
  • Powerful motor, designed for continuous operation
  • Professional machine, ideal for transport

Product Specifications

Core drill max. Ø

40 mm

Core drill max. drill depth

50 mm

Twist drill max. Ø

13 mm

Travel of drill head max.

135 mm

Idle speed

480 rpm

Arbor weldon shank

19 mm

Distance weldon shank / base max.

140 mm

Magnetic adhesion

10500 N

Dimension magnetic base (L x W x H)

159 x 79 x 48 mm

Motor power

1150 W

Voltage

230 V

Machine dimension (W x D x H)

240 x 255 x 500 mm

Weight approx.

12,7 kg

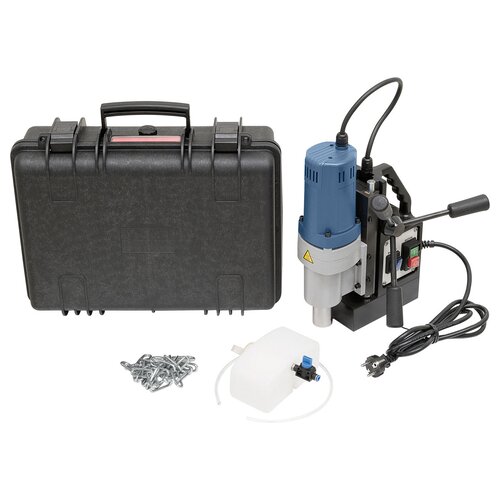

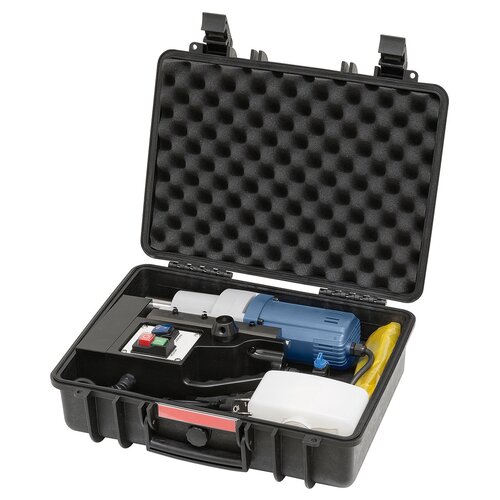

Delivery Contents

  • Safety chain
  • Plastic container
  • Coolant tank
  • User manual
  • Tools
