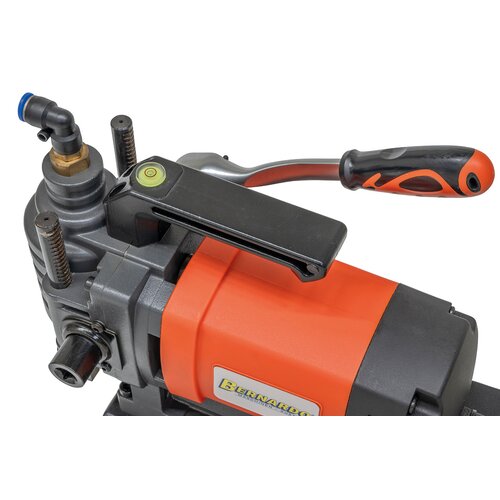

With bubble level for precise positioning
With bubble level for precise positioning

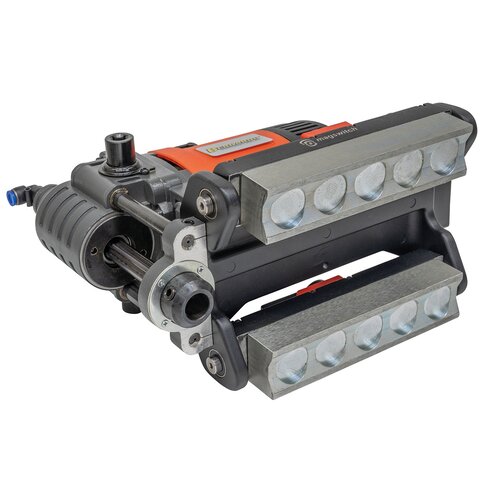

Two flexible magnets guarantee a firm hold on a wide variety of surfaces.
Two flexible magnets guarantee a firm hold on a wide variety of surfaces.

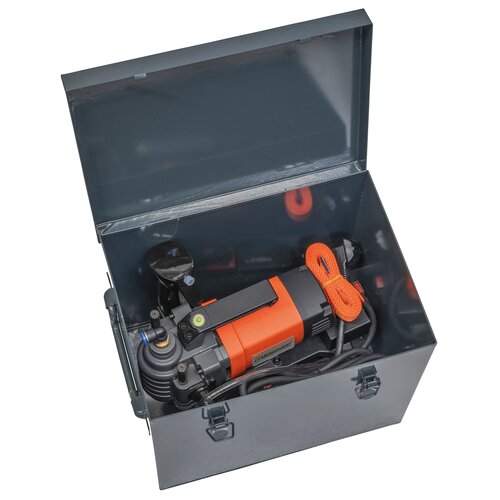

Delivered in a robust metal box
Delivered in a robust metal box
With bubble level for precise positioning
Two flexible magnets guarantee a firm hold on a wide variety of surfaces.
Delivered in a robust metal box

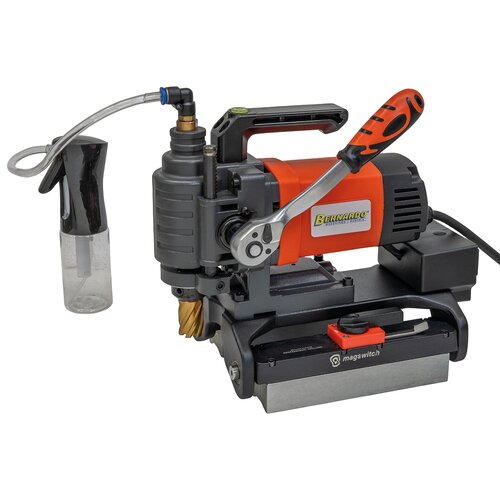

Magnetic-core drilling machine MD 3850 PL *

Art. No.: 01-13691
Wishlist Comparison List

The MD 3850 PL core drilling machine offers a wide range of applications. The compact design, in conjunction with the powerful, flexible magnets, allows it to be used on a wide variety of surfaces, such as pipes of various sizes.

€1,106.40

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Continuously adjustable height adjustment of the drill head
  • Ideal for steel construction, vehicle construction, mechanical engineering, etc.
  • High magnetic holding force thanks to flexible magnets, for safe work
  • Control lever can be mounted on both sides, guarantees maximum ease of use
  • Ergonomic one-handed operation thanks to clearly arranged control elements
  • Comes with safety belts as standard for vertical or overhead applications
  • The tool holder is designed for core drills with 19 mm Weldon shank
  • Long life thanks to high-quality components

Product Specifications

Core drill max. Ø

38mm

Core drill max. drilling depth

50mm

Drilling head travel distance max.

75mm

Idle speed

850 rpm

Weldonschaft admission

19mm

Distance between weldon mount and
base plate max.

95mm

magnetic holding force

14500 N

Magnetic base dimensions (L x W x H) 2 pcs.

185 x 40 x 50mm

engine power

1650 W

Tension

230 V

Machine dimensions (W x D x H)

170 x 330 x 290 mm

Weight ca.

11 kg

Delivery Contents

  • Metal box
  • Coolant tank
  • Canned dragonfly
  • Carrying handle
  • Reversible ratchet
  • Lubrication pump
  • Flexible magnets
  • Operating instructions
  • Operating tool
