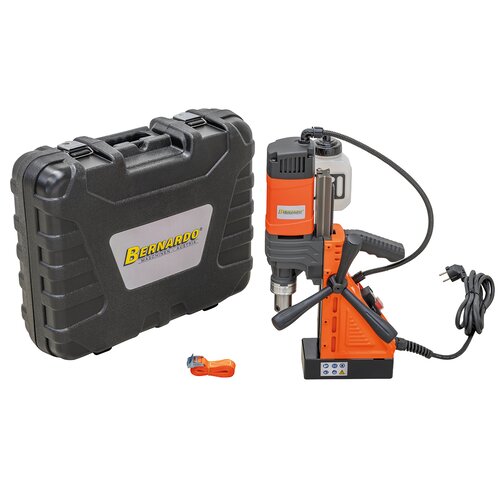

Perfect protection thanks to a robust plastic case
Perfect protection thanks to a robust plastic case

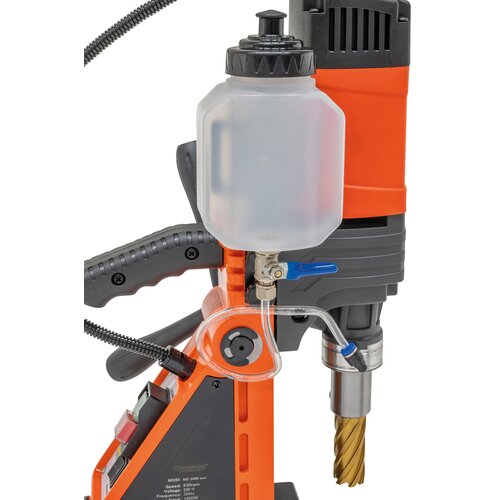

Constant lubricant supply thanks to a fixed lubricant reservoir
Constant lubricant supply thanks to a fixed lubricant reservoir

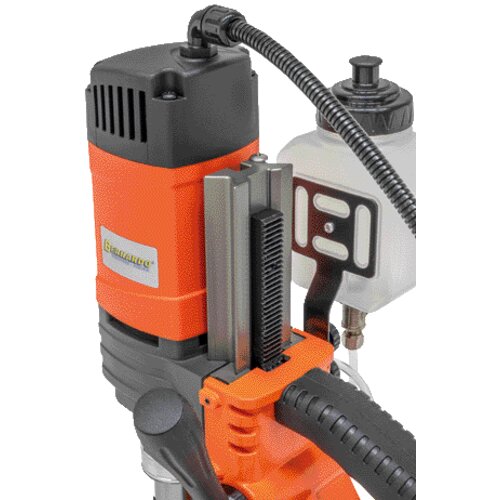

Precise and robust guide rails
Precise and robust guide rails

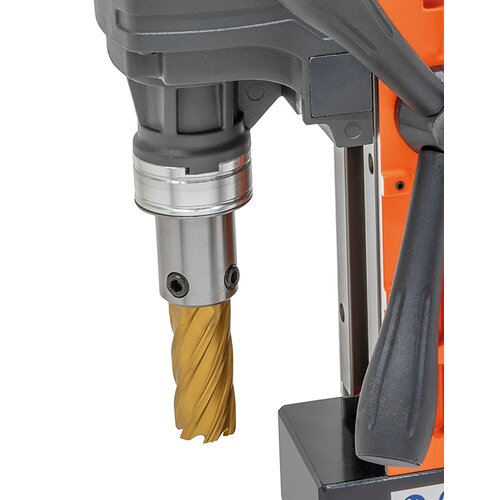

Weldon shank offers a wide selection of tools
Weldon shank offers a wide selection of tools
Perfect protection thanks to a robust plastic case
Constant lubricant supply thanks to a fixed lubricant reservoir
Precise and robust guide rails
Weldon shank offers a wide selection of tools

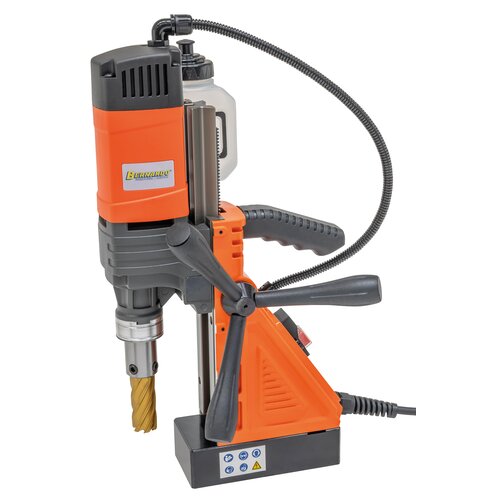

Magnetic-core drilling machine MD 3550 eco *

Art. No.: 01-13695
Wishlist Comparison List

The MD 3550 eco model is a versatile machine. Due to its low dead weight, this model is suitable for mobile use on site as well as for vertical or overhead work.

€486.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Continuously adjustable height adjustment of the drill head, ideal when using long drilling tools
  • Ideal for steel construction, vehicle construction, mechanical engineering, etc.
  • High magnetic holding force for safe work
  • Ergonomic one-handed operation thanks to clearly arranged control elements
  • Comes with safety belts as standard for vertical or overhead applications
  • The tool holder is designed for core drills with 19 mm Weldon shank
  • Long life thanks to high-quality components
  • Stable drill guide ensures optimal work results

Product Specifications

Core drill max. Ø

35mm

Core drill max. drilling depth

50mm

Spiral drill max. Ø

13mm

Drilling head travel distance max.

145mm

Idle speed

830 rpm

Weldonschaft admission

19mm

Distance between weldon mount and base plate max.*

125mm

magnetic holding force

16000 N

Magnetic base dimensions (L x W x H)

165 x 80 x 50mm

engine power

1600 W

Tension

230 V

Machine dimensions (W x D x H)

260 x 320 x 500 mm

Weight ca.

11 kg

Delivery Contents

  • Plastic box
  • Refrigerant container
  • Tool holder with automatic internal cooling
  • Seatbelt
  • Operating instructions
  • Operating tool
