Magnetic-core drilling machine MD 3550 VD *

Art.Nr.: D-01-1380
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€650.40

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Variable speed setting allows optimal adjustment of speed when core drilling, countersinking, reaming, ...
  • With bubble level as standard for perfect alignment
  • Powerful electro magnet guarantees best possible magnetic force
  • Standard safety belt for vertical or over head operation
  • High-quality component ensure long life span
  • Automatic internal lubrication – coolant spreads direct on core drill
  • Compared to twist drills, machine requires significantly less feed force when using core drills

Product Specifications

Core drill max. Ø

35 mm

Core drill max. drill depth

50 mm

Twist drill max. Ø

13 mm

Travel of drill head max.

155 mm

Idle speed, stepless

100 - 830 rpm

Arbor weldon shank

19 mm

Distance weldon shank / base max.

160 mm

Magnetic adhesion

14800 N

Dimension magnetic base (L x W x H)

165 x 80 x 50 mm

Motor power

1550 W

Voltage

230 V

Machine dimension (W x D x H)

150 x 280 x 430 mm

Weight approx.

11 kg

Delivery Contents

  • Plastic container
  • Coolant tank
  • Bubble level
  • Drill chuck adapter 1/2“ – 20 UNF / Weldon shank 19 mm
  • Drill chuck 1,5 - 13 mm
  • Safety belt
  • User manual
  • Tools

Suitable accessories

6 pcs. HSS countersink set 90°
6 pcs. HSS countersink set 90°
Art.Nr. : 41-1075
Using countersink and deburring tools, bores can be...

€66.00

incl. 20% VAT
High-performance lubrication spray BDS 5200 / 12 x 400 ml can
High-performance lubrication spray BDS 5200 / 12 x 400 ml can
Art.Nr. : 54-1212
Application mainly at over head or horizontal work,...

€178.80

incl. 20% VAT
HSSCO5-core drills CDS, nACO-coated, 14/18/22 mm, drilling depth 30 mm, 5 pcs.
HSSCO5-core drills CDS, nACO-coated, 14/18/22 mm, drilling depth 30 mm, 5 pcs.
Art.Nr. : 41-11051
The TiN- and nACO-coated core drill-sets are out of...

€186.00

incl. 20% VAT
HSSCO5-core drills CDL, nACO-coated, 14/18/22 mm, drilling depth 50 mm, 5 pcs.
HSSCO5-core drills CDL, nACO-coated, 14/18/22 mm, drilling depth 50 mm, 5 pcs.
Art.Nr. : 41-11052
The TiN- and nACO-coated core drill-sets are out of...

€198.00

incl. 20% VAT
HSS-core drills CDS, TiN-coated, 14/18/22 mm, drilling depth 25 mm, 5 pcs.
HSS-core drills CDS, TiN-coated, 14/18/22 mm, drilling depth 25 mm, 5 pcs.
Art.Nr. : 41-1105
The TiN- and nACO-coated core drill-sets are out of...

€132.00

incl. 20% VAT
HSSCO5-core drill-set CDL, nACO-coated, 14 - 24 mm, drilling depth 50 mm
HSSCO5-core drill-set CDL, nACO-coated, 14 - 24 mm, drilling depth 50 mm
Art.Nr. : 41-11044
The TiN- and nACO-coated core drill-sets are out of...

€234.00

incl. 20% VAT
HSS-standard core drill-set CDS, 14 - 24 mm, drilling depth 25 mm
HSS-standard core drill-set CDS, 14 - 24 mm, drilling depth 25 mm
Art.Nr. : 41-1104
The HSS-standard core drill-set is out of high speed...

€136.80

incl. 20% VAT
HSSCO5-core drill-set CDS, nACO-coated, 14 - 24 mm, drilling depth 30 mm
HSSCO5-core drill-set CDS, nACO-coated, 14 - 24 mm, drilling depth 30 mm
Art.Nr. : 41-11043
The TiN- and nACO-coated core drill-sets are out of...

€198.00

incl. 20% VAT
TCT-core drill-set, 14 - 22 mm, drilling depth 35 mm
TCT-core drill-set, 14 - 22 mm, drilling depth 35 mm
Art.Nr. : 41-1106
The carbide core drills with high-quality hard metal...

€162.00

incl. 20% VAT
HSS-core drills CDL, TiN-coated, 14/18/22 mm, drilling depth 50 mm, 5 pcs.
HSS-core drills CDL, TiN-coated, 14/18/22 mm, drilling depth 50 mm, 5 pcs.
Art.Nr. : 41-11050
The TiN- and nACO-coated core drill-sets are out of...

€138.00

incl. 20% VAT
HSS-standard core drill-set CDL, 14 - 24 mm, drilling depth 50 mm
HSS-standard core drill-set CDL, 14 - 24 mm, drilling depth 50 mm
Art.Nr. : 41-11040
The HSS-standard core drill-set is out of high speed...

€186.00

incl. 20% VAT
HSS-core drill-set CDS, TiN-coated, 14 - 24 mm, drilling depth 25 mm
HSS-core drill-set CDS, TiN-coated, 14 - 24 mm, drilling depth 25 mm
Art.Nr. : 41-11041
The TiN- and nACO-coated core drill-sets are out of...

€164.40

incl. 20% VAT
HSS-core drill-set CDL, TiN-coated, 14 - 24 mm, drilling depth 50 mm
HSS-core drill-set CDL, TiN-coated, 14 - 24 mm, drilling depth 50 mm
Art.Nr. : 41-11042
The TiN- and nACO-coated core drill-sets are out of...

€198.00

incl. 20% VAT
High-performance lubrication spray BDS 5200 / 6 x 400 ml can
High-performance lubrication spray BDS 5200 / 6 x 400 ml can
Art.Nr. : 54-1211
Application mainly at over head or horizontal work,...

€100.80

incl. 20% VAT
High-performance lubrication spray BDS 5200 / 1 x 400 ml can
High-performance lubrication spray BDS 5200 / 1 x 400 ml can
Art.Nr. : 54-1210
Application mainly at over head or horizontal work,...

€22.80

incl. 20% VAT
High-performance cutting oil BDS 5000 / 5 ltr.
High-performance cutting oil BDS 5000 / 5 ltr.
Art.Nr. : 54-1209
High-performance cutting oil for medium to heavy...

€86.40

incl. 20% VAT
4 pcs. countersink and deburring tool
4 pcs. countersink and deburring tool
Art.Nr. : 41-1080
Using countersink and deburring tools, bores can be...

€58.80

incl. 20% VAT
Power clean-up magnet
Power clean-up magnet
Art.Nr. : 51-1050

€55.20

incl. 20% VAT
Universal-cooling fluid MN 1103, 5 l canister
Universal-cooling fluid MN 1103, 5 l canister
Art.Nr. : 54-1206
Coolant fluid - to be diluted with water - features...

€54.00

incl. 20% VAT
3 flute core drill set HSS, 6 - 13 mm, drilling depth 30 mm, 6 pcs.
3 flute core drill set HSS, 6 - 13 mm, drilling depth 30 mm, 6 pcs.
Art.Nr. : 41-1103
Core drill set are suitable for core drilling machines...

€106.80

incl. 20% VAT
Keyless drill chuck 1 - 13 mm / 1/2´´ - 20 UNF
Keyless drill chuck 1 - 13 mm / 1/2´´ - 20 UNF
Art.Nr. : 24-1076

€46.80

incl. 20% VAT
Keyless drill chuck 1 - 16 mm / 1/2´´ - 20 UNF
Keyless drill chuck 1 - 16 mm / 1/2´´ - 20 UNF
Art.Nr. : 24-1076B

€54.00

incl. 20% VAT
Drill chuck adapter 1/2´´ - 20 UNF / Weldon 19 mm
Drill chuck adapter 1/2´´ - 20 UNF / Weldon 19 mm
Art.Nr. : 53-1051

€19.20

incl. 20% VAT
Cutter extension 80 mm / Weldon 19 mm
Cutter extension 80 mm / Weldon 19 mm
Art.Nr. : 53-1054

€126.00

incl. 20% VAT
Countersink and deburring tool 90°, 15 - 50 mm, Weldon 19
Countersink and deburring tool 90°, 15 - 50 mm, Weldon 19
Art.Nr. : 41-1076
Using countersink and deburring tools, bores can be...

€147.60

incl. 20% VAT
High-performance cutting paste BDS 5500 / 1000 g
High-performance cutting paste BDS 5500 / 1000 g
Art.Nr. : 54-1207
Optimal useable for metals, high-alloyed steels,...

€31.20

incl. 20% VAT
High-performance cutting oil BDS 5000 / 1 ltr.
High-performance cutting oil BDS 5000 / 1 ltr.
Art.Nr. : 54-1208
High-performance cutting oil for medium to heavy...

€22.80

incl. 20% VAT
Key type drill chuck 1,5 - 13 mm / Weldon 19 mm
Key type drill chuck 1,5 - 13 mm / Weldon 19 mm
Art.Nr. : 24-1075C

€40.80

incl. 20% VAT
Pipe adapter TH 250
Pipe adapter TH 250
Art.Nr. : 01-1388
Unsere Rohrspannvorrichtungen für...

€336.00

incl. 20% VAT
Pipe adapter TH 550
Pipe adapter TH 550
Art.Nr. : 01-13880
Unsere Rohrspannvorrichtungen für...

€456.00

incl. 20% VAT

Für jeden Zweck das Richtige

Hobby
Semi-Professional
Professional
Industrial
Noch Fragen?

+43 732 / 664015
bernardo@pwa.at

"

Schnelle
Lieferung

"

Online
Kataloge

"

New Products

Test
Test
Art.Nr. : Test

Price on request

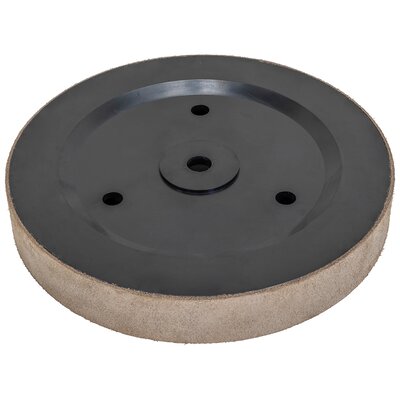

Leather wheel Ø 200 x 30 mm, Ø 12 mm f. NTS 200
Leather wheel Ø 200 x 30 mm, Ø 12 mm f. NTS 200
Art.Nr. : 05-20601

€45.60

incl. 20% VAT
Hydraulic guillotine shear HST 1600 x 6 *
Hydraulic guillotine shear HST 1600 x 6 *
Art.Nr. : 06-1922XL3

€17,760.00

incl. 20% VAT

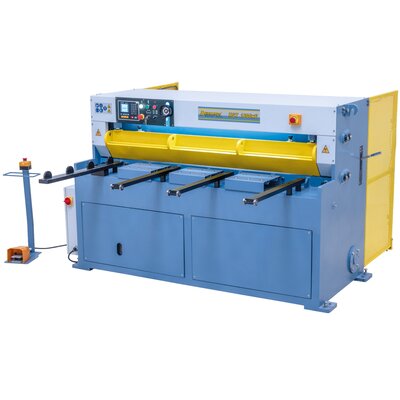

Hydraulic guillotine shear HST 1600 x 4 *
Hydraulic guillotine shear HST 1600 x 4 *
Art.Nr. : 06-1922XL2

€16,200.00

incl. 20% VAT

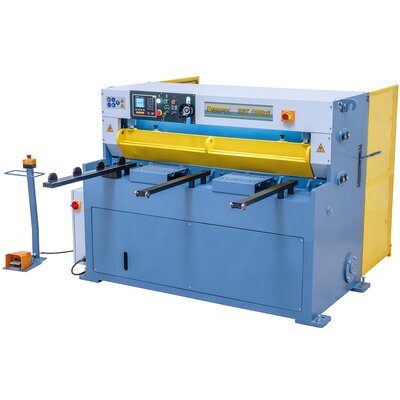

Hydraulic guillotine shear HST 1300 x 6 *
Hydraulic guillotine shear HST 1300 x 6 *
Art.Nr. : 06-1922XL1

€16,200.00

incl. 20% VAT

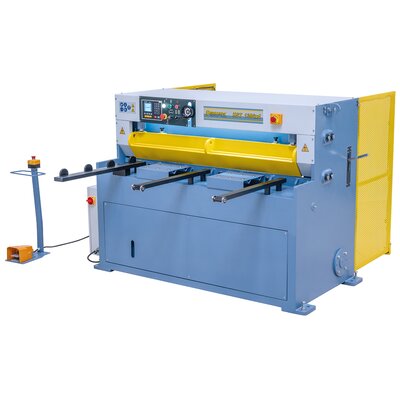

Hydraulic guillotine shear HST 1300 x 4 *
