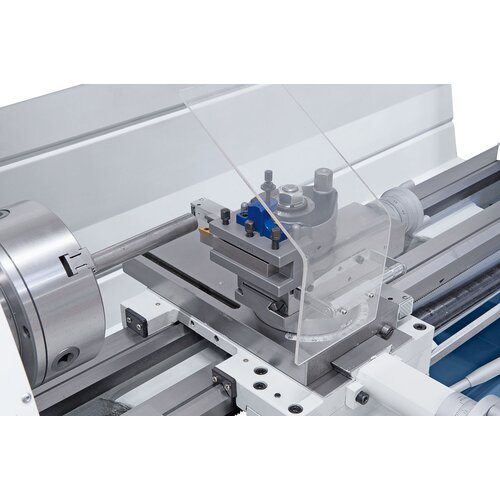

The quick-release tool holder system Multifix clearly reduces downtime and guarantees high accuracy at repetitious work. (optional)

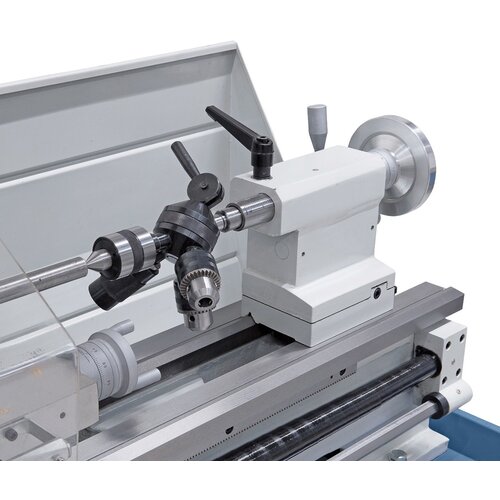

The machine can be equipped with a revolving tailstock turret to increase productivity.

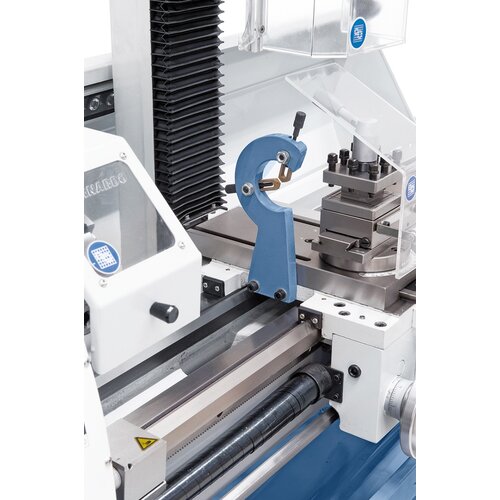

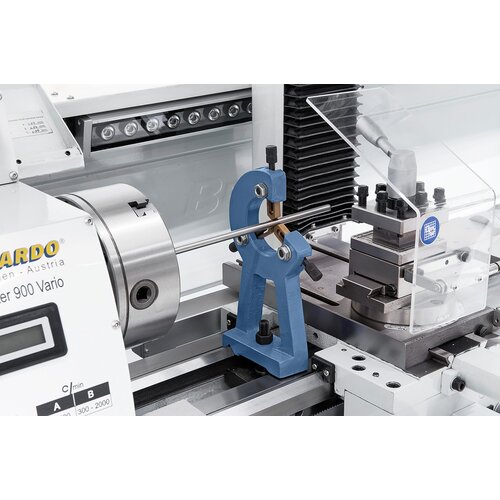

Steady rest with bronze guiding supports long workpieces.

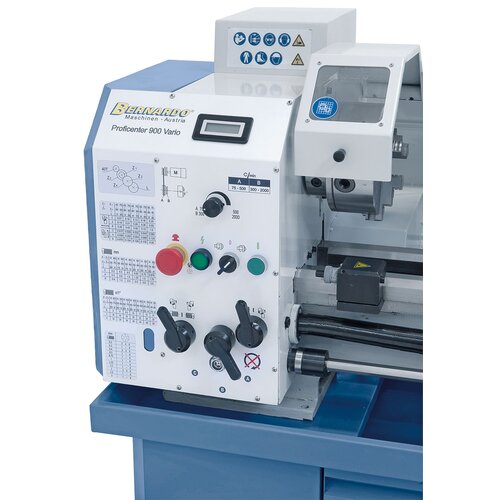

Electronic, stepless speed adjustment – easily read on digital display.

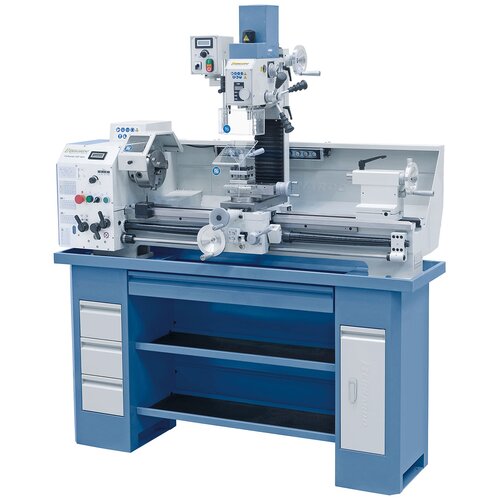

Machining centre Proficenter 900 Vario / 400 V

Art.Nr.: 03-1235

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

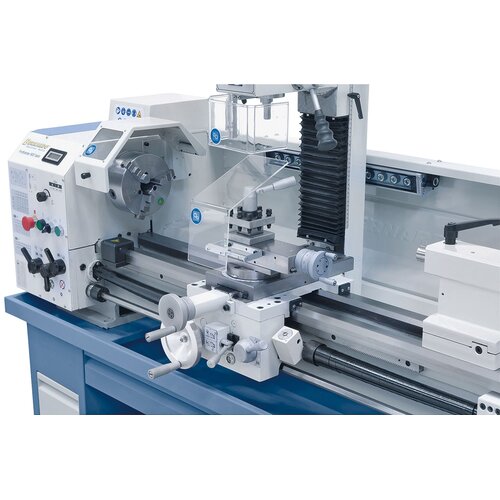

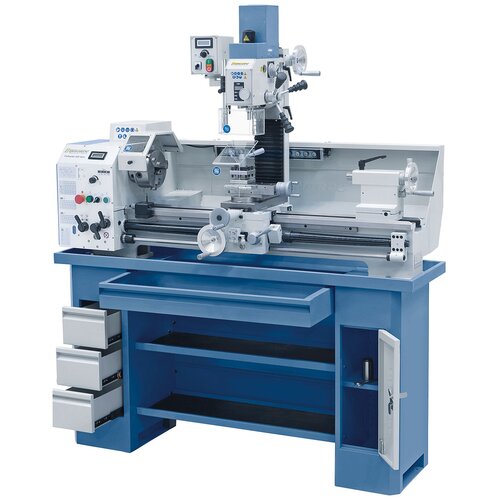

The machining centre Proficenter 900 Vario feature a large range of standard accessories (for instance milling attachment, DC-motor with frequency inverter, main spindle bearing in P5-quality, micrometric longitudinal fence, safety clutch, LED machine light,....) making this model ideal for users with high expectations. For reducing the non-productive time, the model is also available with a 2-axis digital readout.

€5,256.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Three -phase motor with frequency inverter for higher performance and high torque
Complete with 38 mm spindle bore to allow processing of large shaft diameters
Wide range of applications: precision mechanics, training and education, etc.
Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
Feed settings are logically arranged, easy to control with top accuracy
Suitable for processing of steel, non-ferrous metals and plastics
Prism bed with large support surface, inductively hardened and polished
Precise spindle bearing with two adjustable precision taper roller bearings

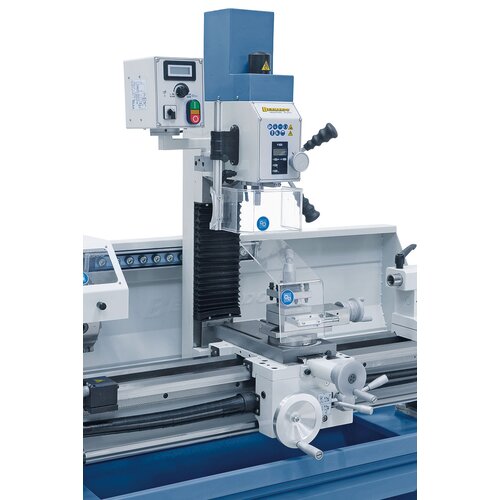

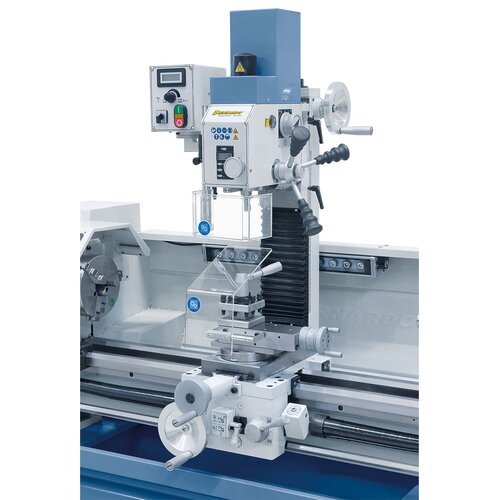

Mill head with digital display for spindle stroke and speed

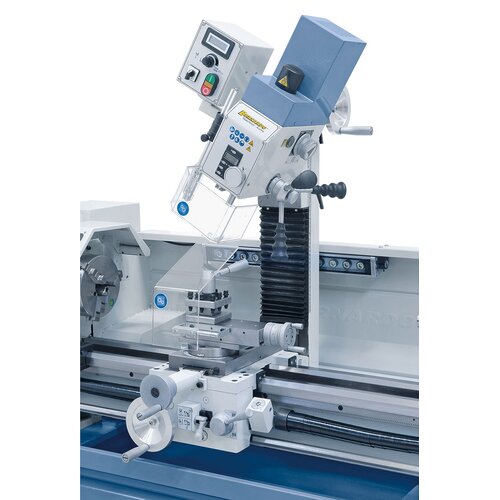

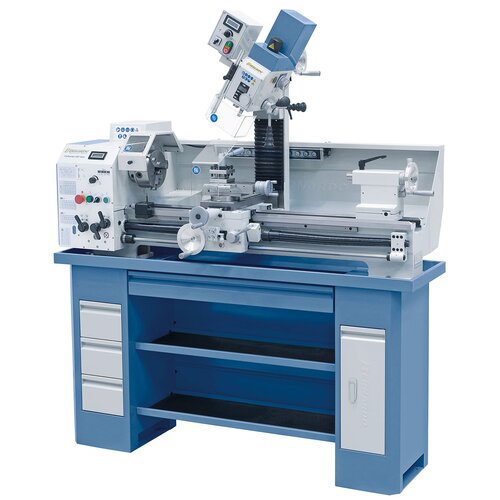

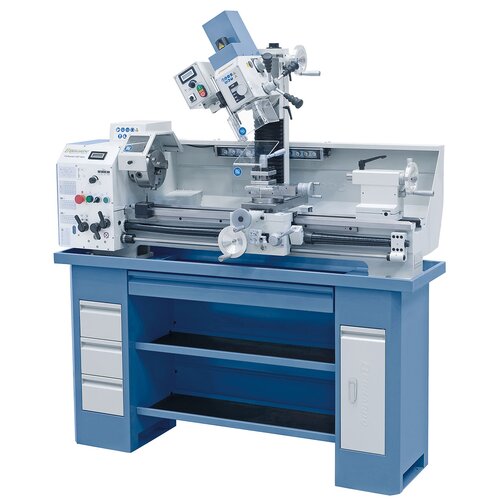

Mill head tilts to both sides allowing angular boring, milling of bevels etc

Product Specifications

Turning lathe
Distance between centers	900 mm
Center height	160 mm
Swing over bed	320 mm
Spindle bore	38 mm
Spindle nose fixture	DIN 55029, D1-4
Speed range, stepless	75 – 500 / 300 – 2000 rpm
Longitudinal feed	(15) 0,07 – 1,0 mm/rev.
Cross feed	(15) 0,017 – 0,25 mm/rev.
Metric thread	(18) 0,2 – 3,5 mm
Inch thread	(21) 8 – 56 Gg/1“
Travel of tailstock sleeve	100 mm
Taper of tailstock sleeve	MT 3
T-slot size at cross slide	12 mm
Motor power output S₁ 100%	1,5 KW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Milling attachment
Drilling capacity max.	20 mm
Face mill capacity max.	63 mm
End mill capacity max.	20 mm
Distance spindle to column	170 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Mill head tiltable	-90° to +90°
Height adjustment of mill head	260 mm
Motor power output S₁ 100%	0,60 kW / 230 V
Motor power input S₆ 40%	0,90 kW / 230 V

Machine dimension (W x D x H)*	1650 x 650 x 1120 mm
Weight approx.	303 kg

* without stand

Delivery Contents

3-jaw chuck DK11-160 mm / D4
Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 2 / B 16
Dead centers

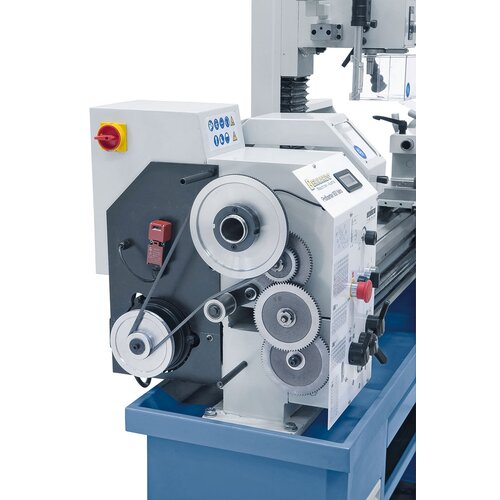

Change gears
4-way tool post holder

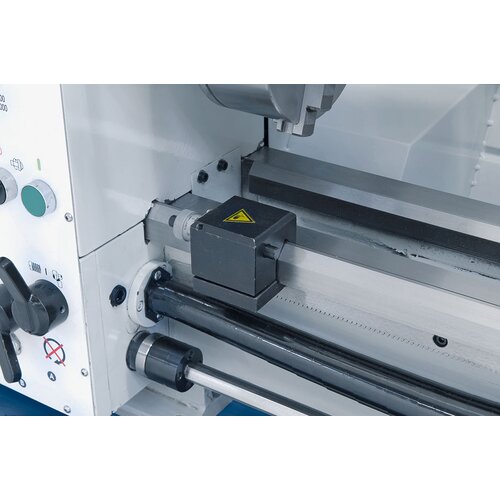

Safety clutch
Micrometer longitudinal fence
Cross slide with top support
Frequency inverter
Drawbar M 10
Digital spindle stroke indication
Digital speed indication
Thread dial
LED machine light
Chuck guard
Leadscrew cover
Splash guard
Tools
