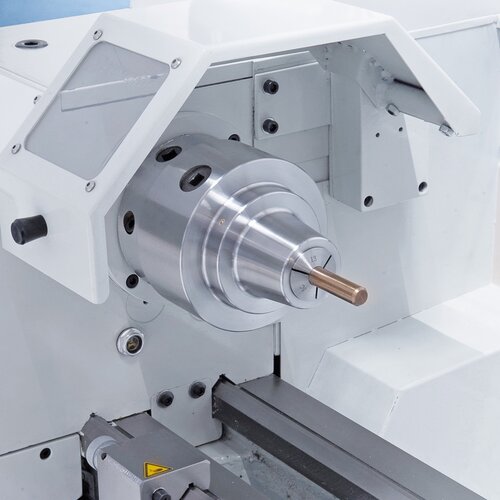

Optionally available: 5C round hole collet set, clamping area 3-26 mm

The standard 38 mm spindle bore allows processing of large shaft diameters.

Hardened spindle, high-quality taper bearings ensure high concentricity of spindle nose (≤ 0.015 mm)

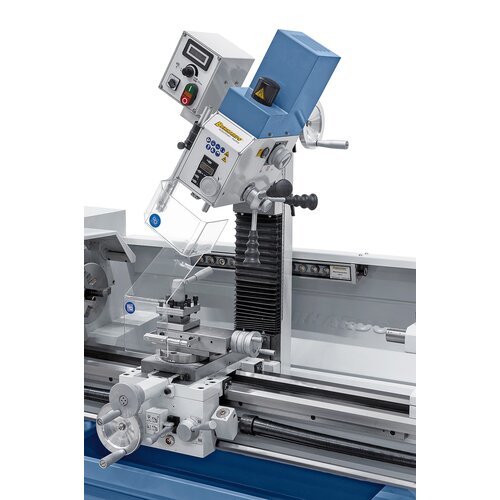

Mill head comes with digital display for drill depth and speed – drilling and milling possible at all angles.

Convenient pre-selection of gears via reduction gearing, potentiometer allows for speed adjustment.

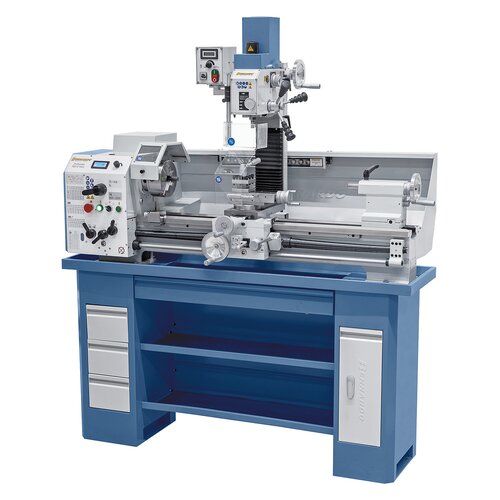

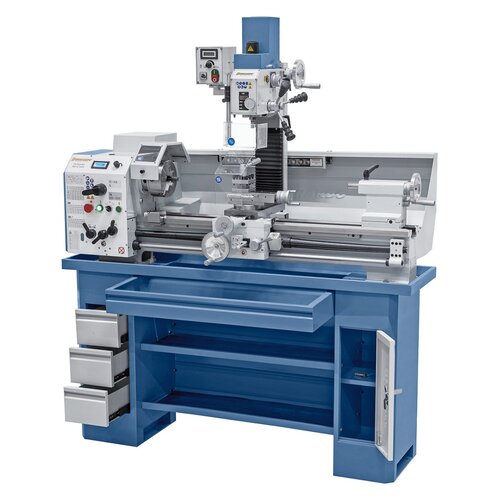

Machining centre Proficenter 880 G Vario / 400 V

Art.Nr.: 03-1231

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Proficenter 880 G Vario features a reduction gear as standard, which eliminates the need to change speed step using V-belt. Another feature of this machine is the standard frequency inverter, resulting in high torque in the lower speed range and the nearly constant speed at heavy workloads. The machining centre allows drilling, milling and turning on minimum space, comes with a digital display of drill depth and speed for high comfort and features a large spindle bore.

€5,736.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Complete with 38 mm spindle bore to allow processing of large shaft diameters
Strongly reinforced machine bed featuring induction-hardened, polished guide
Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

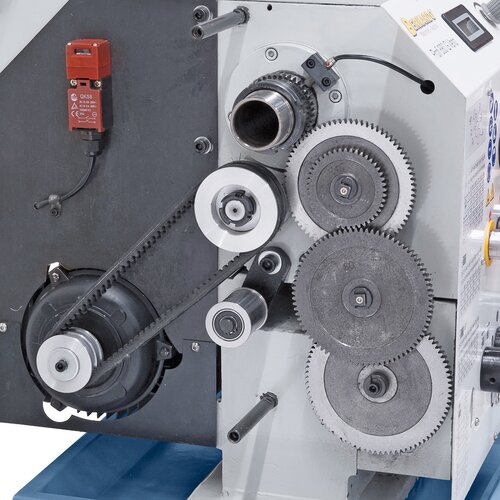

Change gears for cutting of metric threads are part of the standard accessories
Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
Main spindle features adjustable tapered roller bearings in P5 quality

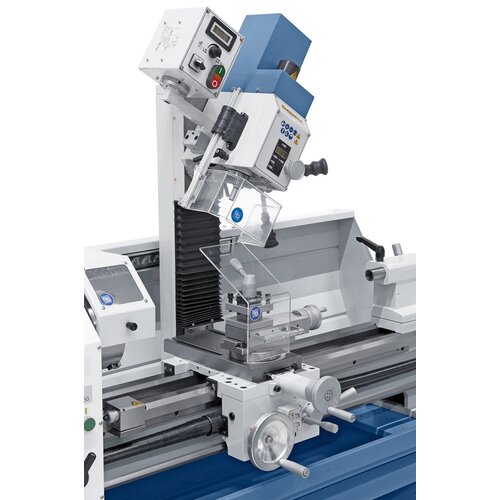

Mill head with digital display for spindle stroke and speed

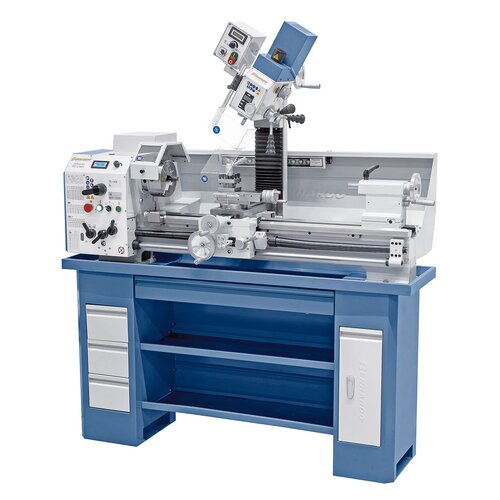

Mill head tilts to both sides allowing angular boring, milling of bevels etc.
Suitable for processing of steel, non-ferrous metals and plastics

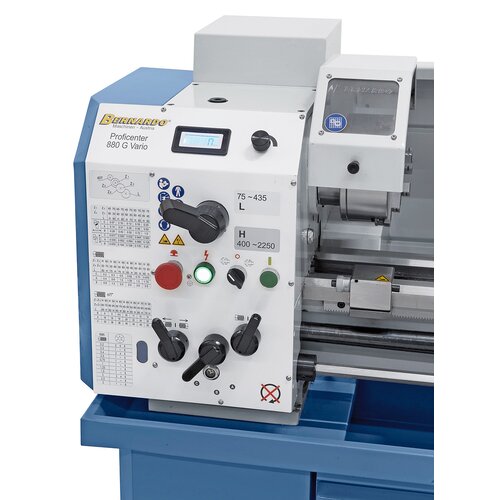

User-friendly arrangement of control elements on gear head
Tailstock features single-lever clamping, adjustable for taper turning

Product Specifications

Turning lathe
Distance between centers	880 mm
Center height	160 mm
Swing over bed	320 mm
Spindle bore	38 mm
Spindle nose fixture	DIN 55029, D1-4
Speed range, stepless	75 – 435 / 400 – 2250 rpm
Longitudinal feed	(15) 0,07 – 1,0 mm/rev.
Cross feed	(15) 0,017 – 0,25 mm/rev.
Metric thread	(18) 0,2 – 3,5 mm
Inch thread	(21) 8 – 56 threads/1“
Travel of tailstock sleeve	100 mm
Taper of tailstock sleeve	MT 3
T-slot size at cross slide	12 mm
Motor power output S₁ 100%	1,5 KW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Milling attachment
Drilling capacity max.	20 mm
Face mill capacity max.	63 mm
End mill capacity max.	20 mm
Distance spindle to column	170 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Mill head tiltable	-90° to +90°
Height adjustment of mill head	260 mm
Motor power output S₁ 100%	0,60 kW / 230 V
Motor power input S₆ 40%	0,90 kW / 230 V

Machine dimension (W x D x H)*	1660 x 650 x 1090 mm
Weight approx.	318 kg

* without stand

Delivery Contents

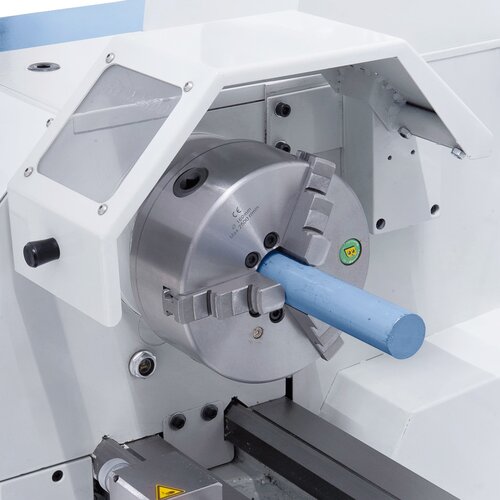

3-jaw chuck DK11-160 mm / D4
Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 2 / B 16
Dead centers
Change gears
4-way tool post holder
Safety clutch
Micrometer longitudinal fence

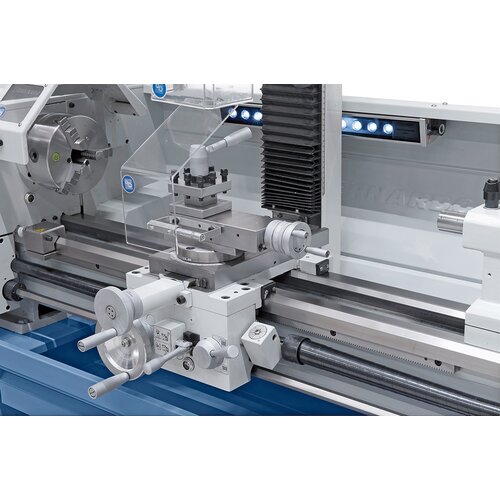

Cross slide with top support
Frequency inverter
Drawbar M 10
Digital spindle stroke indication
Digital speed indication
Thread dial
LED machine light
Chuck guard
Leadscrew cover
Splash guard
Tools

Suitable accessories

5C round hole collets set, 3 - 26 mm, 24 pcs.

Art.Nr. : 22-1097

€354.00
