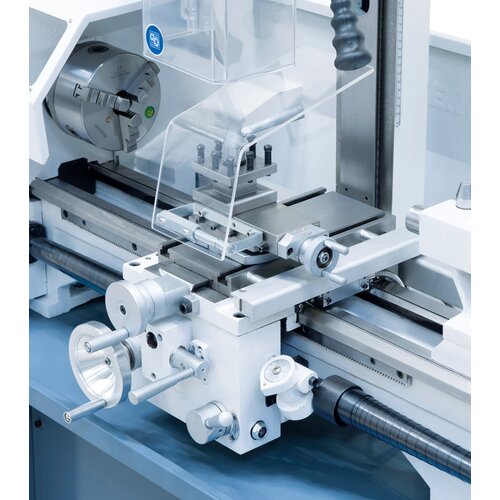

Ergonomically arranged gear lever allows adjustment of longitudinal and cross feed.

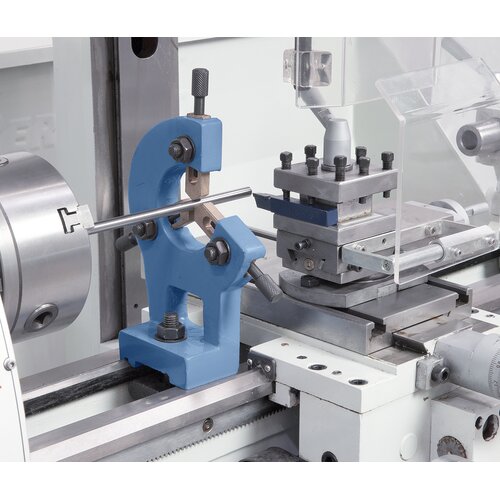

Steady rest with bronze guiding supports long workpieces.

Mill head comes with digital display for drill depth and speed – drilling and milling possible at all angles.

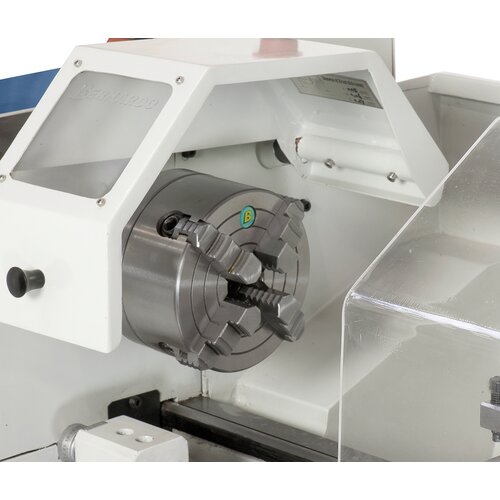

Independent chuck (optional accessory) allows clamping of irregular shaped workpieces.

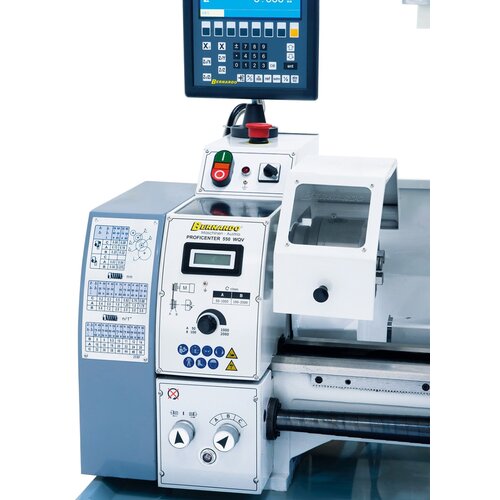

Electronic stepless speed adjustment – easy readout on digital display.

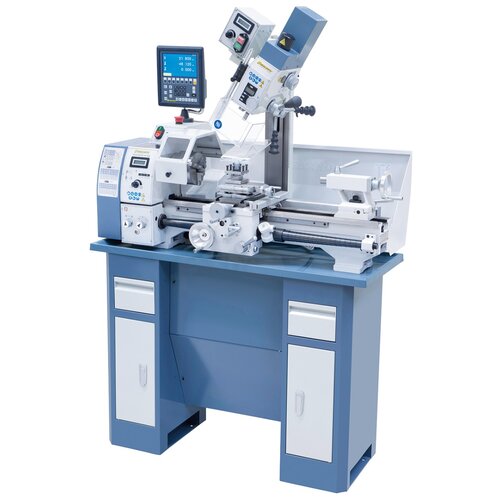

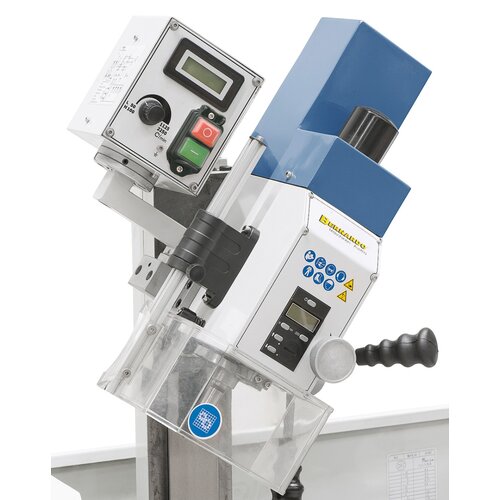

Milling head tiltable from -90° to +90°.

Milling head tiltable from -90° to +90°.

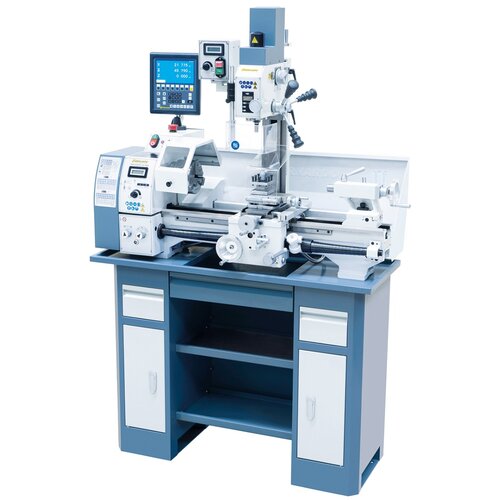

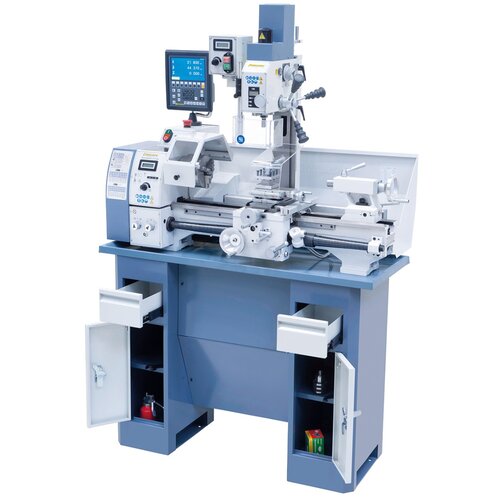

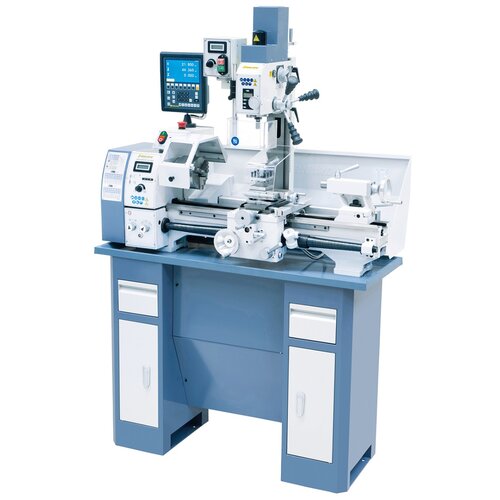

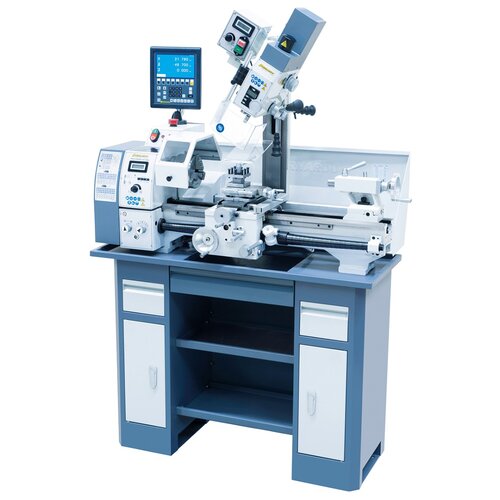

Machining centre Proficenter 550 WQV / 230 V incl. 2-axis digital readout ES-12 V

Art.Nr.: 03-1242

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Proficenter 550 WQV meets all requirements of precision mechanics, training workshops and education. The machining centre allows drilling, milling and turning on minimum space, comes with a digital display of drill depth and speed for high comfort and features a large spindle bore.

€3,984.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Hardened spindle, standard 26 mm bore
Electronic, stepless speed setting allows ideal adjustment to workpiece
Serially equipped with longitudinal and cross feed
Inductively hardened and polished machine bed provides large surface
Constructed according to Bernardo-Standards
Precise spindle bedding with 2 adjustable precision taper roller bearings
User-friendly arrangement of control elements on gear head
Protective switch according to IP54 standards with undervoltage release
Swivelling mill head extends application area (-90° to +90°)
Mill head with digital display for spindle stroke and speed

Product Specifications

Turning lathe
Distance between centers	550 mm
Center height	125 mm
Swing over bed	250 mm
Spindle bore	26 mm
Taper at spindle bore	MT 4
Speed range, stepless	50 - 2000 / 100 - 2000 rpm
Longitudinal feed	(6) 0,07 - 0,40 mm/rev.
Cross feed	(4) 0,03 - 0,075 mm/rev.
Metric thread	(18) 0,2 - 3,5 mm
Inch thread	(21) 8 - 56 threads/1“
Travel of tailstock sleeve	70 mm
Taper of tailstock sleeve	MT 2
T-slot size for cross slide	10 mm
Motor power output S₁ 100%	0,75 kW / 230 V
Motor power input S₆ 40%	1,0 kW / 230 V
Milling attachment
Drilling capacity in steel	16 mm
Face mill capacity max.	50 mm
End mill capacity max.	16 mm
Distance spindle to column	150 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Mill head tiltable	-90° to +90°
Height adjustment of mill head	195 mm
Motor power output S₁ 100%	0,50 kW / 230 V
Motor power input S₆ 40%	0,75 kW / 230 V
Machine dimension (W x D x H)*	1210 x 610 x 860 mm
Weight approx.	165 kg

* without stand

Delivery Contents

2-axis digital readout ES-12 V with LCD-display
3-jaw chuck DK11-125 mm
Flange 125 mm
Drill chuck 1 – 13 mm / B 16
Drill chuck arbor MT 2 / B 16
Thread dial
Dead centers

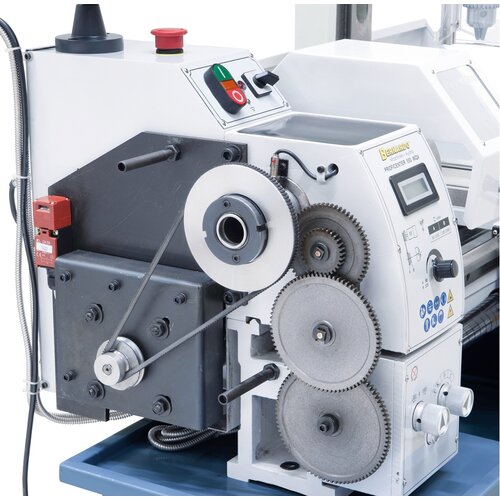

Change gears
4-way tool post holder
Cross slide with top support
Digital spindle stroke display
Digital speed display
Drawbar M 10
Chuck guard
Leadscrew cover
Tools
