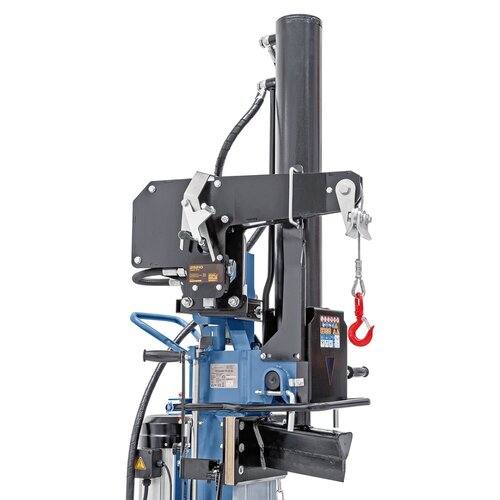

Optional available: Hydraulic winch

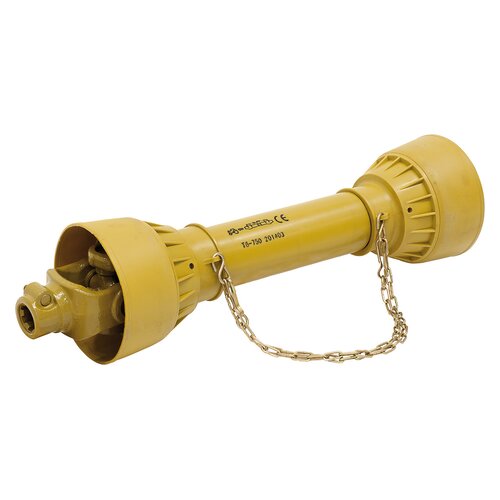

PTO shaft optional available

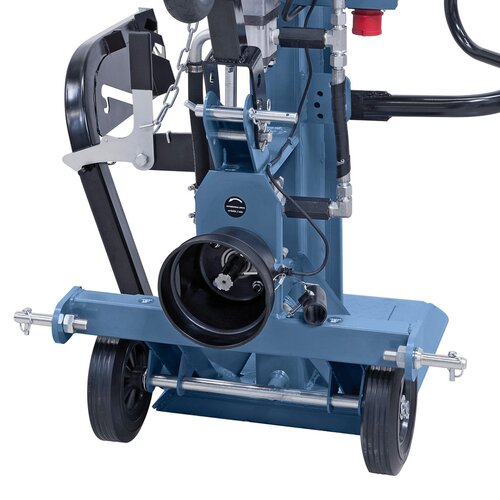

Serially with three-point attachment according to cat I/II and pins

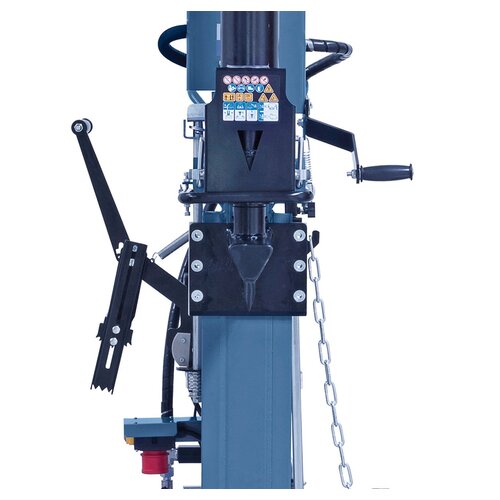

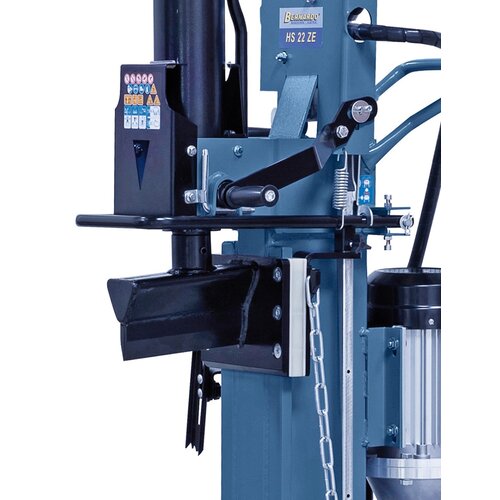

Large splitting wedge features solid, durable plastic guide.

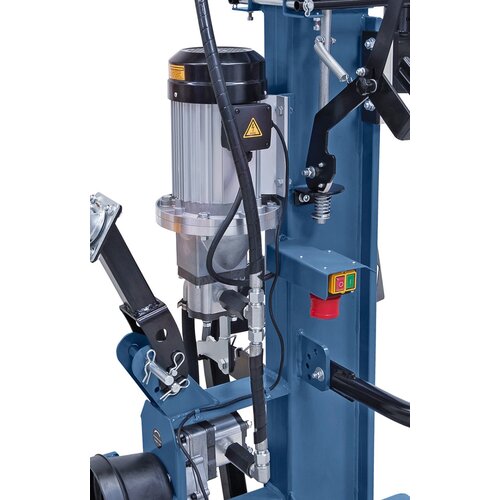

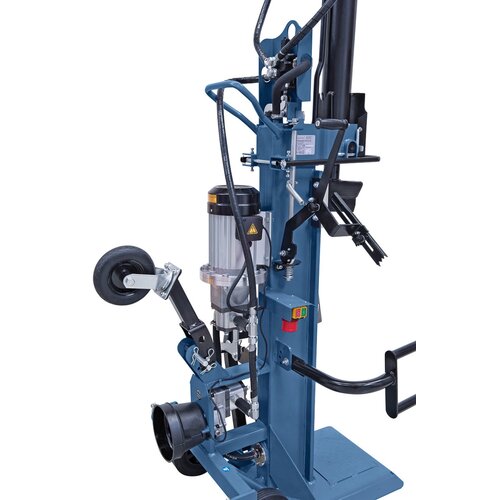

With powerful electro motor and high quality hydraulic pump.

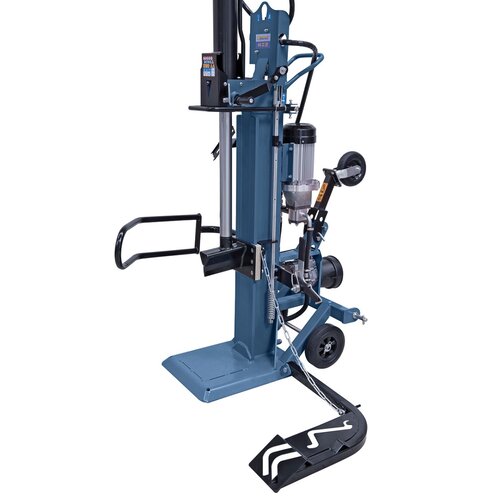

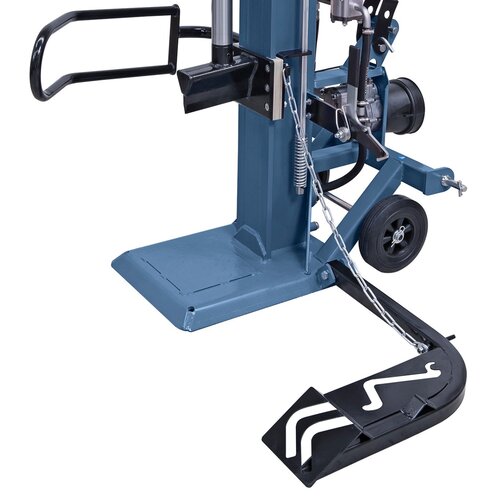

For raising of heavy logs complete with mechanic log lifter.

Two-handed safety operation for safe work, forward speed alternatively fast or slow.

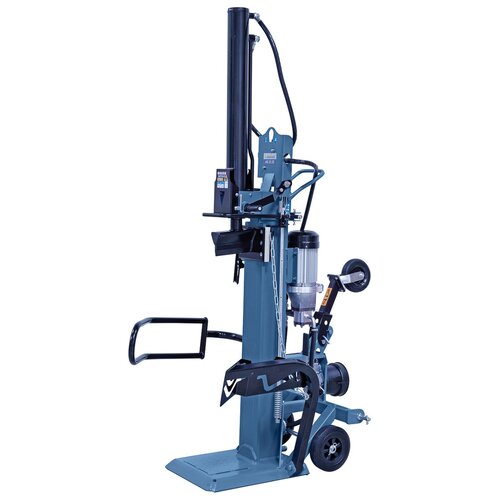

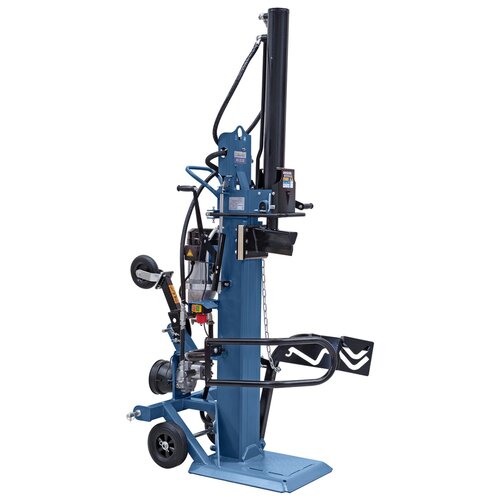

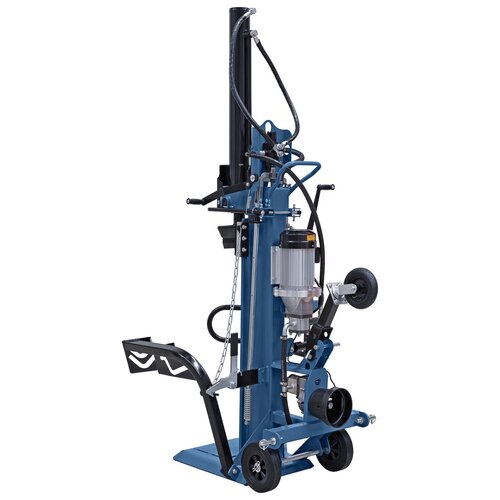

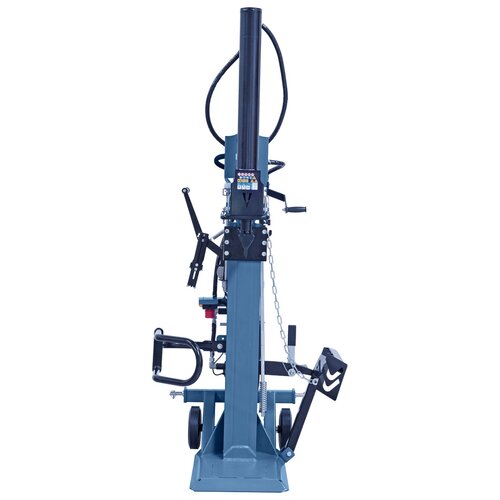

Log splitter HS 22 ZE *

Art.Nr.: 14-1210

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The HS series of log splitters comes with a choice of PTO drive or a combination of electro-/PTO drive. Innovative technology makes these models stand out, such as the two-handed safety operation, the fast cutting speed for high work efficiency, stepless adjustable cutting stroke as well as a log lifter as part of the standard accessories.

€2,472.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
Allows for cutting of short and long logs up to 1100 mm
Selection of PTO drive and electro/ PTO drive
High quality powder coating ensures scratch proof surface
Large splitting wedge features solid, durable plastic guide
Stepless adjustable cutting stroke allows for less time consumption
Low base plate with bevelled edge enables more convenient loading of large logs
Lowerable cylinder reduces space requirements and simplifies transport
Powerful hydraulic unit features high quality pressure hoses

Product Specifications

Max. capacity	22 to
Log length	560 – 1100 mm
Log diameter	80 – 350 mm
Ram travel max.	948 mm
Forward speed*	10,5 cm/sec
Working speed*	4,3 cm/sec
Return speed*	7,5 cm/sec
Hydraulic pressure	27,5 Mpa
Hydraulic tank	24 l
Drive	E-Motor and PTO
Motor power S₆ 40%	5,1 kW / 400 V
Power take-off speed	540 rpm
Tractor capacity	> 20 HP
Machine dimension (L x W x H)	1400 x 1500 x 2500 mm
Weight approx.	314 kg
