Large splitting wedge features solid, durable plastic guide.

For raising of heavy logs complete with mechanic log lifter.

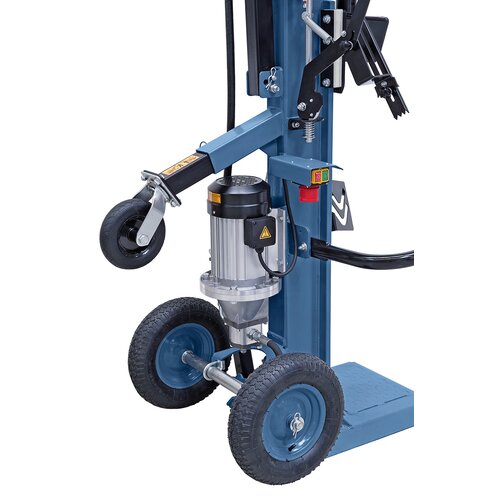

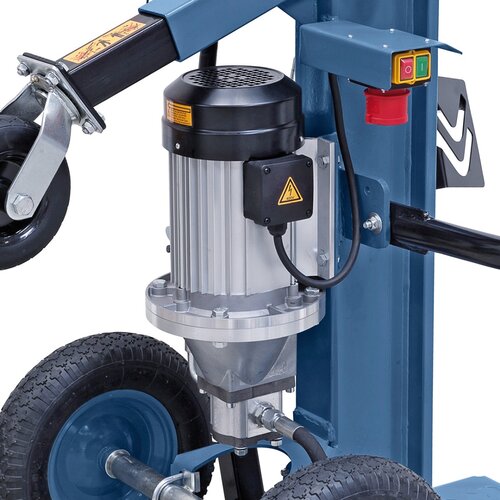

Powerful electro motor and high quality hydraulic pump.

Large rubber wheels allow for easy transport.

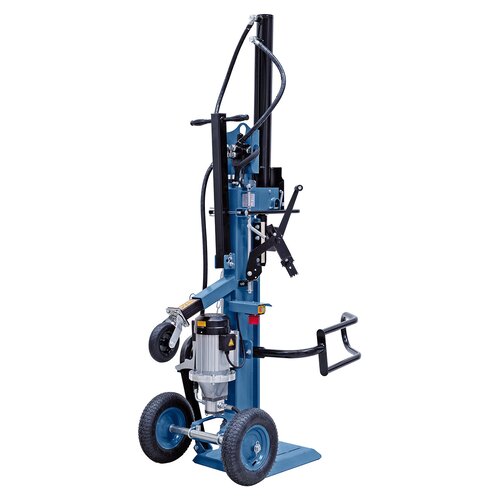

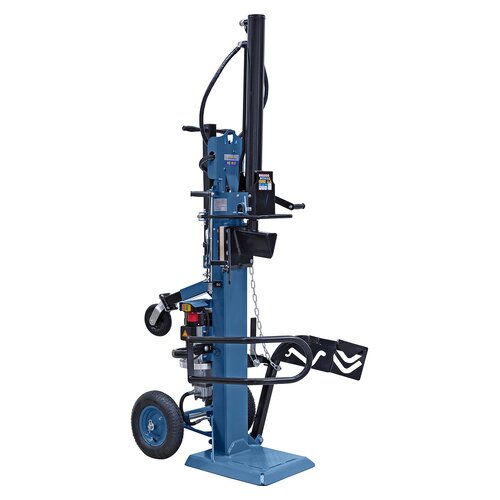

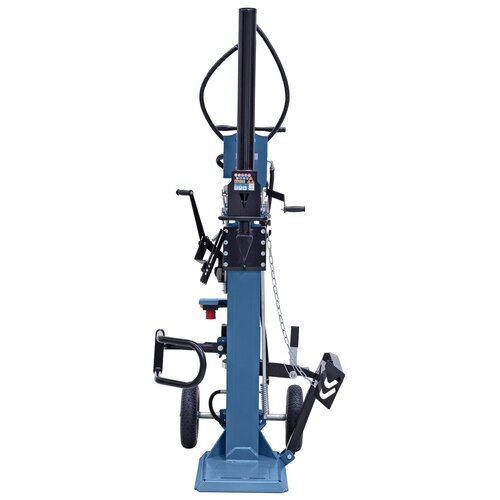

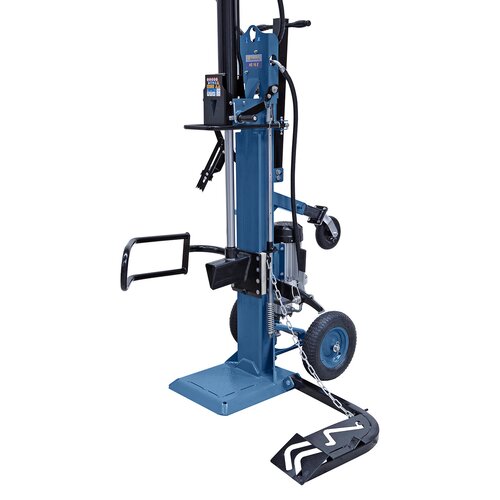

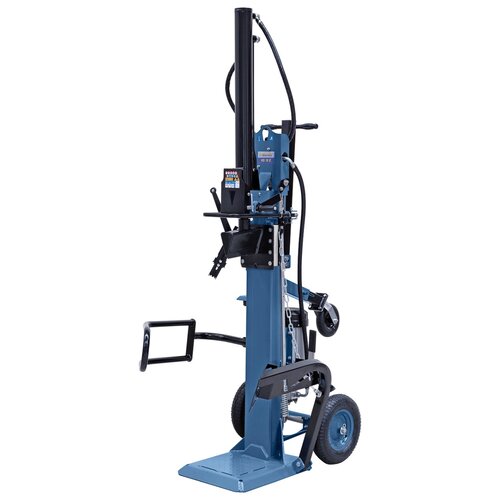

Log splitter HS 16 E *

Art.Nr.: 14-1208

Wishlist Comparison List

The HS 16 E log splitter features innovative technology, such as two-handed safety operation, fast cutting speed for high work efficiency, stepless adjustable splitting stroke as well as a log lifter as part of the standard accessories.

€1,674.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

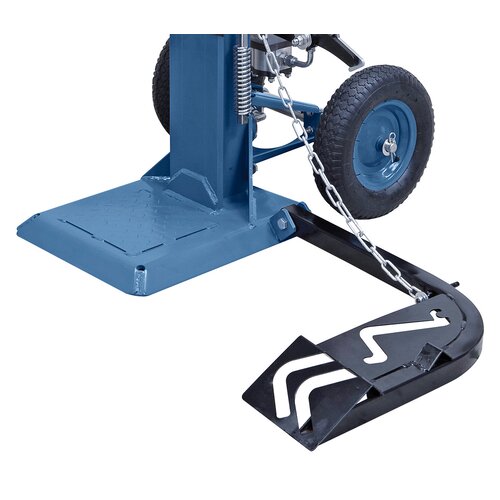

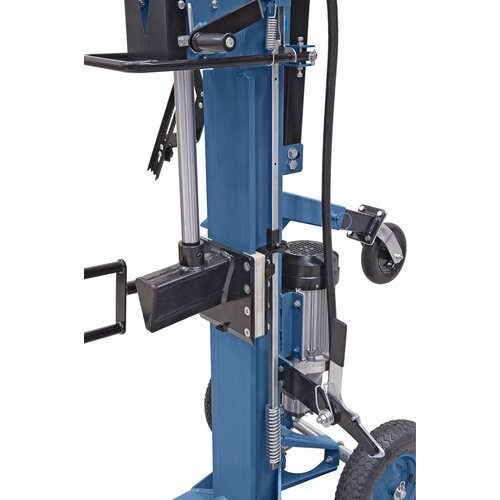

Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
Allows for cutting of short and long logs up to 1100 mm

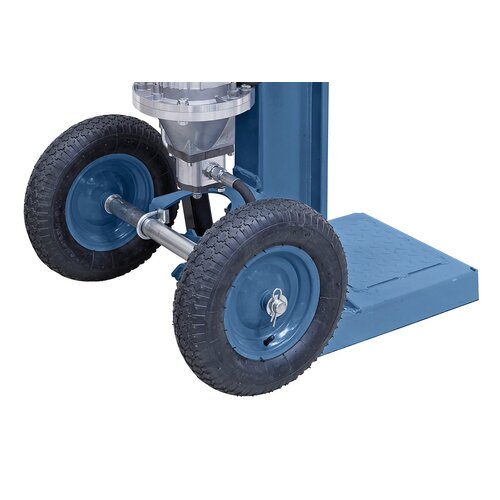

Easy transport by trolley with large rubber wheels
High quality powder coating ensures scratch proof surface
Large splitting wedge features solid, durable plastic guide
Stepless adjustable cutting stroke allows for less time consumption
Low base plate with bevelled edge enables more convenient loading of large logs
Lowerable cylinder reduces space requirements and simplifies transport
Powerful hydraulic unit features high quality pressure hoses

Product Specifications

Max. capacity	16 to
Log length	560 – 1100 mm
Log diameter	80 – 300 mm
Ram travel max.	948 mm
Forward speed	14,2 cm/sec
Working speed	4,6 cm/sec
Return speed	6,4 cm/sec
Hydraulic pressure	27,7 Mpa
Hydraulic tank	18 l
Drive	E-Motor
Motor power S₆ 40%	4,5 kW / 400 V
Machine dimension (L x W x H)	1400 x 1600 x 2400 mm
Weight approx.	259 kg
