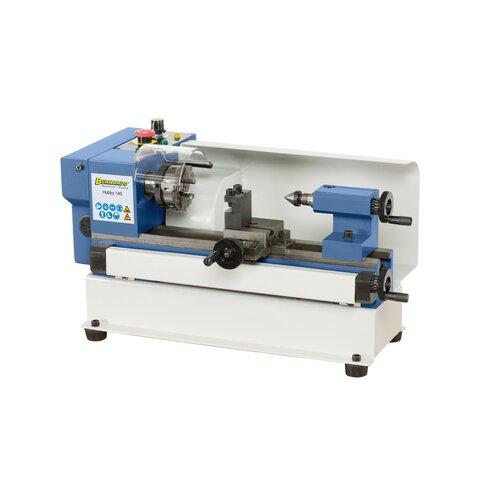

Lathe Hobby 140
Art. No.: 03-0999The precise bench lathe Hobby 140 is ideal for machining of smaller workpieces. The compact construction provides vibration-free environments for precision mechanic, watchmaker, goldsmith and at the model making.
€475.00
Availability
Out of Stock
Product Properties
- Electronic, stepless adjustable drive by direct current motor
- Wide speed range from 0 - 3800 rpm
- Optional accessories increase application area
- Compact, small construction, optimal price-performance ratio
- Ideal for working with steel, non-ferrous metals and plastics
- High-quality ball bearings guarantees high concentricity
- Inductive hardened and polished machine bed
- Guides adjustable by gibs
- Small and compact construction eliminates most vibrations
Product Specifications
|
Distance between centers |
140 mm |
|
Center height |
55 mm |
|
Swing over bed |
110 mm |
|
Swing over cross slide |
60 mm |
|
Spindle bore |
10 mm |
|
Speed range, stepless |
0 - 3800 rpm |
|
Travel of tailstock sleeve |
25 mm |
|
Taper of tailstock sleeve |
cylindrical Ø 10 mm |
|
Motor power output S1 100% |
0,15 kW / 230 V |
|
Motor power input S6 40% |
0,20 kW / 230 V |
|
Machine dimension (W x D x H) |
420 x 300 x 230 mm |
|
Weight approx. |
14 kg |
Delivery Contents
- 3-jaw chuck 50 mm
- Chuck guard
- Tool holder
- Live center cylindrical
- Splash guard
- Tools
