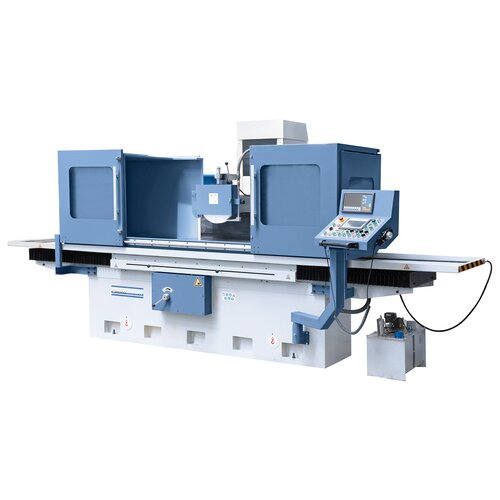

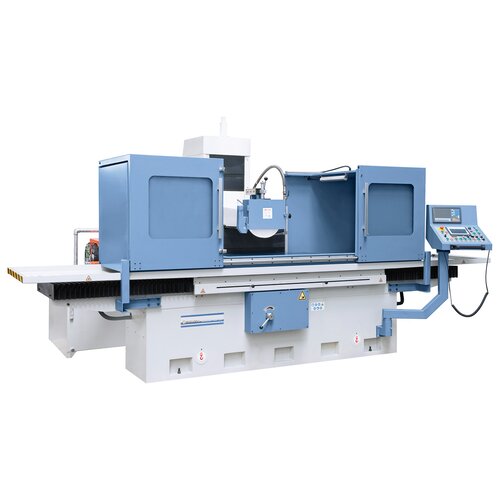

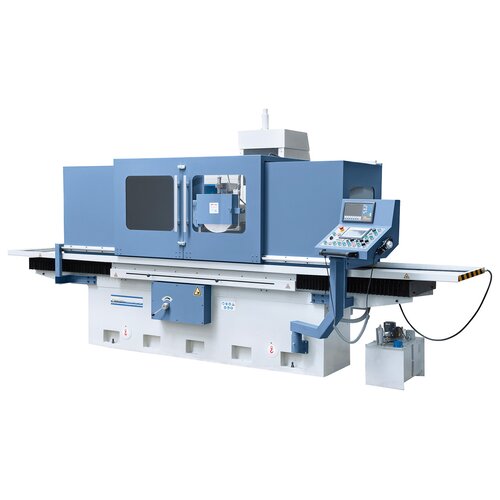

Hydraulic surface grinding machine BSG 60160 PLC with 2-axis digital readout ES-12 H **
Art.Nr.: 05-1453XL€72,300.00
incl. 20% VATAvailability
Product Properties
- Hardened and polished table guides cross and longitudinal. Durcite- B coated counter guides ensure high rigidity and low friction
- Longitudinal and cross movement takes place via V-flat guiding
- Computer automated feed via rapid feed to workpiece height, adjustable roughing and surface finishing stroke, automatic return into start position at end of program
- Axial and radial bearings in grinding spindle are clamped clearance free
- Annealed machine base guarantees high accuracy
- Strong reinforcements and thick walls ensure rigidity
- End stops allow adjustable longitudinal and cross travel
- State of the art hydraulic system guarantees soft table traverse even at high work load
- Including Siemens PLC-control for programming simple sanding cycles via touchscreen
Product Specifications
|
Table dimensions |
600 x 1600 mm |
|
T-slot quantity / width |
3 / 18 mm |
|
Electric magnet clamping plate |
600 x 800 mm (2 pcs.) |
|
Max. travel, longitudinal |
1750 mm |
|
Max. travel, cross |
660 mm |
|
Max. distance spindle / table |
600 mm |
|
Max. workpiece weight* |
1300 kg |
|
Grinding wheel |
350 x 50 x 127 mm |
|
Table speed, hydraulic |
5 - 25 mm/min |
|
Cross adjustment |
|
|
Automatic adjustment, cross |
0,5 - 20 mm/stroke |
|
Rapid feed, cross |
50 - 600 m/min |
|
Vertical adjustment |
|
|
Automatic adjustment, vertical |
0,005 / 0,01 / 0,015 / |
|
|
0,02 / 0,03 / 0,04 mm |
|
Rapid feed, vertical |
50 - 500 mm/min |
|
Motor power of sanding spindle |
7,5 kW |
|
Spindle speed |
1450 rpm |
|
Motor power of hydraulic pump |
5,5 kW |
|
Total connected load |
18 kW |
|
Length |
5500 mm |
|
Depth |
2750 mm |
|
Height |
2700 mm |
|
Weight approx. |
7000 kg |
* with magnet clamping plate
Delivery Contents
- 2-axis digital readout ES-12 H with LCD-display

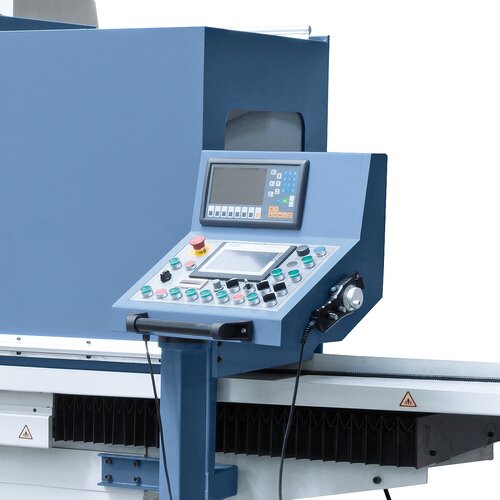

- Siemens SMART-panel IE V3 with touch screen
- Electronic handwheel

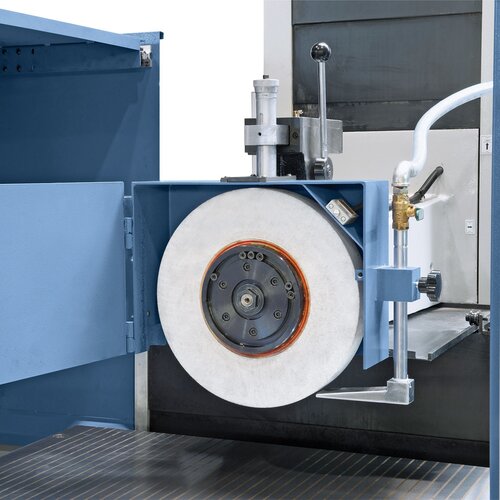

- Grinding wheel
- Flange
- LED working light
- Magnetic clamping plate
- Balancing stand
- Balancing arbor
- Protective covers
- Parallel dresser
- Demagnetization device

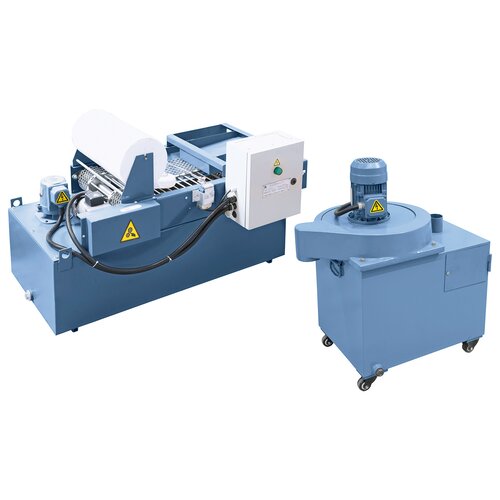

- Coolant device
- Dressing diamond
- Machine feet

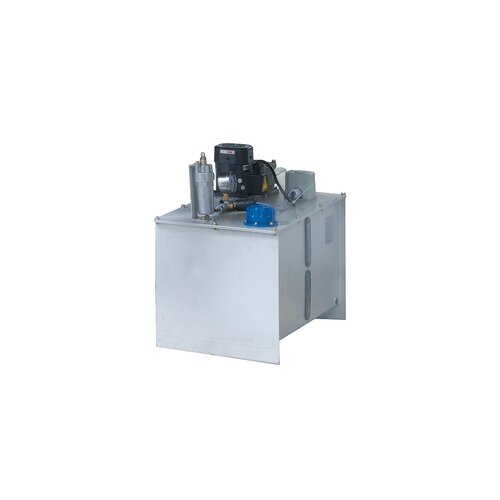

- Central lubrication
- Hydraulik oil cooler
- Tools
