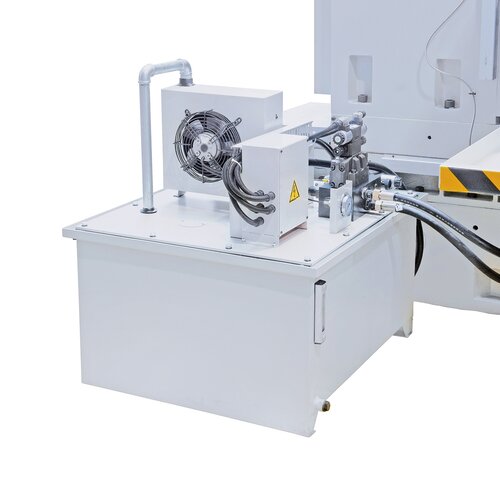

Individual hydraulic unit with oil cooling eliminates vibrations and thermal strain on the machine frame.

Manual parallel dressing device features micrometric adjustment as standard.

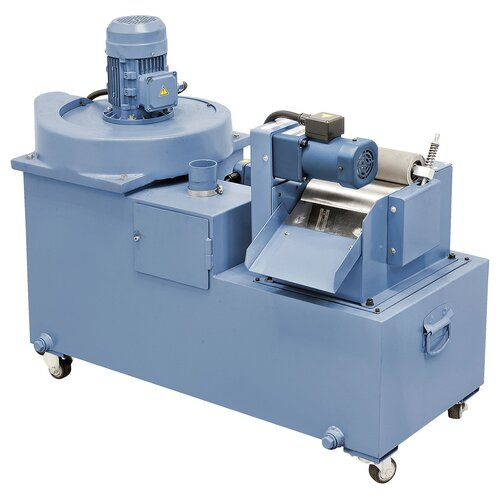

Coolant device with extractor and magnetic seperator are optionally available.

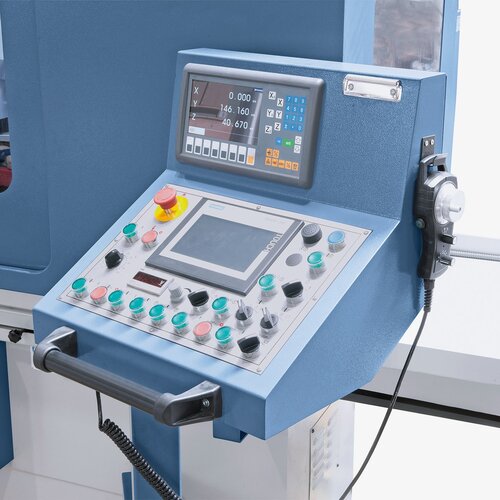

Including Siemens SMART-Paneel IE V3 with touchscreen and electronic handwheel

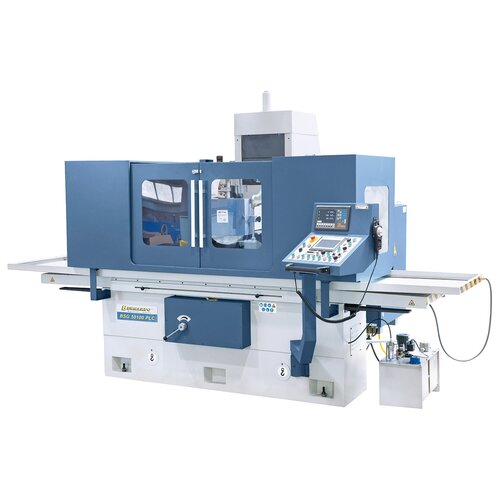

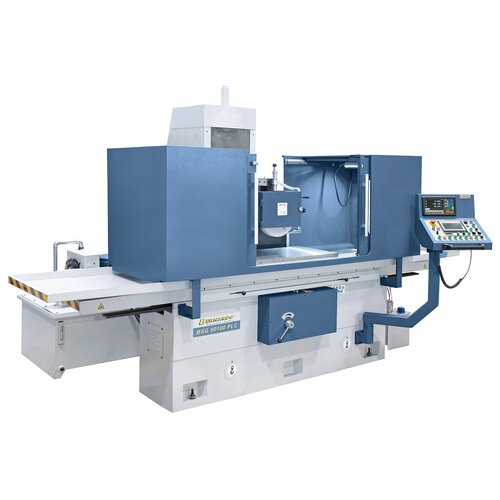

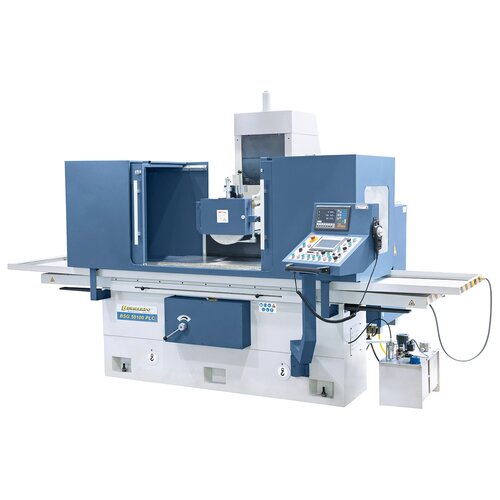

Hydraulic surface grinding machine BSG 50100 PLC with 2-axis digital readout ES-12 H **

Art.Nr.: 05-1450XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

These models are suitable models for processing of workpieces up to 700 kg and a grinding surface up to 1150 x 560 mm. The extensive range of standard equipment ensures optimal performance eg. Computer automated vertical feed, parallel dresser with micrometre setting, magnetic clamping plate with demagnetization device and 2-axis digital readout.

€60,300.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Hardened and polished table guides cross and longitudinal. Durcite- B coated counter guides ensure high rigidity and low friction
Longitudinal and cross movement takes place via V-flat guiding
Computer automated feed via rapid feed to workpiece height, adjustable roughing and surface finishing stroke, automatic return into start position at end of program
Axial and radial bearings in grinding spindle are clamped clearance free
Annealed machine base guarantees high accuracy
Strong reinforcements and thick walls ensure rigidity
End stops allow adjustable longitudinal and cross travel
State of the art hydraulic system guarantees soft table traverse even at high work load
Including Siemens PLC-control for programming simple sanding cycles via touchscreen

Product Specifications

Table dimensions	500 x 1100 mm
T-slot quantity / width	3 / 18 mm
Electric magnet clamping plate	500 x 1000 mm
Max. travel, longitudinal	1150 mm
Max. travel, cross	560 mm
Max. distance spindle / table	600 mm
Max. workpiece weight*	700 kg
Grinding wheel	350 x 50 x 127 mm
Table speed, hydraulic	5 - 25 m/min
Cross adjustment
Automatic adjustment, cross	0,5 - 30 mm/stroke
Rapid feed, cross	0 - 600 mm/min
Vertical adjustment
Automatic adjustment, vertical	0,005 / 0,01 / 0,015 /
	0,02 / 0,03 / 0,04 mm
Rapid feed, vertical	0 - 300 mm/min
Motor power of sanding spindle	7,5 kW
Spindle speed	1440 rpm
Motor power of hydraulic pump	3,0 kW
Total connected load	13,2 kW
Length	3880 mm
Depth	2150 mm
Height	2420 mm
Weight approx.	5500 kg
* with magnet clamping plate
