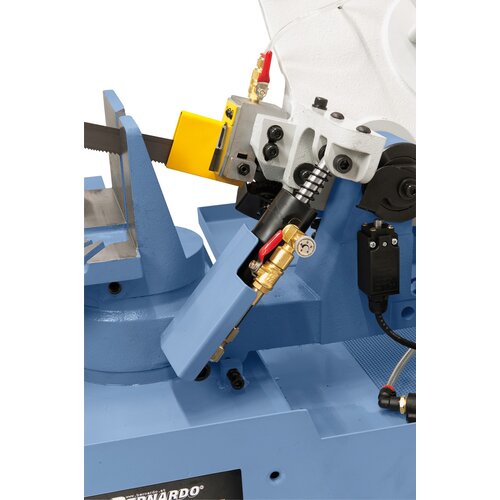

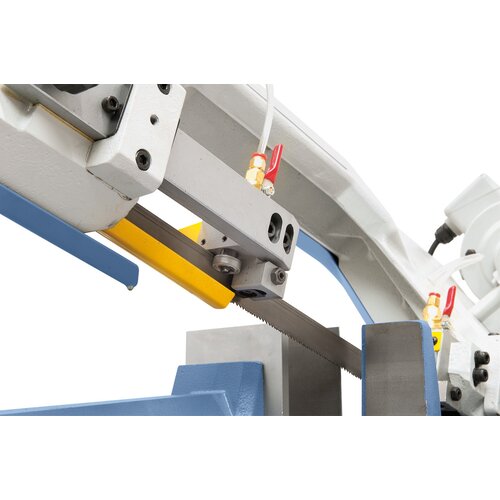

Combined roll-carbide inserts for ideal bandsaw blade guiding ensure best cutting results.

Combined roll-carbide inserts for ideal bandsaw blade guiding ensure best cutting results.

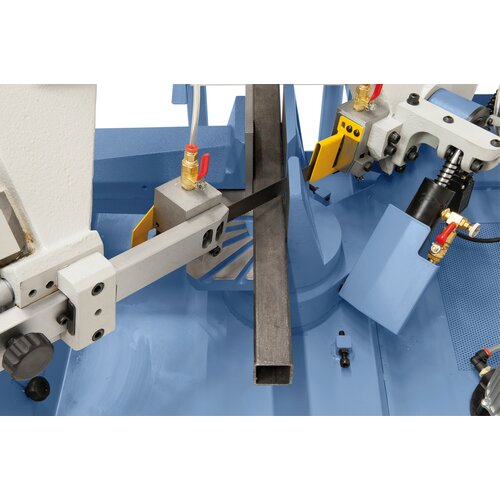

Tiltable saw frame for mitre cuts from 90° to 60°.

Tiltable saw frame for mitre cuts from 90° to 60°.

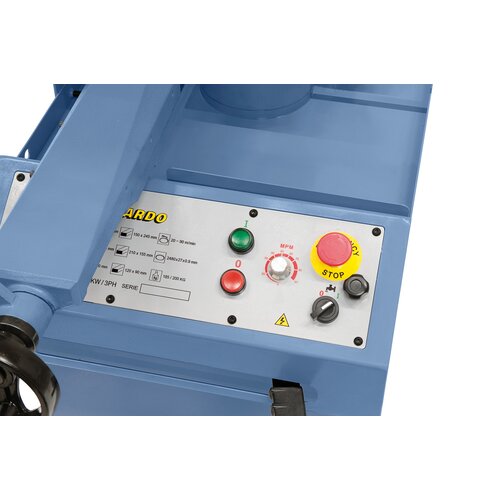

Clearly arranged switch box on the front of the machine, making operating very user-friendly.

Clearly arranged switch box on the front of the machine, making operating very user-friendly.

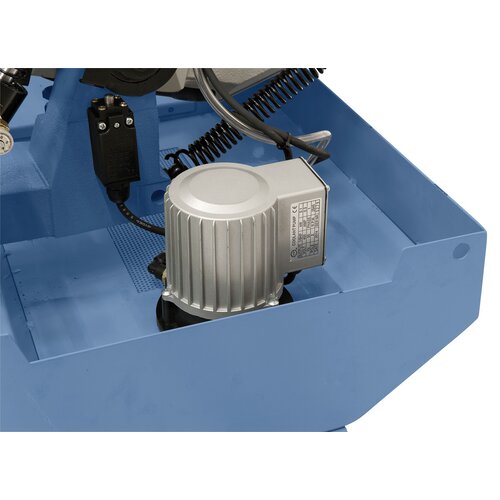

Powerful coolant pump included as a standard accessory.

Powerful coolant pump included as a standard accessory.

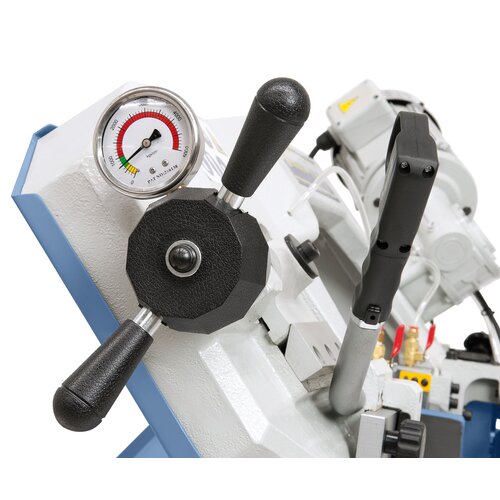

Hydraulic cylinder for stepless lowering of the saw frame comes standard.

Hydraulic cylinder for stepless lowering of the saw frame comes standard.

Combined roll-carbide inserts for ideal bandsaw blade guiding ensure best cutting results.

Tiltable saw frame for mitre cuts from 90° to 60°.

Clearly arranged switch box on the front of the machine, making operating very user-friendly.

Powerful coolant pump included as a standard accessory.

Hydraulic cylinder for stepless lowering of the saw frame comes standard.

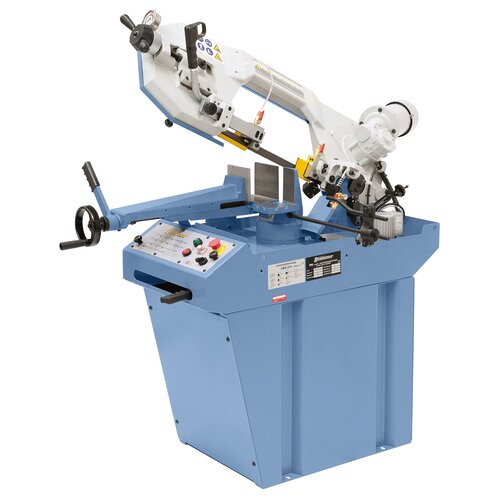

Horizontal bandsaw HBS 275 Vario PRO / 230 V

Art.Nr.: 04-1706

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The HBS 275 Vario PRO is fully equipped with variable cutting speed, allowing ideal adjustment to various materials. Additionally this model comes complete with a bandsaw blade guiding with carbide inserts and integrated coolant device.

€2,976.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
Professional bandsaws for universal use at workshops, locksmith´s shops etc.
For cutting of hollow profile and full rivet material, stainless steel, tool steel,...
Torsion-free, strong spheroidal cast iron saw frame
Easy adjustment of variable cutting speed)
Saw frame pressure regulated by adjustable hydraulic cylinder
Drive features hardened and polished gear worm shaft and bronze worm wheel
Automatic shut-down at cutting end
Bandsaw blade guiding with quick adjustment to the workpiece , guarantees optimal cutting result

Product Specifications

Cutting capacity round 90°	225 mm
Cutting capacity square 90°	200 x 200 mm
Cutting capacity flat 90°	245 x 150 mm
Cutting capacity round 45°	160 mm
Cutting capacity square 45°	160 x 160 mm
Cutting capacity round 60°	100 mm
Cutting capacity square 60°	100 mm
Working height	910 mm
Bandsaw blade dimension	2480 x 27 x 0,9 mm
Cutting speed, stepless	20 - 90 m/min
Coolant pump	100 W
Motor power output S₁ 100%	1,5 kW
Voltage	230 V
Machine dimension (L x D x H)	1430 x 720 x 1700 mm
Weight approx.	185 kg

Delivery Contents

Bandsaw blade
Material fence
Stand
Manometer for blade tension
Bandsaw blade guiding with carbide inserts
Vice with quick adjustment
Coolant device
Hydraulic cylinder
Motor protective switch
EMC filter according to CE standard
Automatic shut-down
