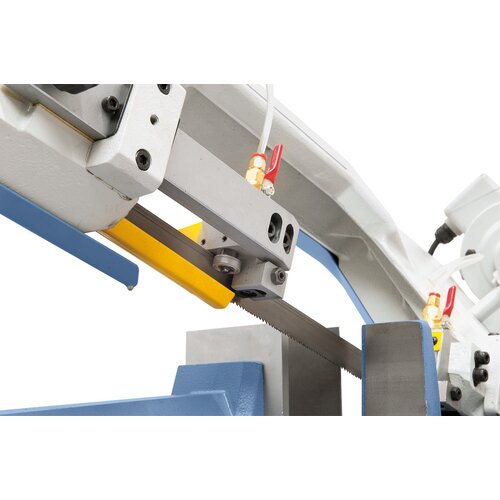

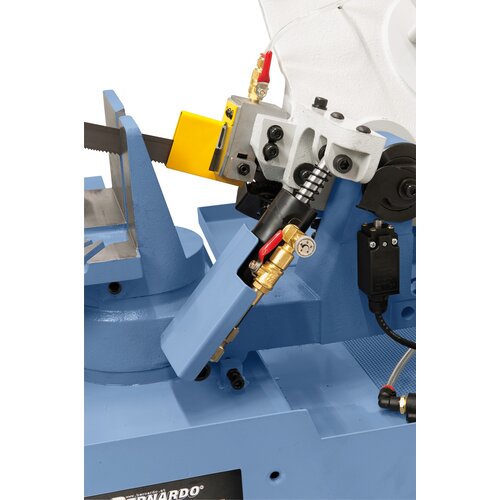

Combined roll-carbide guiding prevents excessive wear of the bandsaw blade.
Combined roll-carbide guiding prevents excessive wear of the bandsaw blade.

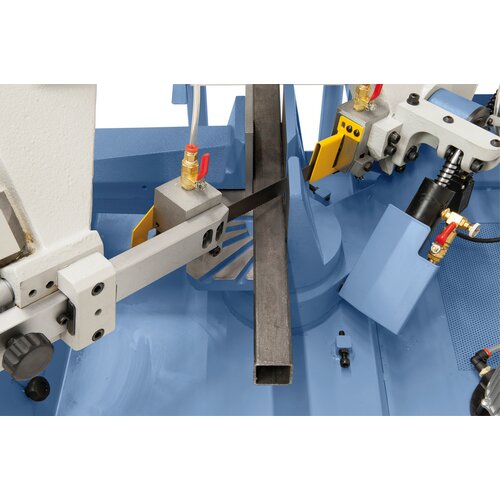

Tiltable saw frame for mitre cuts from 90° to 60°.
Tiltable saw frame for mitre cuts from 90° to 60°.

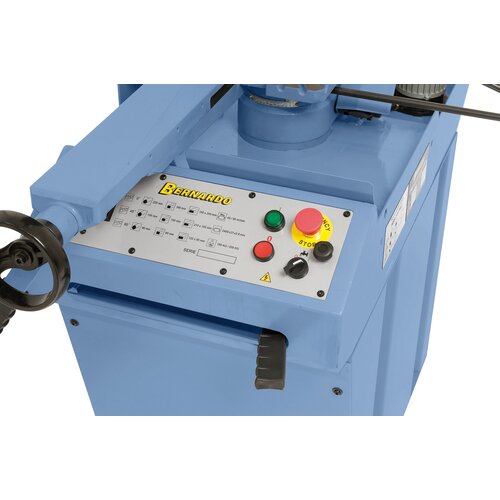

Clearly arranged switch box on the front of the machine, making operating very user-friendly.
Clearly arranged switch box on the front of the machine, making operating very user-friendly.

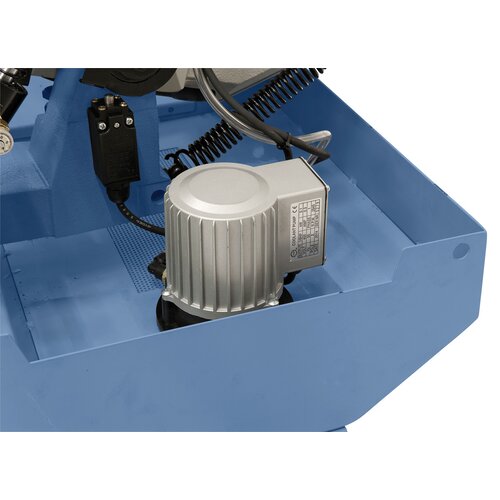

Powerful coolant pump included as a standard accessory.
Powerful coolant pump included as a standard accessory.
Hydraulic cylinder for stepless lowering of the saw frame comes standard.
Hydraulic cylinder for stepless lowering of the saw frame comes standard.
Combined roll-carbide guiding prevents excessive wear of the bandsaw blade.
Tiltable saw frame for mitre cuts from 90° to 60°.
Clearly arranged switch box on the front of the machine, making operating very user-friendly.
Powerful coolant pump included as a standard accessory.
Hydraulic cylinder for stepless lowering of the saw frame comes standard.

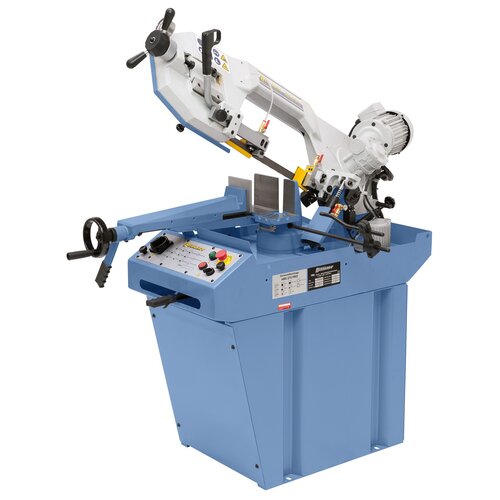

Horizontal bandsaw HBS 275 PRO / 400 V

Art.Nr.: 04-1705
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The HBS 275 PRO model is a precise horizontal bandsaw for universal use. Major attributes of this machine include the bandsaw blade guiding with carbide inserts and the integrated coolant device.

€2,832.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
  • Professional bandsaws for universal use at workshops, locksmith shops etc.
  • For cutting of hollow profile and full rivet material, stainless steel, tool steel,...
  • Torsion-free, strong spheroidal cast iron saw frame
  • Easy adjustment of variable cutting speed (HBS 275 PRO Vario)
  • Saw frame pressure regulated by adjustable hydraulic cylinder
  • 2 speed settings for optimal cutting results (HBS 275 PRO)

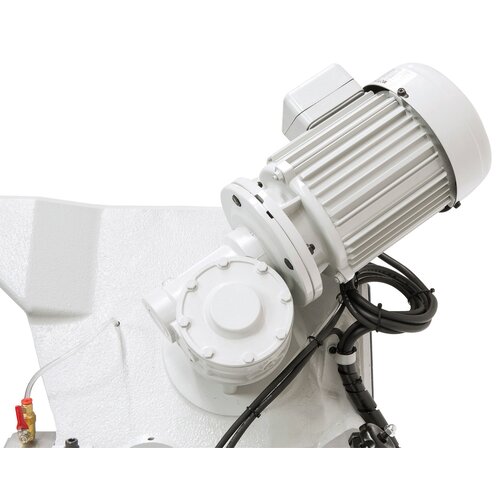

  • Drive features hardened and polished gear worm shaft and bronze worm wheel
  • Automatic shut-down at cutting end
  • Bandsaw blade guiding with quick adjustment to the workpiece , guarantees optimal cutting results

Product Specifications

Cutting capacity round 90°

225 mm

Cutting capacity square 90°

200 x 200 mm

Cutting capacity flat 90°

245 x 150 mm

Cutting capacity round 45°

160 mm

Cutting capacity square 45°

160 x 160 mm

Cutting capacity round 60°

100 mm

Cutting capacity square 60°

100 x 100 mm

Working height

910 mm

Bandsaw blade dimension

2480 x 27 x 0,9 mm

Cutting speeds

45 / 90 m/min

Coolant pump

100 W

Motor power output S1 100%

1,1 kW

Motor power input S6 40%

1,5 kW

Voltage

400 V

Machine dimension (L x D x H)

1430 x 720 x 1700 mm

Weight approx.

180 kg

Delivery Contents

  • Bandsaw blade
  • Material fence
  • Stand

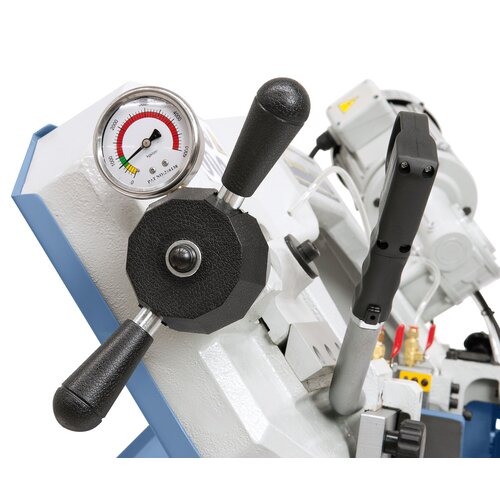

  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Vice with quick adjustment
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down

Suitable accessories

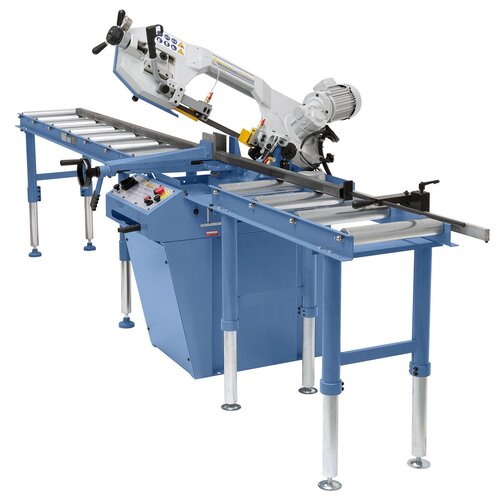

Roller table RB 1000 A with fence
Roller table RB 1000 A with fence
Art.Nr. : 07-1505

€550.80

incl. 20% VAT
Mounting plate f. RB 4 / 7 / 10 / 13
Mounting plate f. RB 4 / 7 / 10 / 13
Art.Nr. : 07-1469

€72.00

incl. 20% VAT
PVC - rolls set for RB 4 / 7 / 10 / 13 (3 pcs.) *
PVC - rolls set for RB 4 / 7 / 10 / 13 (3 pcs.) *
Art.Nr. : 07-1465

€176.40

incl. 20% VAT
Measurement system LS 3 for RB 10 - 3000
Measurement system LS 3 for RB 10 - 3000
Art.Nr. : 07-1468XL

€1,138.80

incl. 20% VAT
Measurement system LS 2 for RB 7 - 2000
Measurement system LS 2 for RB 7 - 2000
Art.Nr. : 07-1467

€846.00

incl. 20% VAT
Measurement system LS 1 for RB 4 - 1000
Measurement system LS 1 for RB 4 - 1000
Art.Nr. : 07-1466

€543.60

incl. 20% VAT
Roller table RB 10 - 3000
Roller table RB 10 - 3000
Art.Nr. : 07-1463XL
The RB 4 / 7 / 10 and 13 roller tables are practical...

€835.20

incl. 20% VAT
Roller table RB 7 - 2000
Roller table RB 7 - 2000
Art.Nr. : 07-1462
The RB 4 / 7 / 10 and 13 roller tables are practical...

€448.80

incl. 20% VAT
Roller table RB 4 - 1000
Roller table RB 4 - 1000
Art.Nr. : 07-1461
The RB 4 / 7 / 10 and 13 roller tables are practical...

€290.40

incl. 20% VAT

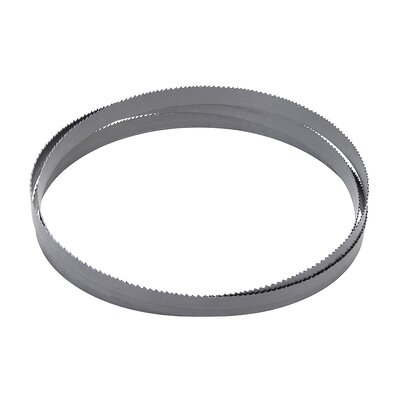

Saw band BiFlex 2480 x 27 x 0,9 - Vario 6/10 TPI
