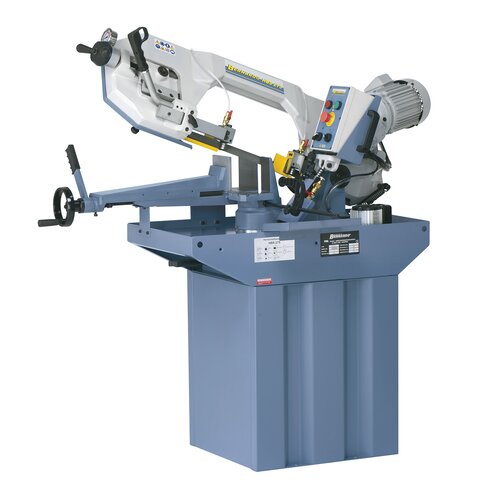

Horizontal bandsaw HBS 275 / 230 V
Art.Nr.: 04-1696The HBS 275 model is a precise horizontal bandsaw for universal use. Major attributes of this machine include the hydraulic cylinder for sensitive lowering of the saw frame and the manometer for indication of the belt tension.
€2,580.00
incl. 20% VATAvailability
Product Properties
- Ideal for cutting profiles, tubes, solid iron materials and non-iron materials
- For mitre cutting the saw frame tilts up to 60°

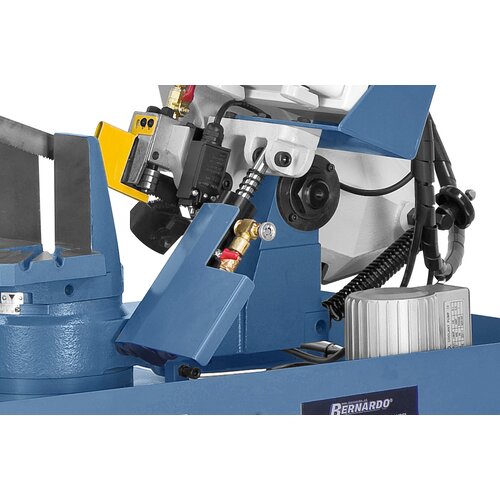

- Stepless lowering of saw frame by hydraulic cylinder
- Torsion-free, strong cast iron saw frame
- Robust construction, thereby smooth and vibration-free running
- Automatic shut-down at cutting end

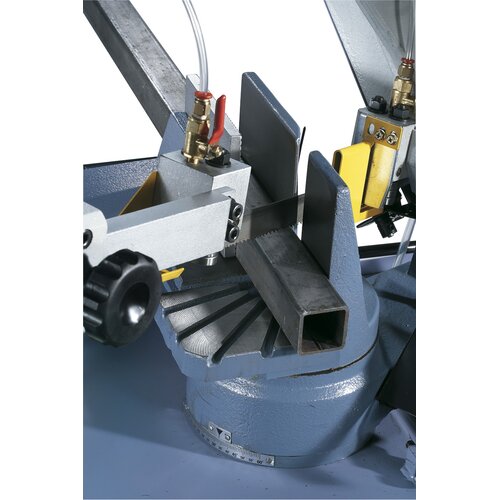

- Robust cast iron vice with quick adjustment
- 2 speed settings for optimal cutting results (400 V)
- Bandsaw blade guiding features ball bearings with quick adjustment to the workpiece, guaranteeing optimal cutting results
Product Specifications
|
Cutting capacity round 90° |
225 mm |
|
Cutting capacity square 90° |
200 x 200 mm |
|
Cutting capacity flat 90° |
245 x 150 mm |
|
Cutting capacity round 45° |
160 mm |
|
Cutting capacity square 45° |
160 x 160 mm |
|
Cutting capacity round 60° |
100 mm |
|
Cutting capacity square 60° |
100 x 100 mm |
|
Working height |
910 mm |
|
Bandsaw blade dimensions |
2480 x 27 x 0,9 mm |
|
Cutting speed 230 V |
72 m/min |
|
Coolant pump |
100 W |
|
Motor power output S1 100% |
1,1 kW |
|
Motor power input S6 40% |
1,5 kW |
|
Voltage |
230 V |
|
Machine dimensions (L x D x H) |
1430 x 720 x 1700 mm |
|
Weight approx. |
190 kg |
Delivery Contents
- Bandsaw blade
- Material fence
- Stand

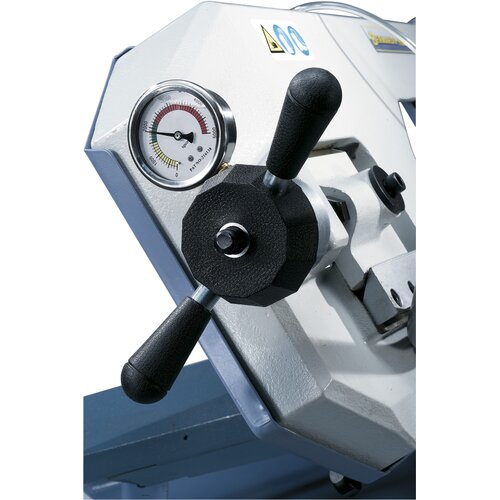

- Manometer for blade tension
- Vice with quick adjustment
- Coolant device
- Hydraulic cylinder
- Motor protective switch
- Automatic shut-down
