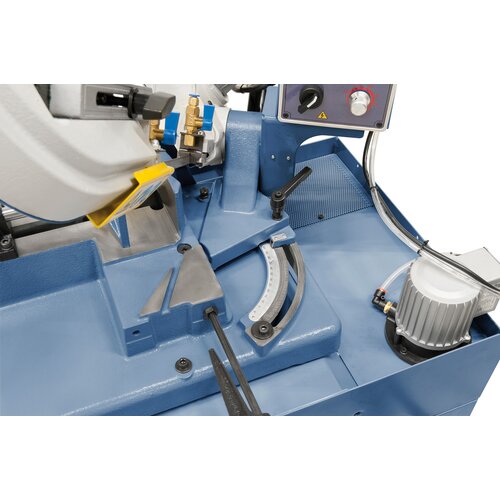

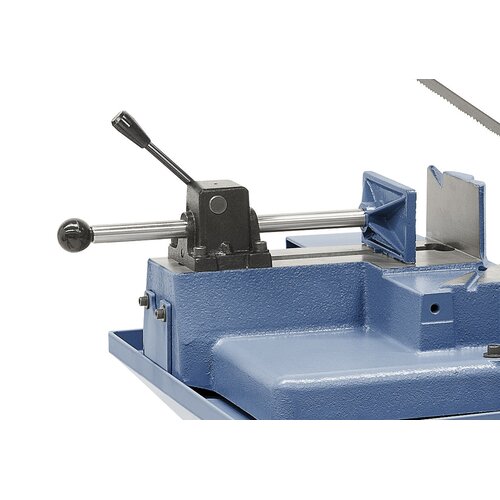

Easy adjustment of the vice via quick clamping lever.

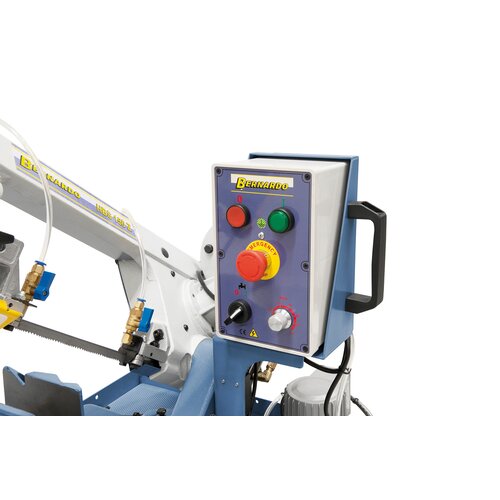

Variable cutting speed for optimal adjustment to any kind of workpiece - user-friendly operator panel.

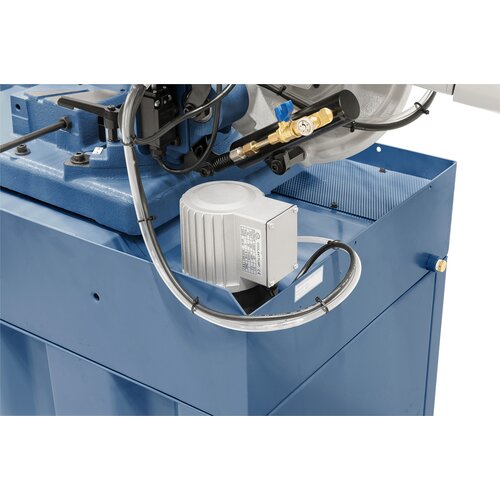

Powerful coolant pump included as a standard accessory.
Horizontal bandsaw HBS 150 Z / 230 V

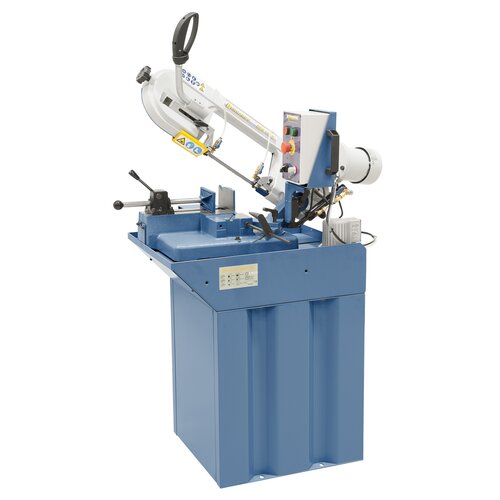

Art.Nr.: 04-1689The compact HBS 150 Z horizontal bandsaw is serially equipped with stepless speed adjustment and a coolant device. The saw frame tilts up to 60° for mitre cutting.
€1,524.00
incl. 20% VATAvailability
Deliverable Soon
Deliverable by Jul 5, 2025
Product Properties
- Adjustable cutting speed allow optimal results
- Comes complete with quick clamp vice and workpiece fence
- Gear unit features hardened, polished worm shaft and bronze worm gear
- Stand and coolant device as standard

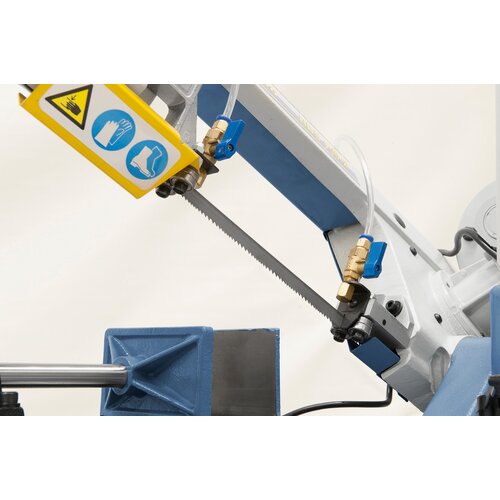

- 3-point saw band guide features ball bearings ensuring smooth blade run
- For mitre cutting saw arm swivels up to 60 °, hence requiring minimum space when processing long workpieces
- Torsion-free, solidly designed saw frame
Product Specifications
|
Cutting capacity round 90° |
150 mm |
|
Cutting capacity flat 90° |
145 x 150 mm |
|
Cutting capacity round 45° |
100 mm |
|
Cutting capacity flat 45° |
90 x 150 mm |
|
Cutting capacity round 60° |
70 mm |
|
Working height |
890 mm |
|
Bandsaw blade dimensions |
1735 x 13 x 0,9 mm |
|
Cutting speed, stepless |
20 - 65 m/min |
|
Coolant pump |
100 W |
|
Motor power |
1,1 kW |
|
Voltage |
230 V |
|
Machine dimensions (L x D x H) |
1000 x 510 x 1520 mm |
|
Weight approx. |
100 kg |
Delivery Contents
- Bandsaw blade
- Material fence
- Stand
- Quick clamping vice
- Hydraulic cylinder
- Coolant device
- Motor protection switch
