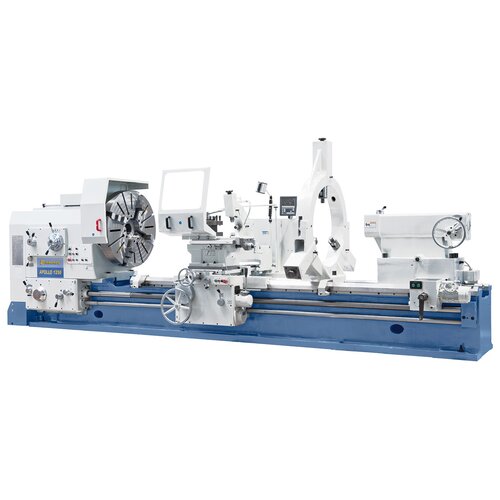

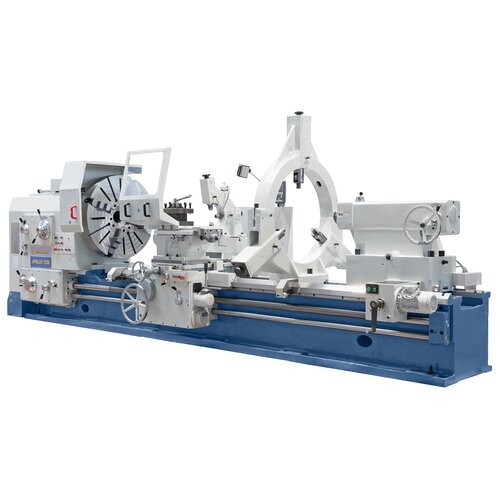

Picture show APOLLO 1250 x 3000 with optional steady rest

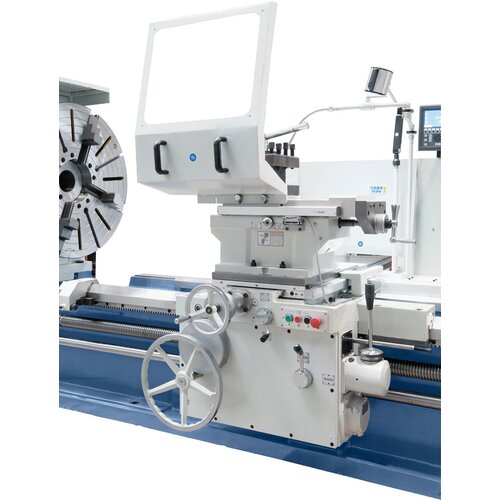

The digital display results in a significant productivity increase of up to 50 %.

The hardened main spindle with 130 mm spindle bore is bedded on tapered roller bearings and radial roller bearing.

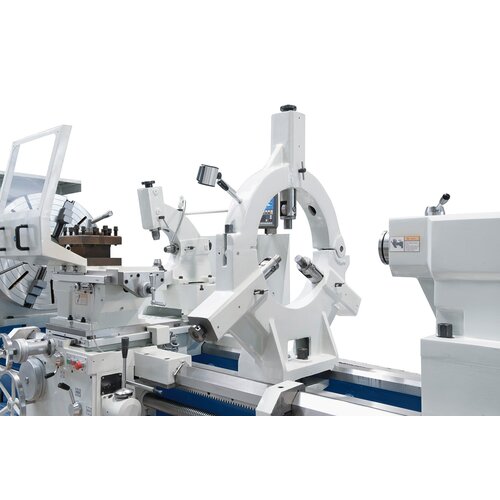

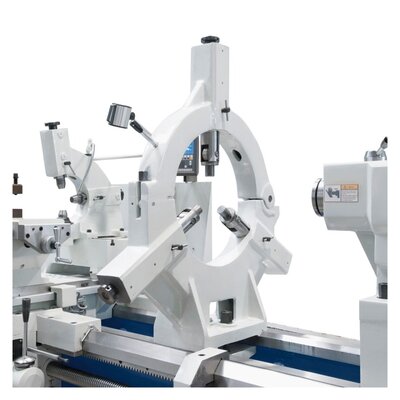

Optional: Steady rest 500 - 1100 mm

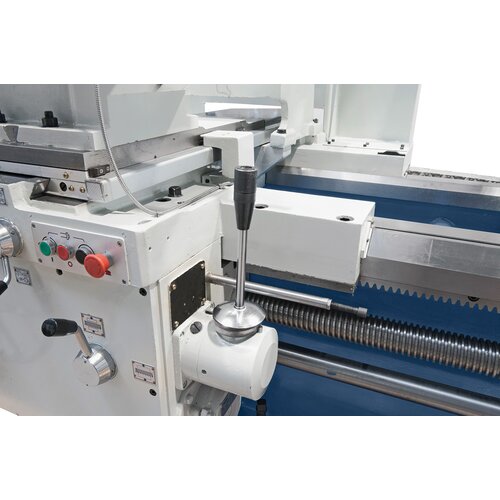

Complete with rapid feed to reduce downtime enormously.

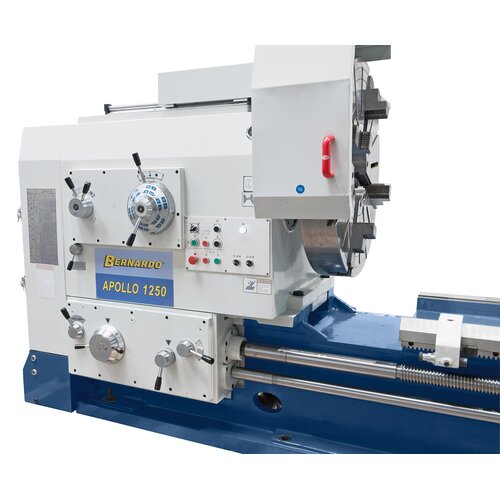

Ergonomically arranged control elements on gear head - hardened and polished gears allow for smooth run.

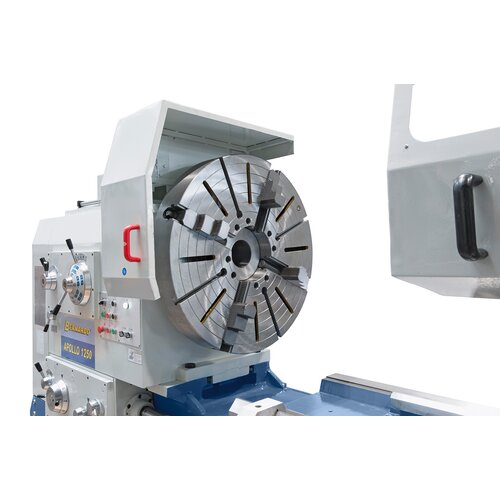

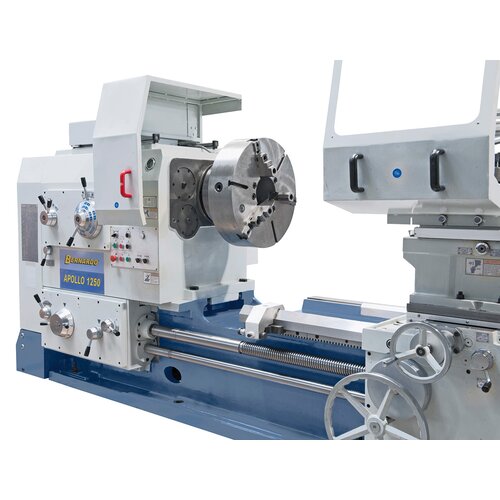

Optional available: 3-jaw chuck Ø 630 mm with mounting plate

Picture show APOLLO 1250 x 3000 with optional steady rest

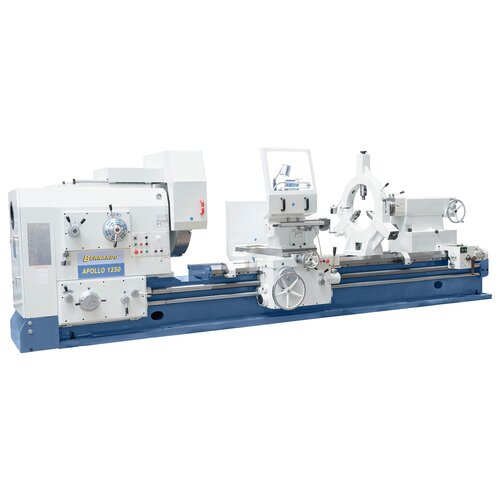

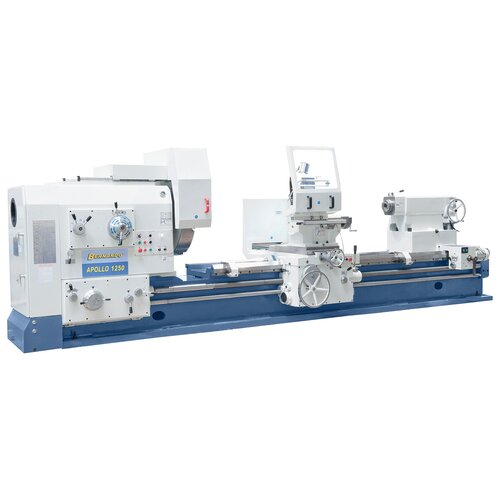

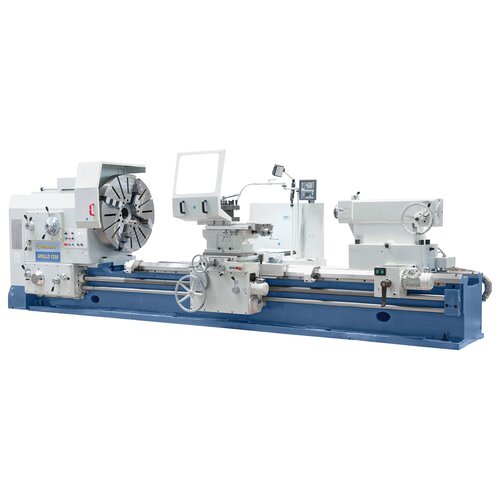

Picture show APOLLO 1250 x 3000

Heavy lathe Apollo 2000 x 2000 incl. 3-axis-digital readout **

Art.Nr.: 03-1385XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Price on request

Request product now

Out of Stock

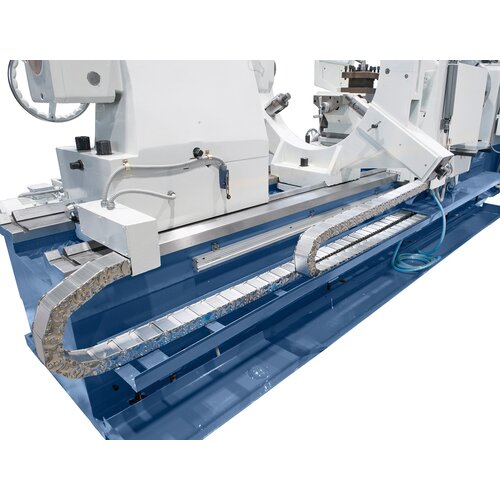

Machine bed features strong reinforcements to minimize oscillations and to stabilize bed guiding

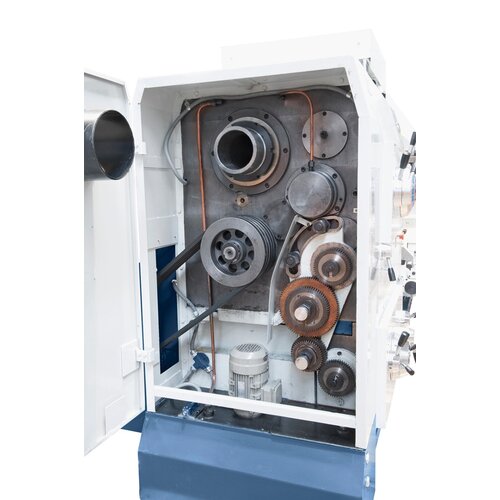

The transmission of the rotary motion (forwards / backwards) takes place via a drive shaft with hydraulic clutch
Large gear wheels, hardened and polished
The closed gearbox allows a large number of feeds and pitches
Large speed range with 33 speeds for machining a wide variety of workpieces
Mechanic coupling allows soft start of the main spindle

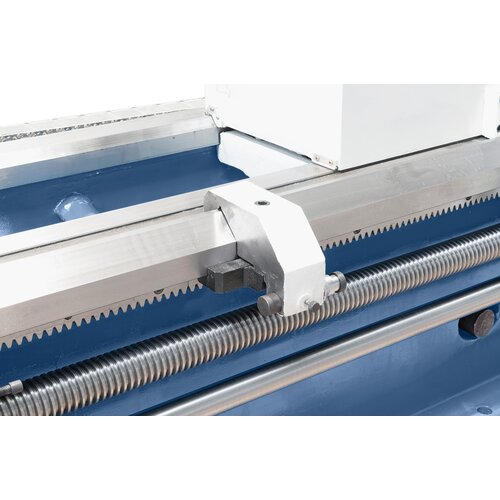

The large dimensioned guideways are inductively hardened and grounded

Distance between centers	2000 mm
Turning diameter
over bed	2000 mm
over support	1600 mm
Travel
x-axis	1020 mm
z-axis	1800 mm
z1-axis	200 mm
Workpiece weight max.	10.000 kg
Bed with	1100 mm
Tilting range top slide	± 180°
Spindle speeds (forward / backward)	(21) 2 - 200 / (12) 2,5 - 200 rpm
Spindle bore	130 mm
Spindle nose fixture	ISO A2-15
Feed
x-axis \| z-axis \| z1-axis	0,064 - 12 mm/rev. \|0,032 - 6 mm/rev. \| 0,016 - 3 mm/rev.
Rapid feed
x-axis \| z-axis	1870 mm/min \| 3740 mm/min
Thread cutting
metric \| diametric	(45) 1 - 120 mm \| (42) 30 - 1/4 DP
Modul \| whitworth	(46) 0,5 - 60 mm \| (48) 0,5 - 60 GPZ

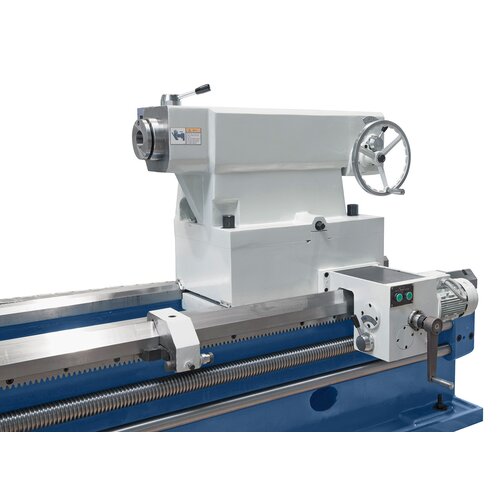

Tailstock sleeve taper / Ø	MT 6 / 200 mm
Tailstock sleeve stroke	300 mm
Tailstock cross adjustment	± 2,5 mm

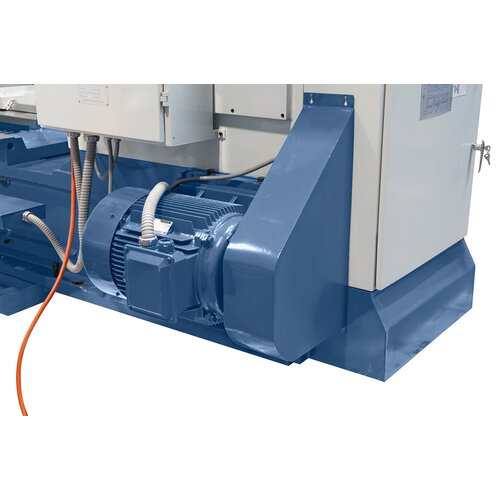

Motor power	30 kW
Length x Width	5,2 x 2,2 m
Height	2,4 m
Weight approx.	13.000 kg
