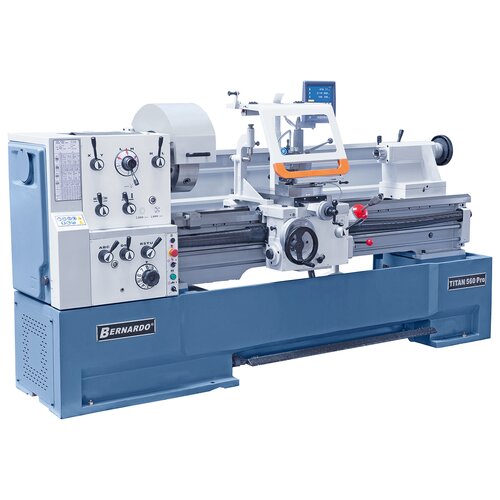

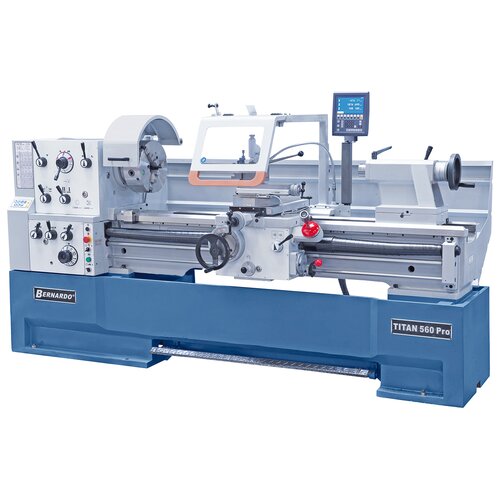

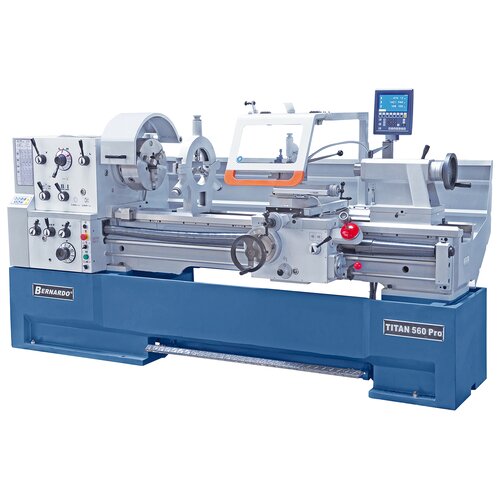

Heavy duty industrial lathe TITAN 560 x 3000 Pro incl. 3-axis digital readout *
Art.Nr.: 03-1345BXLThe Titan 560 Pro turning lathes are specifically designed for quick and economical single part production. The large number of standard equipment makes these models incredibly versatile.
€30,492.00
incl. 20% VATAvailability
Out of Stock
Product Properties
- Wide range of applications in general machine construction, production, single part manufacturing etc.
- Removable bridge allows processing of workpieces with big diameter

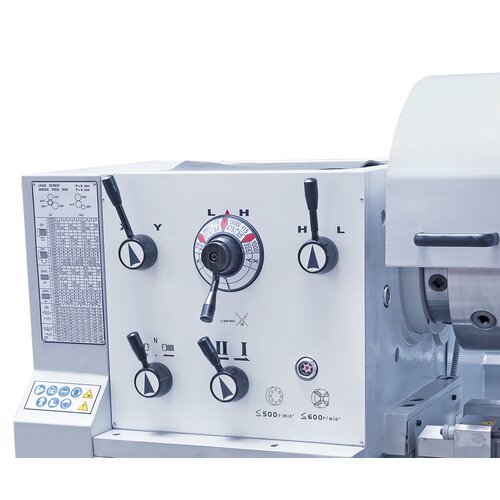

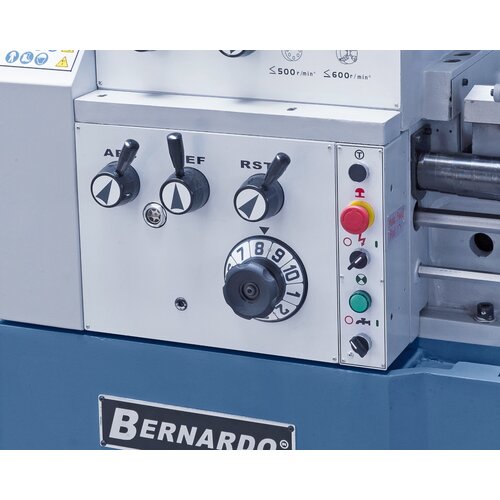

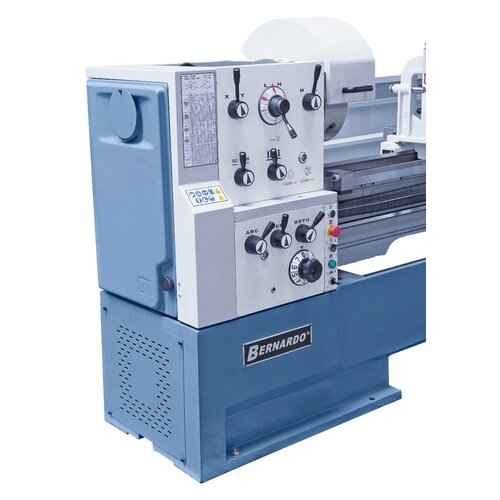

- Logical, clearly designed and easy-to-use speed and feed settings
- Complete with rapid traverse longitudinal and cross to reduce downtime
- Torsion resistant machine bed – one piece cast – eliminates vibrations, guarantees best possible accuracy when turning
- State-of-the-art spindle bedding with high-quality, angular ball bearings

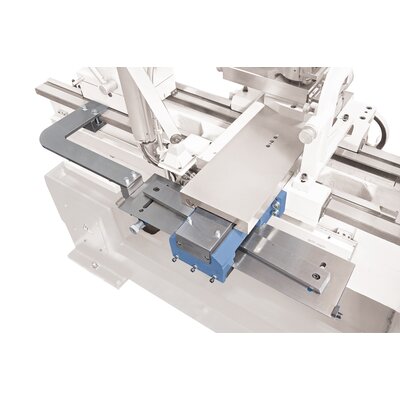

- Adjustable tailstock with fine scale for taper turning

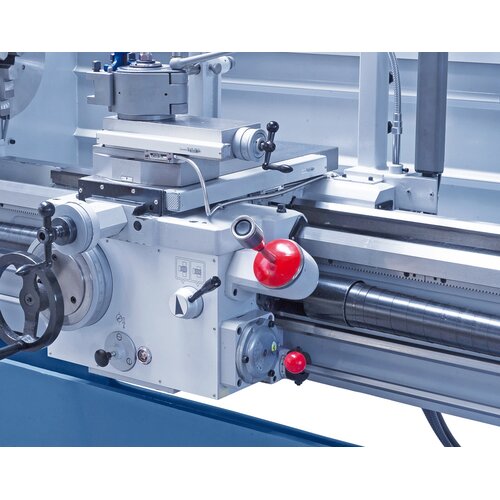

- Central lubrication of apron
Product Specifications
| Distance between centers | 3000 mm | |
| Center height | 280 mm | |
| Swing over bed | 560 mm | |
| Swing over gap | 785 mm | |
| Swing over cross slide | 350 mm | |
| Bed width | 350 mm | |
| Spindle bore | 105 mm | |
| Spindle nose fixture | DIN 55029, D1 - 8 | |
| Speed range | (12) 25 - 1500 rpm | |
| Longitudinal feed | (42) 0,055 - 3,061 mm/rev. | |
| Cross feed | (42) 0,025 - 1,384 mm/rev. | |
| Metric thread | (41) 0,1 - 14 mm | |
| Inch thread | (60) 2 - 112 threads/1“ | |
| Diameter of tailstock sleeve | 75 mm | |
| Travel of tailstock sleeve | 185 mm | |
| Taper of tailstock sleeve | MT 5 | |
| Motor power | 7,5 kW (10,0 HP) | |
| Machine dimension | Length | 4340 mm |
| Width x Height | 1150 x 1610 mm | |
| Weight approx. | 3000 kg |
Delivery Contents
- 3-axis digital readout ES-12 V with LCD-display

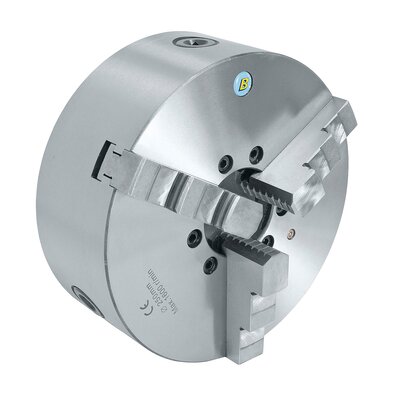

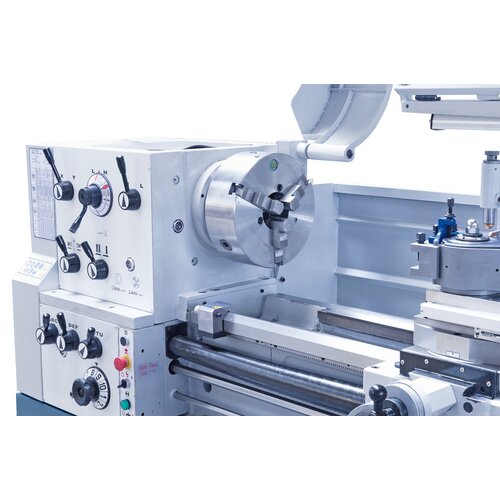

- 3-jaw steel chuck PS3-315 mm / D8
- Face plate 450 mm

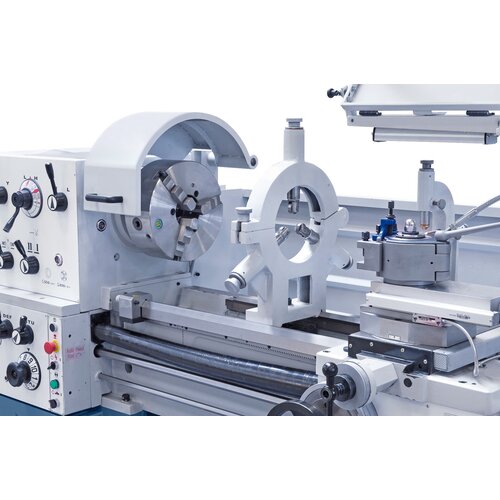

- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 120 mm
- 2 dead centers
- Initial filling with Shell Tellus 46
- Motor with magnetic brake according to CE
- Foot pedal with brake function according to CE
- Coolant device

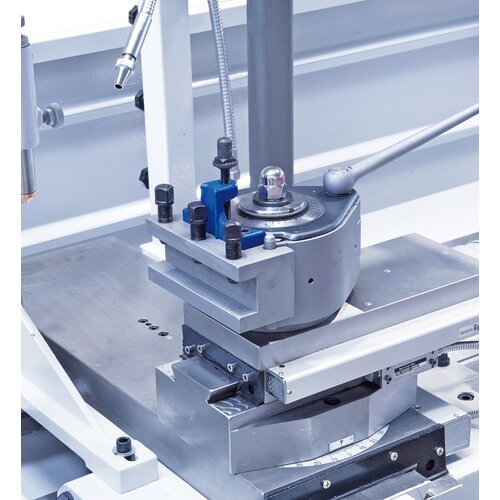

- 40 pos. tool post and holder set with 4 inserts

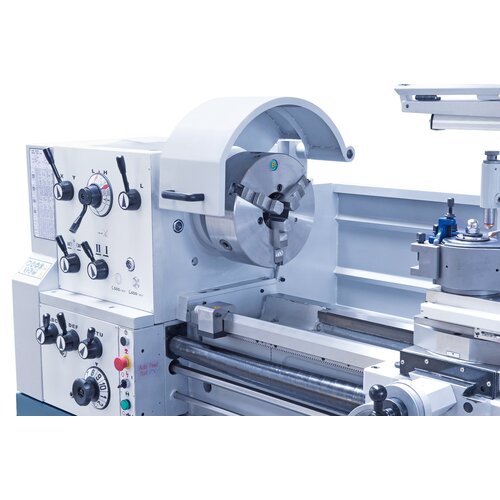

- Protective device at tool post holder
- Safety clutch
- Rapid feed longitudinal and cross
- LED machine light
- Spindle support

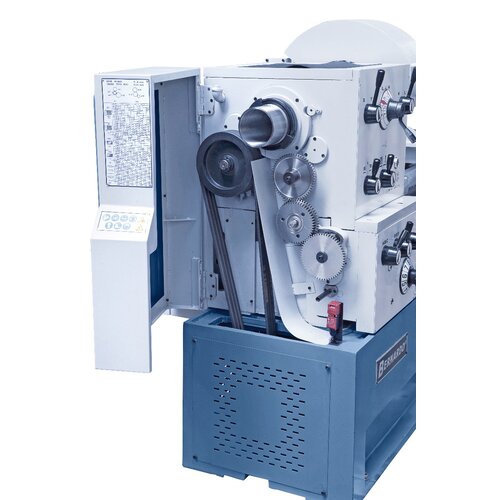

- Change gears
- Morse taper drill sleeve
- Splash guard
- Tools
