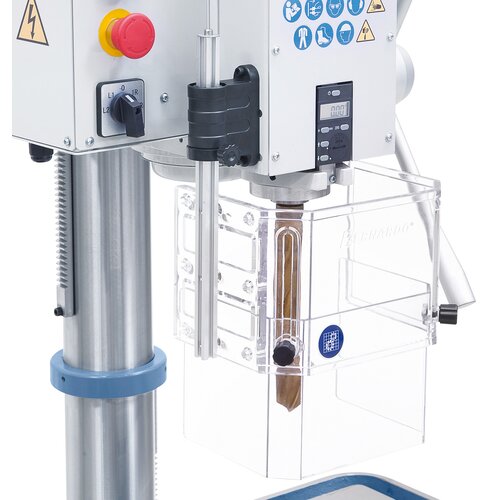

Height adjustable chuck guard and micro switch guarantees high safety standards.
Height adjustable chuck guard and micro switch guarantees high safety standards.

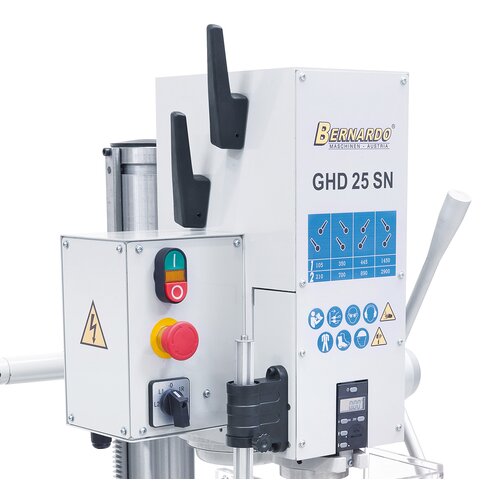

Quick and easy adjustment of speed / direction of rotation.
Quick and easy adjustment of speed / direction of rotation.

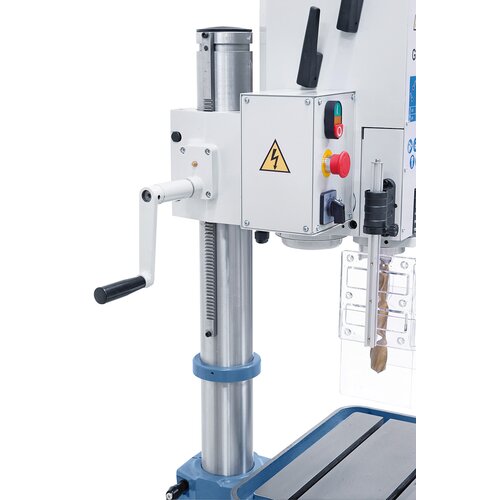

Crank allows for easy height adjustment of drill head.
Crank allows for easy height adjustment of drill head.

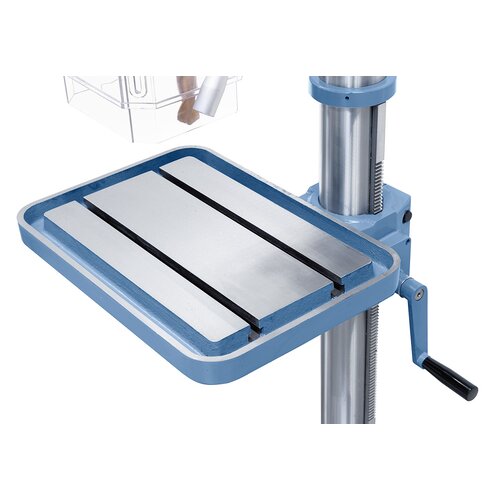

Polished work table with T-slots running parallel to each other.
Polished work table with T-slots running parallel to each other.
Height adjustable chuck guard and micro switch guarantees high safety standards.
Quick and easy adjustment of speed / direction of rotation.
Crank allows for easy height adjustment of drill head.
Polished work table with T-slots running parallel to each other.

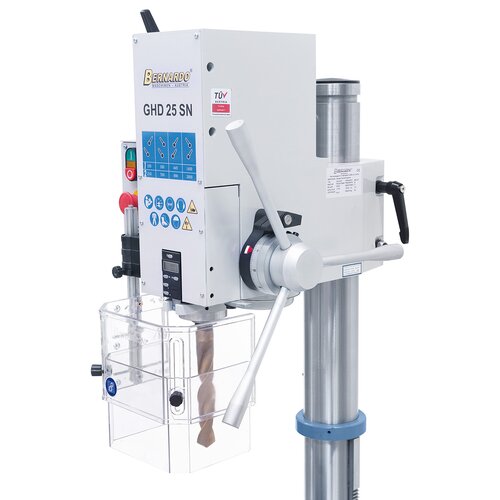

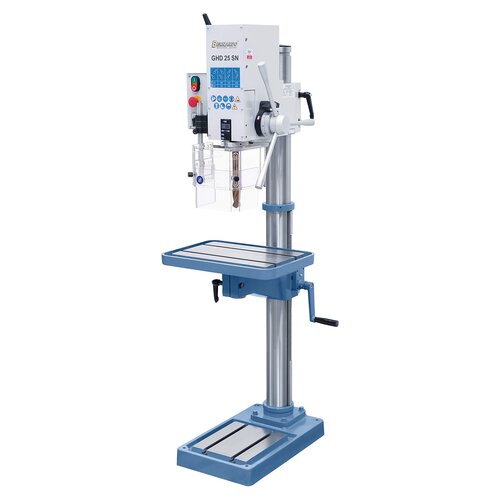

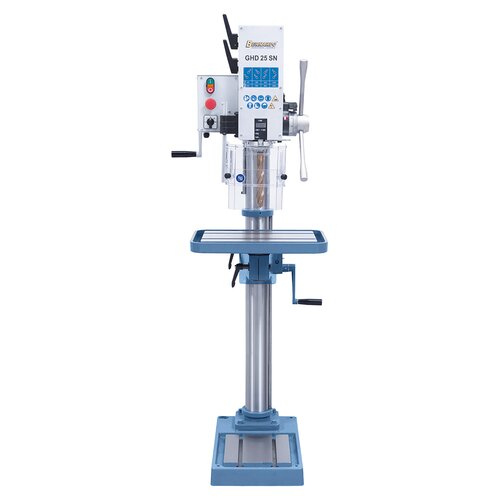

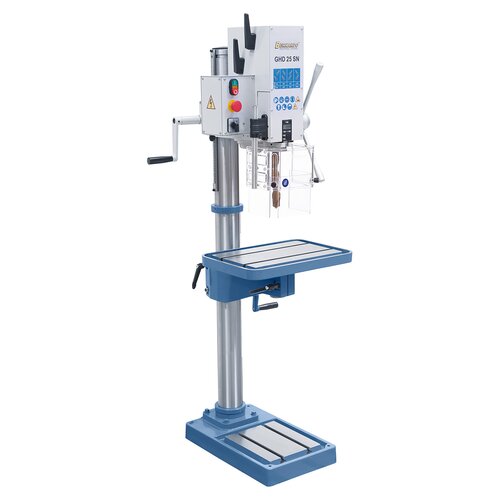

Gearhead drilling machine GHD 25 SN with digital display for drill depth

Art.Nr.: 01-1242B
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GHD 25 SN is a powerful gearhead-column drilling machine which excells in robust and vibration- free construction. This model is predominantely used in repair shops, mechanical workshops and for training purposes.

€3,000.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Helical gears in combination steel against reinforced fiber material ensures high efficiency and smooth run
  • Treated machine base for clamping of extraordinary oversize workpieces
  • Gear head and work table can be swivelled 360° and adjusted in height
  • High-quality ball bearings allow for high concentricity
  • Adjustable drill depth stop with mm-scale
  • Rotation switch for right and left turning for thread cutting
  • Helical-tooth gearbox for optimal power transmission
  • Solid, polished steel column, designed for high demands
  • Powerful 2-step drive motor allows for 8 different speed settings

Product Specifications

Drilling capacity max.

25 mm

Thread cutting max.

M10

Keyless drill chuck

1 - 16 mm / B 16

Morse taper

MT 3

Spindle speeds

(8) 105 - 2900 rpm

Distance spindle to column

255 mm

Distance spindle to table max.

820 mm

Distance spindle to base

1235 mm

Spindle stroke

120 mm

Column diameter

100 mm

Table size / T-slot size

500 x 350 mm / 14 mm

Working surface of base

250 x 290 mm

Motor-Abgabeleistung S1 100%

0,65 / 1,2 kW (400 V)

Motor-Aufnahmeleistung S6 40%

0,90 / 1,7 kW (400 V)

Maschinenabmessung (B x T x H)

600 x 600 x 1800 mm

Gewicht ca.

200 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • Left and right turning
  • Height adjustable protective cover
