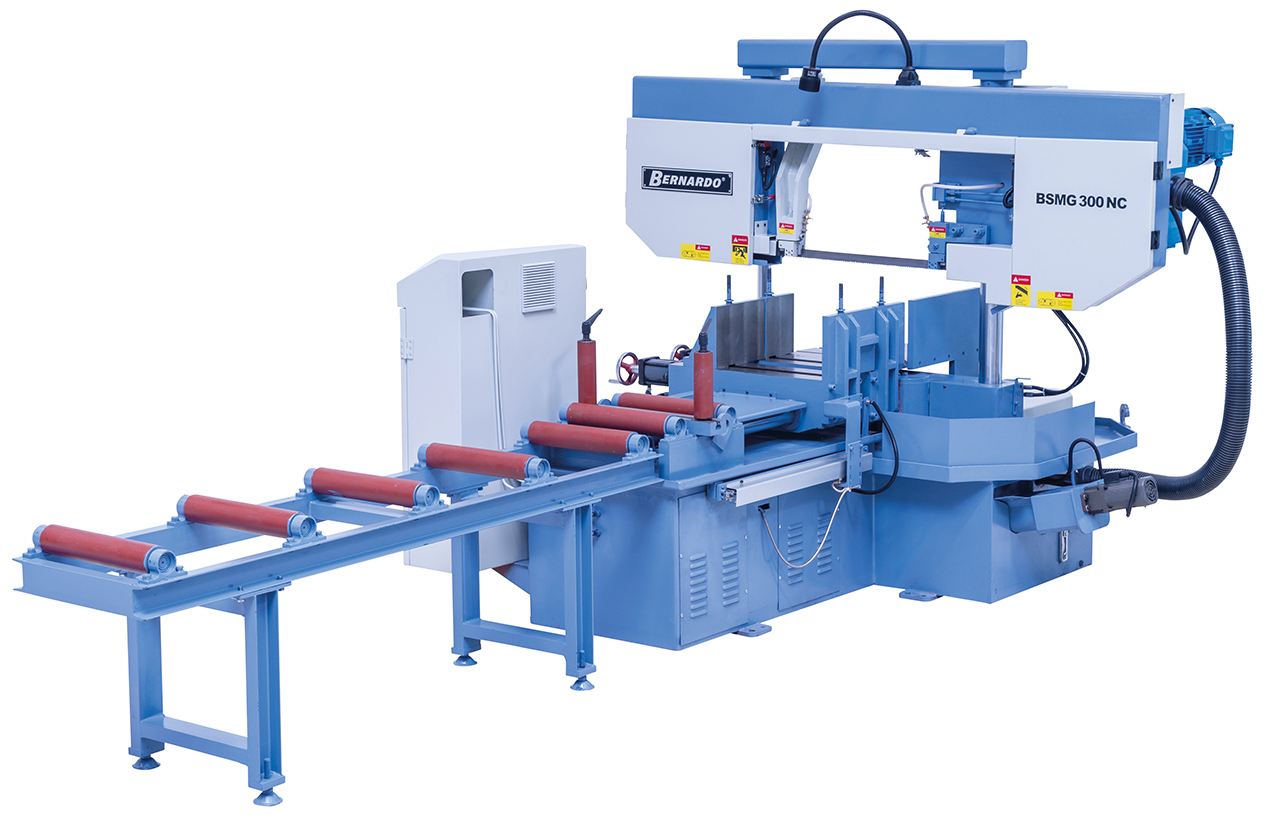

Picture from BSMG 300 NC

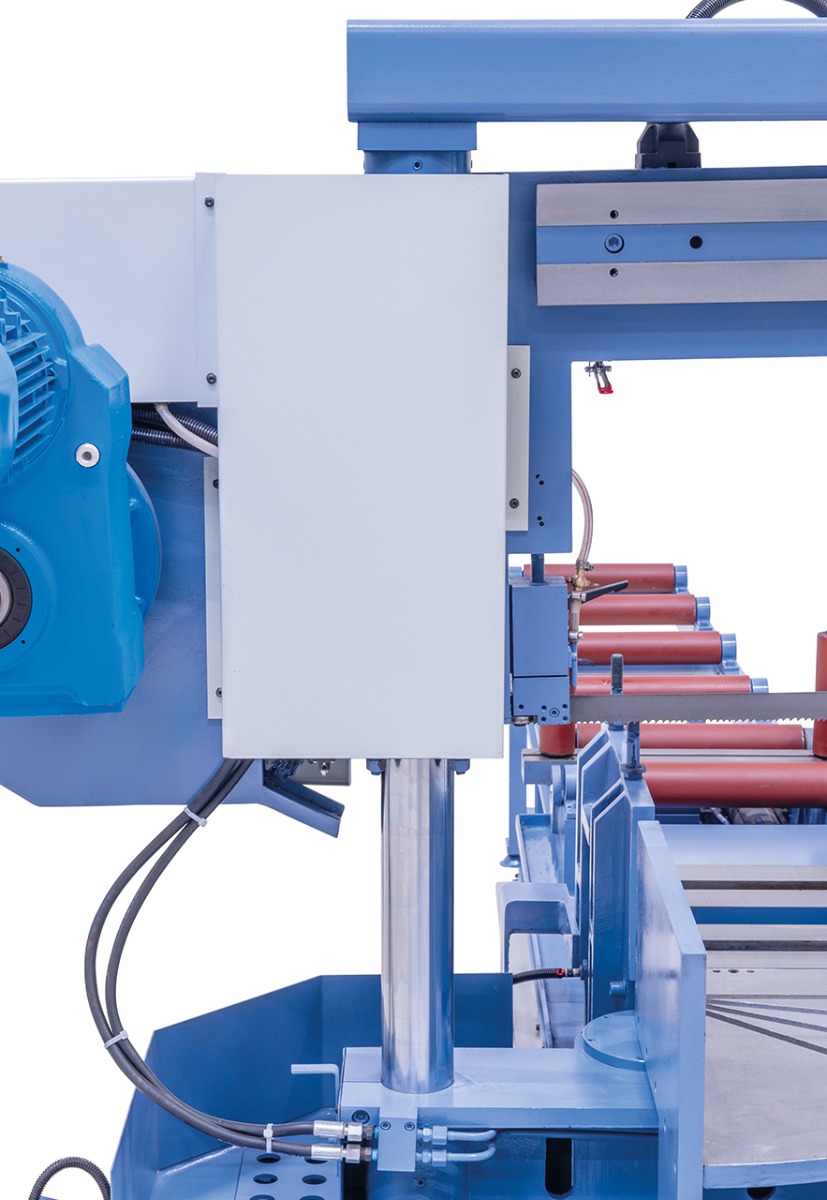

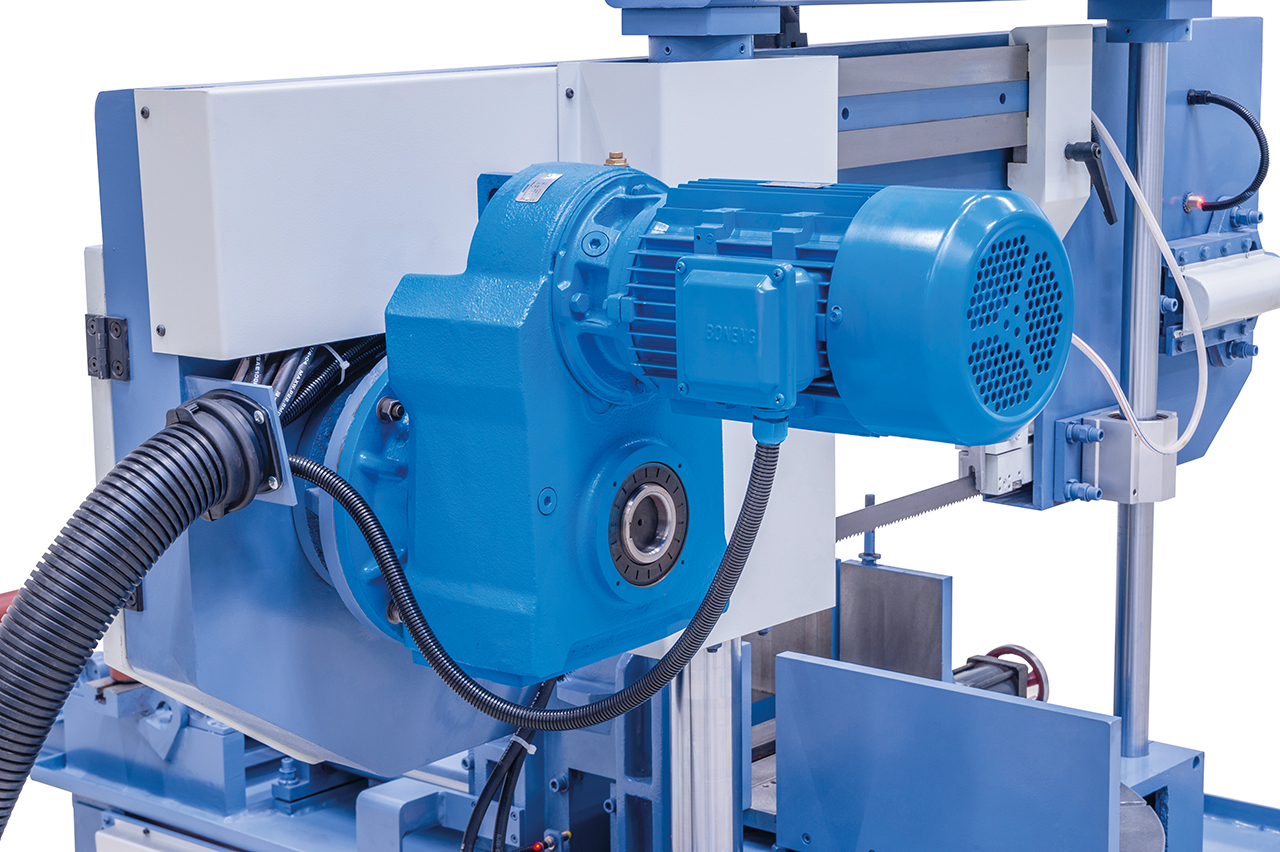

Powerful drive motor features bevel toothed gear unit. Motor capacity ranges 4,0 kW

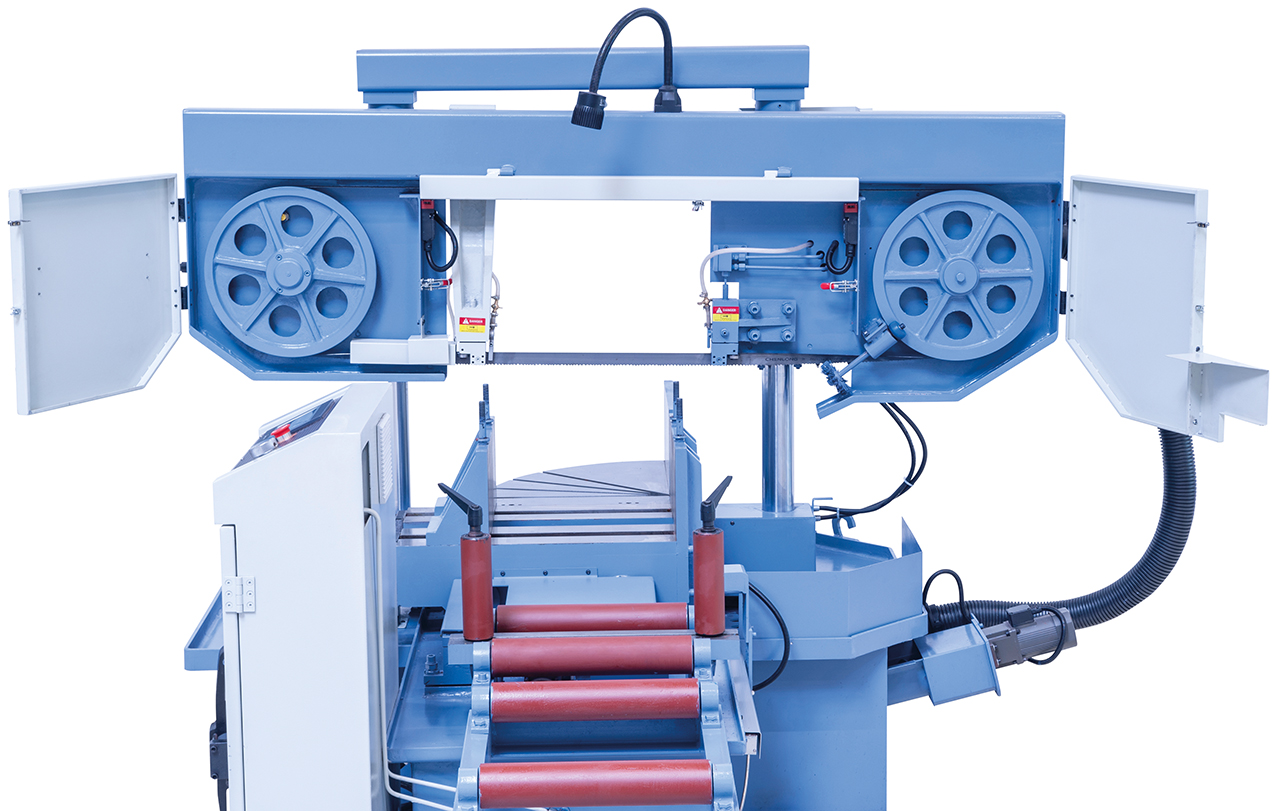

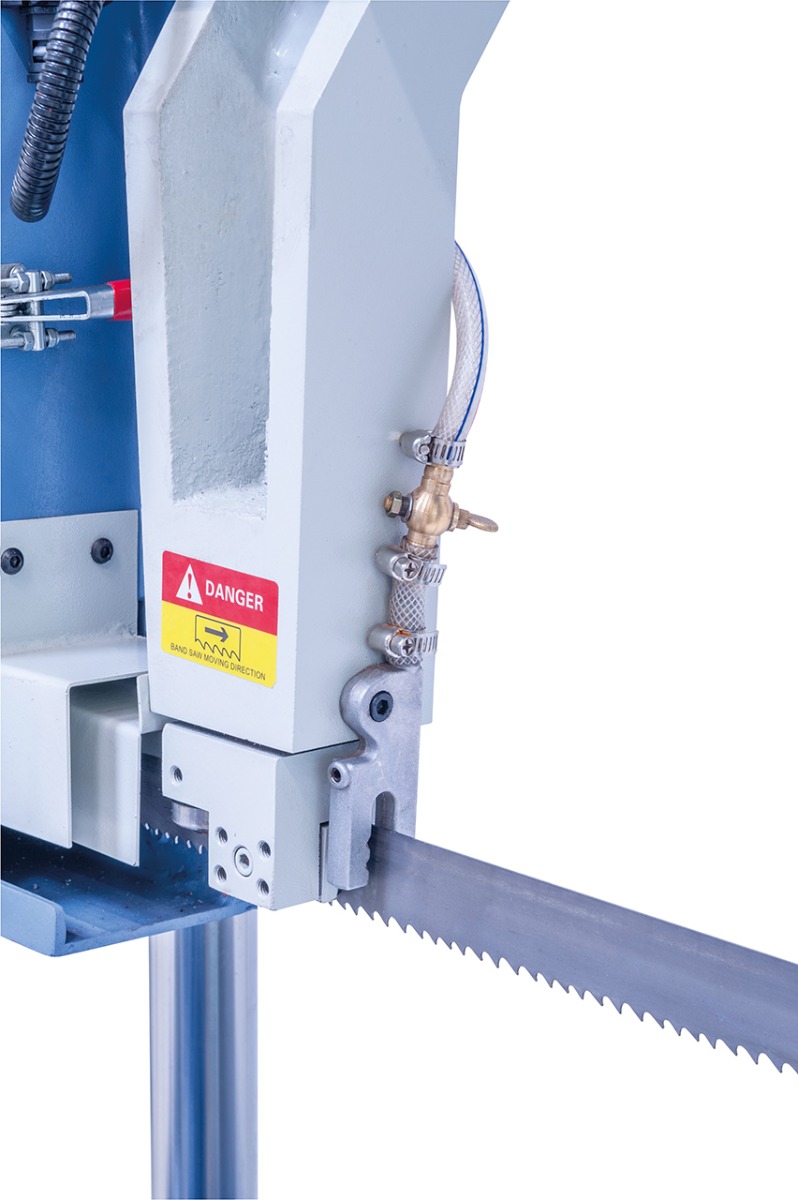

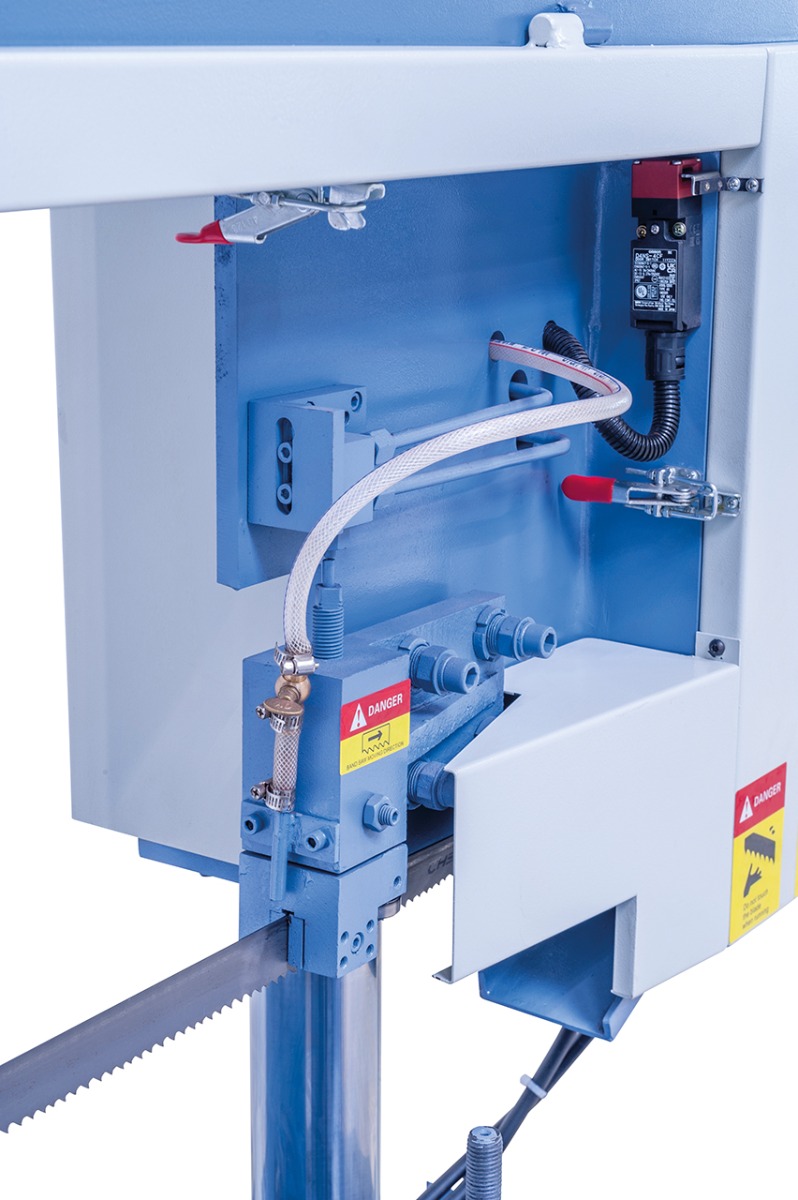

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts.

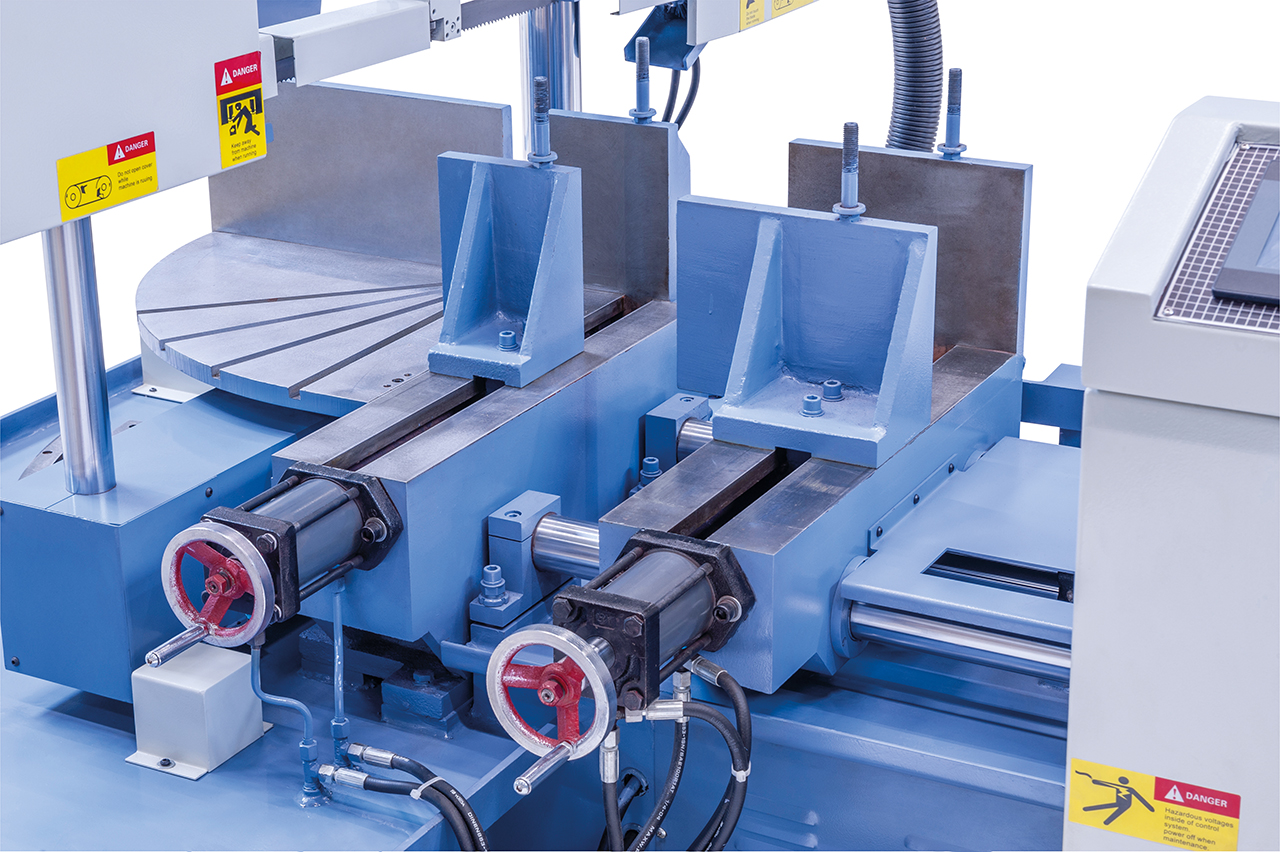

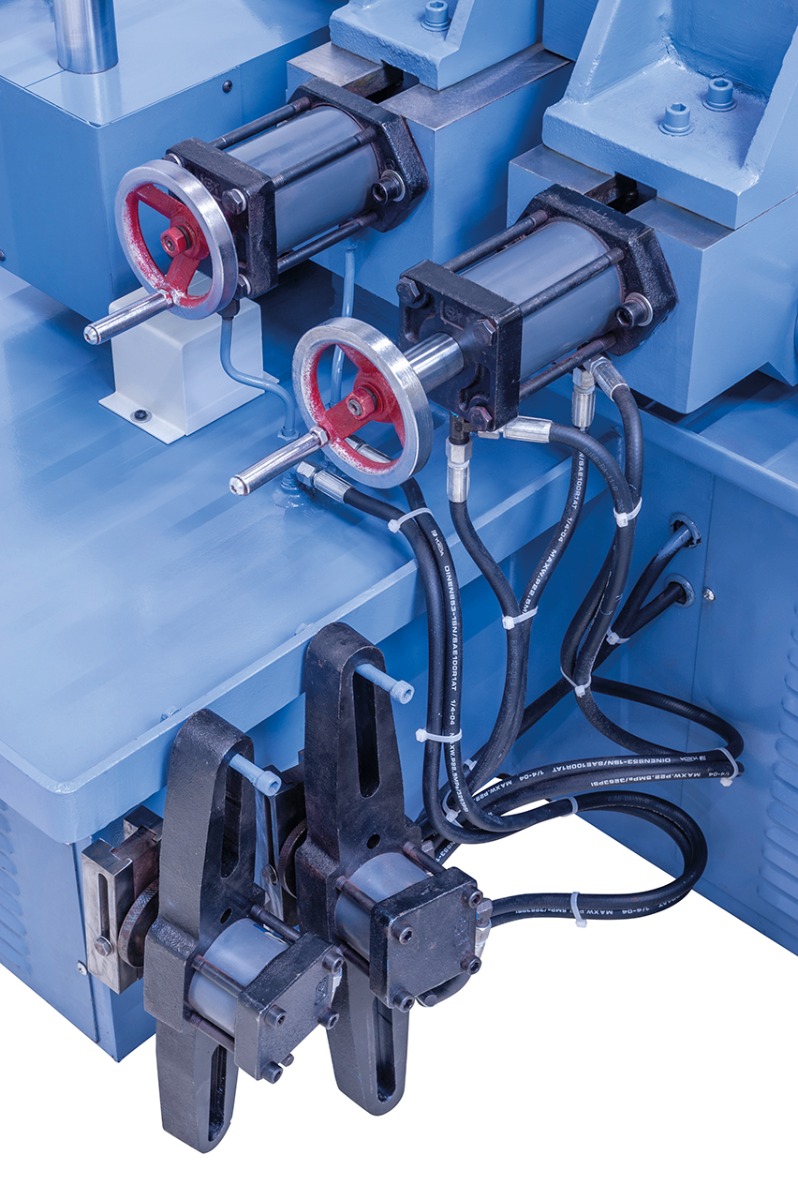

Hydraulic bundle clamping device for both vices included in delivery.

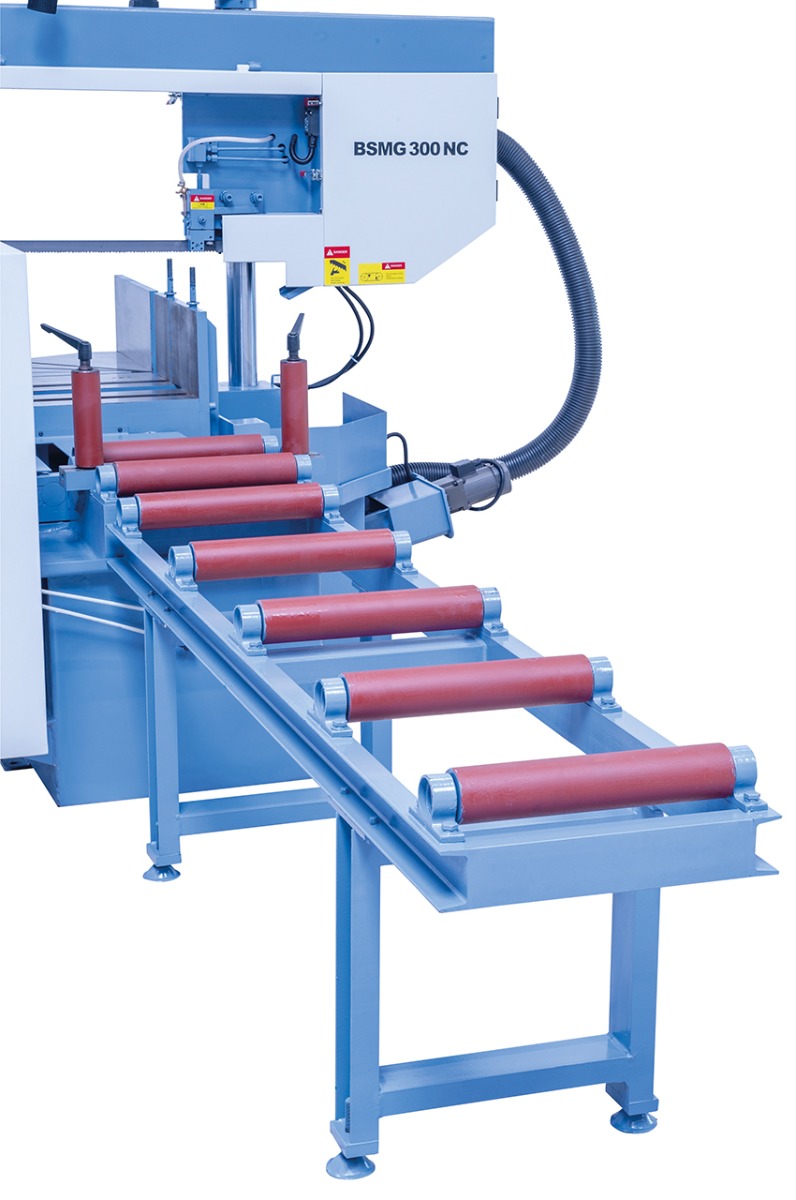

Material feed via hydraulic clamping device and precise round guidance

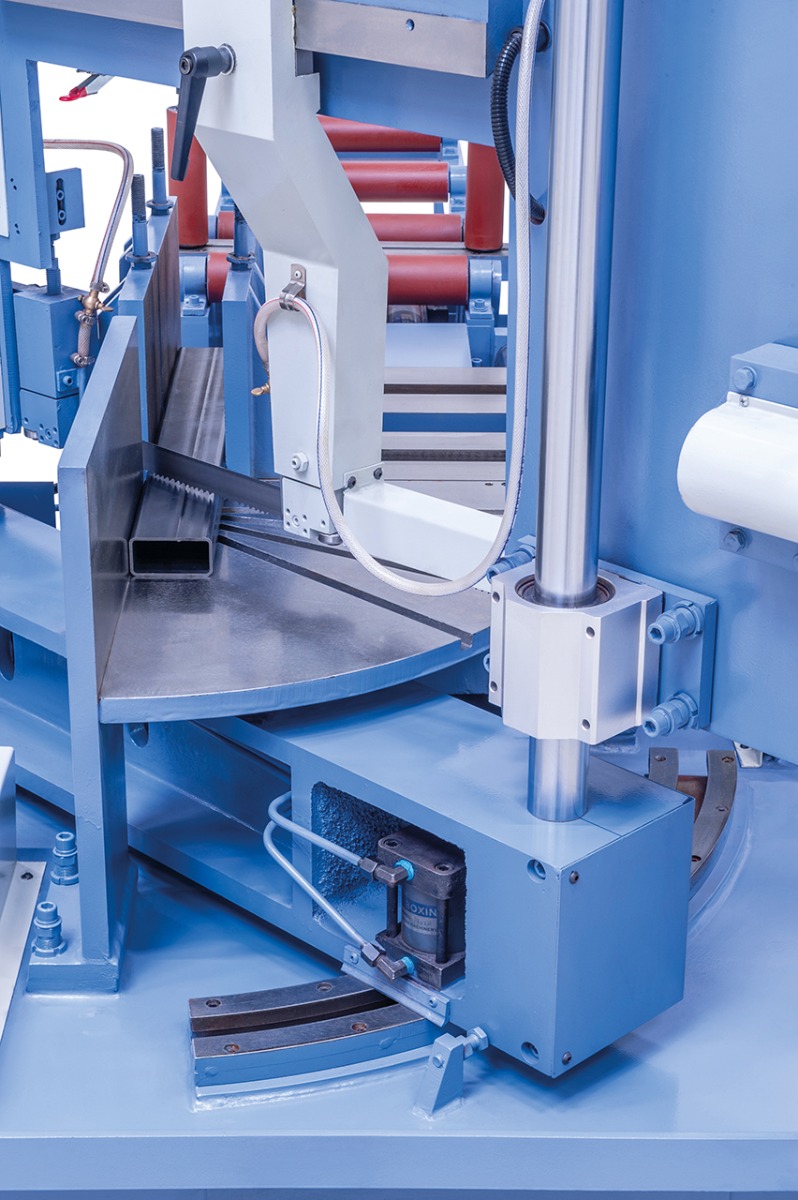

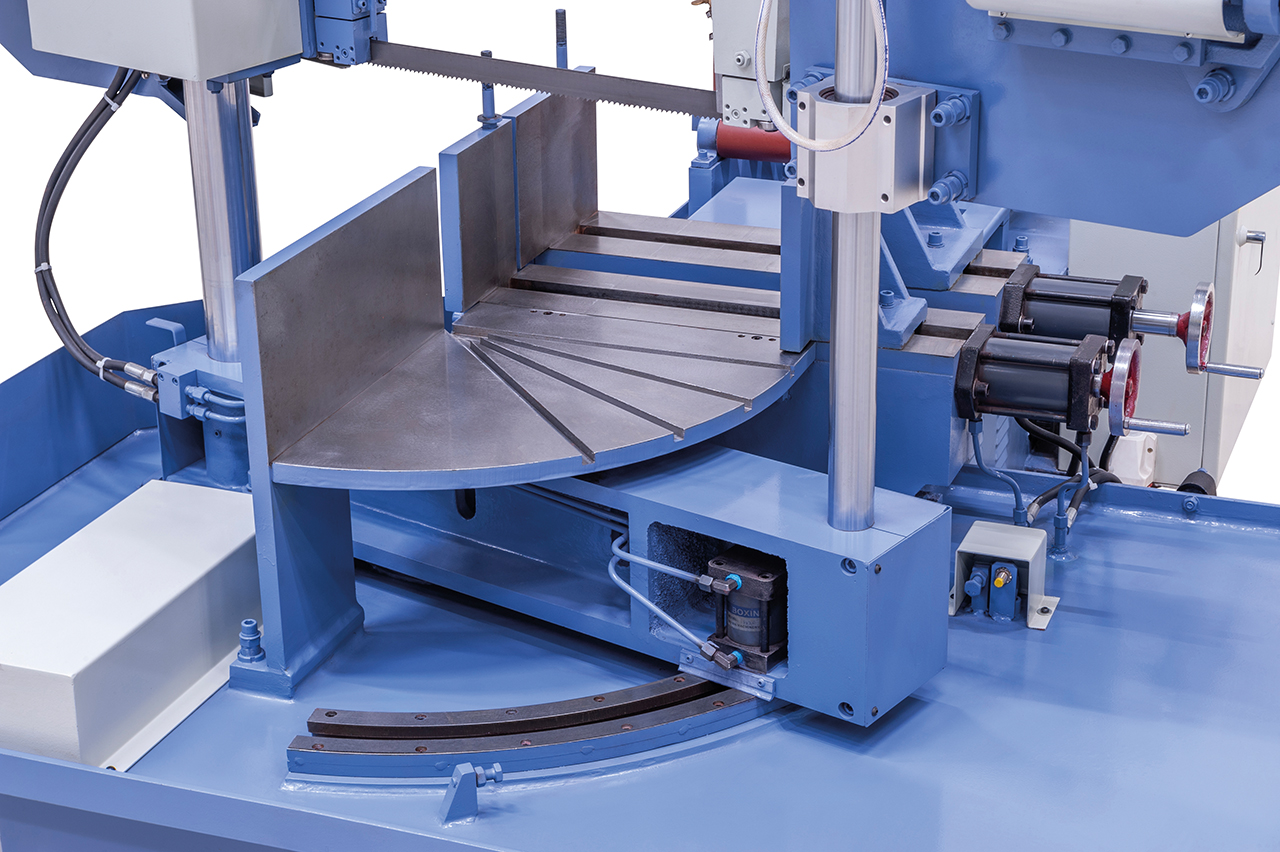

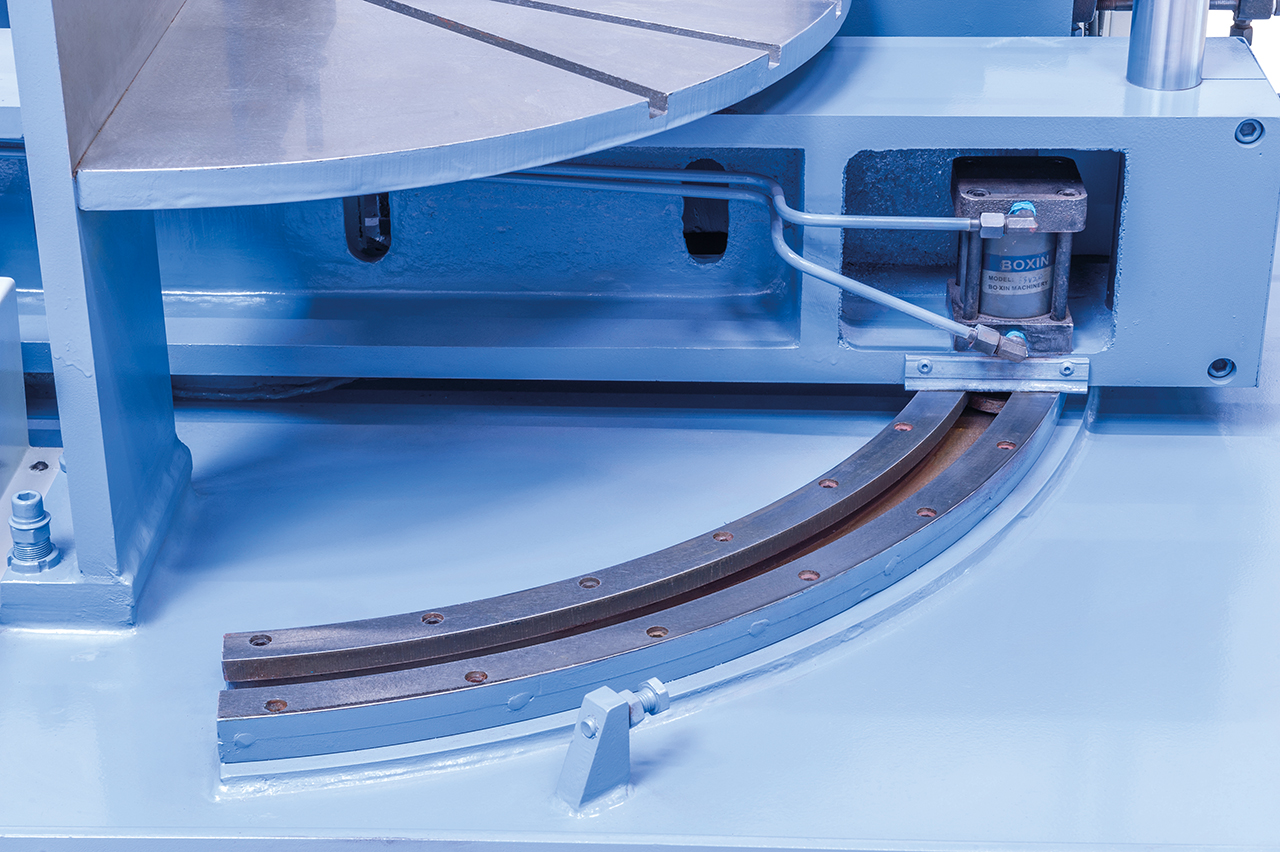

Automatic cutting angle adjustment with hydraulic clamping.

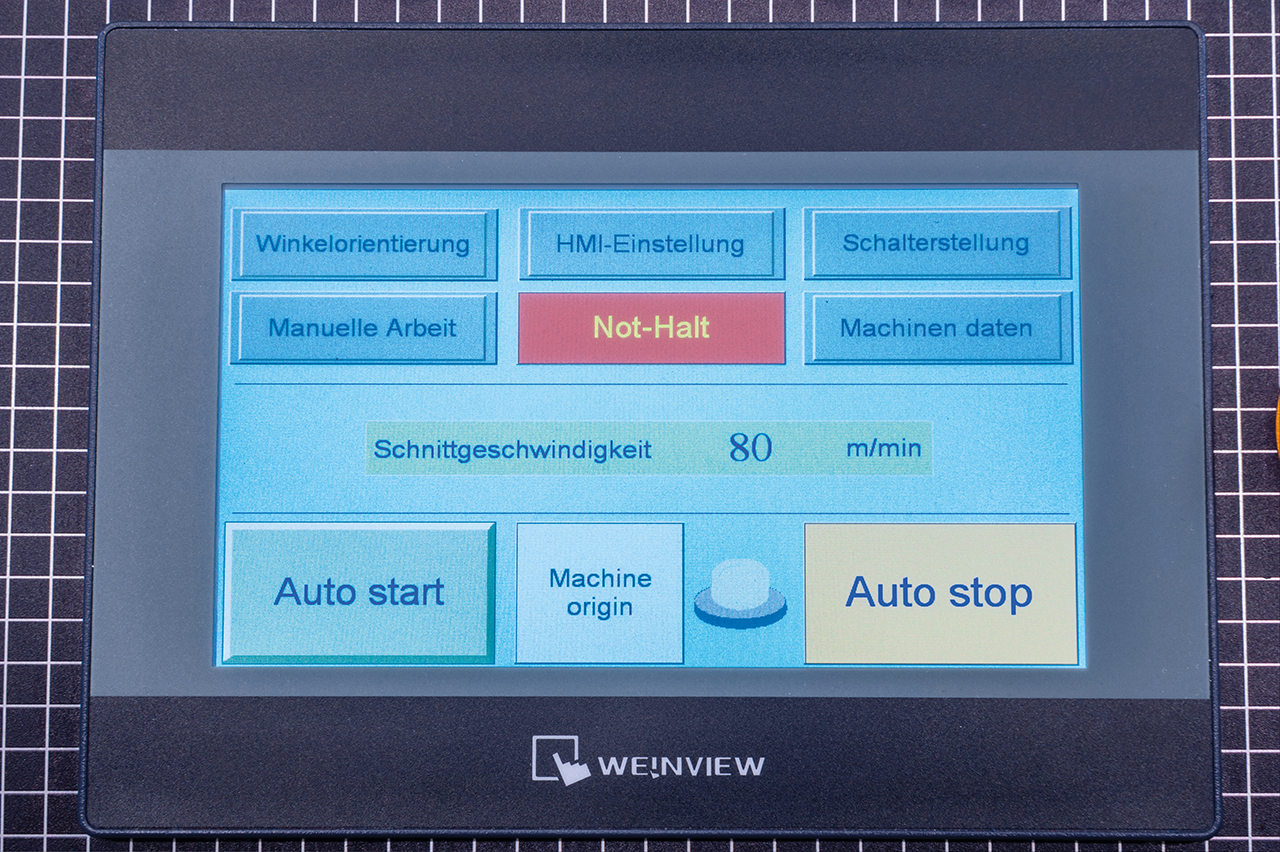

In automatic mode, the feed length, cutting angle and number of cuts can be programmed.

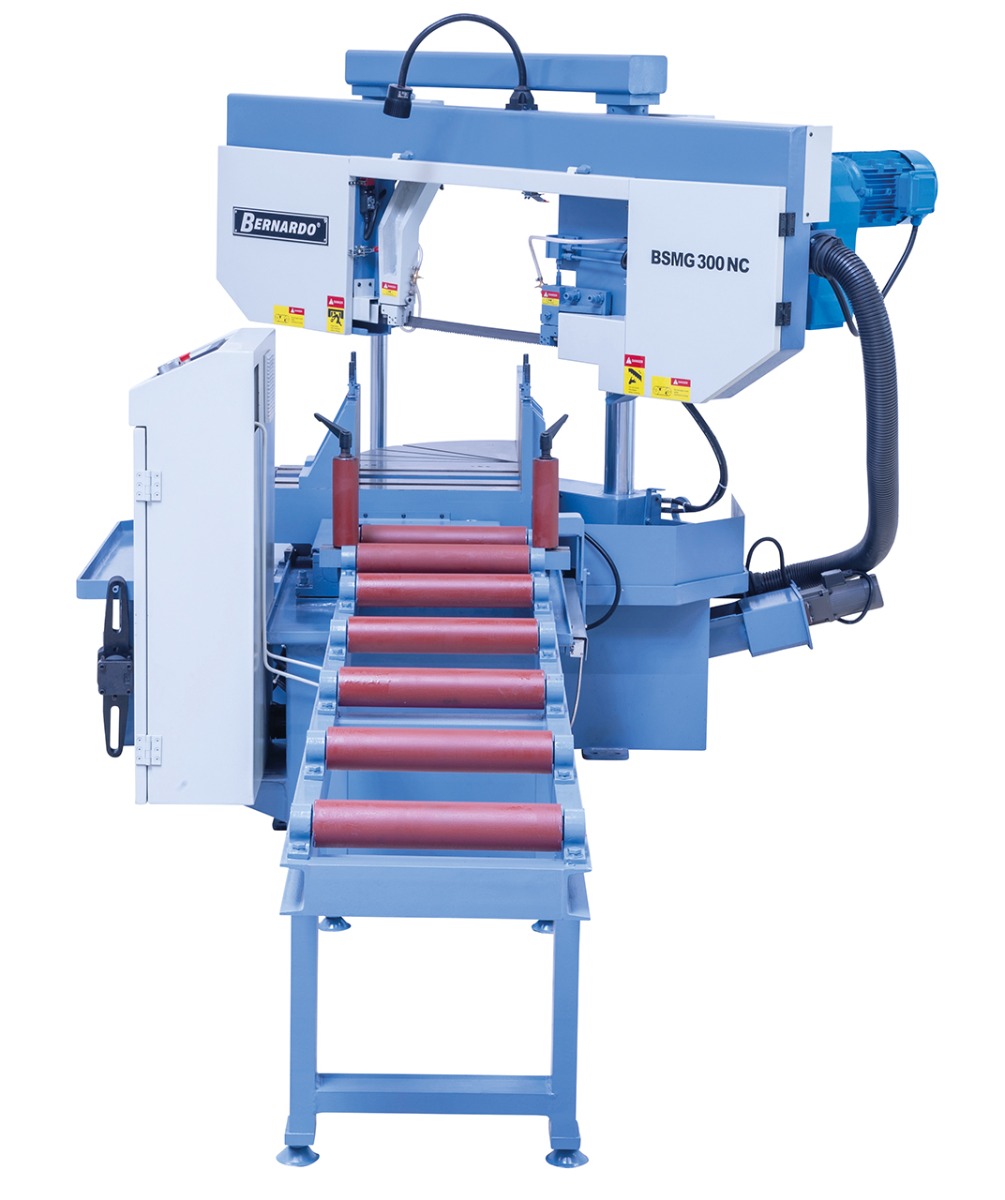

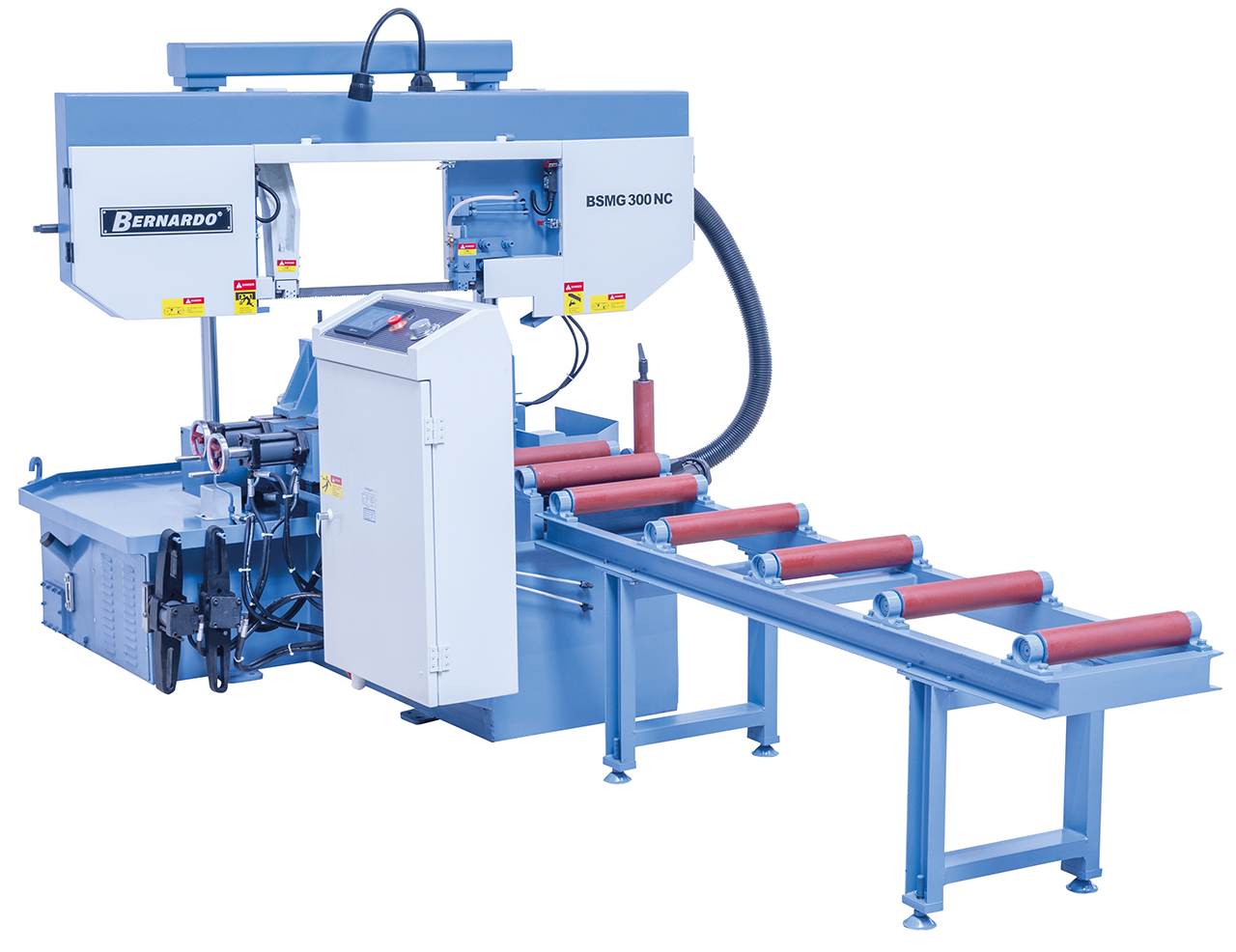

Picture from BSMG 300 NC

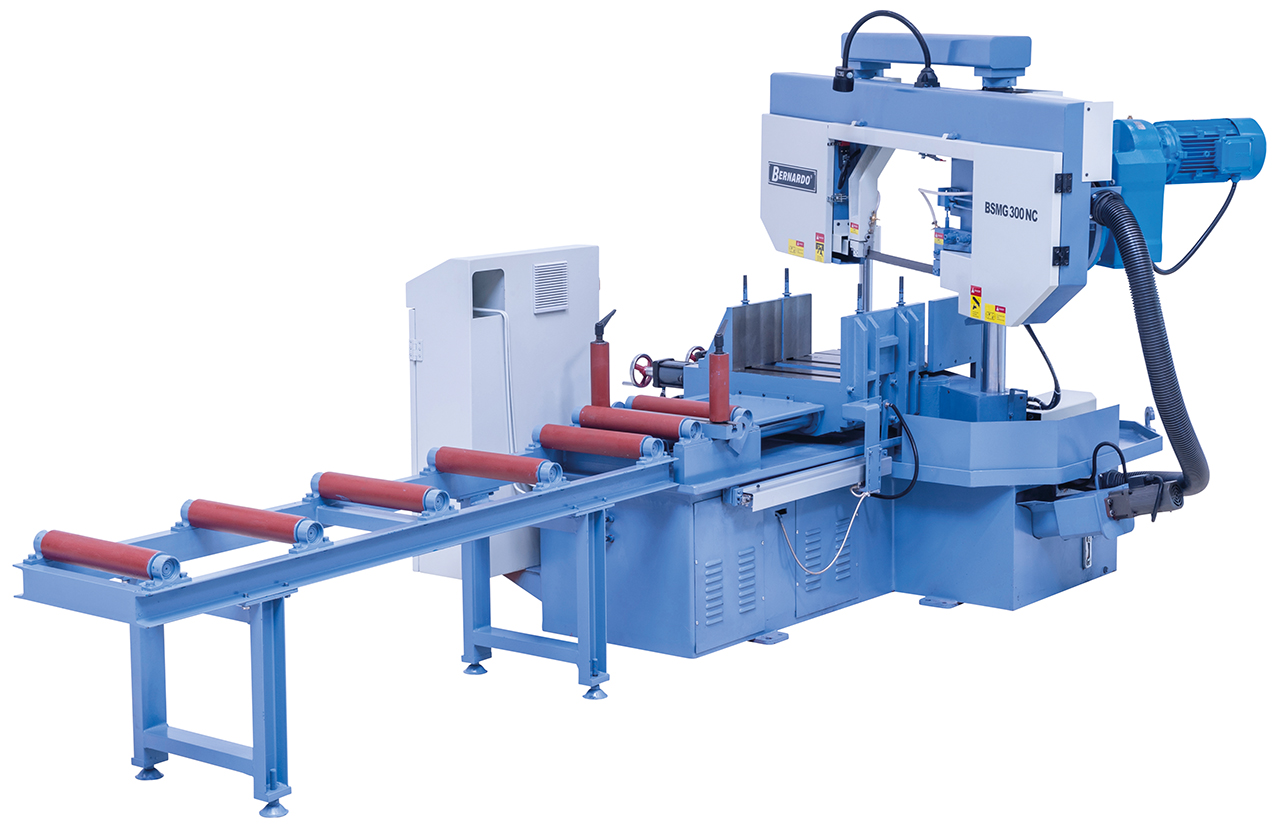

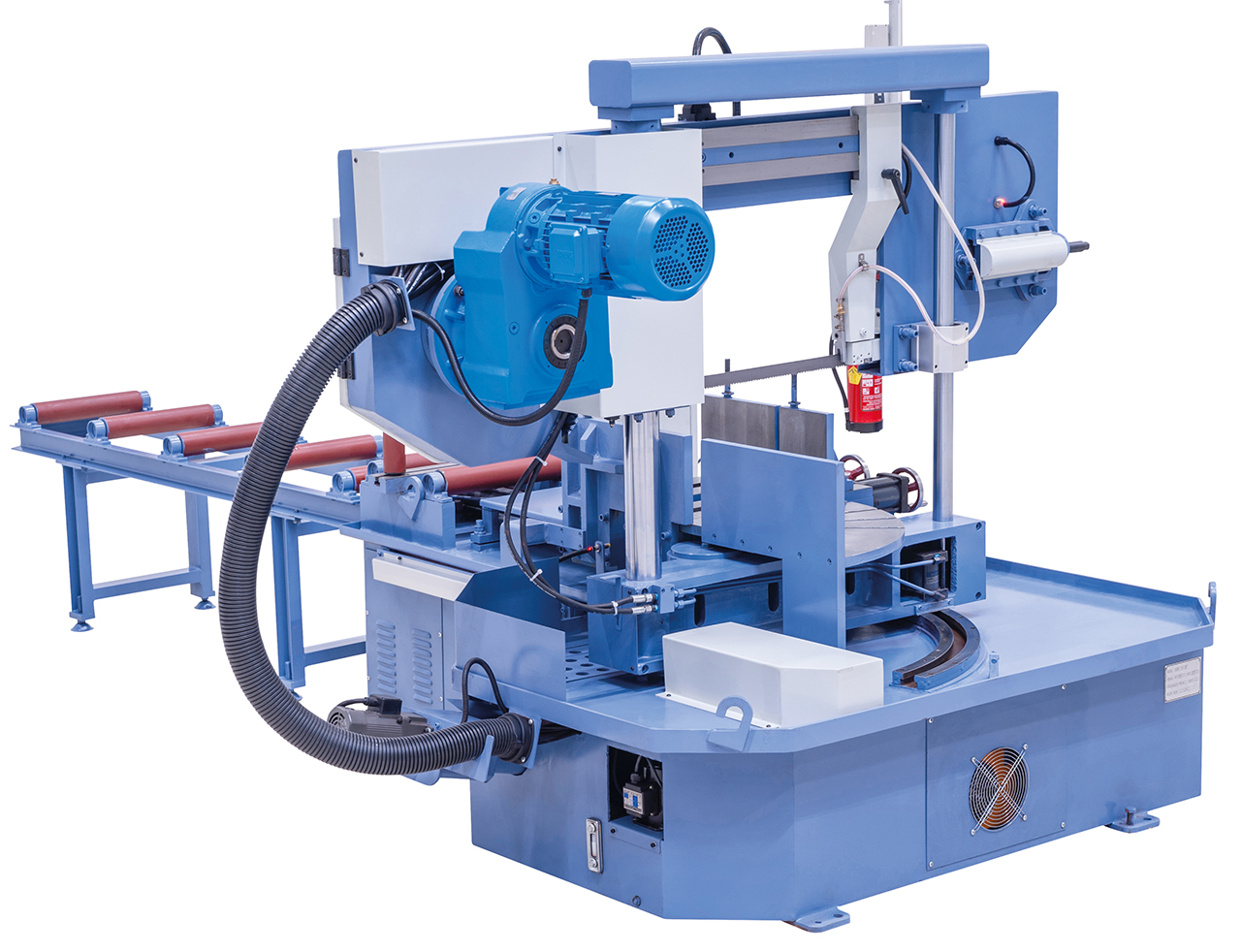

Fully automatic mitre bandsaw BSMG 400 NC *

Art.Nr.: 04-1747XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The model BSMG is a fully automated mitre bandsaw (up to 45°) with programmable cutting angle adjustment and a wide range of accessories (such as PLC-control, stepless cutting speed, automatic blade break control,….). The integrated PLC control allows you to predefine the required number of cuts and cutting length, which ensures economical serial production.

€28,788.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Fully automated model, including automatic lifting of saw arm

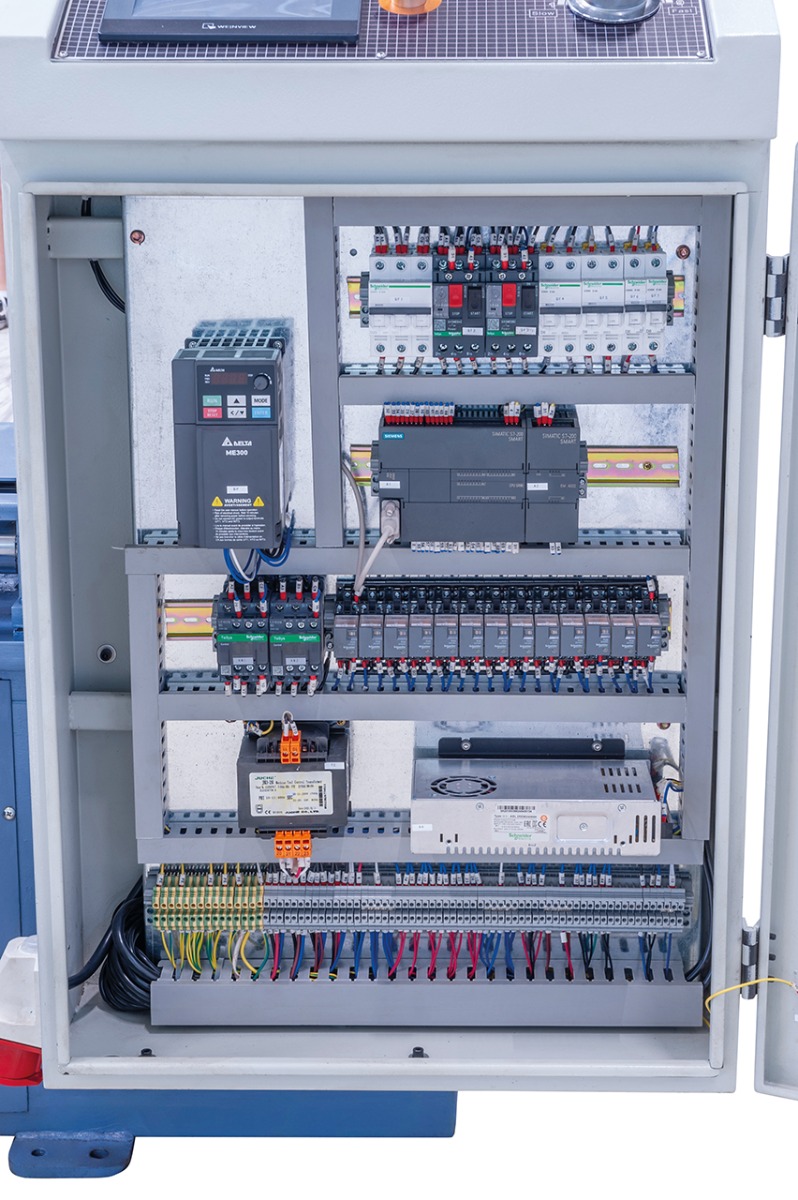

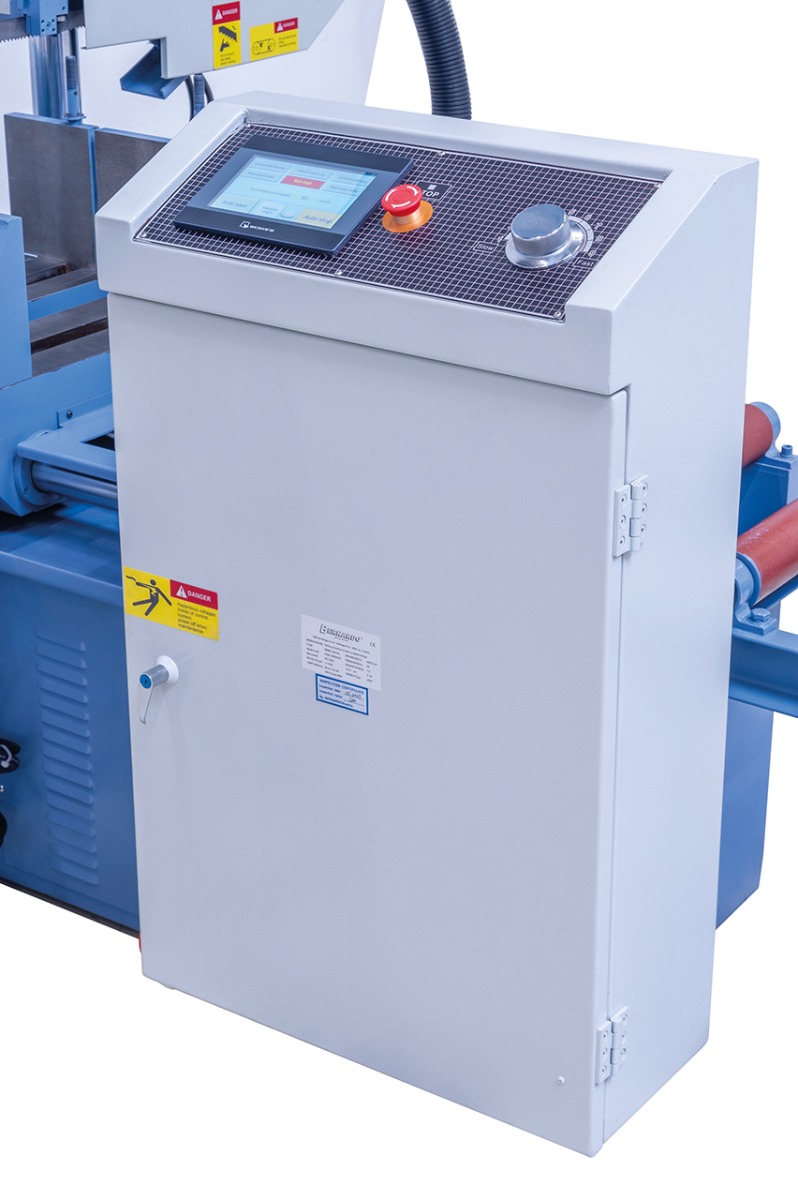

PLC control with program memory locations for entering the required number of cuts and cutting length, with automatic shutdown at the end of the program
Cutting of profiles, pipes, full rivet iron and non-ferrous materials
Adjustable hydraulic cylinder for pressure regulation of the saw frame
Stepless adjustment of the cutting speed by frequency inverter
Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
Automatic blade break control stops the machine if blade break

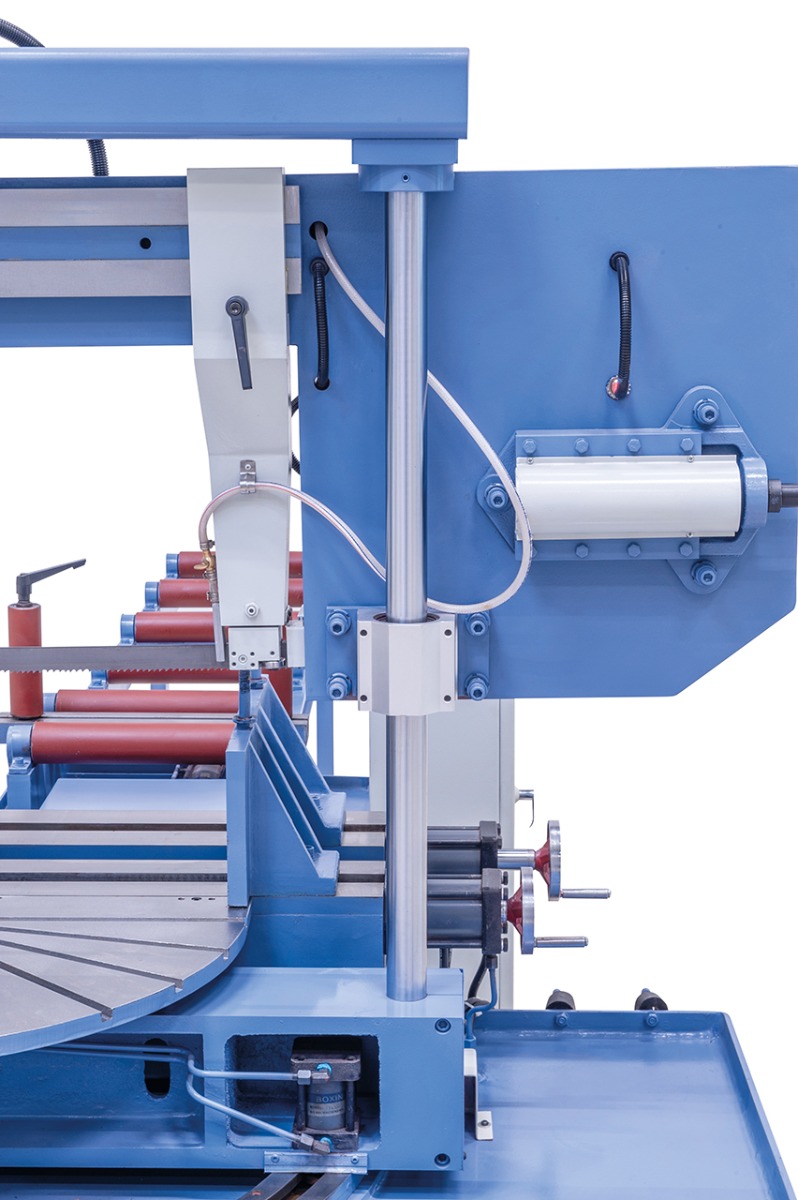

Increased stability through precision-ground double-column guide

Product Specifications

Cutting capacity round / square 90°	400 mm / 400 x 400 mm
Cutting capacity flat 90°	500 x 400 mm
Cutting capacity round / square 45°	350 mm / 30 x 350 mm
Cutting capacity flat 45°	350 x 400 mm
Working height	755 mm
Cutting speed, stepless	20 - 80 m/min
Bandsaw blade dimension	5590 x 41 x 1,25 mm

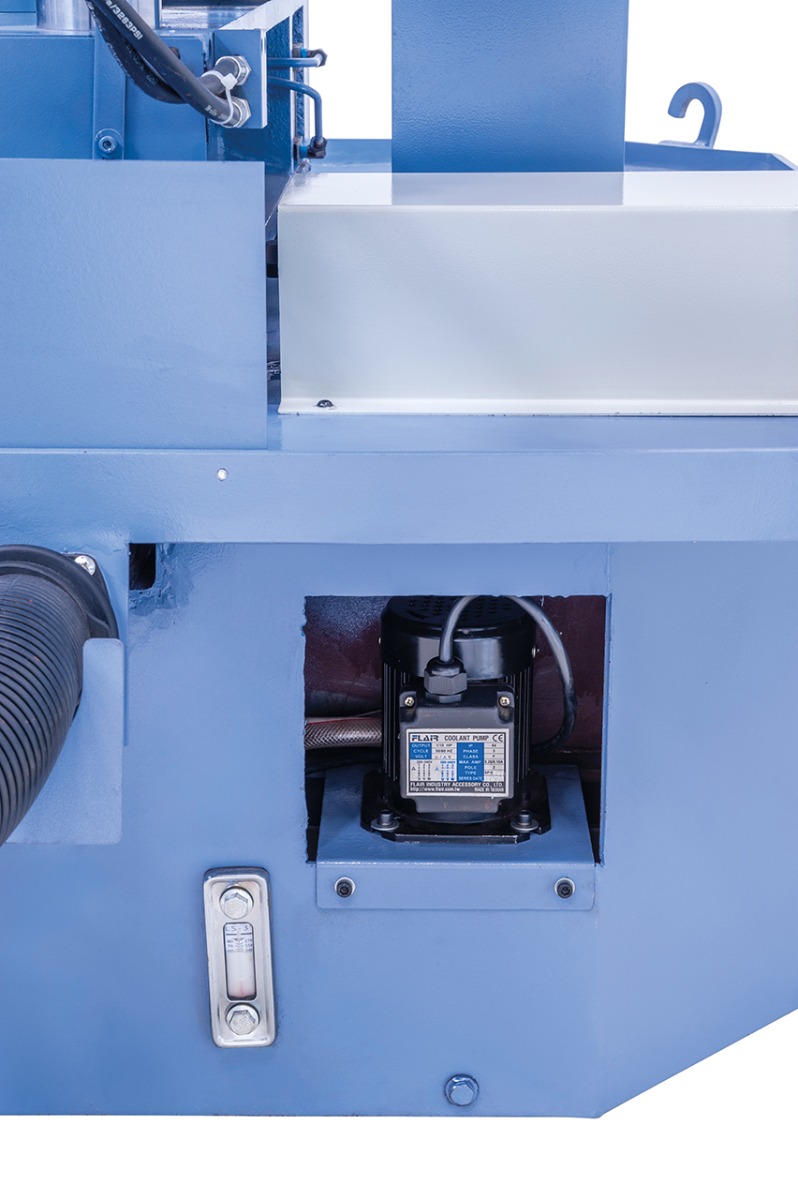

Coolant pump	0,06 kW
Motor power of hydraulic pump	1,5 kW
Motor power	4,0 kW
Machine dimension (L x D x H)	2915 x 2500 (4500*) x 2100 mm
Weight approx.	2970 kg
