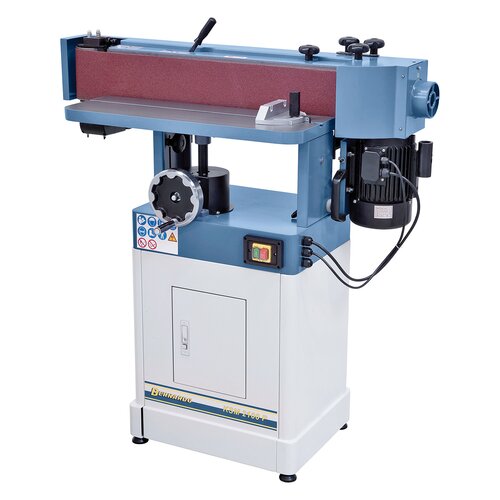

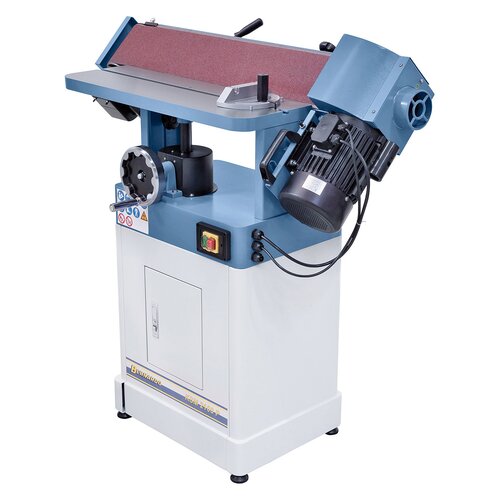

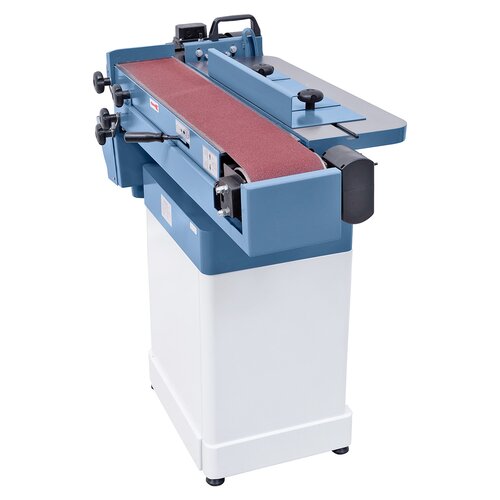

Edge sanding machine KSM 2100 P / 400 V *
Art.Nr.: 11-4171The KSM 2100 P edge sanding machine comes complete with oscillation of sanding belt and horizontally and vertically tiltable sanding unit. These equipment features makes this model versatile and predominantly used by experienced craftsmen.
€1,176.00
incl. 20% VATAvailability
Product Properties

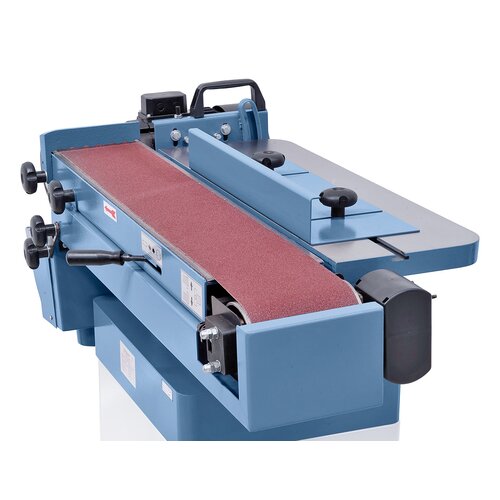

- Oscillating sanding belt guarantees high removal capacity and leaves a clean finish
- Amply sized worktable features integrated T-slot to intake mitre fence

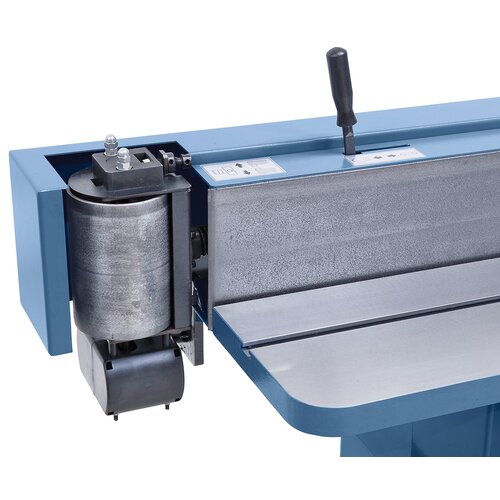

- Quick clamping lever allows for easy sanding belt change

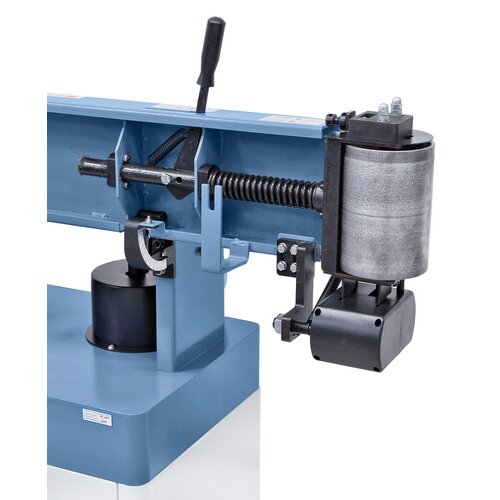

- Spring balanced belt tension ensures automatic adjustment of differences in sanding belt lengths

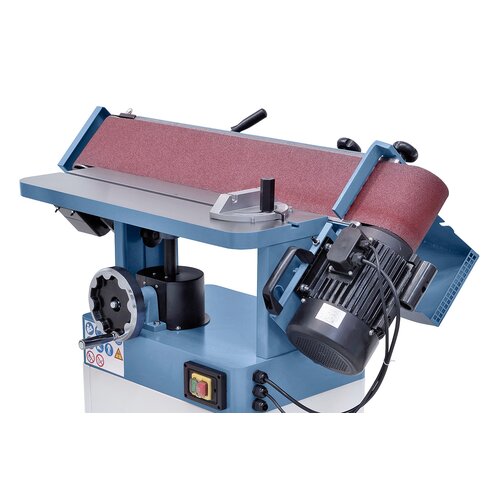

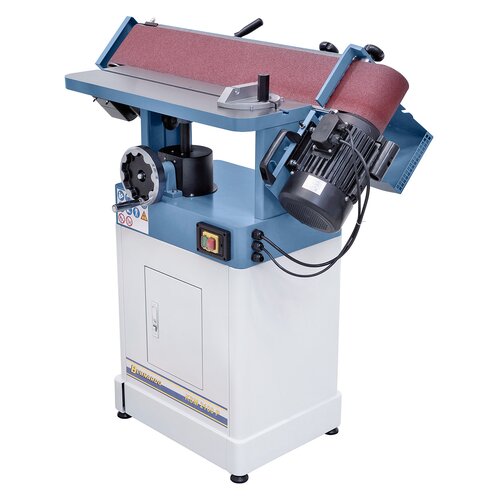

- Stepless tilting of sanding unit for vertical and horizontal sanding operations
- Graphite coating on sanding table increases the sliding capacity of sanding belt
- Complete with mechanically oscillating sanding unit to ensure optimal use of sanding belt
Product Specifications
|
Work table |
750 x 250 mm |
|
Table height adjustment |
80 mm |
|
Belt length |
2260 mm |
|
Belt width |
150 mm |
|
Sanding table |
820 x 170 mm |
|
Sanding unit tiltable |
90° - 0° |
|
Belt speed |
16,3 m/sec. |
|

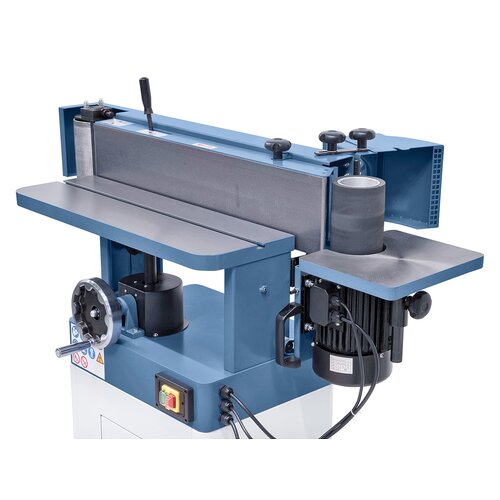

Supporting table |
300 x 245 mm |
|
Dust extraction outlet |
100 mm |
|
Roller diameter |
110 mm |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,0 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H |
1270 x 600 x 1200 mm |
|
Weight approx. |
120 kg |
Delivery Contents
- Sanding belt 2260 x 150 mm - grit 60

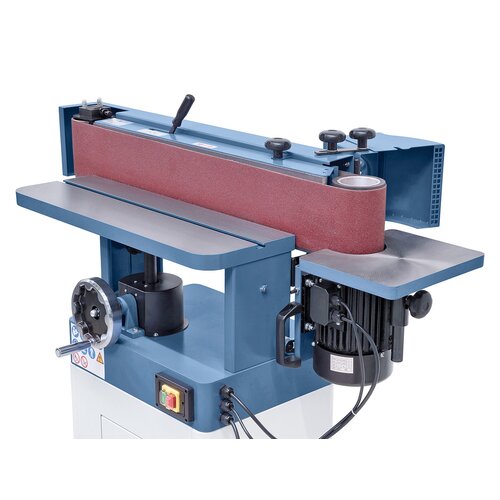

- Supporting table
- Graphite coating

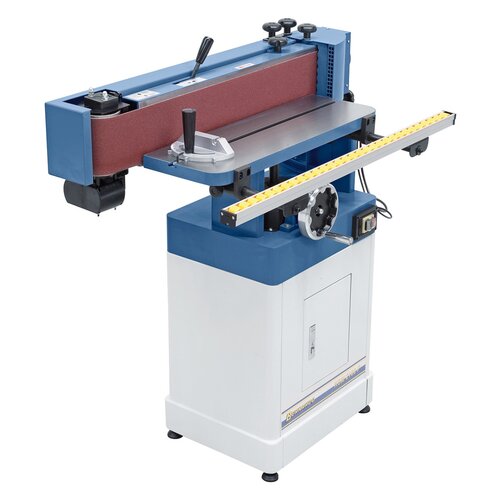

- Mitre fence
- Stop bar

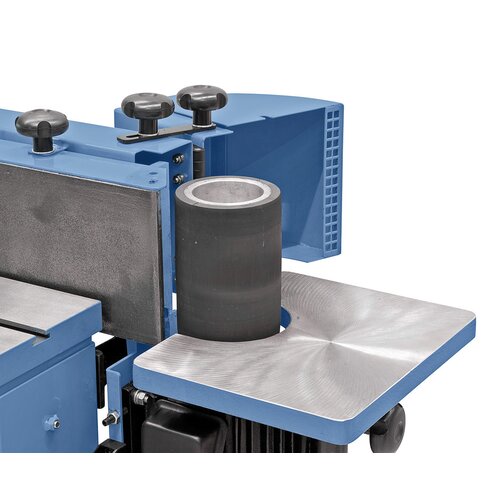

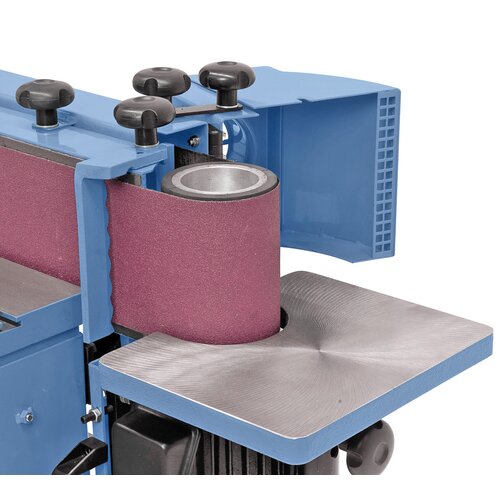

- Rubber coated sanding roller
- Stand with tool storage
