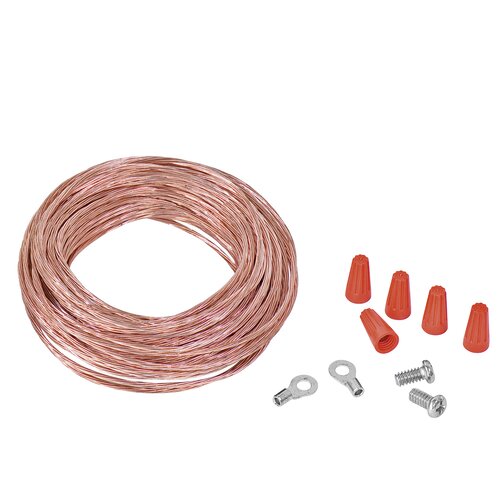

Grounding set ES 1 (optional extra): Attention! The dust collector must be grounded at all time to reduce the riskof fire and explosion.
Grounding set ES 1 (optional extra): Attention! The dust collector must be grounded at all time to reduce the riskof fire and explosion.

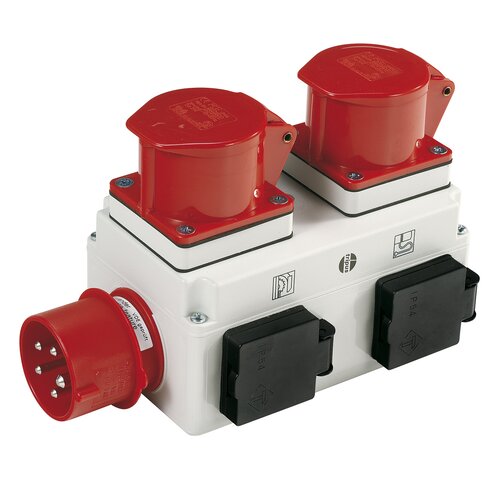

Automatic start-up system ALV 10: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (option)
Automatic start-up system ALV 10: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (option)

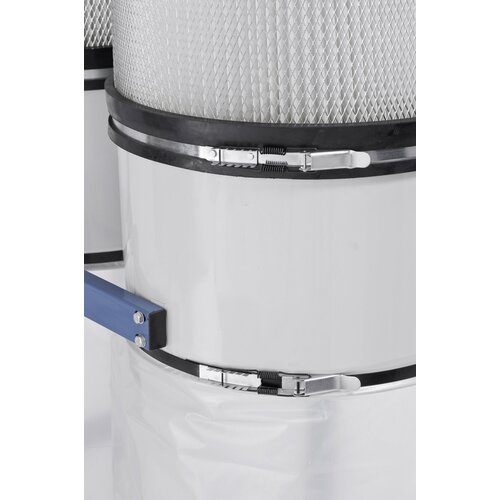

Convenient, quick change of dust bag.
Convenient, quick change of dust bag.

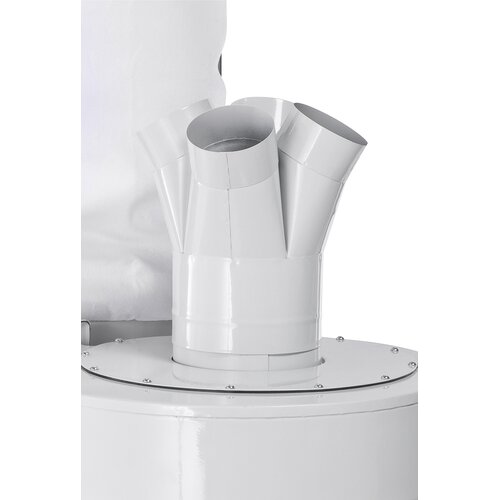

The serially included adaptor offers four ports (diam. 100 mm).
The serially included adaptor offers four ports (diam. 100 mm).

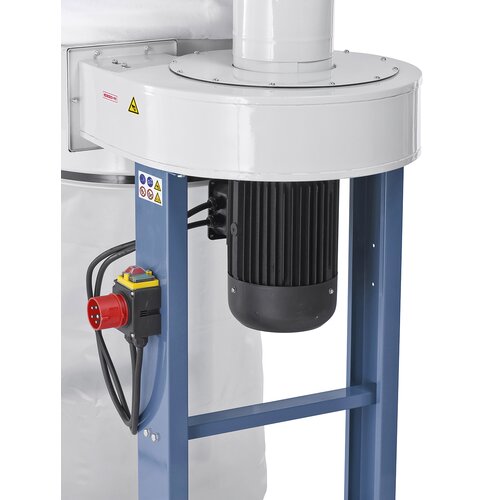

Powerful motor with steel fan wheel.
Powerful motor with steel fan wheel.
Grounding set ES 1 (optional extra): Attention! The dust collector must be grounded at all time to reduce the riskof fire and explosion.
Automatic start-up system ALV 10: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (option)
Convenient, quick change of dust bag.
The serially included adaptor offers four ports (diam. 100 mm).
Powerful motor with steel fan wheel.

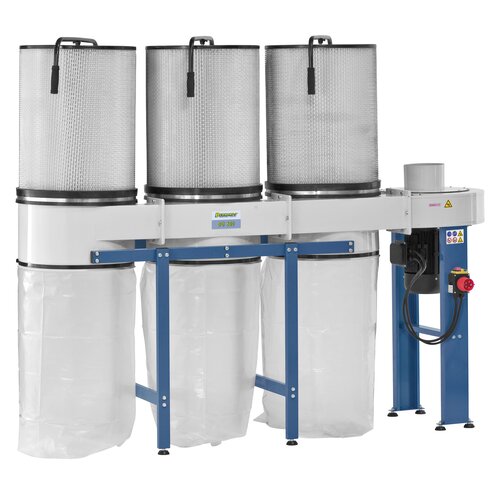

Dust collectors with cartridge filter DC 650 CF / 400 V

Art.Nr.: 12-2101
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The DC 650 CF model comes complete with cartridge filter to increase the performance level (larger filter area). This model filter the air so effectively that harmful fine dust in workshops is kept to a minimum.

€2,232.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Ideal device for extraction of saw dust, milling chips and wood shavings
  • Strap with quick clamping allows for straightforward change of dust bags
  • Aerodynamically shaped, steel fan wheel ensures top performance level

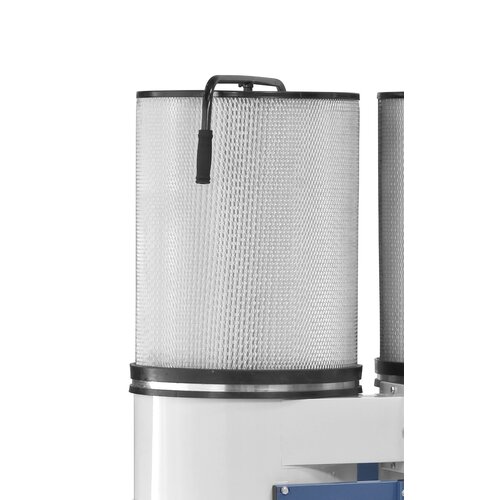

  • Complete with filter cartridges and cleaning brushes for fine dust removal
  • Cartridge filter increases extraction force because of larger fi lter area
  • Powerful drive motor guarantees constant level of extraction

Product Specifications

Capacity

5310 m³/h

Filter area

12,0 m²

Low pressure max.

2340 Pa

Inlet diameter

1 x 180 mm

Inlet diameter with adapter

4 x 100 mm

Waste bag volume

570 l (3 x 190 l)

Idle speed

2950 rpm

Sound pressure

80 dB

Motor power output S1 100%

3,7 kW (5,0 HP)

Motor power input S6 40%

5,1 kW (7,0 HP)

Voltage

400 V / 50 Hz

Machine dimension (W x D x H)

2184 x 582 x 1755 mm

Weight approx.

112 kg

Delivery Contents

  • 3 cartridge filter FP 2
  • Waste bags
  • Adapter 1 x 180 mm / 4 x 100 mm

Suitable accessories

Cartridge filter FP 2 f. DC 300 / 400 / 500 / 600 / 700
Cartridge filter FP 2 f. DC 300 / 400 / 500 / 600 / 700
Art.Nr. : 12-1013

€297.60

incl. 20% VAT
Cartridge filter FP 3 f. DC 300 / 400 / 500 / 600 / 700
Cartridge filter FP 3 f. DC 300 / 400 / 500 / 600 / 700
Art.Nr. : 12-1014

€408.00

incl. 20% VAT
PU-tube diam. 100 mm (6 m)
PU-tube diam. 100 mm (6 m)
Art.Nr. : 12-1077

€152.40

incl. 20% VAT
Tube diam. 180 mm (6 m)
Tube diam. 180 mm (6 m)
Art.Nr. : 12-1081

€276.00

incl. 20% VAT
Grounding set ES 1
Grounding set ES 1
Art.Nr. : 12-1140

€38.40

incl. 20% VAT
Automatic start-up system ALV 10 / 1 M
Automatic start-up system ALV 10 / 1 M
Art.Nr. : 12-1150
When switching wood working machine on / off, the dust...

€200.40

incl. 20% VAT
Waste bag diam. 540 x 1000 mm for DC DC 300 / 350 CF / 600 / 700 / 650 CF / 750 CF /ASA 3500 / ASA 4500 (10 pcs.)
Waste bag diam. 540 x 1000 mm for DC DC 300 / 350 CF / 600 / 700 / 650 CF / 750 CF /ASA 3500 / ASA 4500 (10 pcs.)
Art.Nr. : 12-1006

€27.60

incl. 20% VAT
Bag clamp f. FP 2 / FP 3 / DC 350 CF / DC 450 CF / DC 550 CF / DC 650 CF / DC 750 CF / DC 850 CF
Bag clamp f. FP 2 / FP 3 / DC 350 CF / DC 450 CF / DC 550 CF / DC 650 CF / DC 750 CF / DC 850 CF
Art.Nr. : 12-1119B

€19.20

incl. 20% VAT
