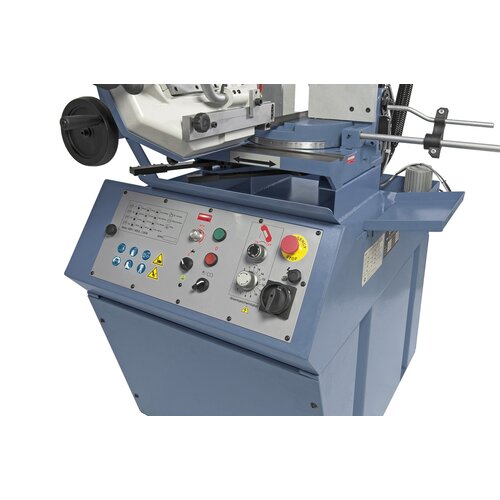

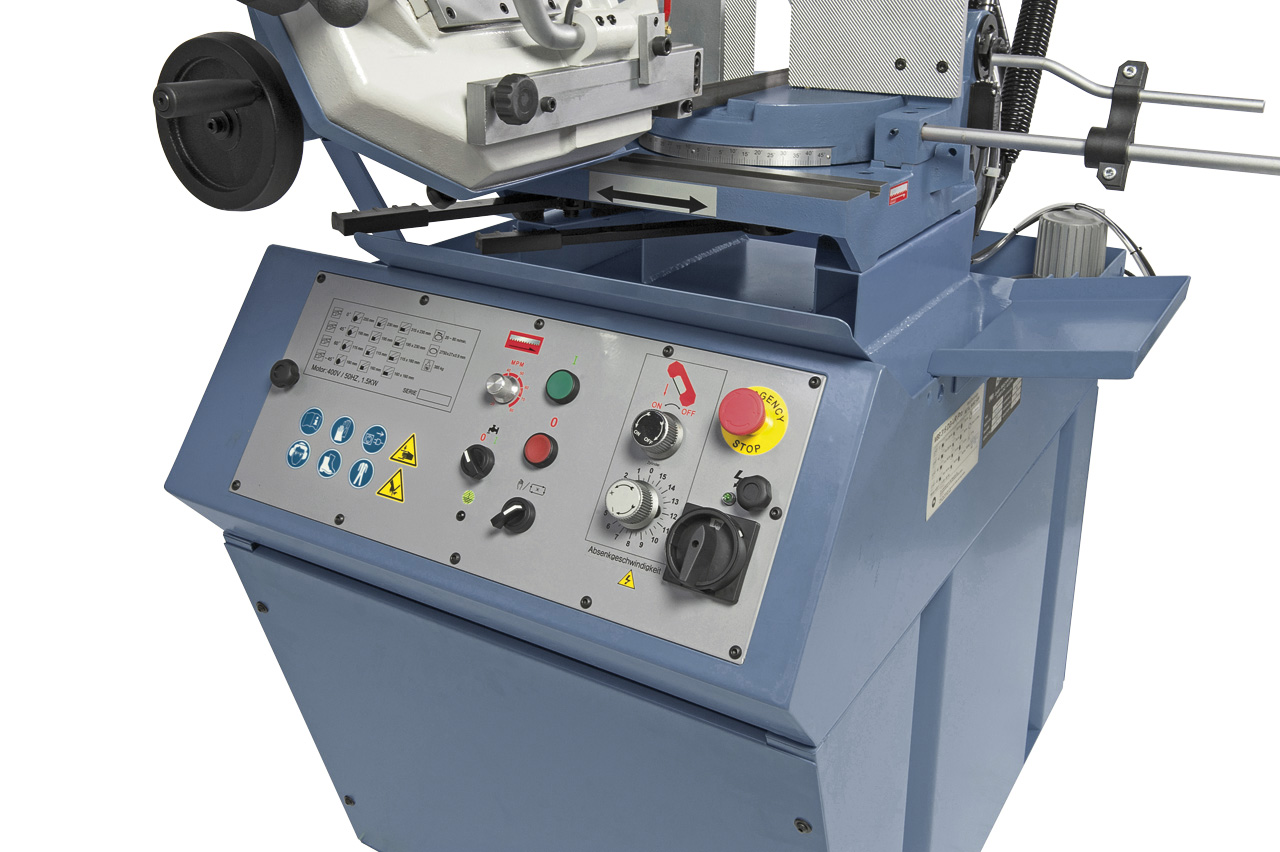

Rotary switch for stepless cutting speed and regulating valve for cutting pressure are arranged on ergonomically control panel

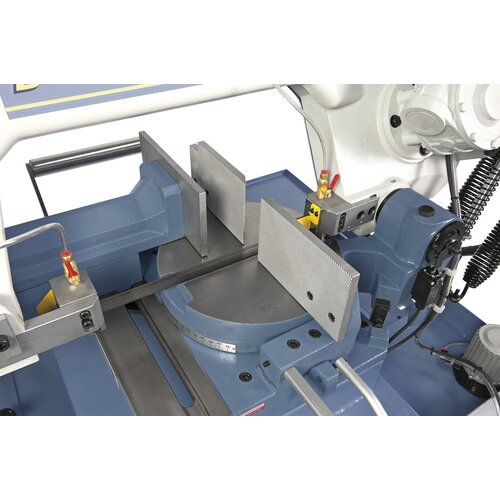

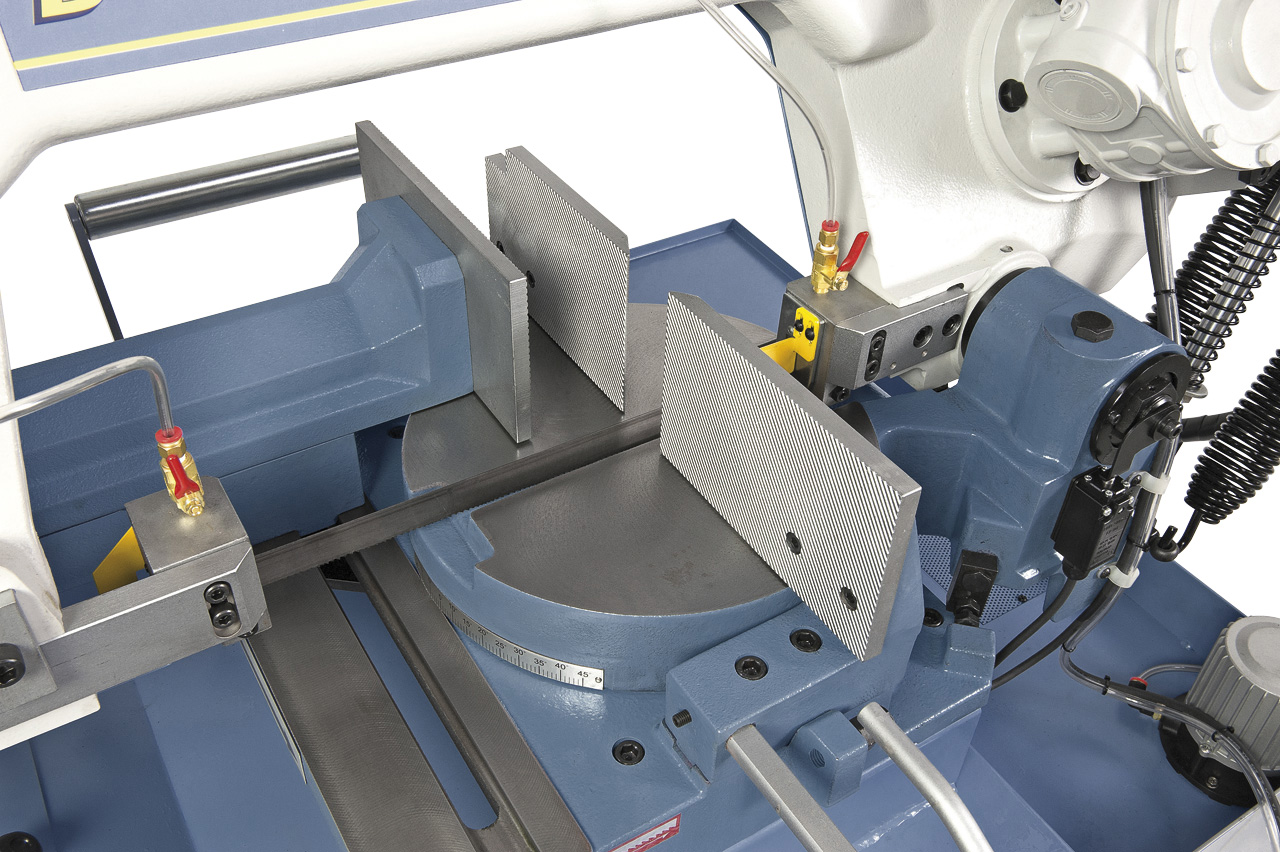

The cutting groove on the turning plate moves simultaneously to the saw arm.

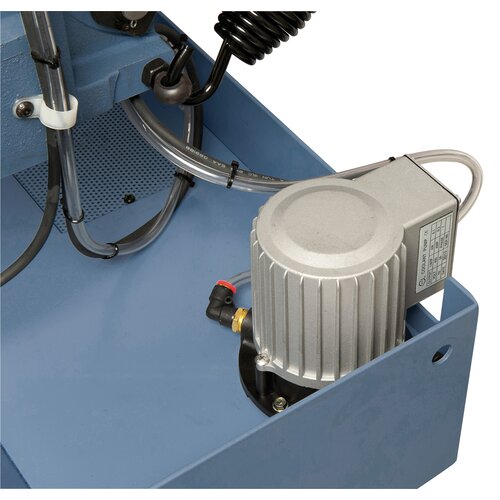

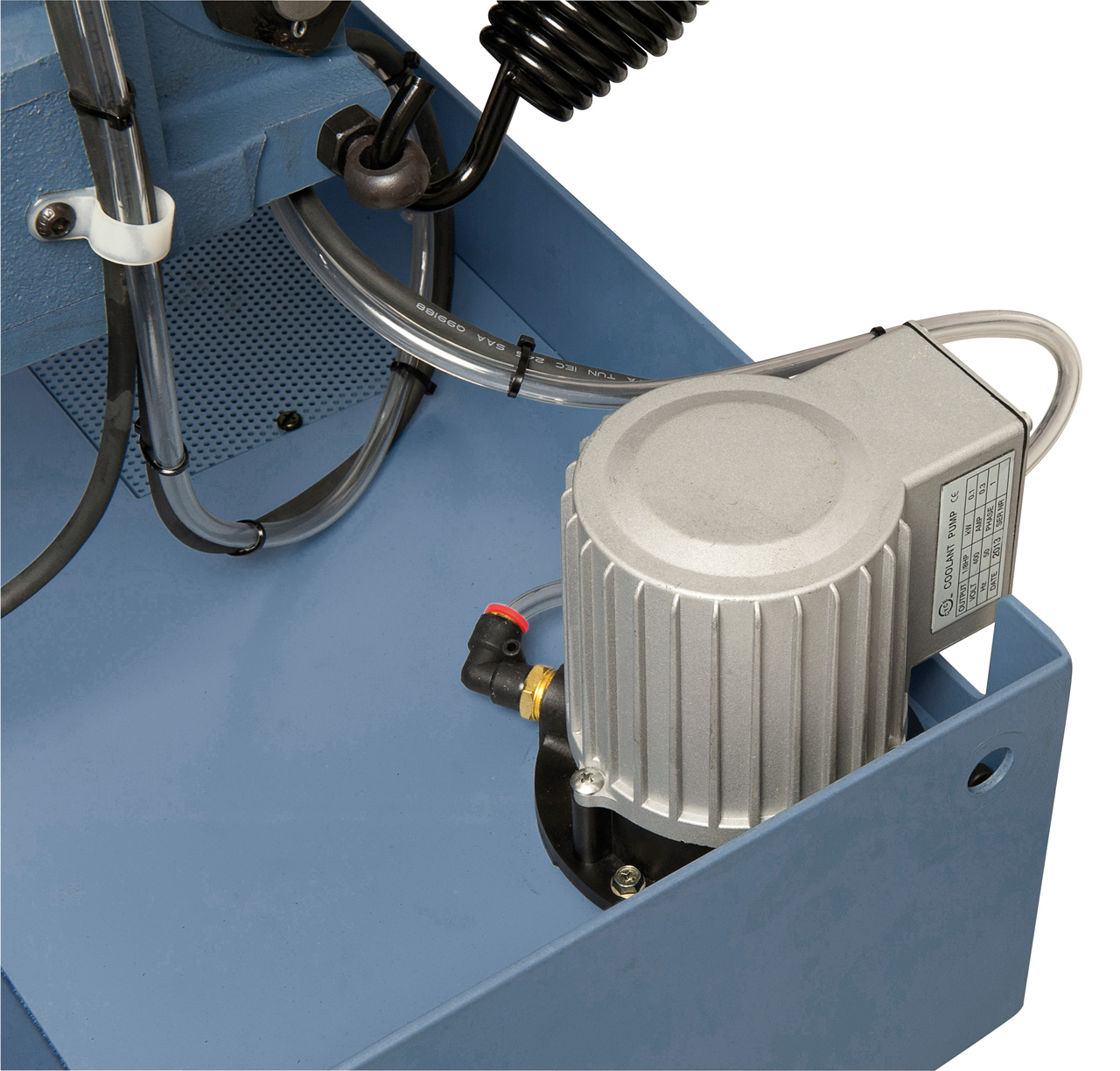

Powerful coolant pump comes standard.

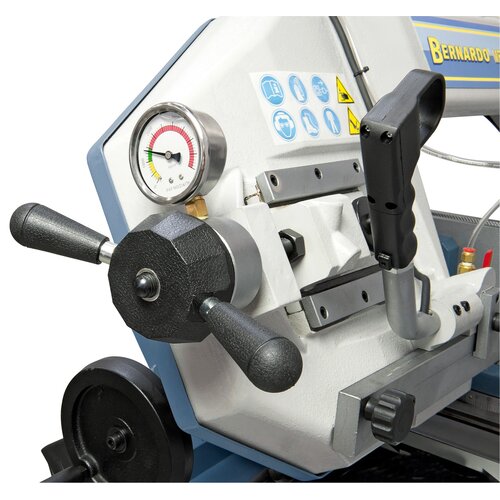

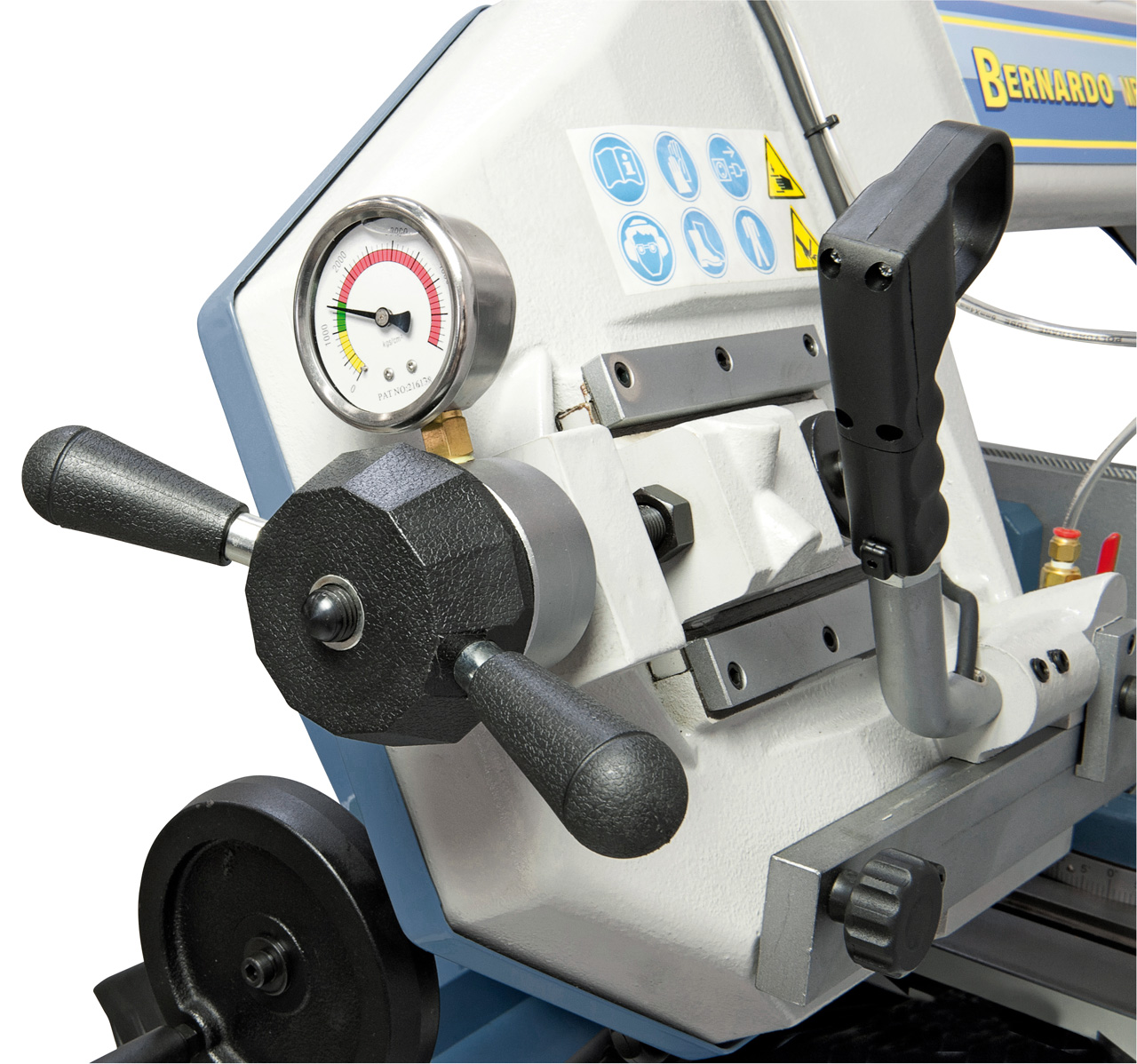

The manometer, as part of standard equipment, allows for optimal adjustmenst of bandsaw blade tension.

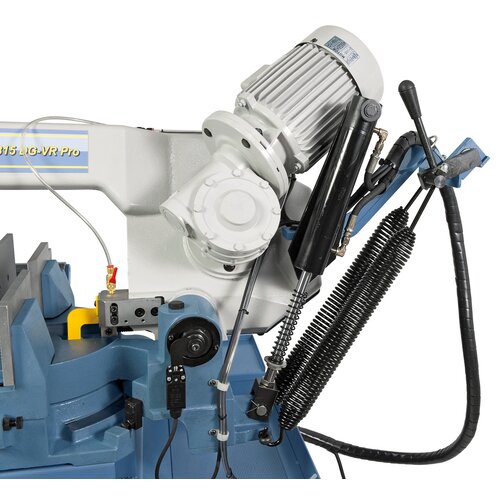

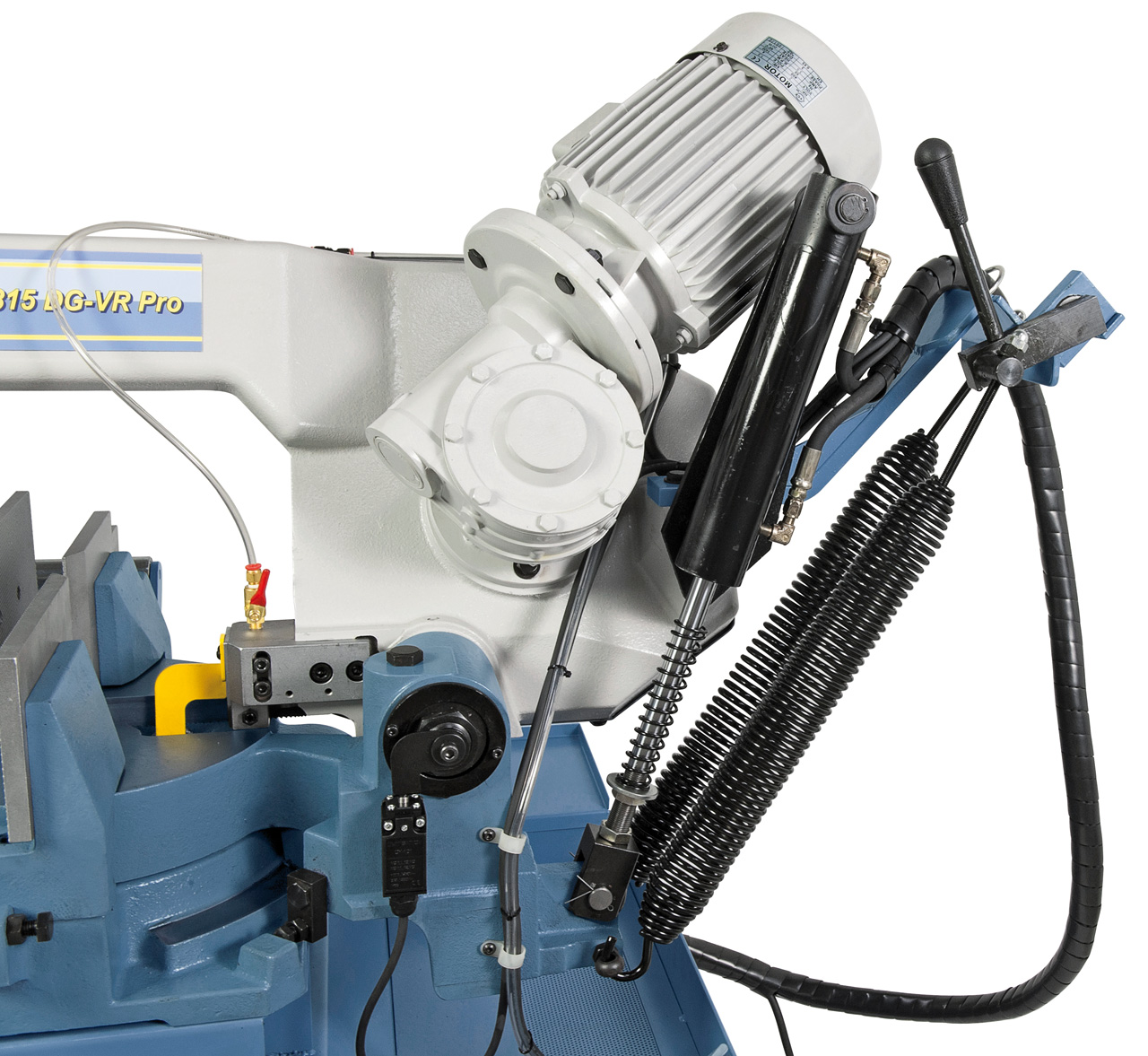

Tension spring with lever allows change to manual mode.

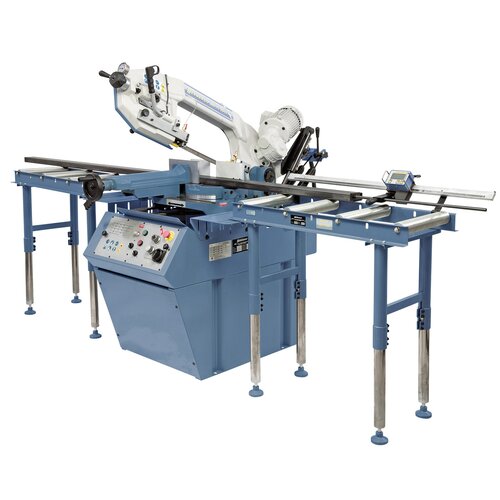

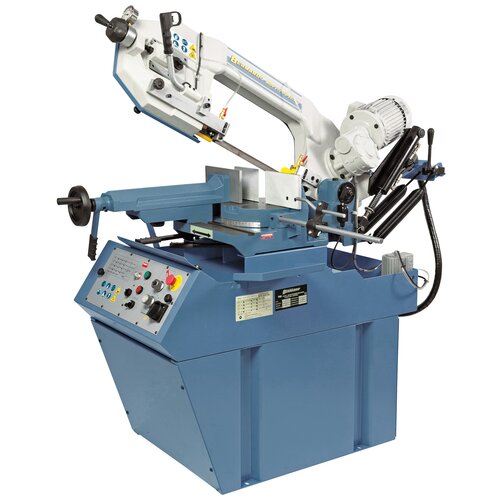

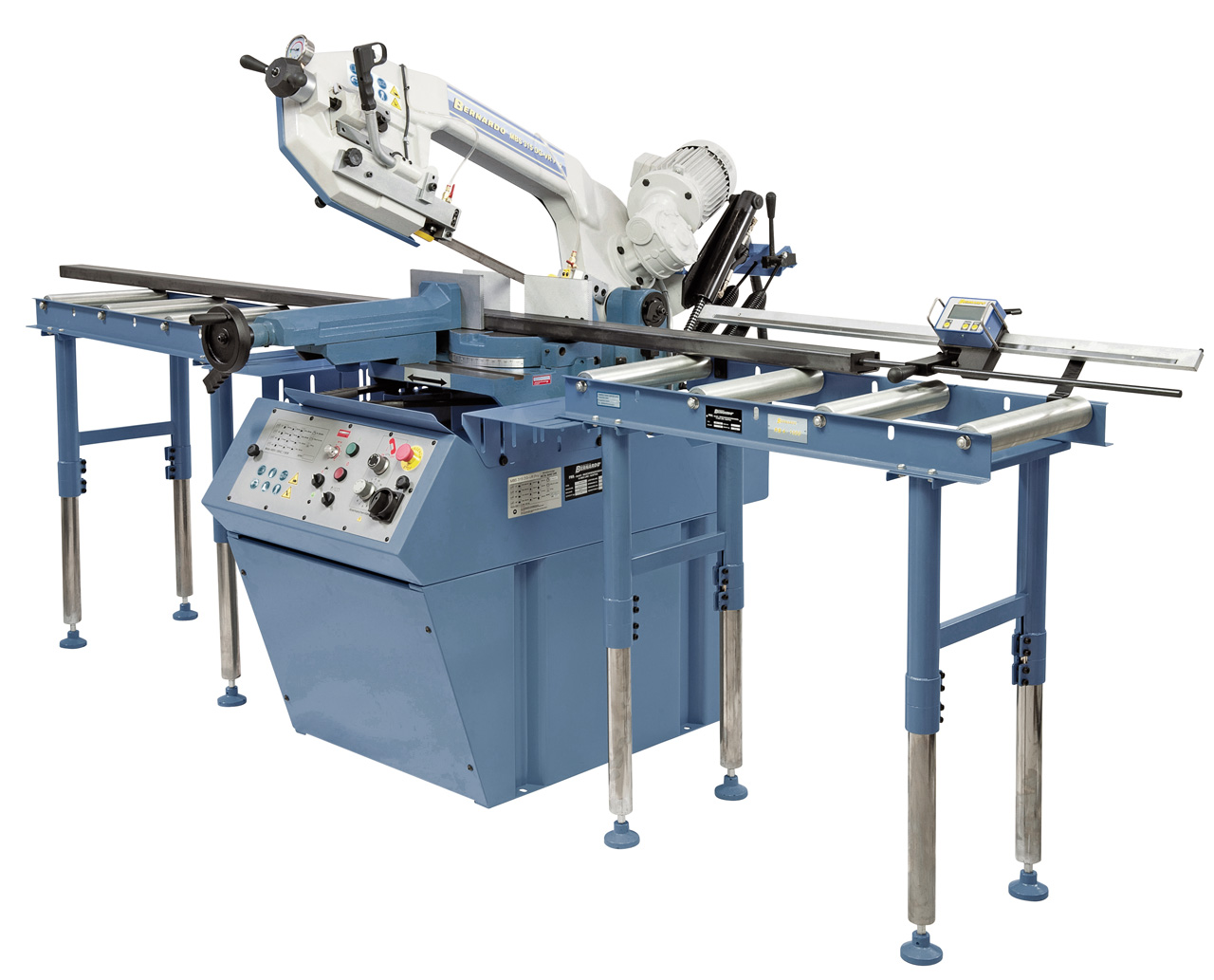

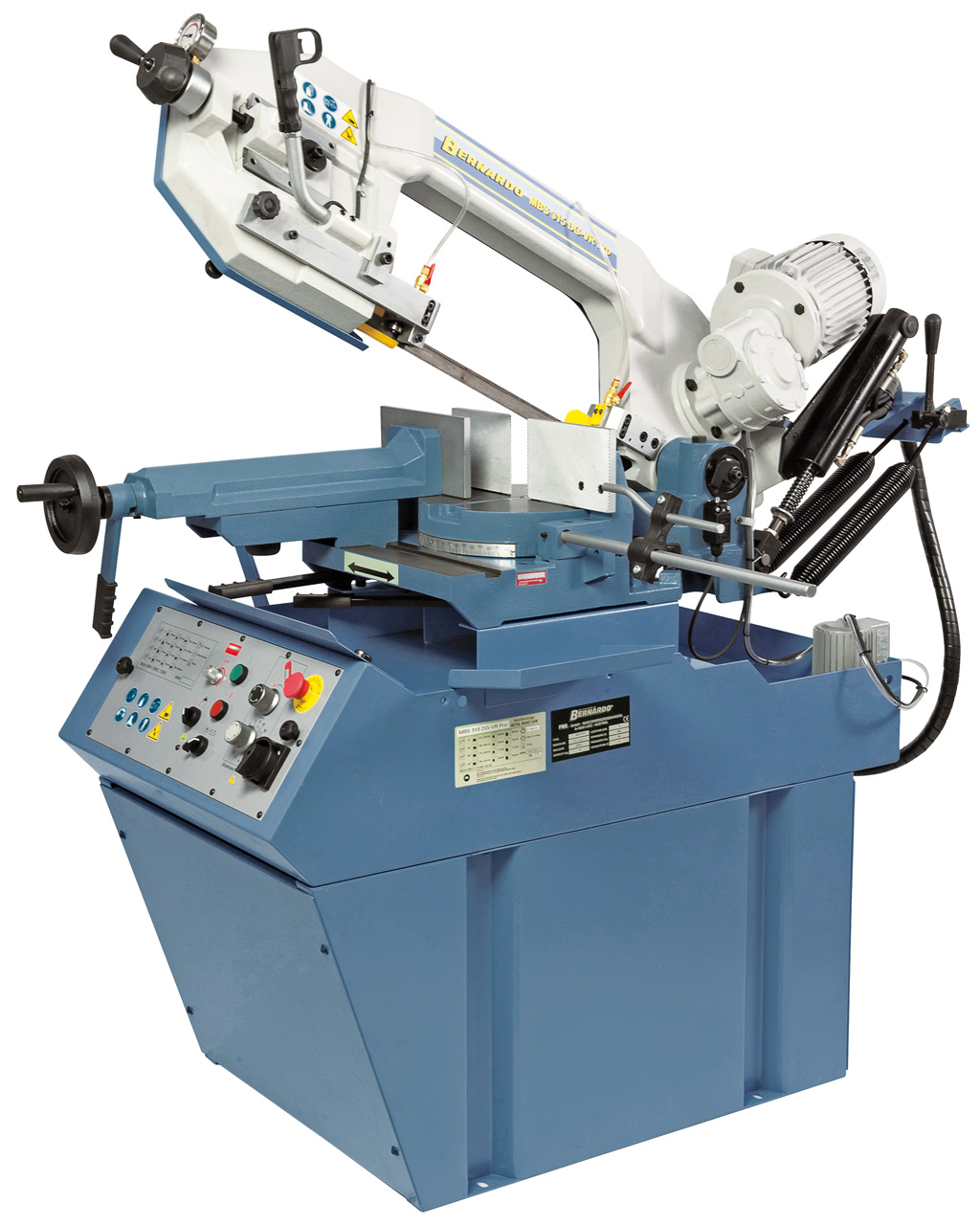

Double mitre bandsaw MBS 315 DG-VR PRO / 400 V

Art.Nr.: 04-1709

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 315 DG-VR PRO double mitre saw features a vice which moves in conjunction with the saw arm. The stepless cutting speed, the option of automatic to manual mode as well as the belt tension display via manometer are further features which make this model highly attractive for each user.

€6,756.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles
Quick clamping vice can be moved for double mitre cuts
Bandsaw blade guiding with carbide inserts and integrated coolant device
Oversize vice with quick clamping lever and work piece rest – ideal for a series of cuts
Drive features hardened and polished gear worm shaft and bronze worm wheel
Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals
Torsion-free , rigid grey cast-iron saw arm
Automatically shuts off when cut is finished
Stepless cutting speed allows for ideal adjustment to each work piece
Saw arm tilts left (-45°) and right (+60°) for double mitre cuts

Product Specifications

Cutting capacity round / square 90°	255 mm / 230 x 230 mm
Cutting capacity flat 90°	315 x 230 mm
Cutting capacity round / square 45° R	195 mm / 190 x 190 mm
Cutting capacity flat 45° R	195 x 230 mm
Cutting capacity round / square 45° L	180 mm / 160 x 160 mm
Cutting capacity flat 45° L	160 x 160 mm
Cutting capacity round / square 60° R	115 mm / 115 x 115 mm
Cutting capacity flat 60° R	115 x 160 mm
Working height	985 mm
Bandsaw blade dimension	2750 x 27 x 0,9 mm
Cutting speed, stepless	20 - 80 m/min
Coolant pump	100 W
Motor power output S₁ 100%	1,5 kW
Motor power input S₆ 40%	2,2 kW
Voltage	400 V
Machine dimension (L x D x H)	2000 x 1300 x 1900 mm
Weight approx.	390 kg
