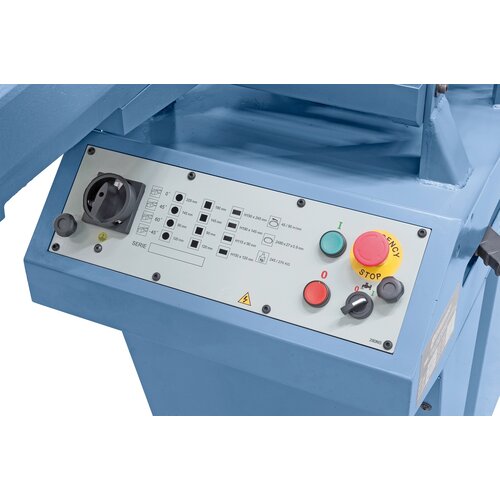

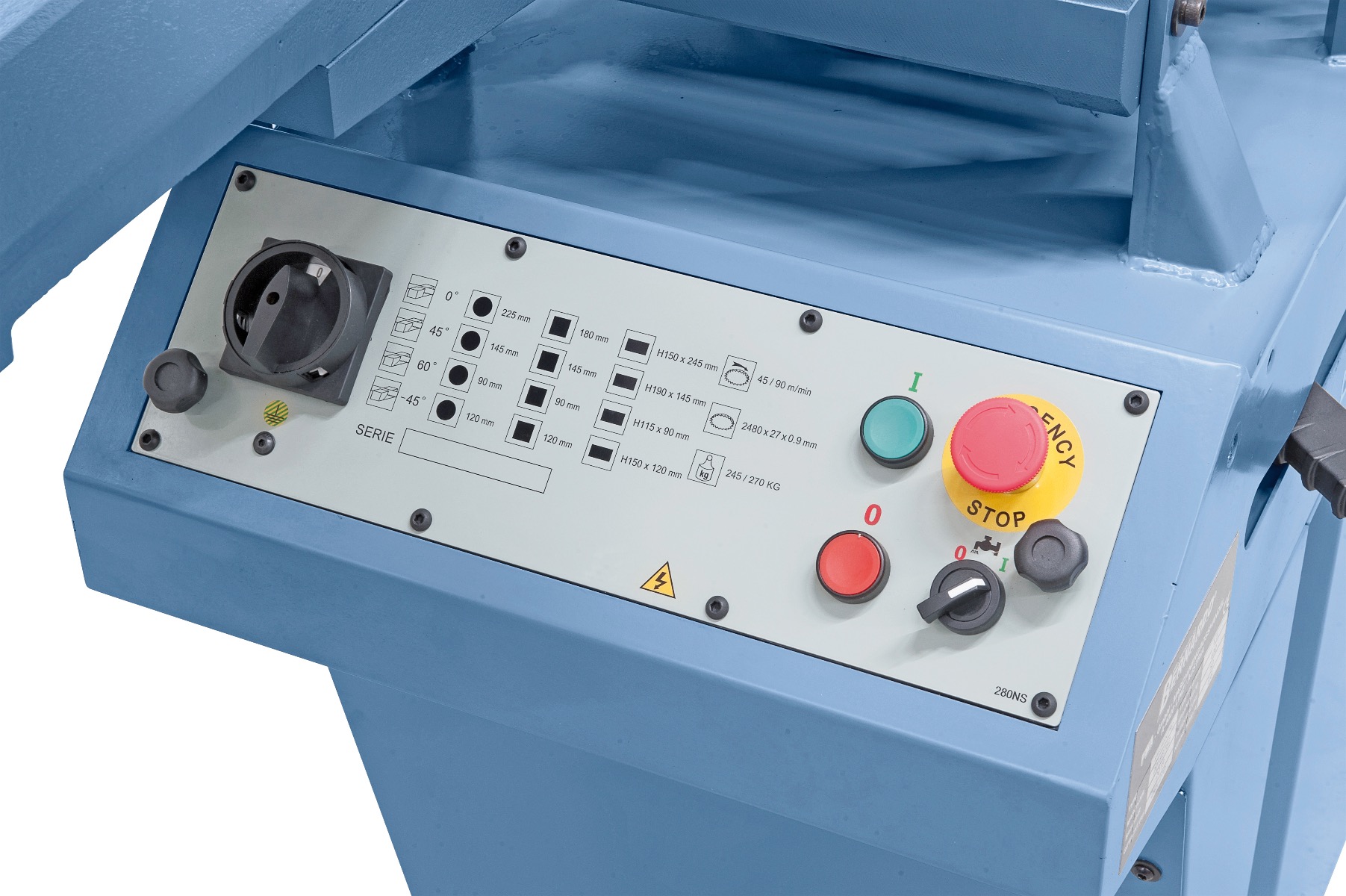

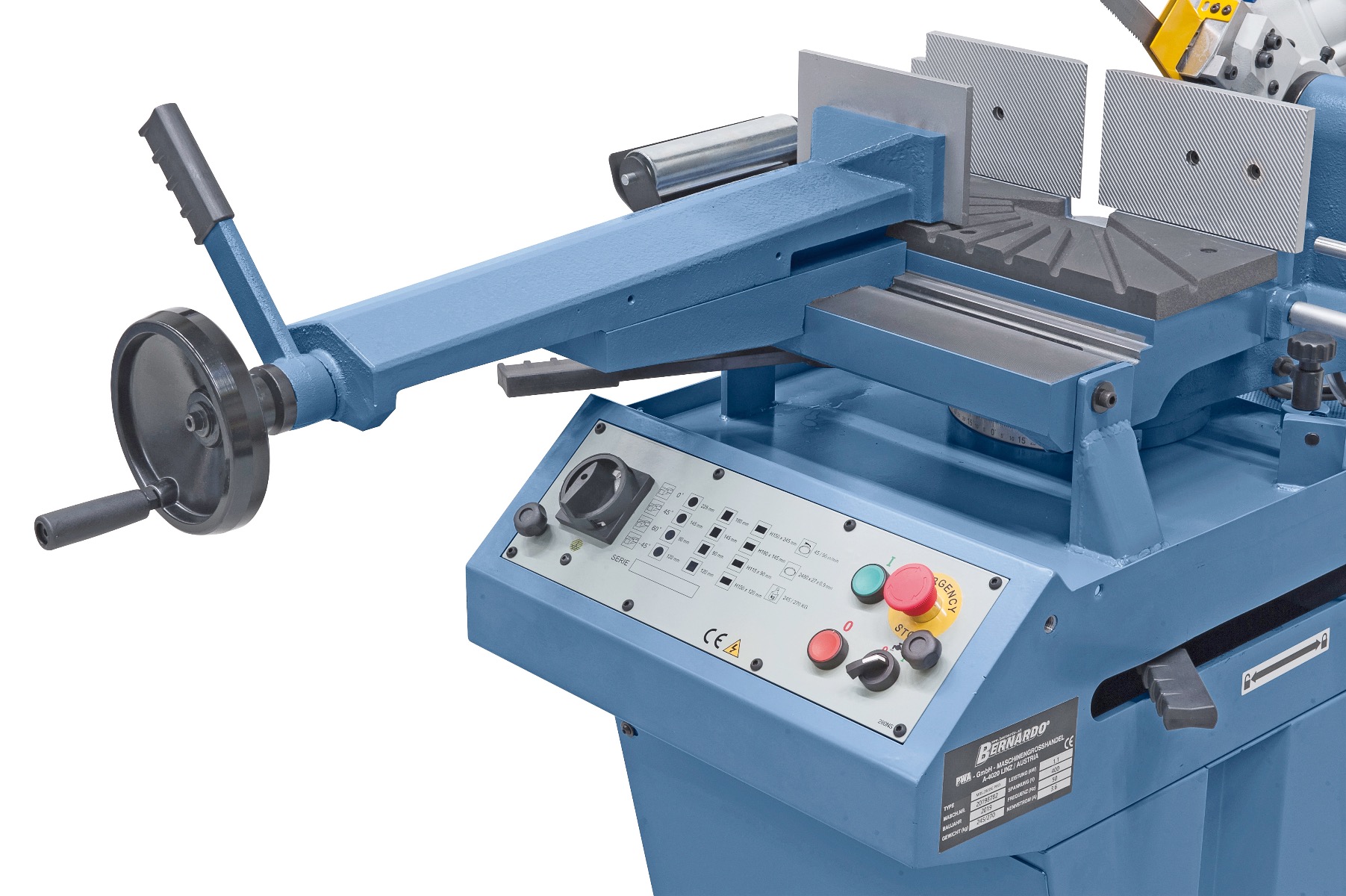

Straightforward control of switches on electronic panel.
Straightforward control of switches on electronic panel.

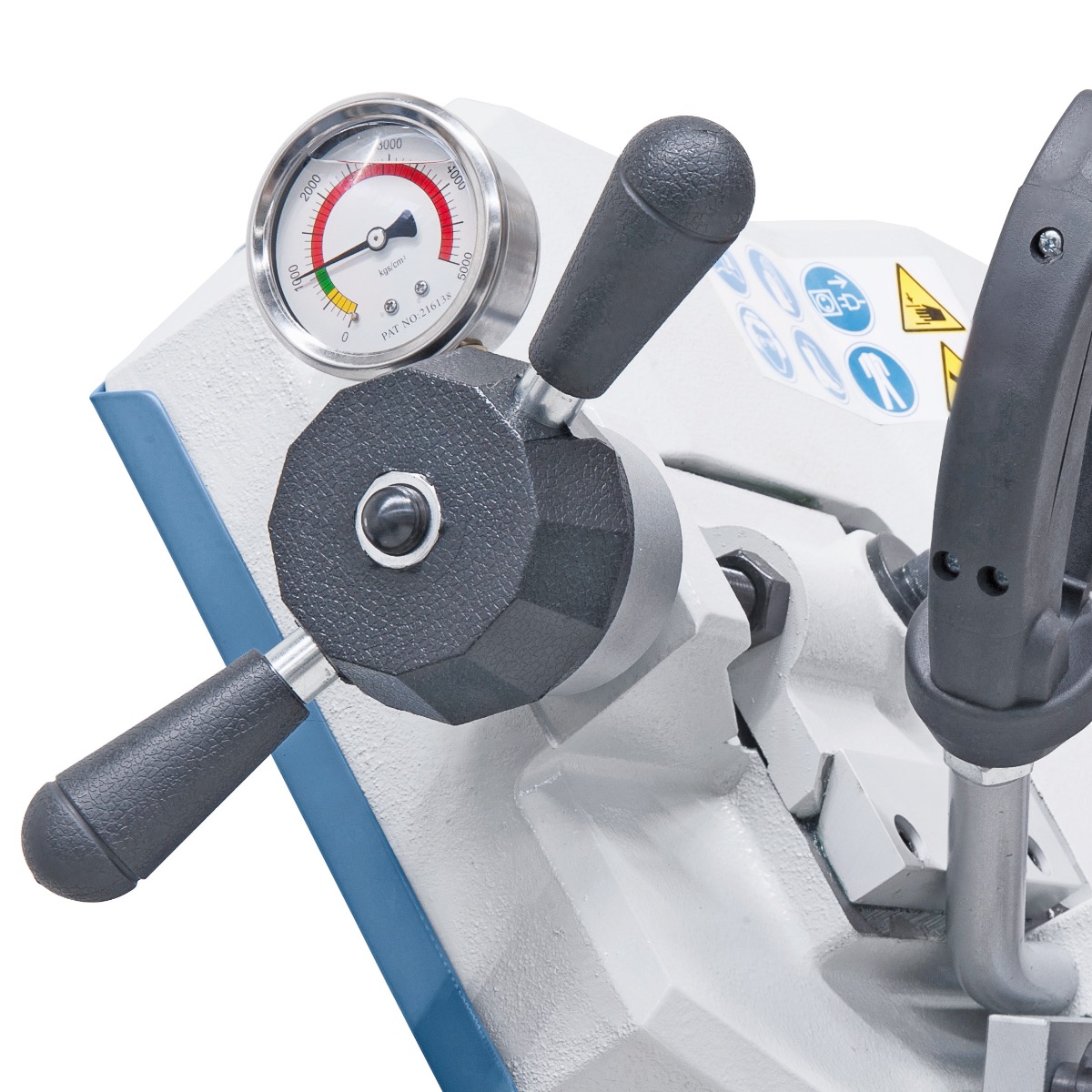

Optimal adjustment of the blade tension via a manometer.
Optimal adjustment of the blade tension via a manometer.

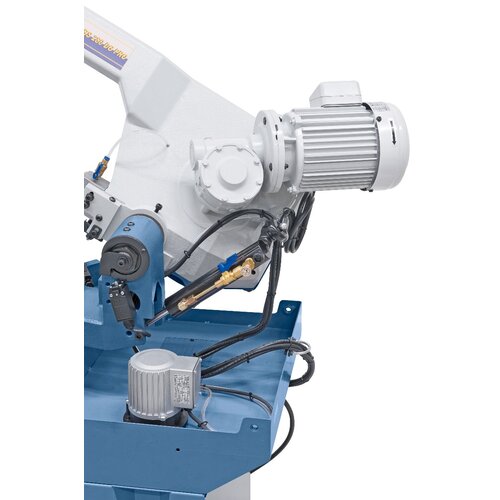

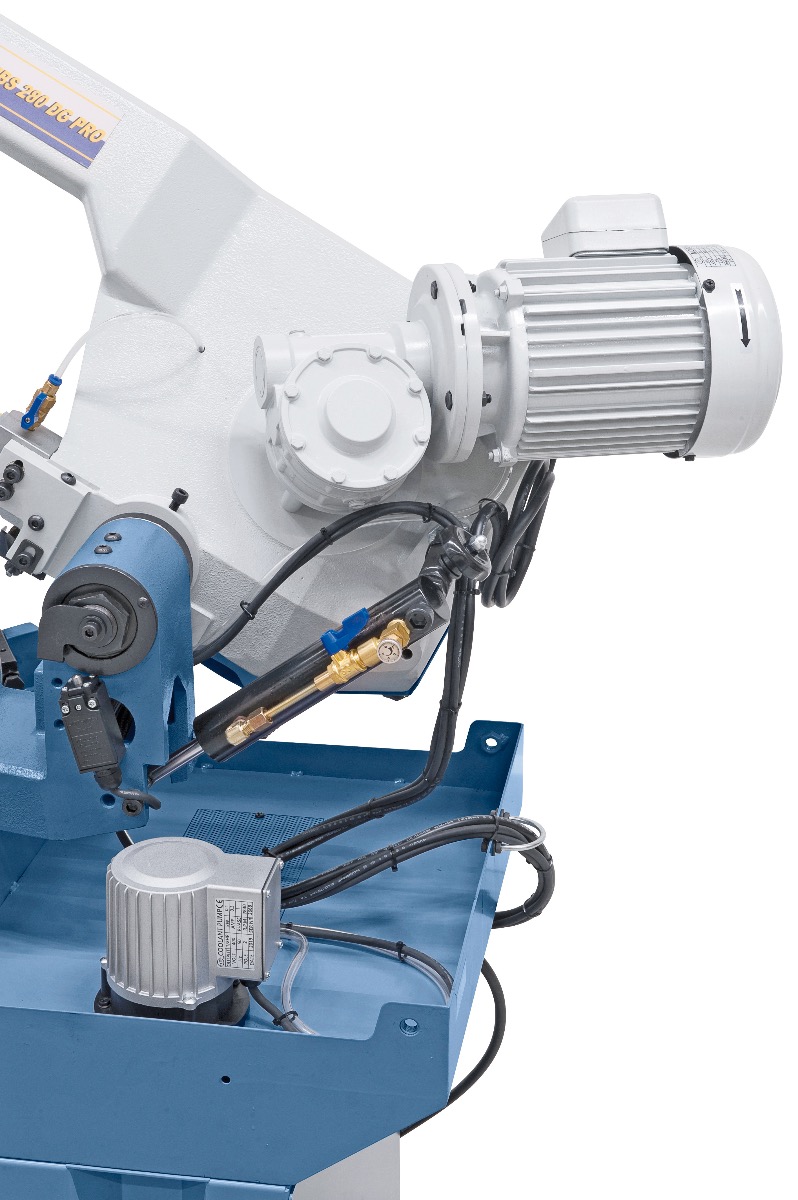

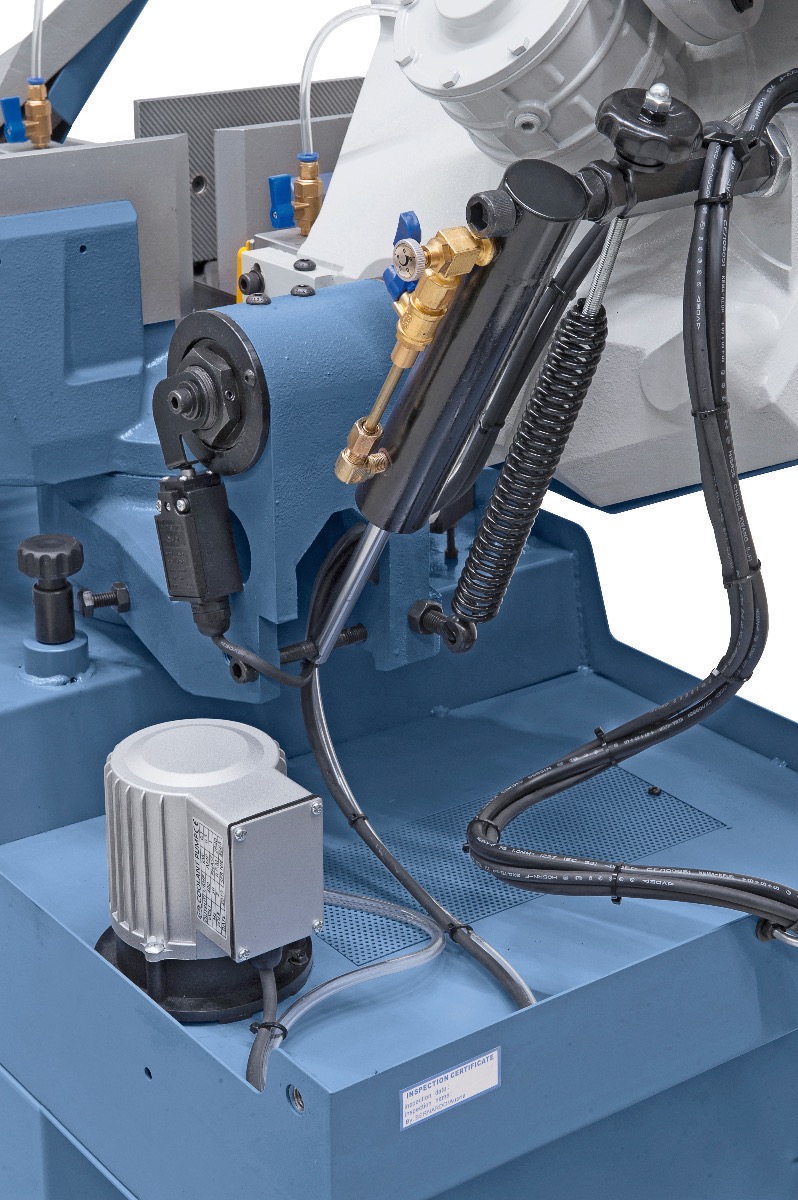

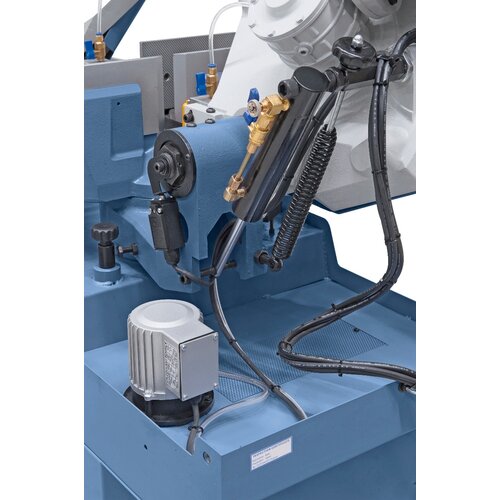

Powerful coolant pump comes standard.
Powerful coolant pump comes standard.

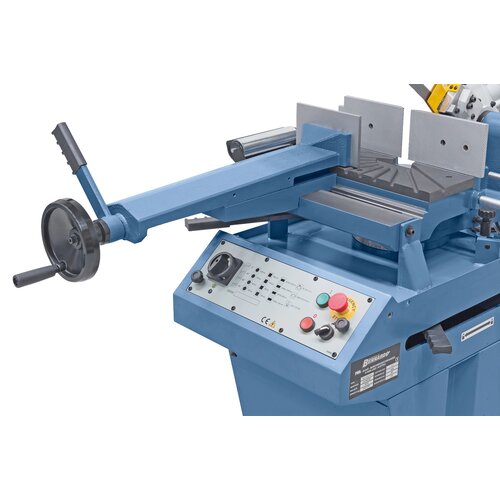

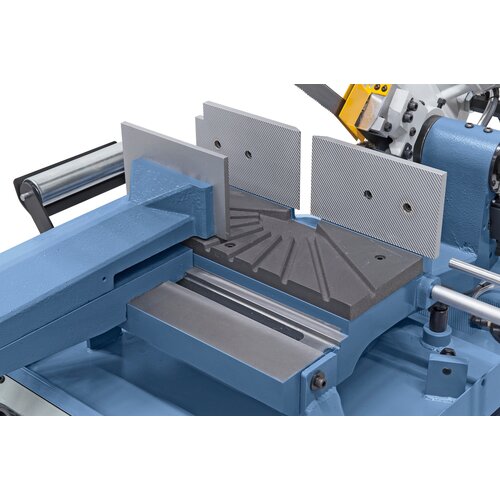

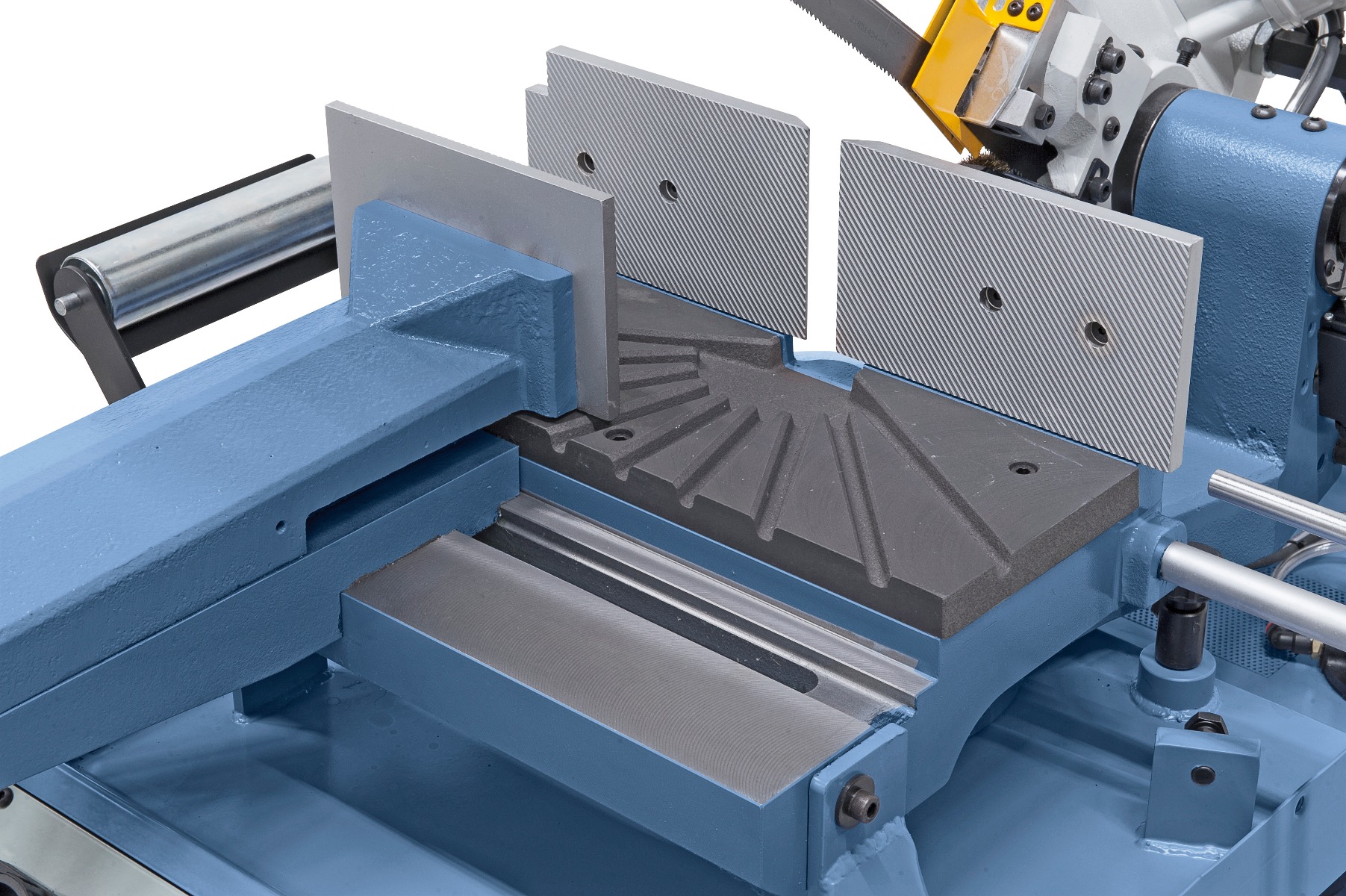

For double mitre cutting the position of the quick clamp vice can be changed.
For double mitre cutting the position of the quick clamp vice can be changed.
Straightforward control of switches on electronic panel.
Optimal adjustment of the blade tension via a manometer.
Powerful coolant pump comes standard.
For double mitre cutting the position of the quick clamp vice can be changed.

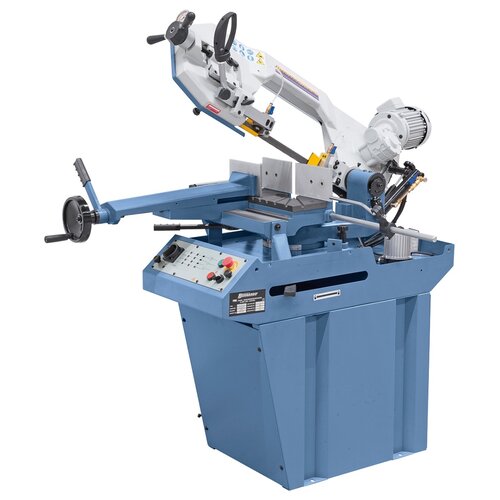

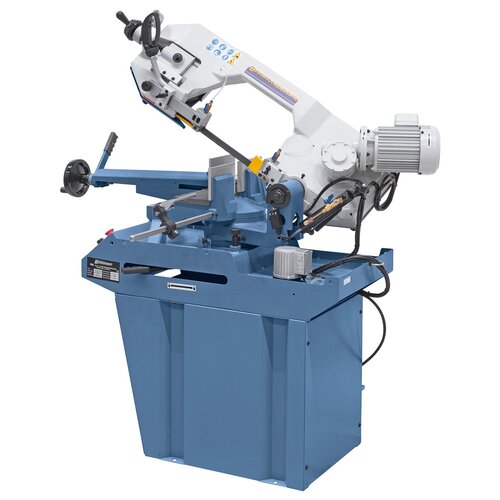

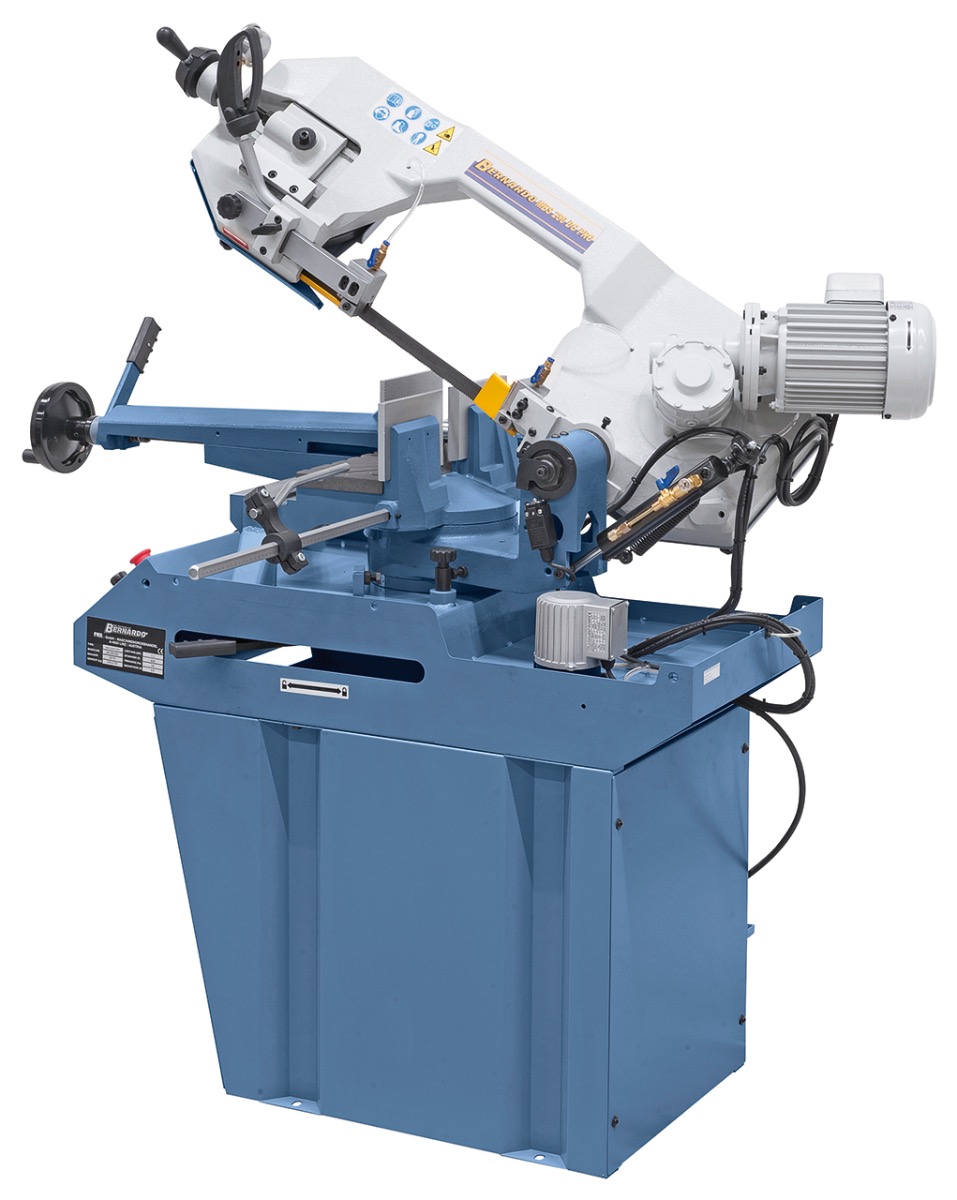

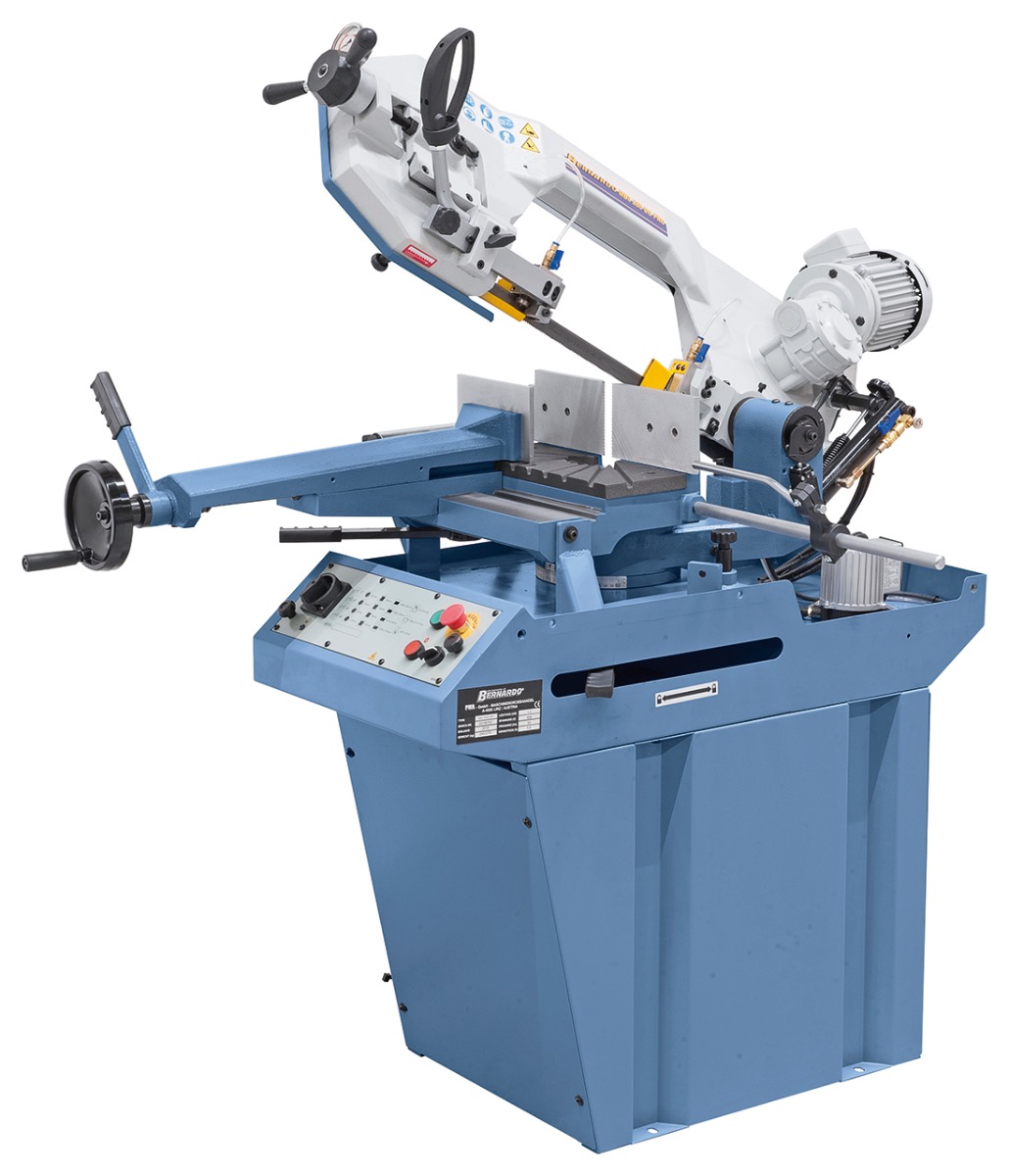

Double mitre bandsaw MBS 280 DG PRO / 400 V

Art.Nr.: 04-1716
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 280 DG PRO is a high-quality, universal bandsaw, featuring a tiltable saw frame for double mitre cuts from -45º to +60º and a hydraulic cylinder for sensitive lowering of the saw frame via a regulating valve.

€4,176.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Torsion-free, strong spheroidal cast iron saw frame
  • 2 speed settings (45 / 90 m/min) for optimal cutting results

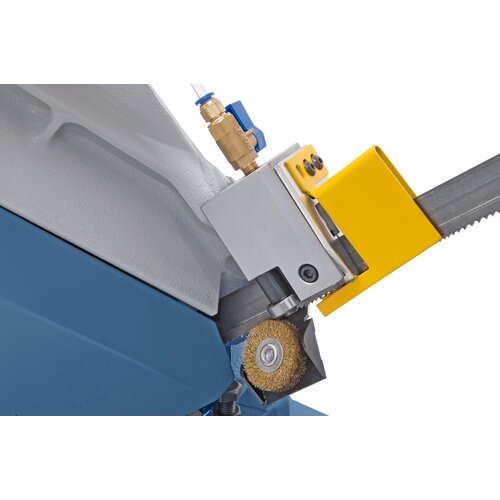

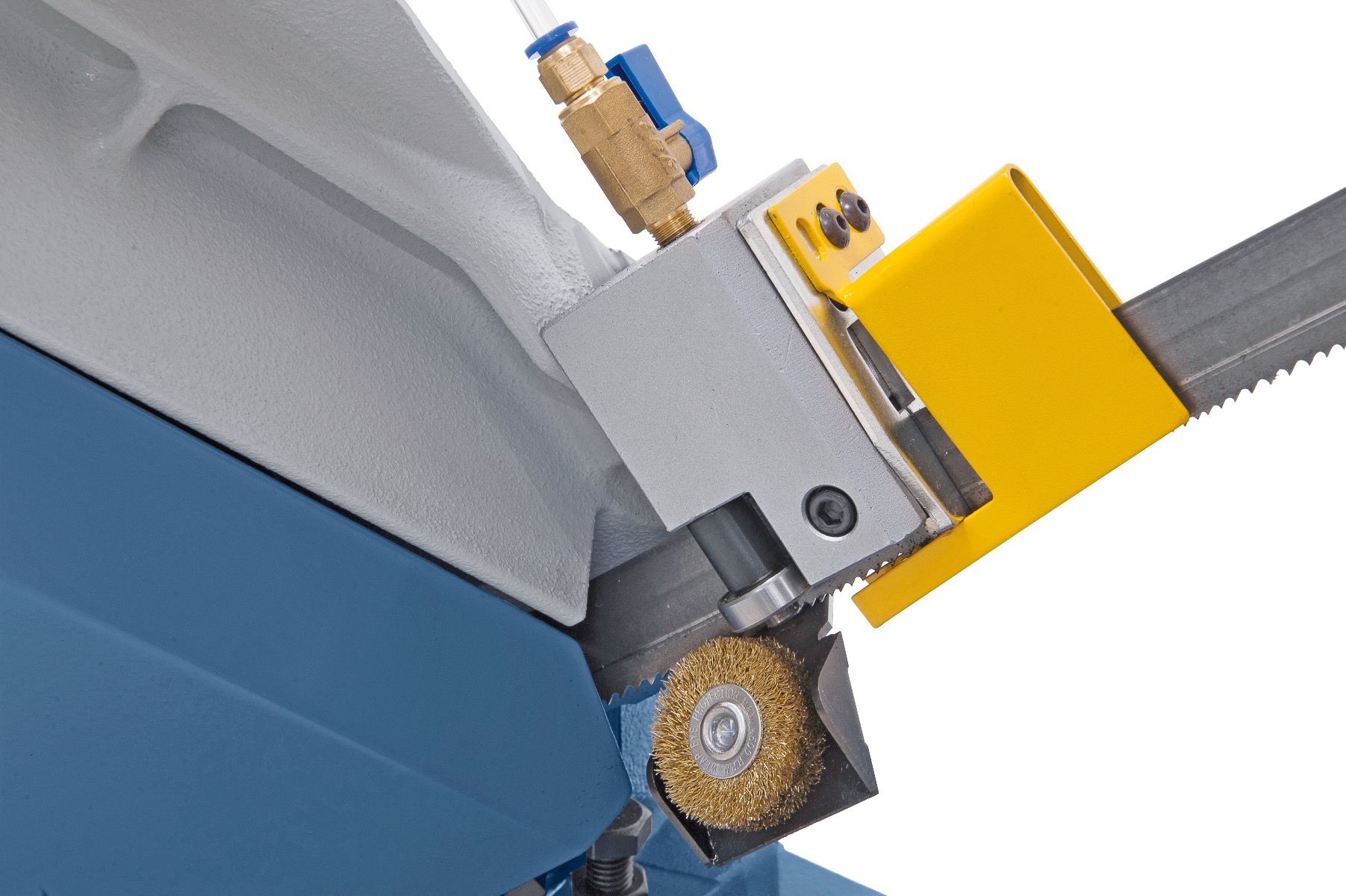

  • Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
  • Robust construction ensures smooth and vibration-free run
  • Stepless lowering of saw frame via hydraulic cylinder
  • Gear unit complete with hardened, polished worm shaft and bronze worm gear
  • Robust cast iron vice with material fence, ideal for serial section
  • Complete with stand and coolant device
  • Automatic shut-down at cutting end
  • Saw frame tilts left (-45°) and right (+60°) for double mitre cutting
  • Includes a manometer for ideal blade tension

Product Specifications

Cutting capacity round / square 90°

225 mm / 180 x 180 mm

Cutting capacity flat 90°

245 x 150 mm

Cutting capacity round / square 45° R

145 mm / 145 x 145 mm

Cutting capacity flat 45° R

190 x 145 mm

Cutting capacity round / square 45° L

120 mm / 120 x 120 mm

Cutting capacity flat 45° L

150 x 120 mm

Cutting capacity round / square 60° R

90 mm / 90 x 90 mm

Cutting capacity flat 60° R

115 x 90 mm

Working height

990 mm

Bandsaw blade dimension

2480 x 27 x 0,9 mm

Cutting speeds

45 / 90 m/min

Coolant pump

100 W

Motor power output S1 100%

1,1 kW

Voltage

400 V

Machine dimension (L x D x H)

1500 x 1100 x 1470 mm

Weight approx.

250 kg

Delivery Contents

  • Bandsaw blade
  • Material fence
  • Stand
  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down
