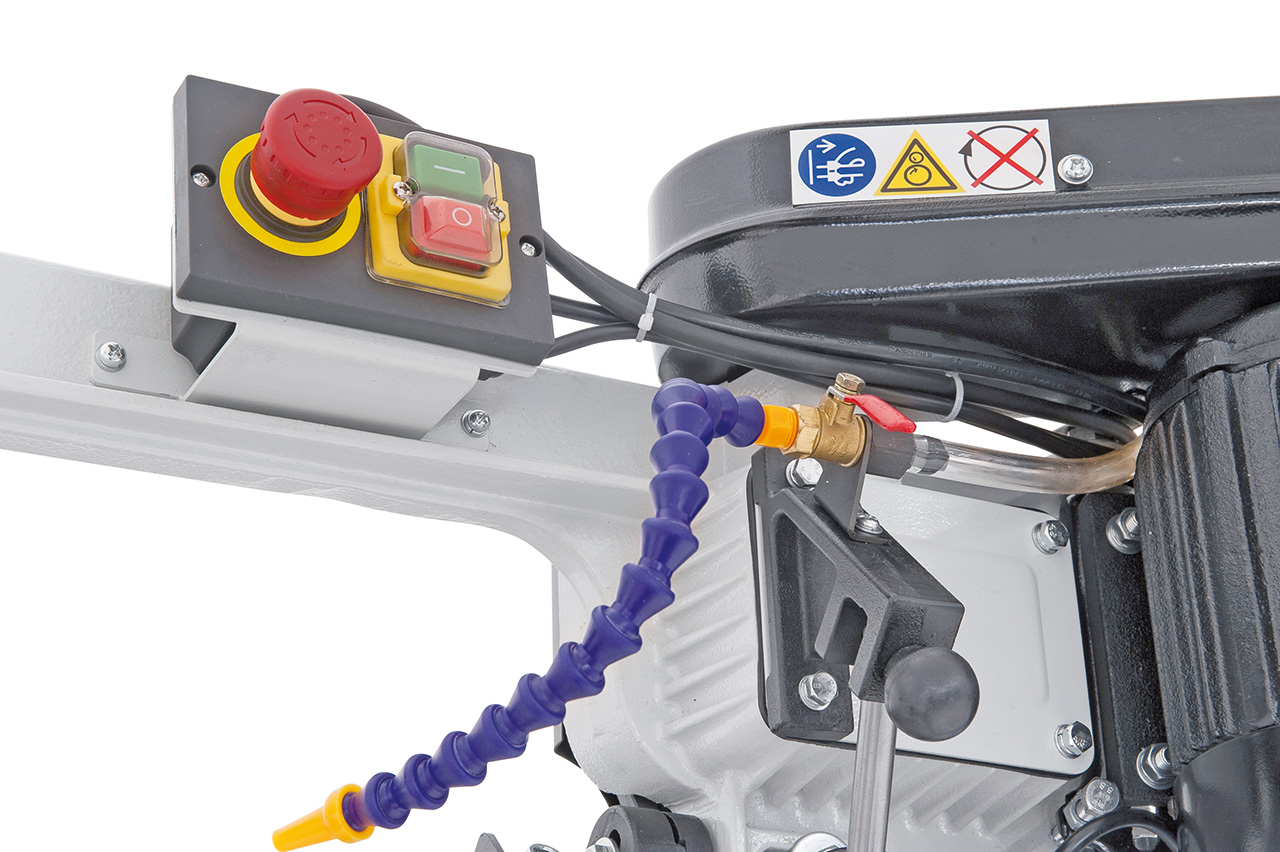

Safety switch with undervoltage release and separate emergency stop button.

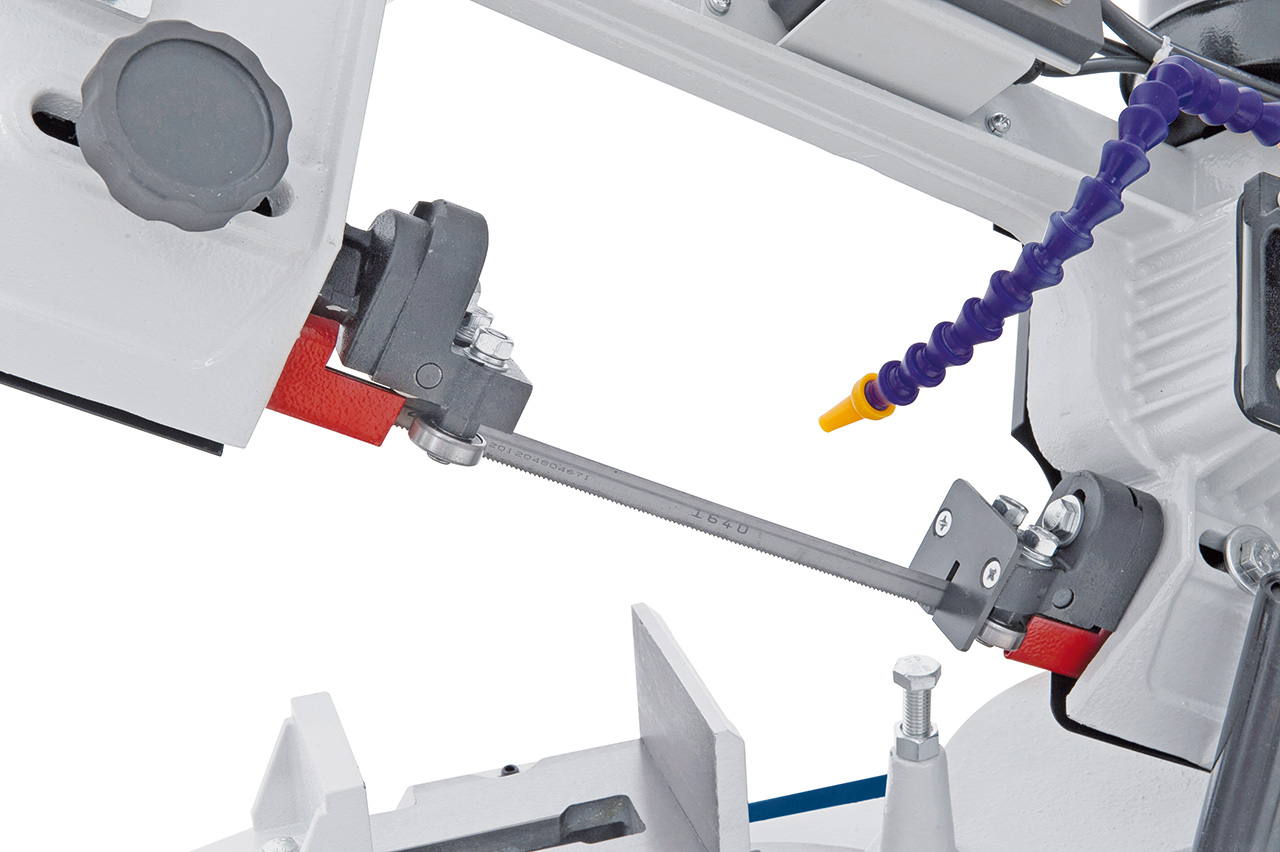

Bandsaw blade guides feature ball bearings for precise results

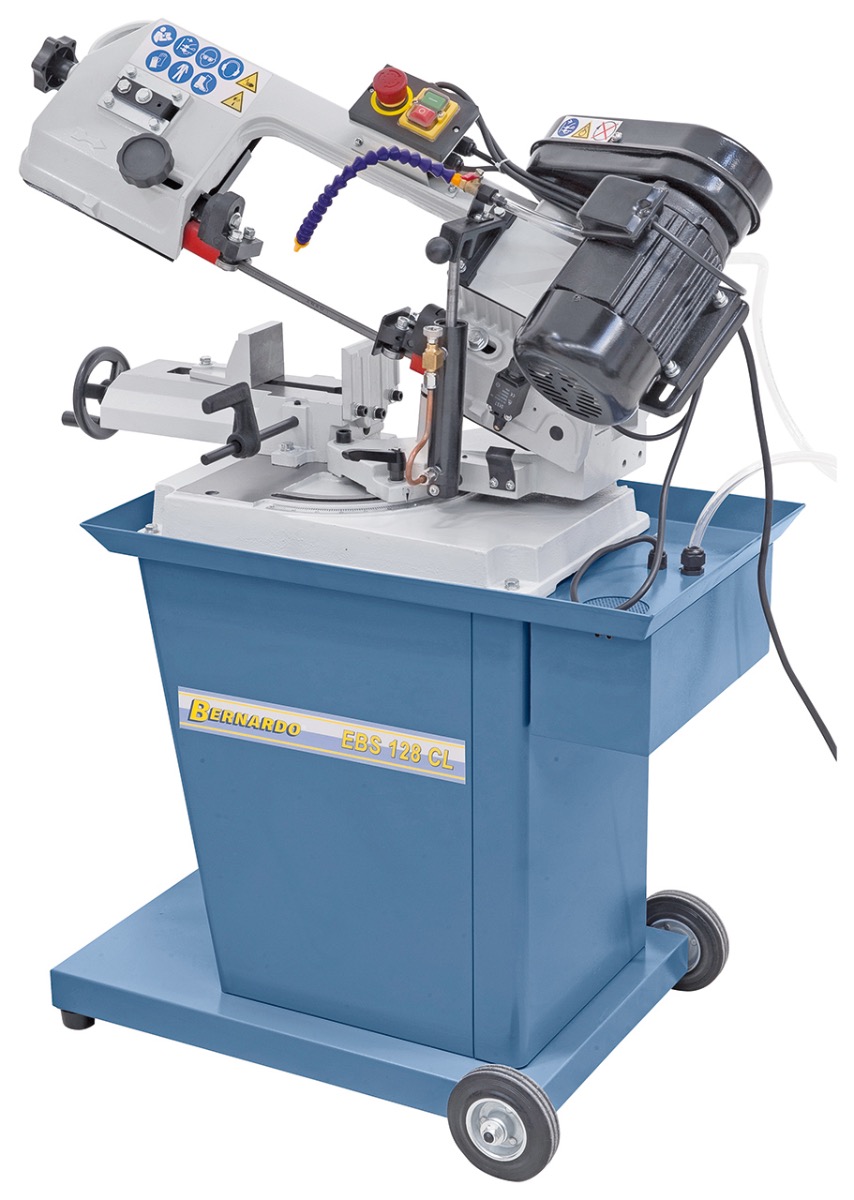

Saw frame tilts from +45° to -45° for mitre cutting.

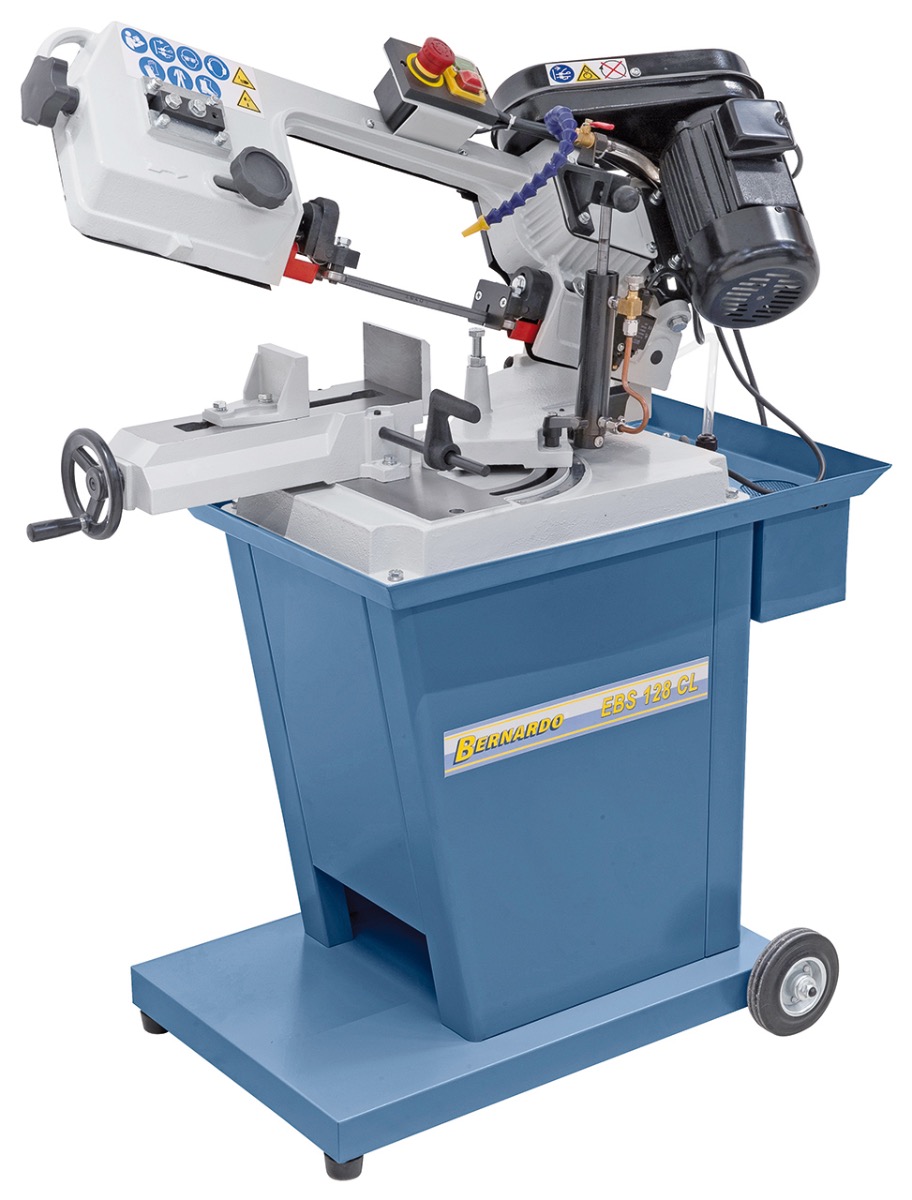

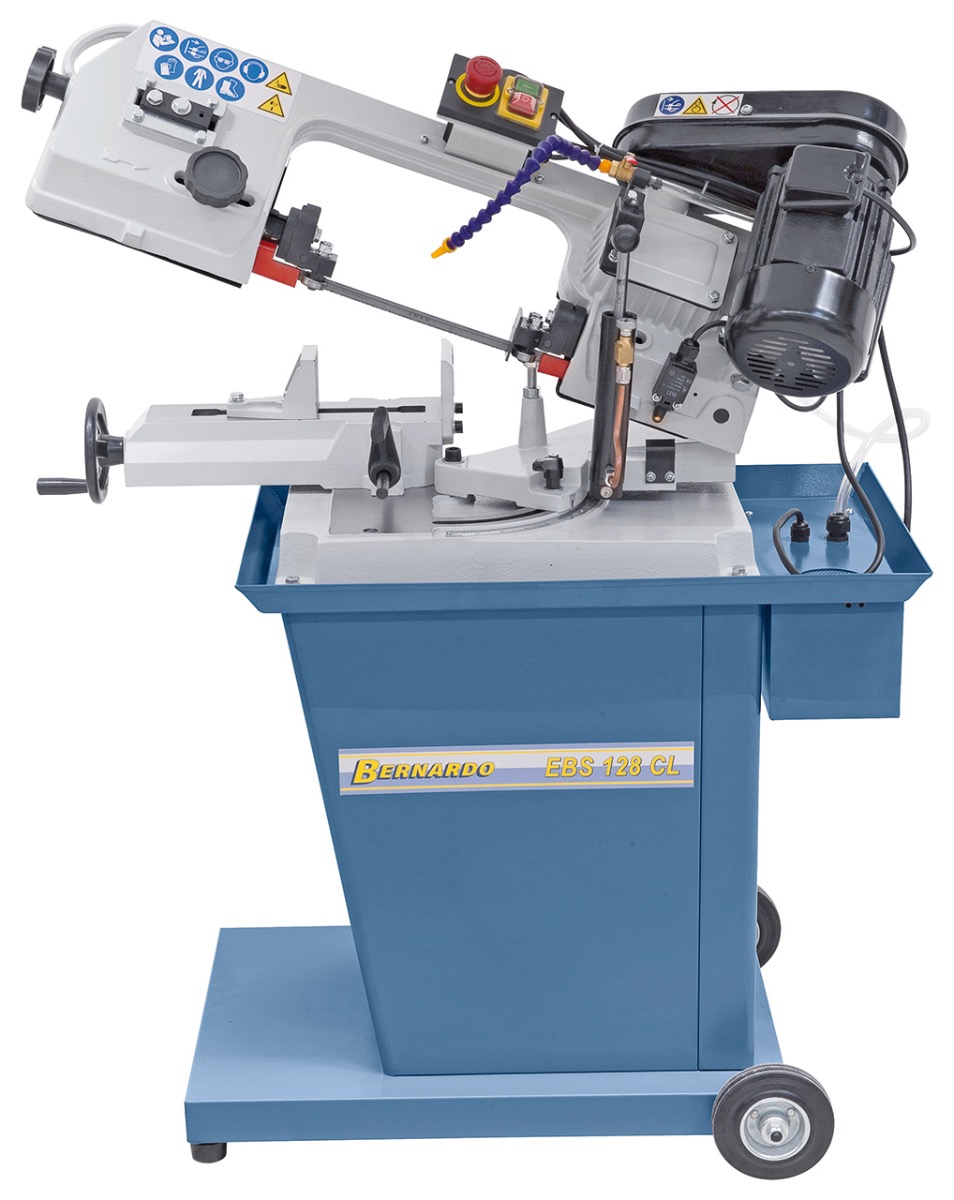

Double mitre bandsaw EBS 128 CL / 230 V

Art.Nr.: 04-1110

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The double miter band saw EBS 128 CL - compared to the proven EBS 128 C - is equipped as standard with a coolant device. The saw arm tilts up to 60° to reduce space requirements when processing long workpieces.

€948.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jun 23, 2025

Product Properties

Suitable for cutting profiles, pipes, solid iron, non-ferrous metals, plastics etc.

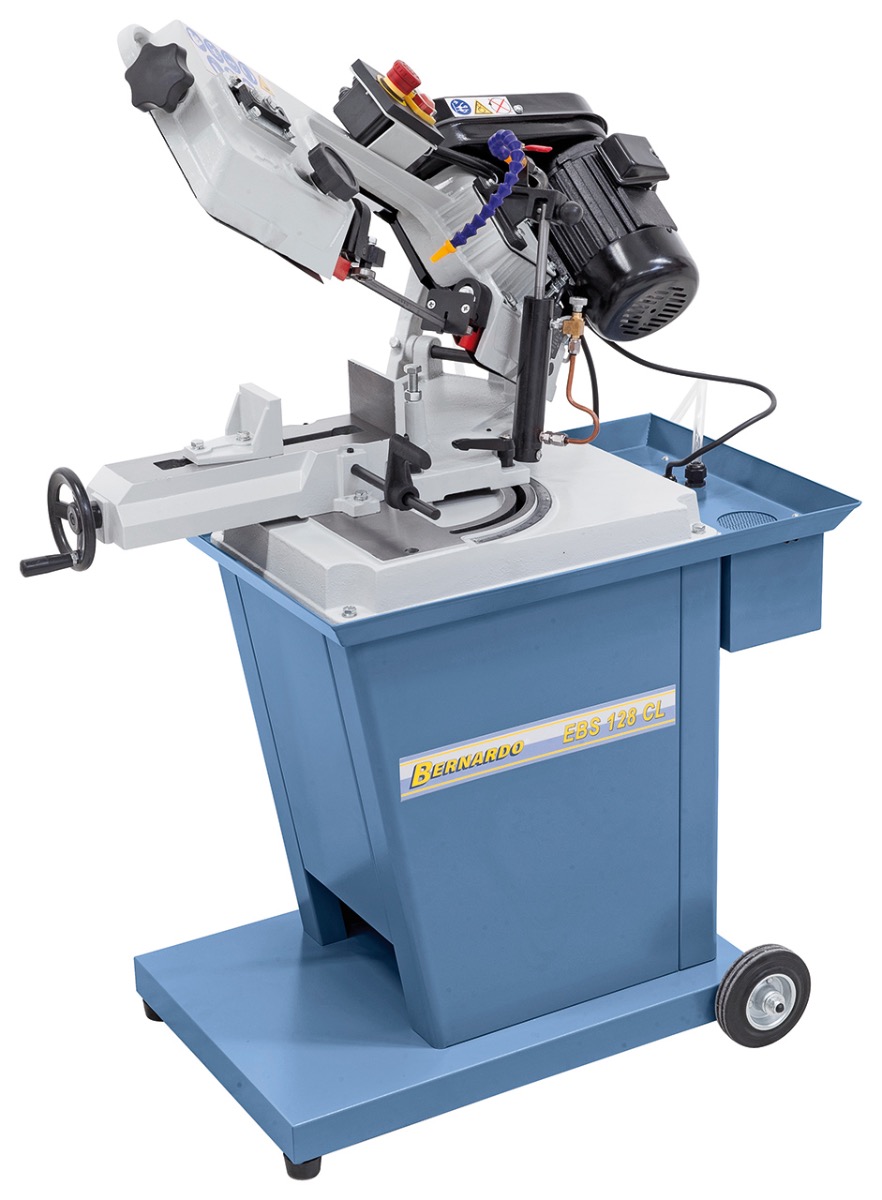

Sawframe swings left (-60°) and right (+45°) for double mitre cutting
Automatic shut-down at cutting end
Torsion-free, solid saw frame
3 speed setting adjustable by v-belt
Solid construction allowing smooth running free of vibrations

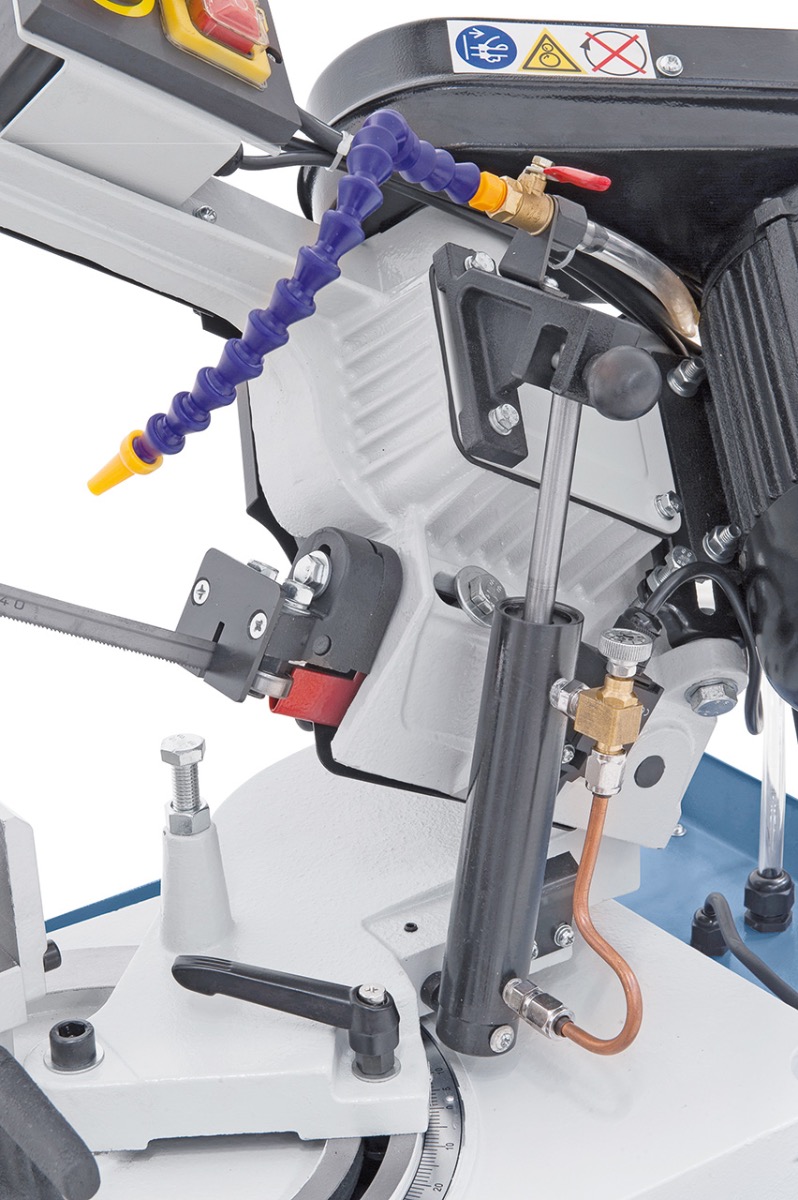

Equipped with machine base and coolant device

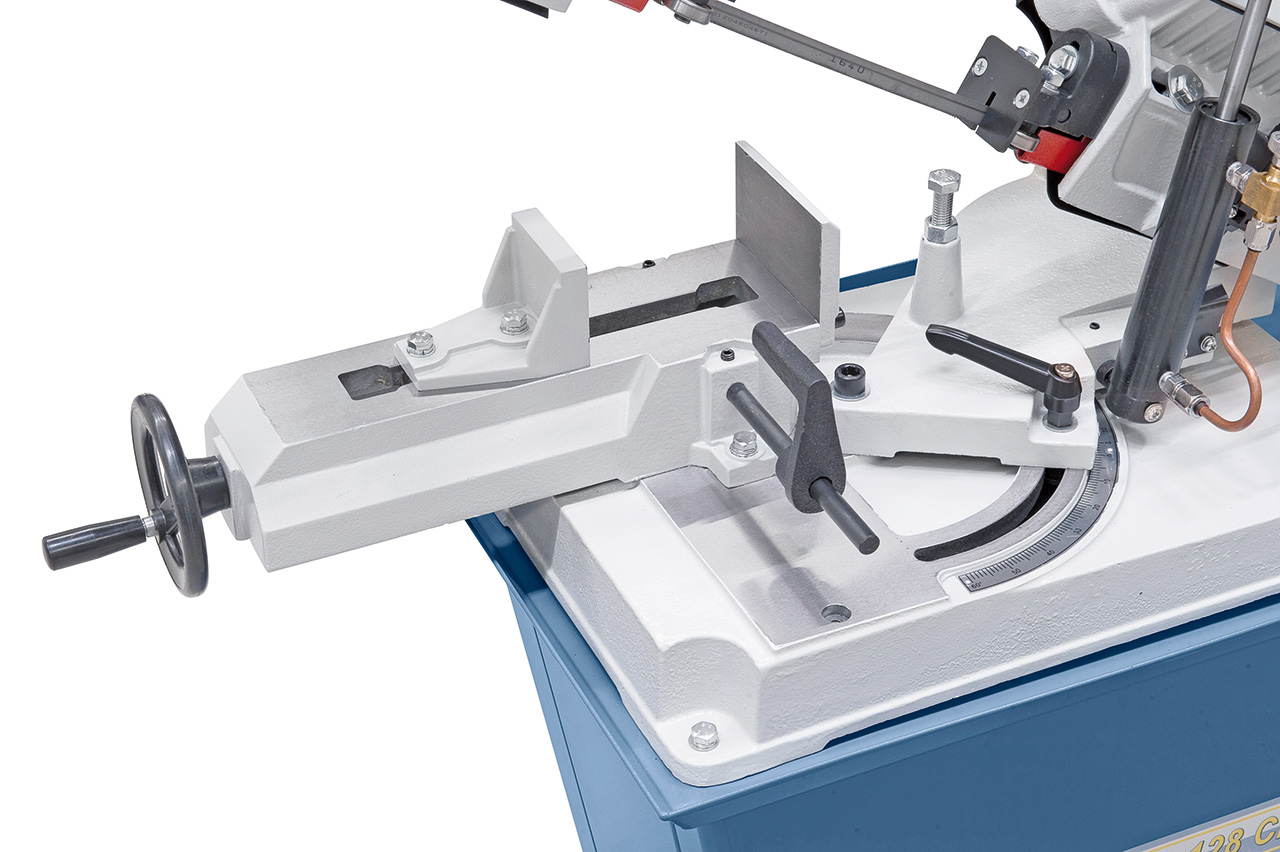

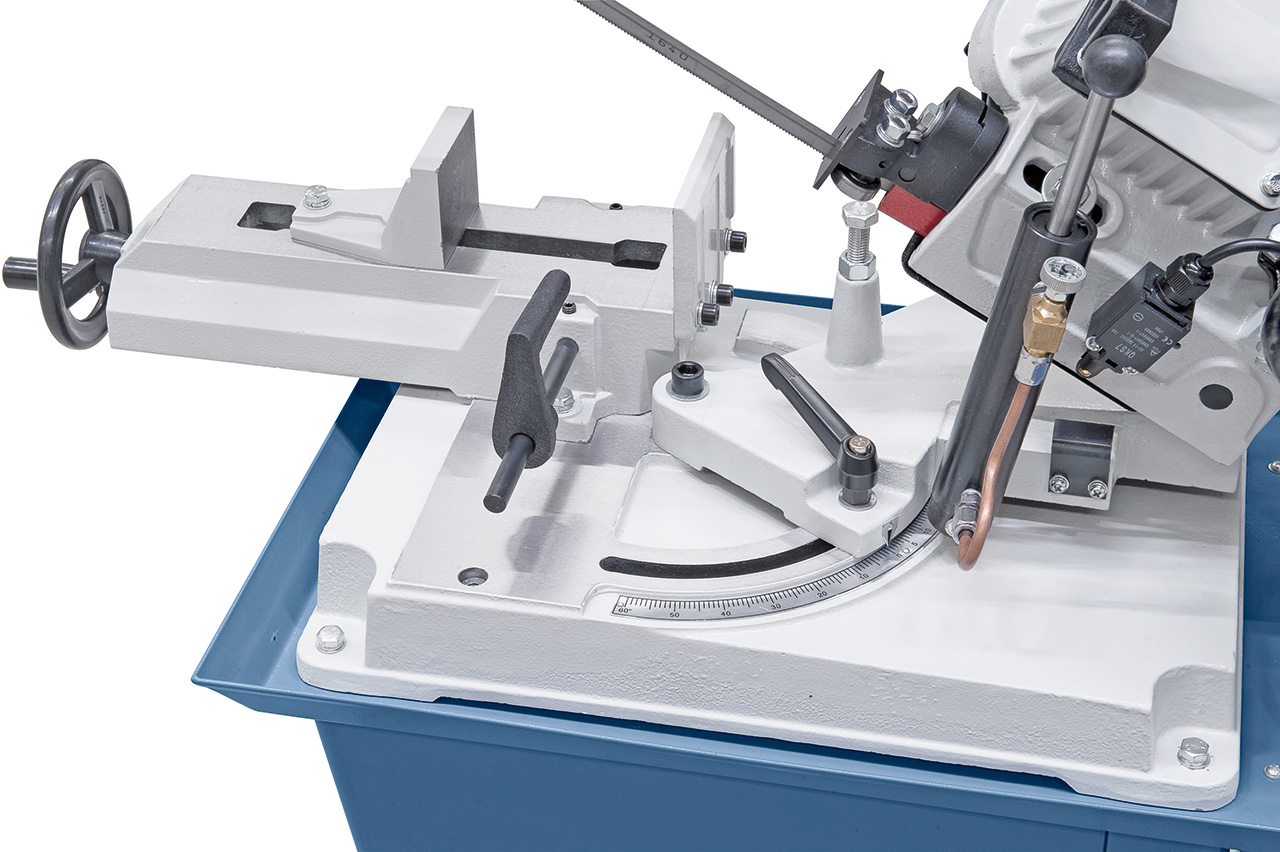

Quick clamping vice and material fence included

Product Specifications

Cutting capacity round 90°	125 mm
Cutting capacity flat 90°	100 x 150 mm
Cutting capacity round 45°	95 mm
Cutting capacity flat 45°	95 x 76 mm
Cutting capacity round 60°	50 mm
Cutting capacity flat 60°	50 x 56 mm
Working height	740 mm
Bandsaw blade dimension	1638 x 13 x 0,65 mm
Cutting speeds	24 / 35 / 55 m/min
Motor power output S₁ 100%	0,55 kW
Motor power input S₆ 40%	0,75 kW
Voltage	230 V
Machine dimension (L x D x H)	1000 x 550 x 1100 mm
Weight approx.	85 kg
