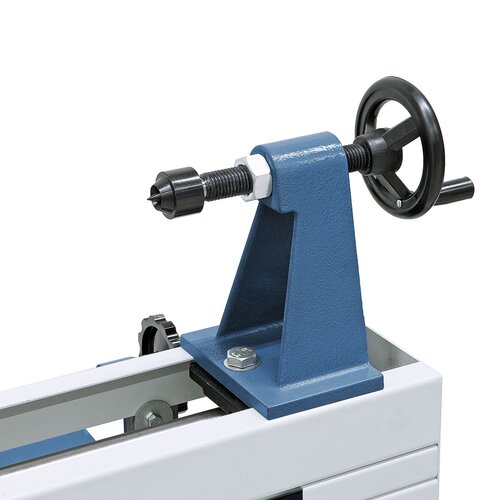

Solid tailstock sleeve with MT 2 taper
Solid tailstock sleeve with MT 2 taper

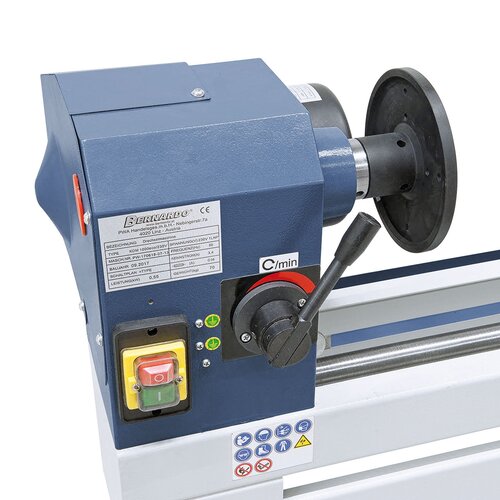

Stepless adjustment ensures ideal speed settings.
Stepless adjustment ensures ideal speed settings.
The solid variator-drive guarantees ideal power transmission
The solid variator-drive guarantees ideal power transmission

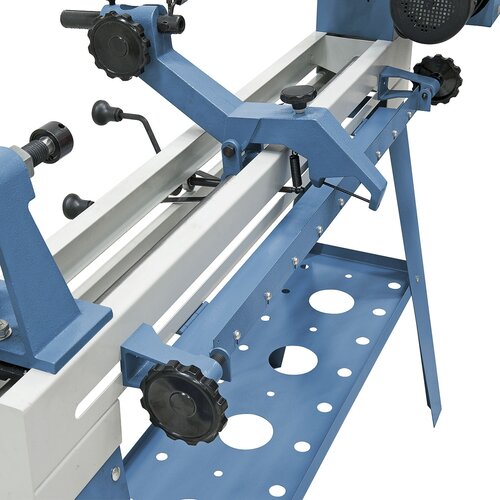

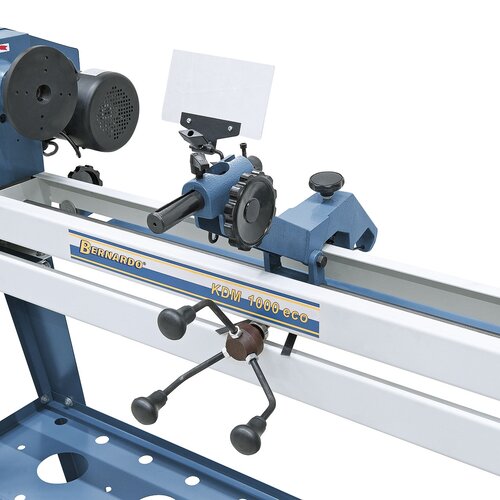

Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Part of the standard equipment is a copying device for efficient copying of original parts or templates.

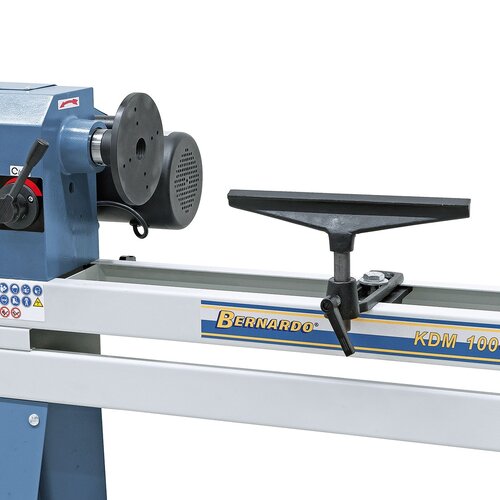

Serially with tool rest 300 mm.
Serially with tool rest 300 mm.

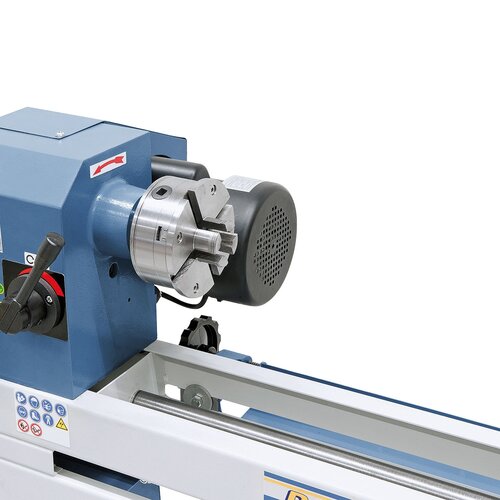

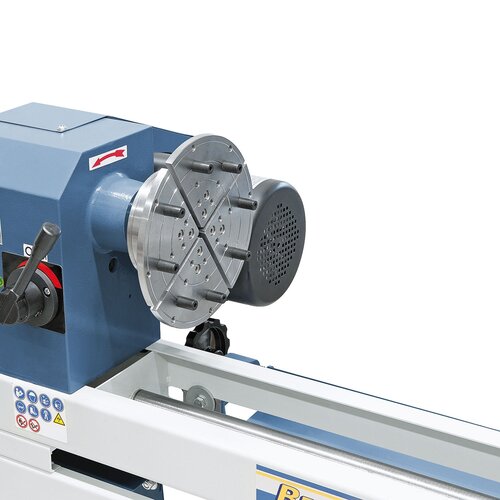

Power chuck set Premium M 115, Pin jaws 25 mm
Power chuck set Premium M 115, Pin jaws 25 mm
Power chuck set Premium M 115, Bowl reversing jaws
Power chuck set Premium M 115, Bowl reversing jaws

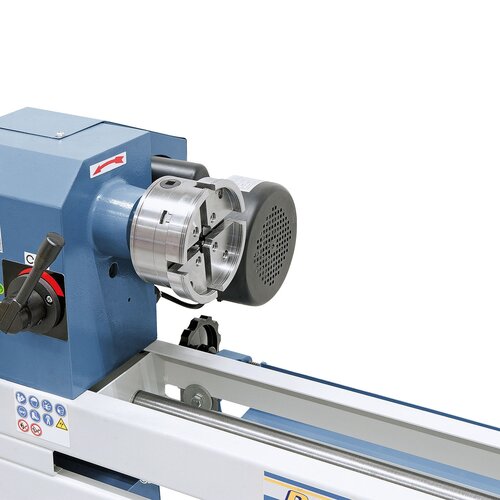

Power chuck set Premium M 115, Dovetail jaws type A
Power chuck set Premium M 115, Dovetail jaws type A
Power chuck set Premium M 115, Stepped jaws
Power chuck set Premium M 115, Stepped jaws
Power chuck set Premium M 115, Wide jaws striated inside/outside
Power chuck set Premium M 115, Wide jaws striated inside/outside
Solid tailstock sleeve with MT 2 taper
Stepless adjustment ensures ideal speed settings.
The solid variator-drive guarantees ideal power transmission
Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Serially with tool rest 300 mm.
Power chuck set Premium M 115, Pin jaws 25 mm
Power chuck set Premium M 115, Bowl reversing jaws
Power chuck set Premium M 115, Dovetail jaws type A
Power chuck set Premium M 115, Stepped jaws
Power chuck set Premium M 115, Wide jaws striated inside/outside

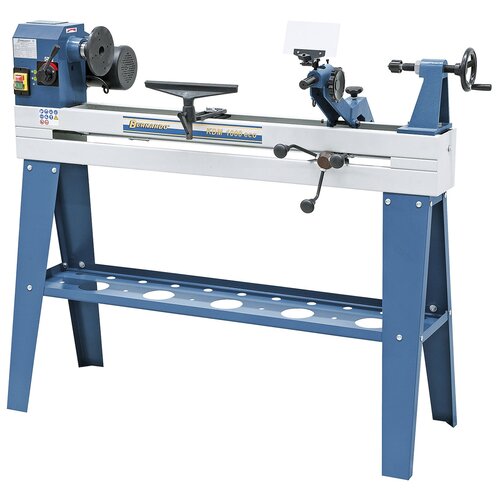

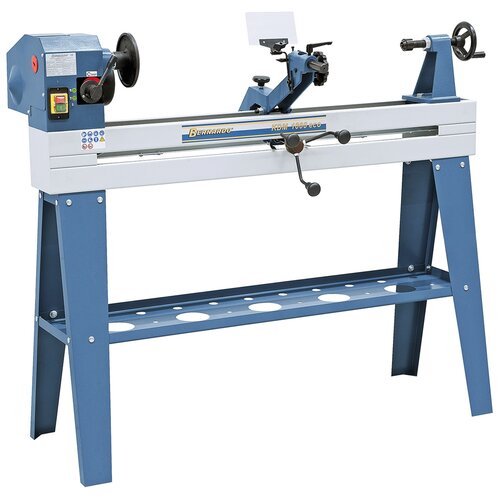

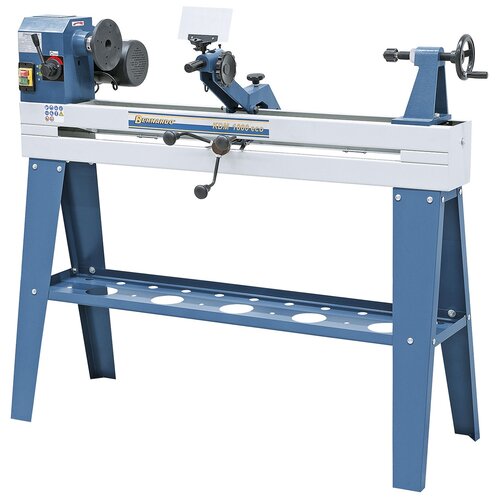

Copying woodturning lathe KDM 1000 eco / 400 V with copy device

Art.Nr.: 10-1094
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The copying woodturning lathe KDM 1000 eco is serially equipped with a copying device, which allows copying of original parts or templates. Additionally this machine feature a stepless speed adjustment. The attractive price-to-performance ratio make this machine the ideal entry-level model.

€552.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Copying device allows copying of original parts or templates
  • Large speed range from 500 – 2000 rpm, steplessly adjustable
  • Solid, precisely bedded spindle ensures high concentricity
  • High-quality belt drive ensures optimal power transmission from motor to spindle
  • Extensive range of extra equipment to widen the choice of applications
  • Clearly arranged switches and control elements on the front of machine
  • The extensive range of accessories includes: 300 mm tool rest, 150 mm face plate, live centre and spore drive centre
  • Steplessly adjustable spindle speed allows for optimal adjustment to workpiece

Product Specifications

Distance between centers

1000 mm

Working diameter



          - over guideway

350 mm

          - at copying

160 mm

Spindle speed, stepless

500 – 2000 rpm

Spindle thread

M 33 x 3,5 mm

Taper of tailstock sleeve

MT 2

Travel of tailstock sleeve

65 mm

Copying length

1000 mm

Motor power output S1 100%

0,55 kW (0,75 HP)

Motor power input S6 40%

0,75 kW (1,0 HP)

Voltage

400 V

Machine dimension (W x D x H)

1500 x 500 x 1210 mm

Weight approx.

68 kg

Delivery Contents

  • Tool rest 300 mm
  • Face plate 150 mm
  • Live center
  • Spore drive center
  • Copying device
  • Stepless speed adjustment
  • Stand
  • Tools
