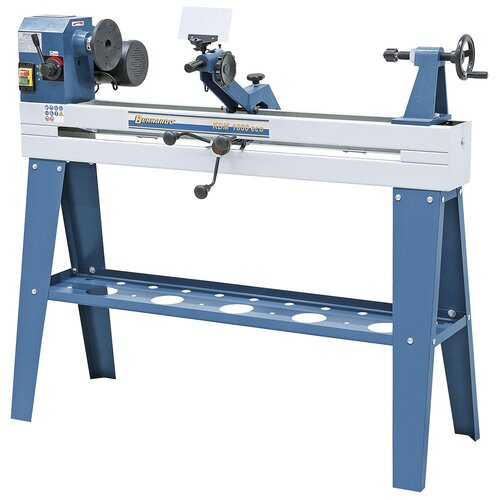

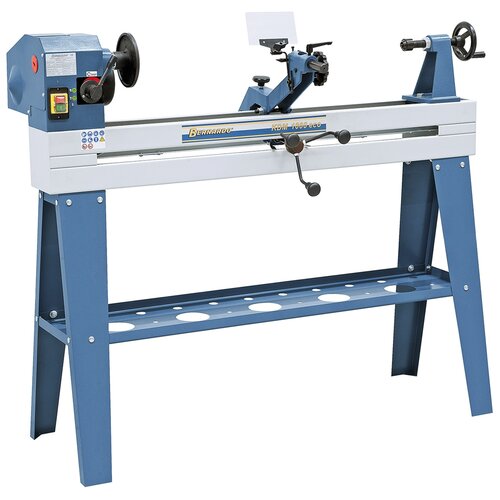

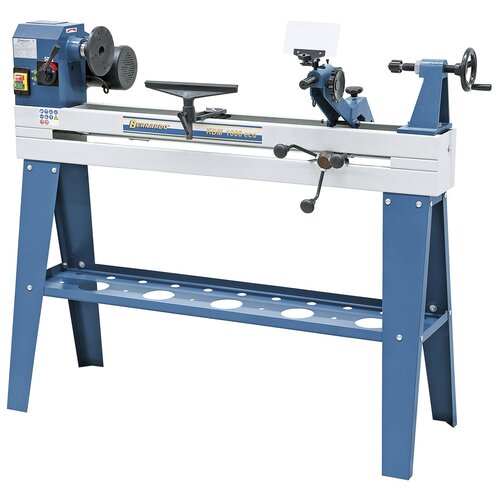

Copying woodturning lathe KDM 1000 eco / 230 V with copy device
Art.Nr.: 10-1093The copying woodturning lathe KDM 1000 eco is serially equipped with a copying device, which allows copying of original parts or templates. Additionally this machine feature a stepless speed adjustment. The attractive price-to-performance ratio make this machine the ideal entry-level model.
€552.00
incl. 20% VATAvailability
Product Properties

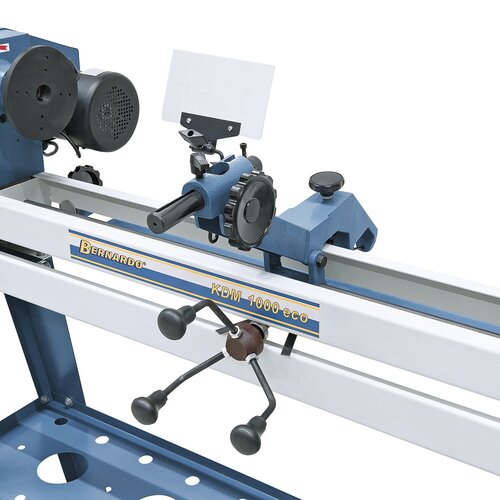

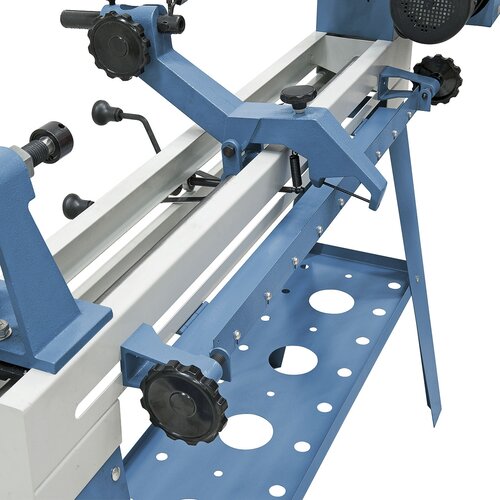

- Copying device allows copying of original parts or templates
- Large speed range from 500 – 2000 rpm, steplessly adjustable
- Solid, precisely bedded spindle ensures high concentricity

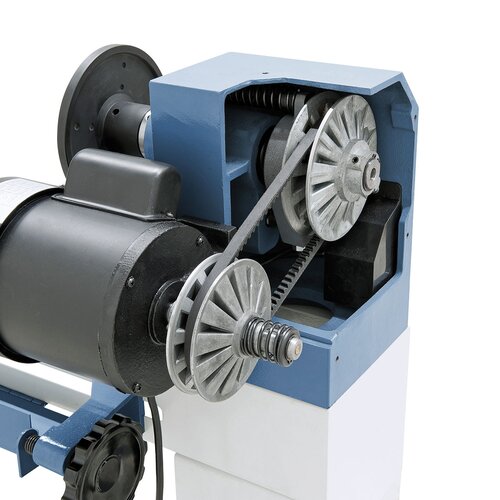

- High-quality belt drive ensures optimal power transmission from motor to spindle
- Extensive range of extra equipment to widen the choice of applications

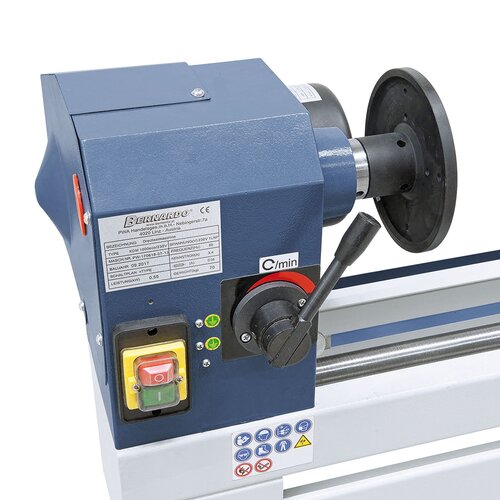

- Clearly arranged switches and control elements on the front of machine

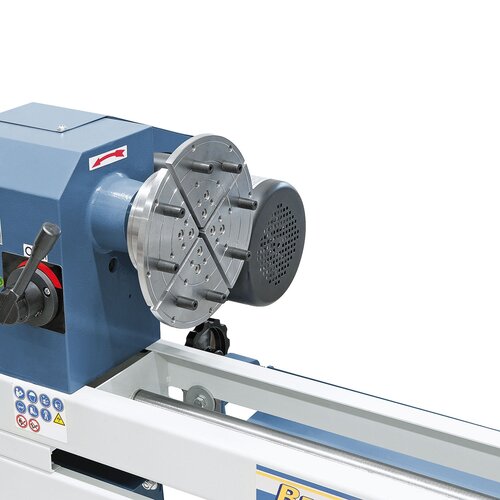

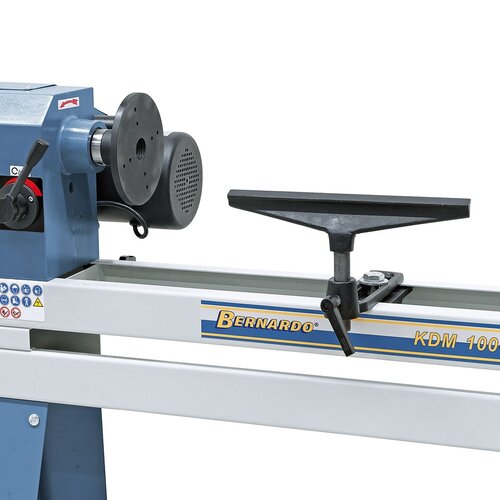

- The extensive range of accessories includes: 300 mm tool rest, 150 mm face plate, live centre and spore drive centre
- Steplessly adjustable spindle speed allows for optimal adjustment to workpiece
Product Specifications
|
Distance between centers |
1000 mm |
|
Working diameter |
|
|
- over guideway |
350 mm |
|
- at copying |
160 mm |
|
Spindle speed, stepless |
500 – 2000 rpm |
|
Spindle thread |
M 33 x 3,5 mm |
|

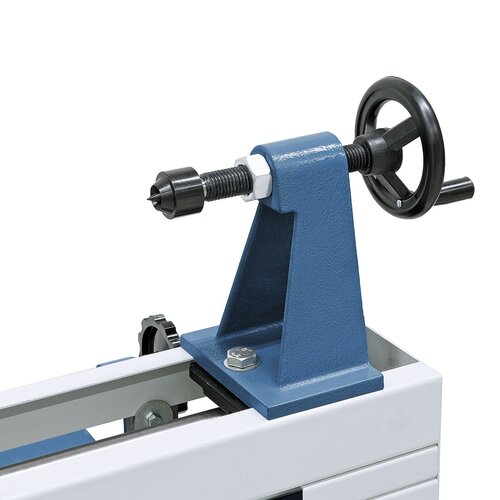

Taper of tailstock sleeve |
MT 2 |
|
Travel of tailstock sleeve |
65 mm |
|
Copying length |
1000 mm |
|
Motor power output S1 100% |
0,55 kW (0,75 HP) |
|
Motor power input S6 40% |
0,75 kW (1,0 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1500 x 500 x 1210 mm |
|
Weight approx. |
68 kg |
Delivery Contents
- Tool rest 300 mm
- Face plate 150 mm
- Live center
- Spore drive center
- Copying device
- Stepless speed adjustment
- Stand
- Tools
