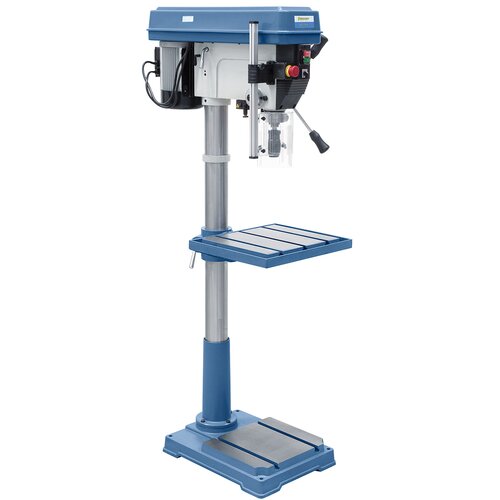

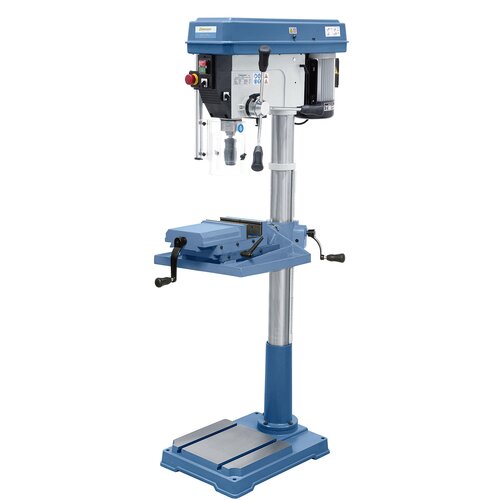

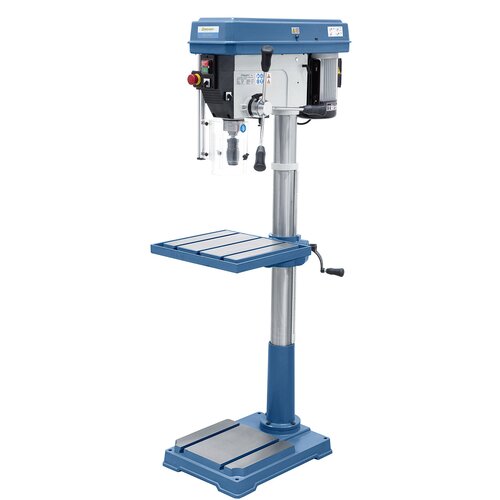

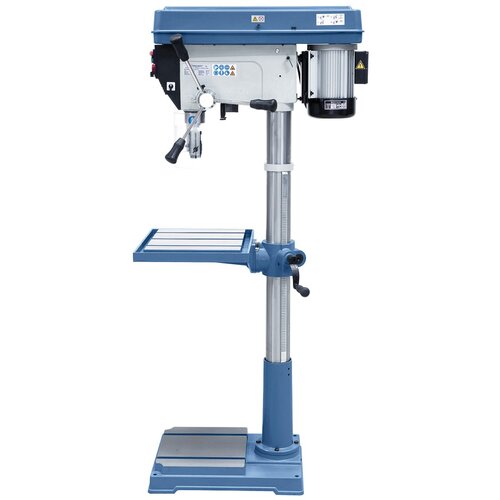

Column drilling machine B 610 Pro / 400 V, R/L

Art.Nr.: 01-1113
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The powerful column drilling machine comes complete with 2-step motor, right and left rotation and a cross line laser device. This model is particularly popular among professional users.



€1,104.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

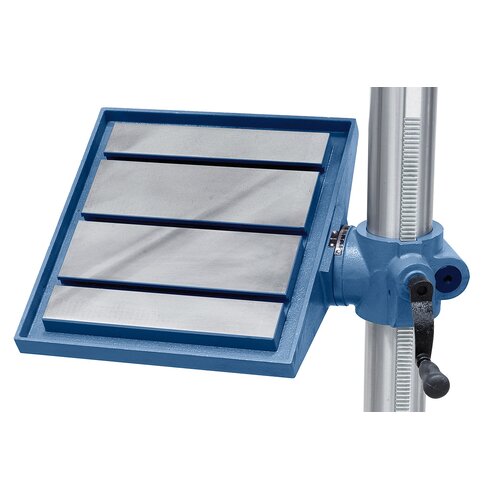

  • Surface treated work table, height adjustable by gear rack and crank
  • Polished base features T-slots for clamping of oversize workpieces

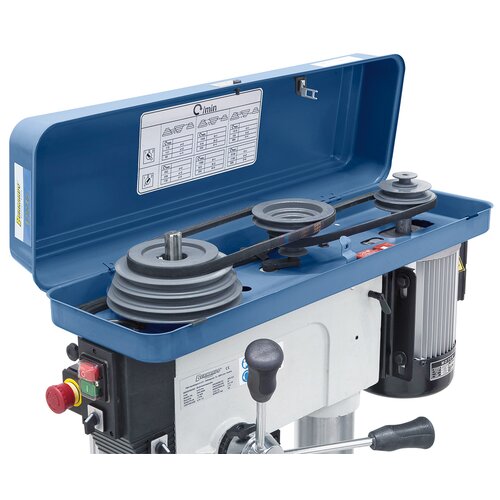

  • V-belt drice with balanced drive pulleys ensure smooth running
  • Adjustable drill depth stop allows precise spindle feed
  • High-quality ball bearings ensure high spindle concentricity

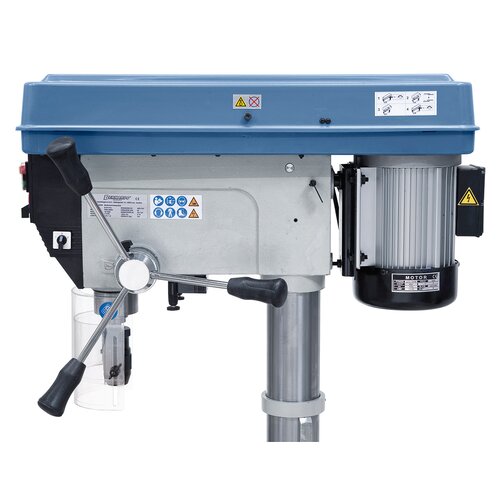

  • Powerful 2-step motor, speed range 80 - 2130 rpm

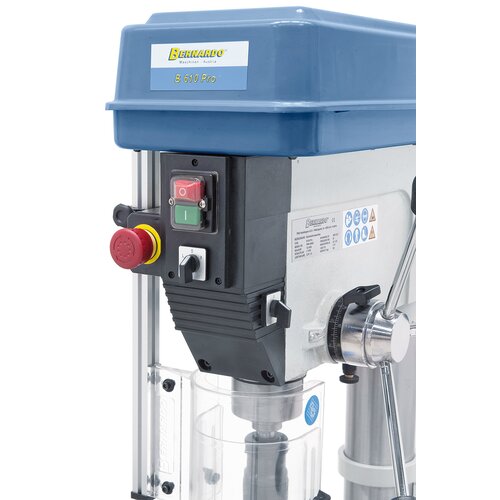

  • Switch for right / left rotation comes standard

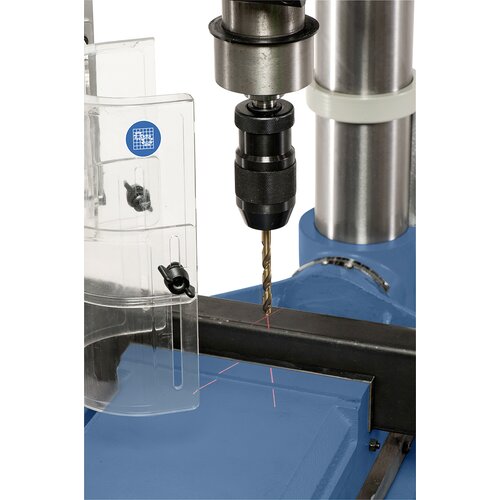

  • Cross line laser device increases work comfort
  • Compact, solid, grey cast iron construction in modern design
  • Solid, polished steel column suitable for heavy workload

Product Specifications

Drilling capacity max.

32 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 4

Spindle speeds

(18) 86 - 2130 rpm

Distance spindle to column

255 mm

Drilling table tiltable

360°

Distance spindle to table max.

750 mm

Distance spindle to base

1120 mm

Spindle stroke

120 mm

Column diameter

92 mm

Table size / T-slot size

385 x 335 mm / 14 mm

Working surface of base

380 x 335 mm

Motor power output S1 100%

0,75 kW / 1,5 kW (400 V)

Motor power input S6 40%

1,1 kW / 2,2 kW (400 V)

Machine dimension (W x D x H)

460 x 900 x 1730 mm

Weight approx.

125 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 4 / B 18
  • Switch for left and right turning
  • Cross line laser device
  • T-slot nuts

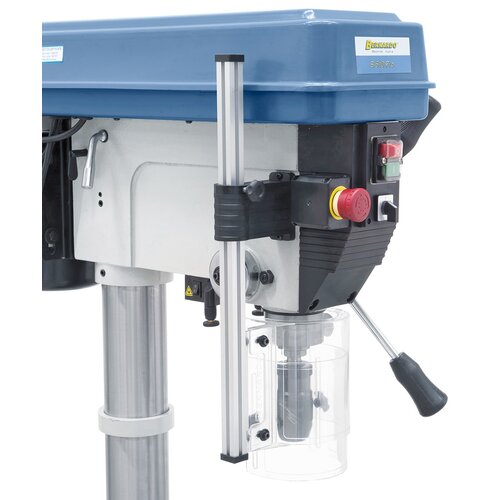

  • Height adjustable protective cover
