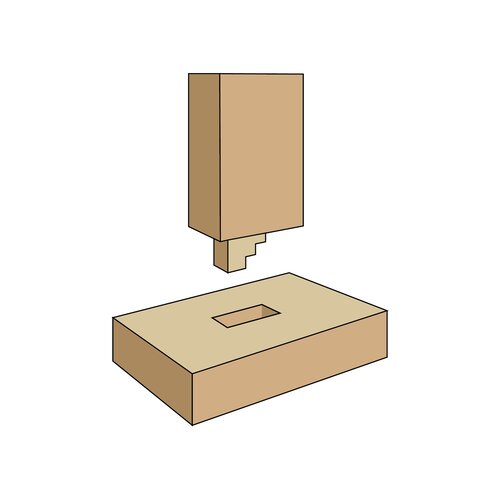

Example of use: tenon joints

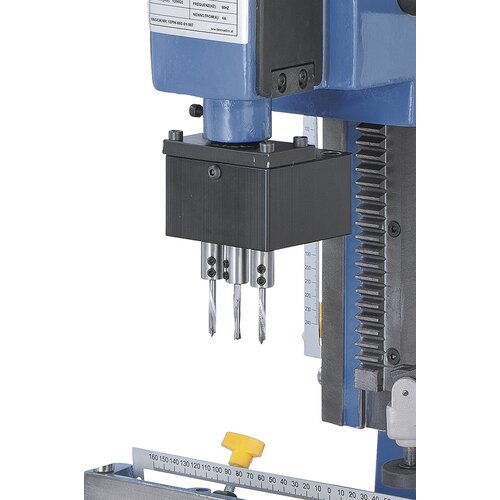

Choice of drill heads are optionally available.

Example of use

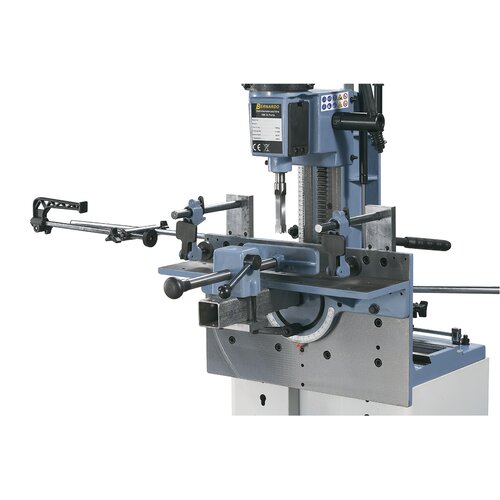

Cross and longitudinal movement feature adjustable fences.

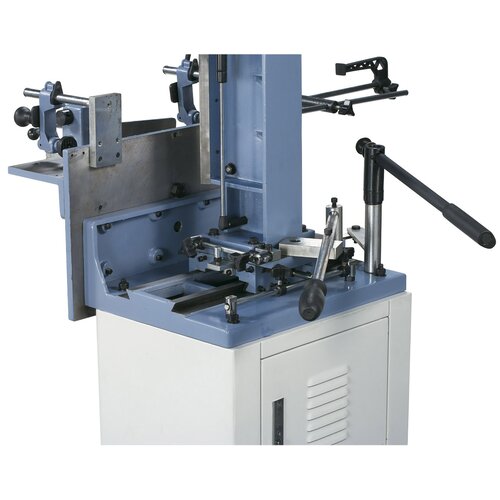

Solid work table tilts 45° to the right and left.

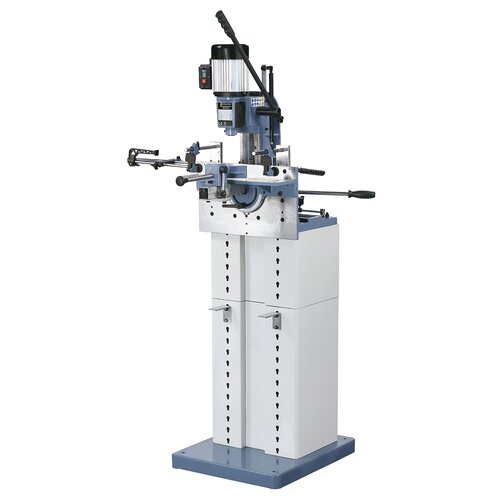

Chisel mortising machine HM 30 Porta *

Art.Nr.: 14-2108

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The HM 30 Porta mortising machine features a solid construction and wide range of accessories, making it ideal for processing of large workpieces, such as doors, window frames etc. This model can be used for individual as well as repeated operations.

€1,944.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Powerful drive motor, also suitable for continuous operation
Adjustable eccentric clamp secure workpiece to table
Ideal for mortising of rectangular shaped holes for tenon joints and more
Optimal device for slotting and mortising of hard and soft timbers
Adjustable drill depth stop for high repeat accuracy when mortising
Includes gas pressure cylinder to support mortising

Product Specifications

Chisel size max.	25,4 mm
Drill stroke	180 mm
Max. mortising depth	76 mm
Max. workpiece height	1150 mm
Max. workpiece width	210 mm
Table size	500 x 150 mm
Table tiltable left / right	45° / 45°
Drill head sidewise movable	235 mm
Drill head forward / backward movable	100 mm
Speed	1400 rpm
Motor power	1,1 kW (1,5 HP)
Voltage	400 V
Machine dimension (W x D x H)	650 (1255)* x 550 x 1820 mm
Weight approx.	190 kg

* with longitudinal fence

Delivery Contents

Drill chuck 16 mm
2 pcs. eccentric holder
Longitudinal fence
Drill depth stop with scale
Quick clamping vice
Mortising chisel 15,87 mm
Gas pressure balancing cylinder
Tiltable working table
Closed machine base with tool shelf

Suitable accessories

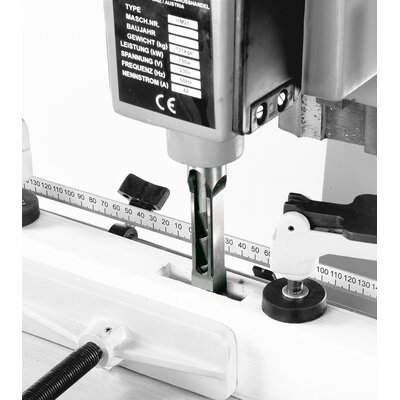

Mortising chisel 6,35 mm ( HM 12 / 25 / 30 )

Art.Nr. : 14-1000

€27.60
