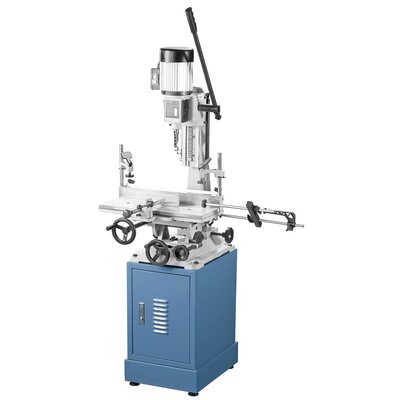

Machine partially shown with special accessories
Machine partially shown with special accessories

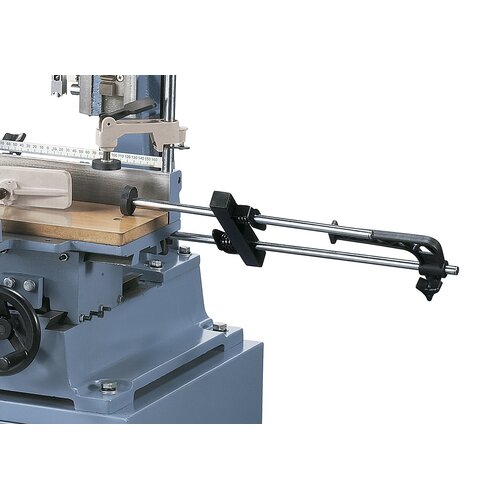

Convenient longitudinal fence forrepeated operations.
Convenient longitudinal fence forrepeated operations.

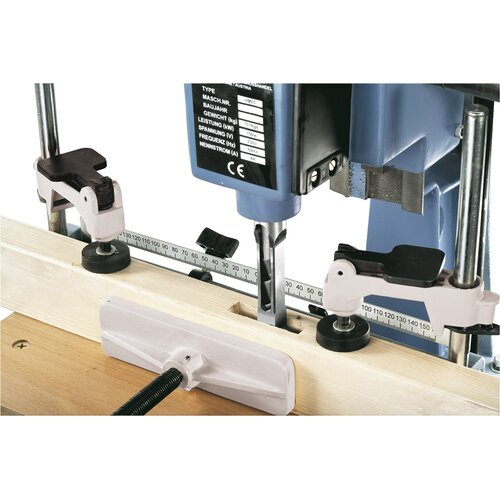

Eccentric clamp and quick clamping vice for secure fastening of workpiece.
Eccentric clamp and quick clamping vice for secure fastening of workpiece.
Spindle head adjusts 180° to allow mortising of door locks and hinges.
Spindle head adjusts 180° to allow mortising of door locks and hinges.
Machine partially shown with special accessories
Convenient longitudinal fence forrepeated operations.
Eccentric clamp and quick clamping vice for secure fastening of workpiece.
Spindle head adjusts 180° to allow mortising of door locks and hinges.

Chisel mortising machine HM 25

Art. No.: 14-2090
Wishlist Comparison List

The HM 25 mortising machine features an extensive range of accessories (quick clamping device, longitudinal fence etc.) allowing for convenient, fast and efficient processing of a series of rectangular holes. Another advantage of this model particularly for large workpieces is the up to 180° swivelling spindle head.



€900.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Complete with handwheels for changing the coordinate table
  • Drill chuck accessible from both sides for convenient change of mortising chisels
  • Adjustable dovetail guiding in all axis
  • Spindle head swivels 180°, essential for mortising works on doors
  • Includes gas pressure cylinder to support mortising
  • Ideal for slotting and mortising of soft and hard timbers
  • Grey cast-iron machine frame eliminates vibrations and promotes accuracy

Product Specifications

Chisel size max.

25,4 mm

Drill stroke

230 mm

Max. mortising depth

76 mm

Max. workpiece height

200 mm

Max. workpiece width

145 mm

Table size

400 x 150 mm

Travel (x / y)

175 / 150 mm

Speed

2850 rpm

Motor power

0,75 kW (1,0 HP)

Voltage

230 V

Machine dimension (W x D x H)*

430 x 610 x 1100 mm

Weight approx.

100 kg

* without stand

Delivery Contents

  • Drill chuck 16 mm
  • 2 pcs. eccentric holder
  • Longitudinal fence
  • Drill depth stop with scale
  • Quick clamping vice
  • Gas pressure balancing cylinder
  • Movable coordinate table

Suitable accessories

Mortising chisel 6,35 mm ( HM 12 / 25 / 30 )
Mortising chisel 6,35 mm ( HM 12 / 25 / 30 )
Art. No. : 14-1000

€27.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Drill head 45/9,5 for hinge type Blum
Drill head 45/9,5 for hinge type Blum
Art. No. : 14-1112

€589.20

incl. 20% VAT

Out of Stock
Drill head 42/11 for hinge type Grass
Drill head 42/11 for hinge type Grass
Art. No. : 14-1110

€546.00

incl. 20% VAT

Out of Stock
Gang drill head 32 mm
Gang drill head 32 mm
Art. No. : 14-1106

€739.20

incl. 20% VAT

Out of Stock
Stand for HM 25 / HM 25 TOP
Stand for HM 25 / HM 25 TOP
Art. No. : 14-2095

€192.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Mortising chisel 25,40 mm ( HM 25 / 30 )
Mortising chisel 25,40 mm ( HM 25 / 30 )
Art. No. : 14-1006

€48.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Mortising chisel 19,00 mm ( HM 25 / 30 )
Mortising chisel 19,00 mm ( HM 25 / 30 )
Art. No. : 14-1005

€42.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Mortising chisel 15,87 mm ( HM 25 / 30 )
Mortising chisel 15,87 mm ( HM 25 / 30 )
Art. No. : 14-1004

€39.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Mortising chisel 12,70 mm (HM 12 / 25 / 30)
Mortising chisel 12,70 mm (HM 12 / 25 / 30)
Art. No. : 14-1003

€33.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Mortising chisel 9,50 mm ( HM 12 / 25 / 30 )
Mortising chisel 9,50 mm ( HM 12 / 25 / 30 )
Art. No. : 14-1002

€30.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Mortising chisel 8,00 mm (HM 12 / 25 / 30)
Mortising chisel 8,00 mm (HM 12 / 25 / 30)
Art. No. : 14-1001

€27.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Drill head 43 mm for window handle
Drill head 43 mm for window handle
Art. No. : 14-1104

€562.80

incl. 20% VAT

Out of Stock
