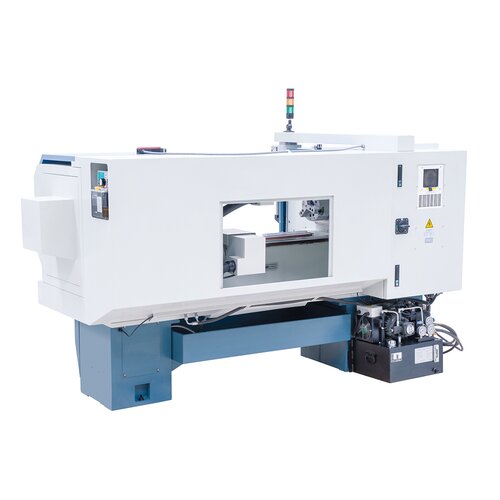

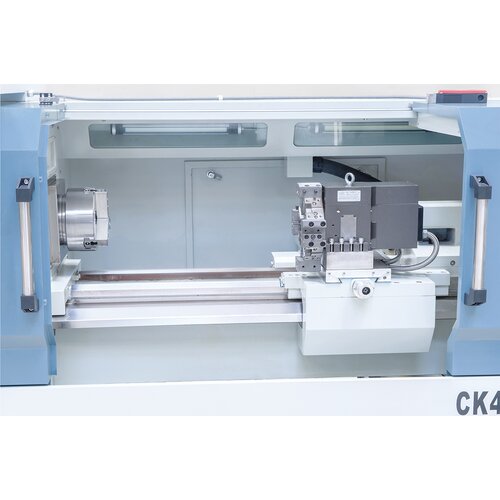

CNC-lathe CK 400 x 750 *
Art.Nr.: 03-1404XL€34,680.00
incl. 20% VATAvailability
Out of Stock
Product Properties
- Electronic handwheel for manual travel of x- and y-axis come standard

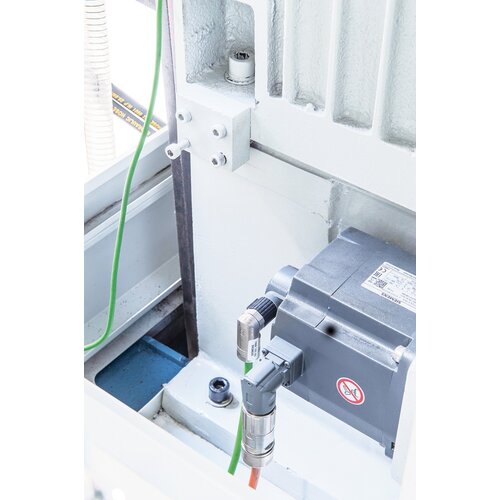

- Both axis feature AC-servo motors and ball screw
- Wide cross slide allows mounting of various tool post holders

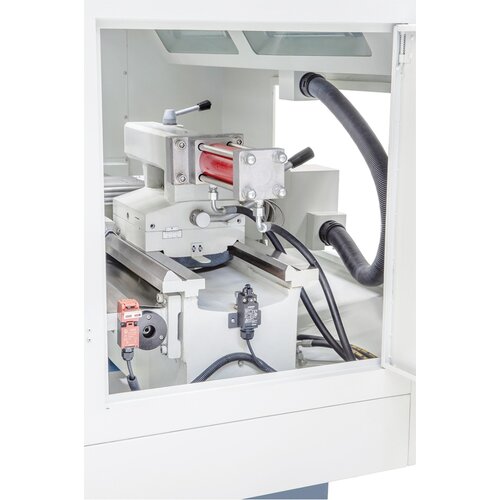

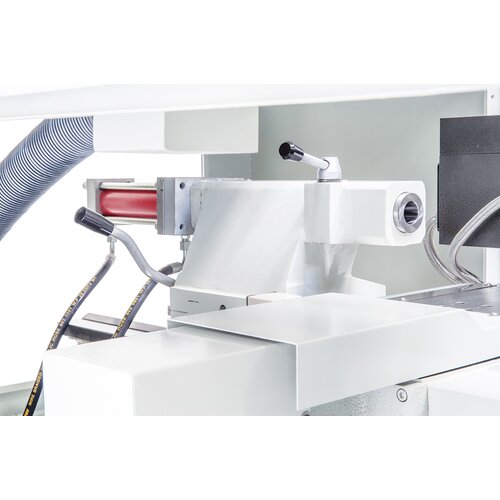

- Stable tailstock with hydraulically adjustable tailstock spindle
- High rapid feed allows significant reduction of downtime
- Brushless AC-motor drive and feed drive
- Main spindle features pre-tightened high-quality angular bearings, guarantees best possible accuracy

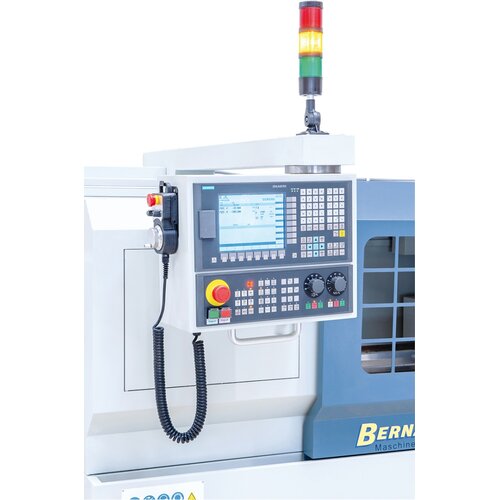

- User-friendly, easy-to-understand Siemens control 808D Advanced
- Solid headstock features precisely bedded main spindle (spindle bore 60 mm)
Product Specifications
|
Distance between centers |
750 mm |
|
Center height |
200 mm |
|
Swing over bed |
400 mm |
|
Swing over cross slide |
240 mm |
|
Bed width |
330 mm |
|
Spindle bore |
66 mm |
|
Spindle nose fixture |
A2-6 |
|
Speed range, stepless |
30 - 2500 rpm |
|
Travel x-axis / z-axis |
210 mm / 750 mm |
|
Rapid feed x- / z-axis |
6 / 8 m/min |
|
Number of tool stations |
8 pcs. |
|
Dimension tool shank |
20 x 20 mm |
|
Positioning accuracy |
± 0,01 mm |
|
Diameter of tailstock sleeve |
55 mm |
|
Travel of tailstock sleeve |
140 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power |
5,5 kW |
|
Machine dimension (W x D x H) |
2850 x 1510 x 1950 mm |
|
Weight approx. |
1780 kg |
Delivery Contents

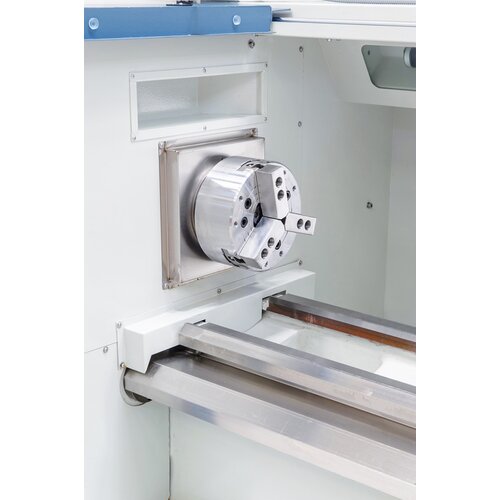

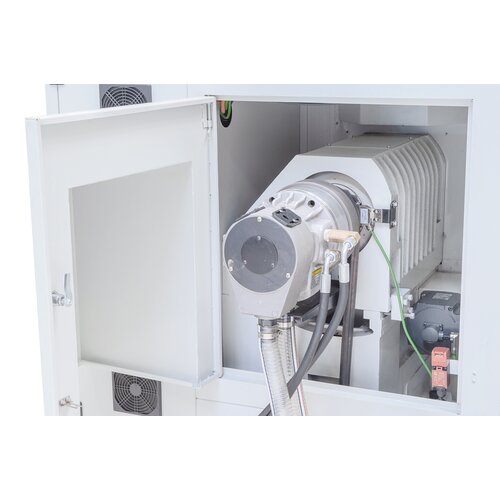

- Hydraulic 3-jaw chuck diam. 200 mm with hydraulic unit

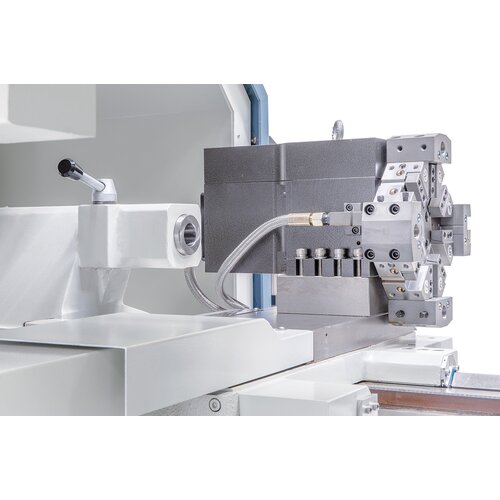

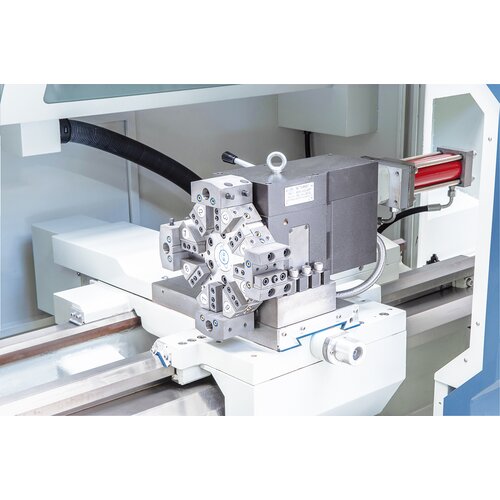

- Automatic 8 station turret
- Tool holder (3 pcs.)
- Hydraulic adjustment of the tailstock sleeve
- Siemens 808D Advanced

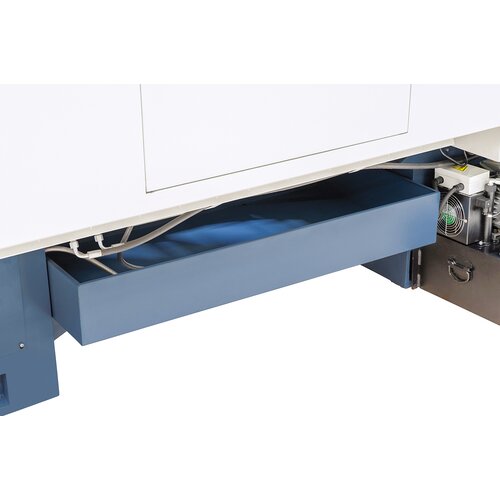

- Coolant device
- LED machine light
- Live center MT 4

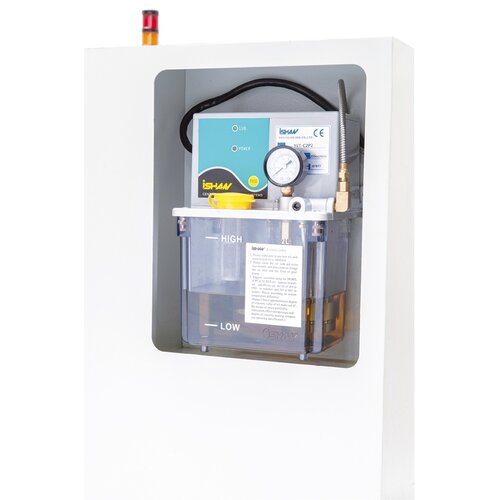

- Automatic lubrication of longitudinal and cross slide

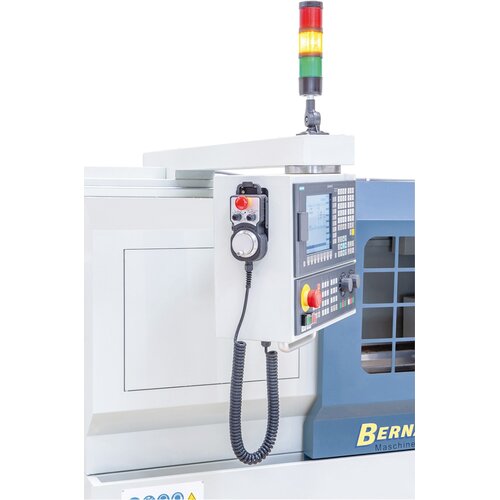

- Electronic handwheel
- Machine casing
- Tools
