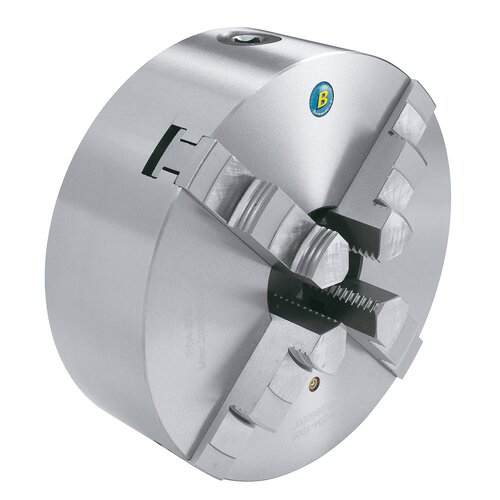

Bernardo Standard 4-jaw chuck PS4 according DIN 6350 PS4-630, cast iron
Art.Nr.: 21-2007F€8,160.00
Availability
Out of Stock
Product Properties
Execution:
- Standard 4-jaw chuck with high-quality cast iron body
- With centre mount according to DIN 6350
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Useable for turning lathe and grinding machines as well as milling devices
- For clamping of rectangular and round workpieces
- For using at machines with high concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-S4
- 1 set hard outside solid jaws OJ-PS4

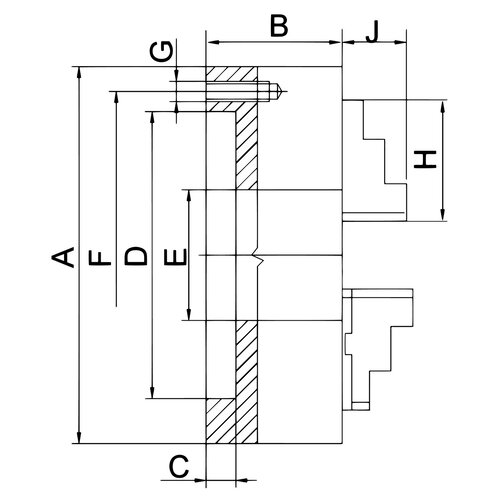

Product Specifications
A – chuck size |
630 |
B |
135 mm |
C |
7 mm |
D |
545 mm |
E |
252 mm |
F |
586 mm |
G |
M16 |
H |
225 mm |
J |
70 mm |
Max. speed |
500 rpm |
Weight approx. |
250 kg |
