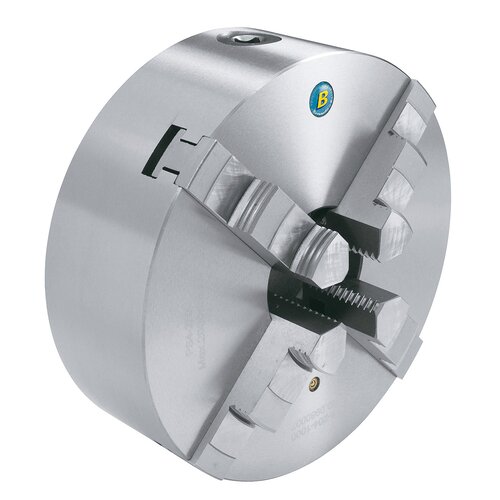

Bernardo Standard 4-jaw chuck PS4 according DIN 6350 PS4-500, cast iron
Art. No.: 21-2006F€3,130.00
Availability
Out of Stock
Product Properties
Execution:
- Standard 4-jaw chuck with high-quality cast iron body
- With centre mount according to DIN 6350
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Useable for turning lathe and grinding machines as well as milling devices
- For clamping of rectangular and round workpieces
- For using at machines with high concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-S4
- 1 set hard outside solid jaws OJ-PS4

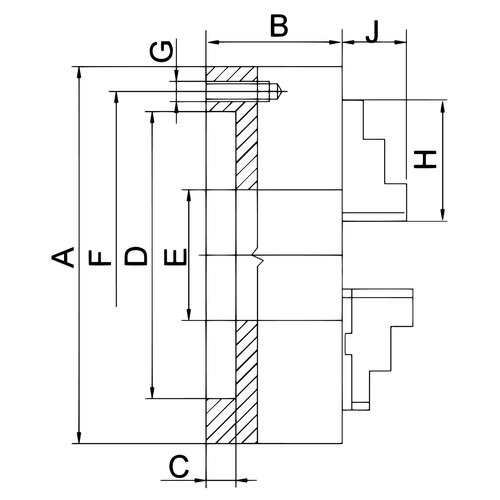

Product Specifications
|
A – chuck size |
500 |
|
B |
120 mm |
|
C |
5 mm |
|
D |
420 mm |
|
E |
190 mm |
|
F |
458 mm |
|
G |
M16 |
|
H |
180 mm |
|
J |
60 mm |
|
Max. speed |
700 rpm |
|
Weight approx. |
145 kg |
