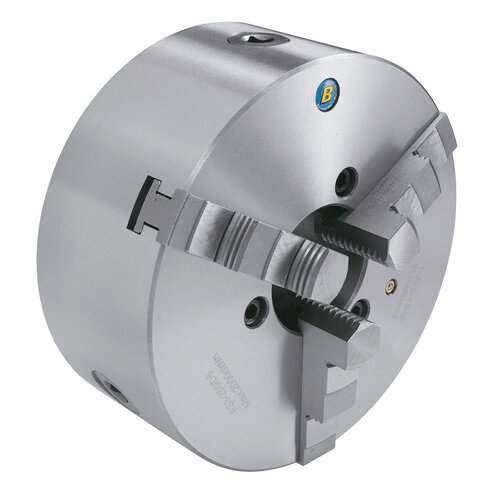

Bernardo Standard 3-jaw chuck PS3-D according DIN 55029 PS3-315/D8, cast iron

Art.Nr.: 21-1058F

€1,106.40

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

Execution:

  • Standard-3-jaw chuck with high-quality cast iron body
  • With Camlock direct mounting according to DIN 55029
  • Inclusive each 1 set hard inside and hard outside solid jaws



Application:

  • Suitable for conventional turning lathes
  • For use on machines with increased concentricity



Standard accessories

  • 1 set hard inside solid jaws IJ-PS3
  • 1 set hard outside solid jaws OJ-PS3

Product Specifications

Chuck size

315/D8

Diameter

315 mm

Taper

8

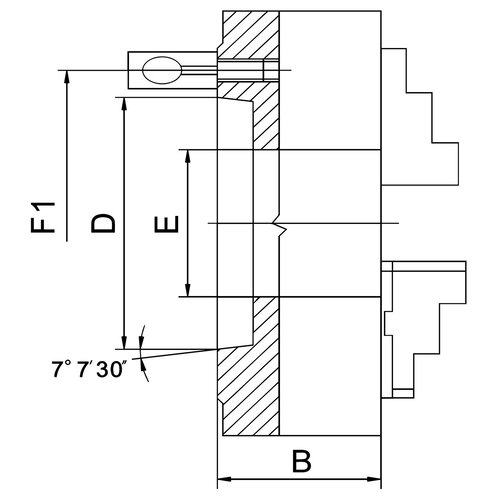

B

117,7 mm

D (max.)

139,734 mm

E

103 mm

F1

171,4 mm

Camlock stud

6

Max. speed

1500 rpm

Weight approx.

51 kg
