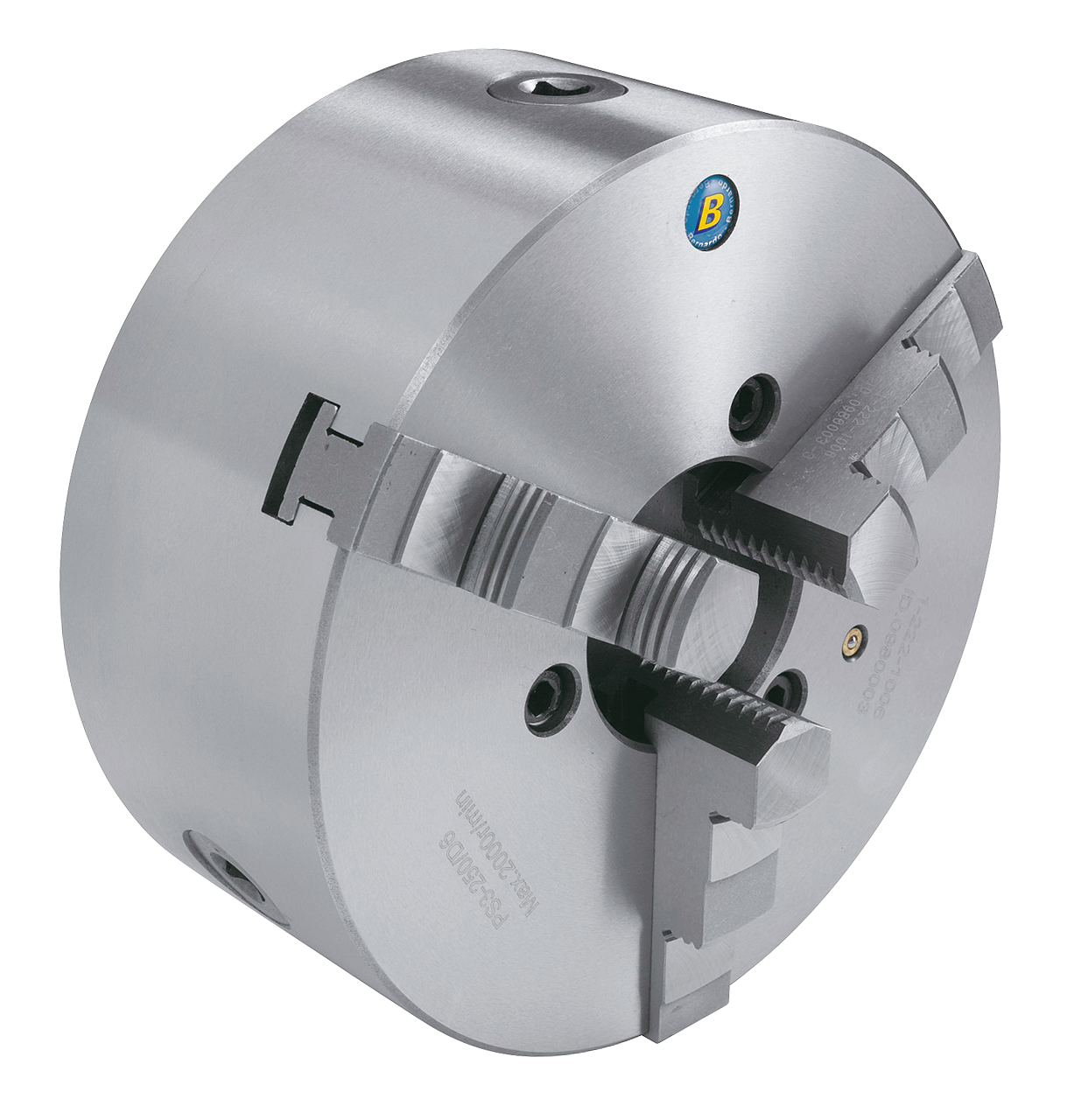

Bernardo Standard 3-jaw chuck PS3-D according DIN 55029 PS3-315/D11, cast iron

Art.Nr.: 21-1059F

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€1,106.40

incl. 20% VAT

Availability

Out of Stock

Product Properties

Execution:

Standard-3-jaw chuck with high-quality cast iron body
With Camlock direct mounting according to DIN 55029
Inclusive each 1 set hard inside and hard outside solid jaws

Application:

Suitable for conventional turning lathes
For use on machines with increased concentricity

Standard accessories

1 set hard inside solid jaws IJ-PS3
1 set hard outside solid jaws OJ-PS3

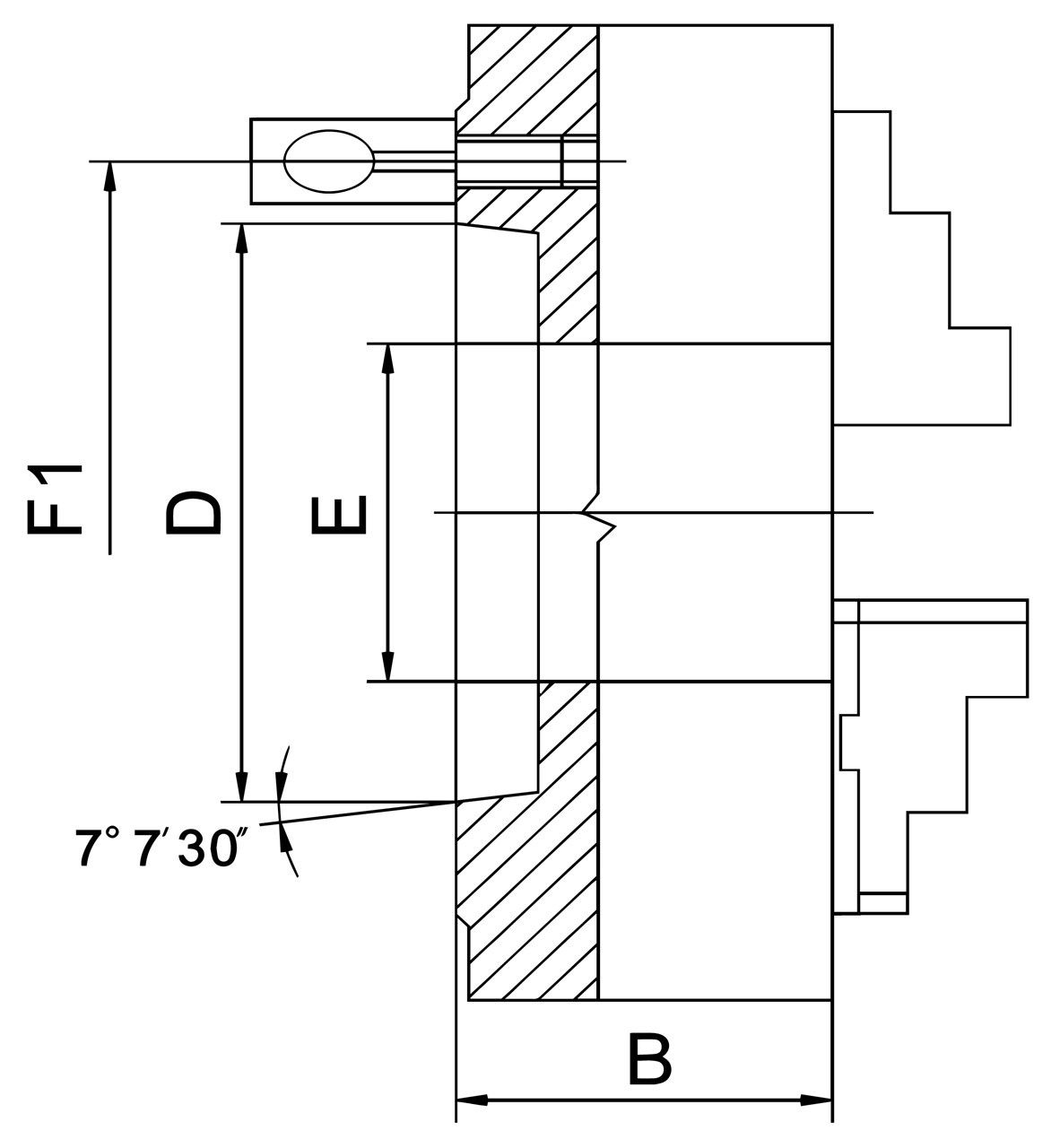

Product Specifications

Chuck size	315/D11
Diameter	315 mm
Taper	11
B	125 mm
D (max.)	196,887 mm
E	103 mm
F1	235 mm
Camlock stud	6
Max. speed	1500 rpm
Weight approx.	51 kg
