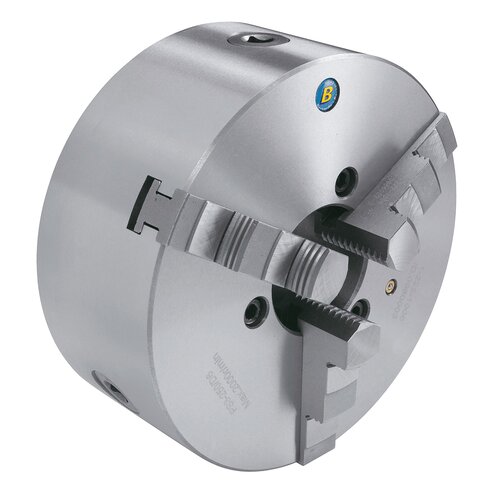

Bernardo Standard 3-jaw chuck PS3-D according DIN 55029 PS3-250/D6, cast iron

Art.Nr.: 21-1056F

€757.20

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

Execution:

  • Standard-3-jaw chuck with high-quality cast iron body
  • With Camlock direct mounting according to DIN 55029
  • Inclusive each 1 set hard inside and hard outside solid jaws



Application:

  • Suitable for conventional turning lathes
  • For use on machines with increased concentricity



Standard accessories

  • 1 set hard inside solid jaws IJ-PS3
  • 1 set hard outside solid jaws OJ-PS3

Product Specifications

Chuck size

250/D6

Diameter

250 mm

Taper

6

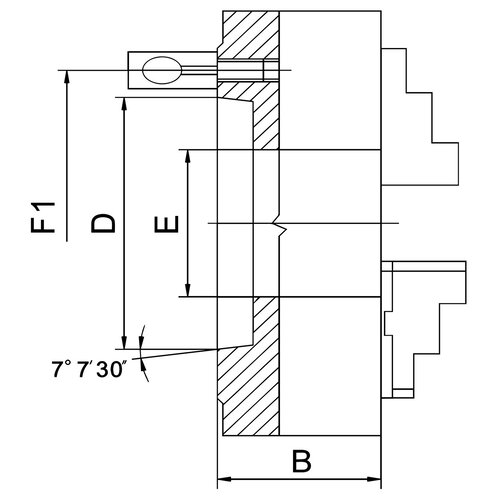

B

103,5 mm

D (max.)

106,390 mm

E

76 mm

F1

133,4 mm

Camlock stud

6

Max. speed

2000 rpm

Weight approx.

32 kg
