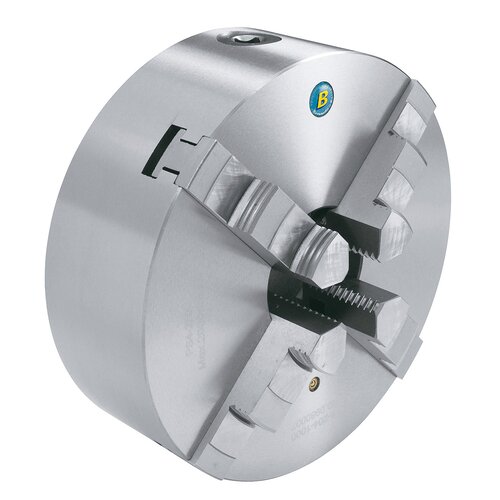

Bernardo 4-jaw chuck DK12-D, DIN 55029, DK12-250/D6, cast iron
Art. No.: 21-0836€523.00
Availability
Out of Stock
Product Properties
Execution:
- Standard 4-jaw chuck with high-quality cast iron body
- With Camlock direct mount according to DIN 55029
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
Standard accessories:
- 1 set hard inside solid jaws DIJ-DK11
- 1 set hard outside solid jaws DOJ-DK11

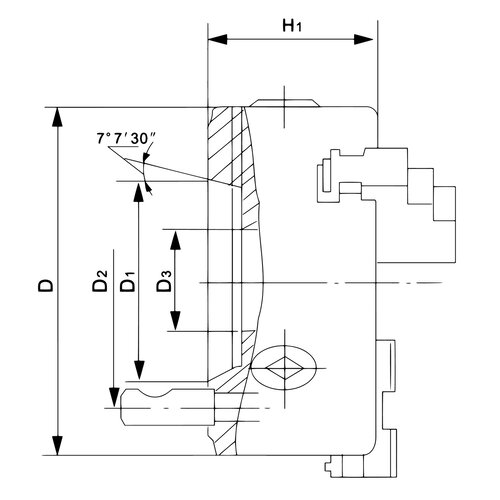

Product Specifications
|
Chuck size |
250/D6 |
|
D - Diameter |
250 mm |
|
Taper |
6 |
|
D1 (max.) |
106,390 mm |
|
D2 |
133,4 mm |
|
D3 |
70 mm |
|
H1 |
96,5 mm |
|
Max. speed |
1600 rpm |
|
Weight approx. |
32 kg |
