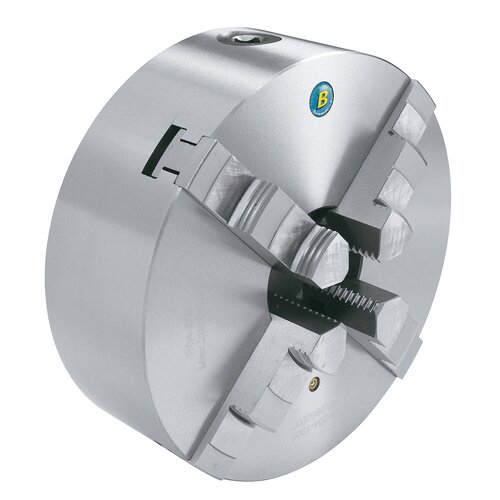

Bernardo 4-jaw chuck DK12, DIN 6350, DK12-500, cast iron
Art. No.: 21-0808€2,170.00
Availability
Out of Stock
Product Properties
Execution:
- Standard 4-jaw chuck with high-quality cast iron body
- With centre mount according to DIN 6350
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for turning lathes and grinding machines as well as milling devices
Standard accessories:
- 1 set hard inside solid jaws DIJ-DK11
- 1 set hard outside solid jaws DOJ-DK11

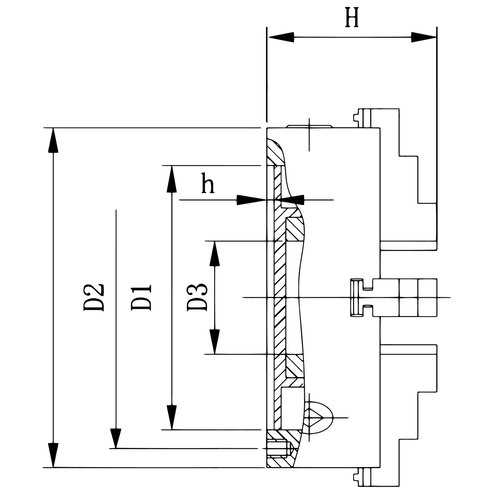

Product Specifications
|
D - chuck size |
500 |
|
D1 |
420 mm |
|
D2 |
458 mm |
|
D3 |
210 mm |
|
H |
205 mm |
|
H1 |
115 mm |
|
h |
6 mm |
|
Mounting bolts |
6 x M16 |
|
Max. speed |
800 rpm |
|
Weight approx. |
142 kg |
