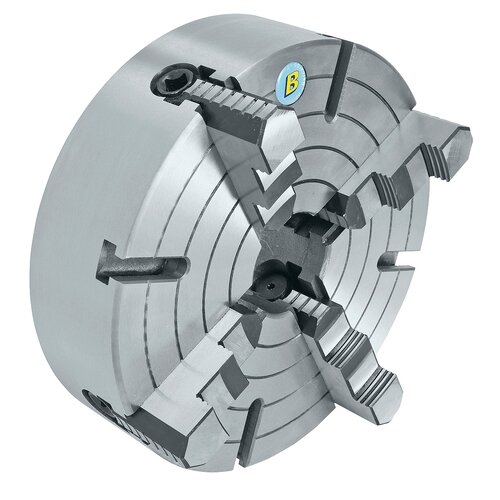

Bernardo - 4-jaw independent chuck K72 according DIN 6350 K72 - 250
Art. No.: 21-5005€263.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
|

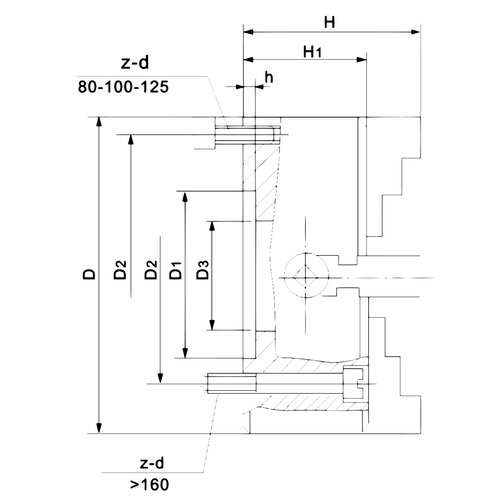

D - chuck size |
250 |
|
D1 |
100 mm |
|
D2 |
120 mm |
|
D3 |
65 mm |
|
H |
117,5 mm |
|
H1 |
82 mm |
|
h |
6 mm |
|
Mounting bolts |
4 x M12 |
|
Max. speed |
1200 rpm |
|
Weight approx. |
22 kg |
Product Specifications
Execution:
- 4-jaw independent chuck made out of cast iron
- With centre mount according to DIN 6350
- Four separate adjustable jaws
- From a diameter of 160 mm the independent chuck is with front-mounting
- Including milled T-slots from a diameter of 300 mm
- Inclusive one set hard outside solid jaws
Application:
- Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes
