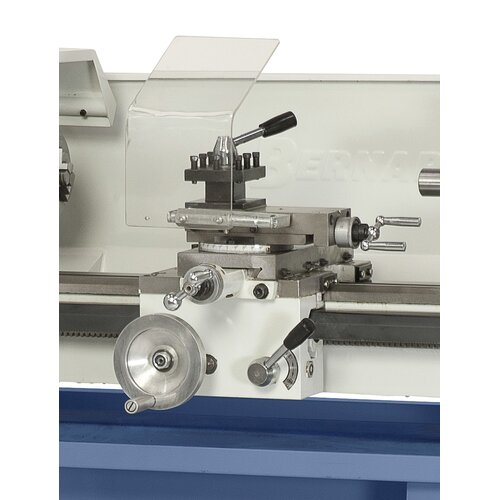

Smooth-running, precise apron with top support – adjustable gibs allow long life span.
Smooth-running, precise apron with top support – adjustable gibs allow long life span.

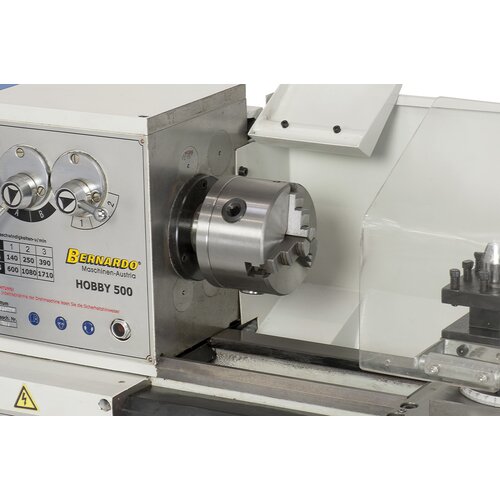

3-jaw chuck 100 mm with hard inside and hard outisde solid jaws as standard equipment.
3-jaw chuck 100 mm with hard inside and hard outisde solid jaws as standard equipment.

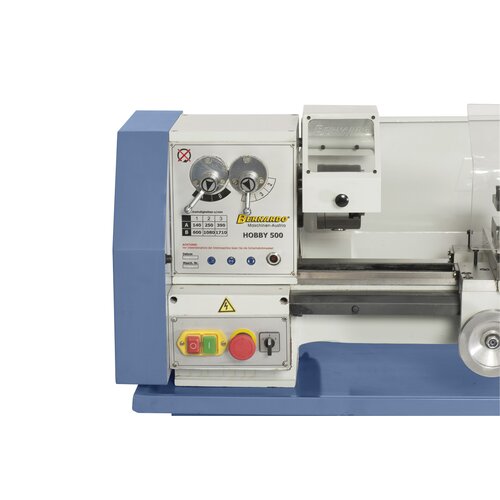

The control gear mounted on the head stock allows easy and quick speed change
The control gear mounted on the head stock allows easy and quick speed change
Smooth-running, precise apron with top support – adjustable gibs allow long life span.
3-jaw chuck 100 mm with hard inside and hard outisde solid jaws as standard equipment.
The control gear mounted on the head stock allows easy and quick speed change

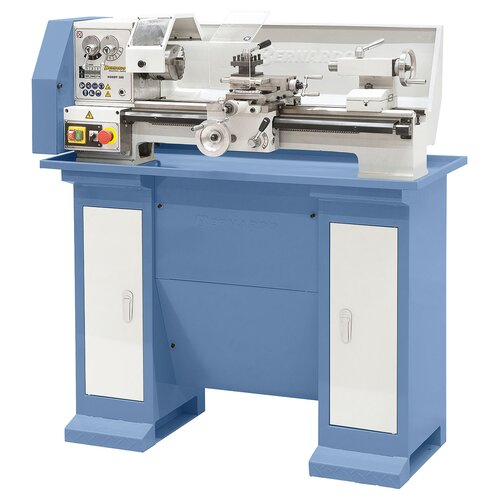

Bench lathe Hobby 500 / 400 V

Art.Nr.: 03-1075
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Hobby 500 turning lathe is equipped with a 6-step control gear to allow for quick speed change. The compact construction guarantees smooth running and precise work.

€1,692.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Control gear allows easy and quick speed change
  • Machine bed inductive hardened and polished
  • Guideways adjustable via gibs
  • Optimal price-performance-ratio
  • Very handy machine with leadscrew for thread cutting
  • Spindle bedded with 2 adjustable precision ball bearings
  • Tailstock can be adjusted for taper turning
  • Protective switch with undervoltage release
  • Solid and small construction

Product Specifications

Distance between centers

500 mm

Center height

110 mm

Swing over bed

220 mm

Spindle bore

20 mm

Taper at spindle bore

MT 3

Speed range

140 - 1710 rpm, 6 steps

Longitudinal feed

(4) 0,05 - 0,2 mm/rev.

Metric thread

(11) 0,4 - 3 mm

Inch thread

(11) 8 - 28 threads/1“

Travel of tailstock sleeve

45 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,55 kW / 400 V

Motor power input S6 40%

0,80 kW / 400 V

Machine dimension (W x D x H)*

1150 x 480 x 420 mm

Weight approx.

130 kg




* without stand

Delivery Contents

  • 3-jaw chuck 100 mm
  • Change gears
  • Dead center
  • 4-way tool post holder
  • Cross slide with top support
  • Chuck guard

Suitable accessories

Medium duty live center with 7 interchangable tips SMA - MT 2
Medium duty live center with 7 interchangable tips SMA - MT 2
Art.Nr. : 22-1040

€163.20

incl. 20% VAT
HSS-Carbide tipped tool set, 12 mm, 8 pcs.
HSS-Carbide tipped tool set, 12 mm, 8 pcs.
Art.Nr. : 44-1025

€114.00

incl. 20% VAT
Universal coolant pump with plastic tank 10 liter - 400 V
Universal coolant pump with plastic tank 10 liter - 400 V
Art.Nr. : 51-1004

€295.20

incl. 20% VAT

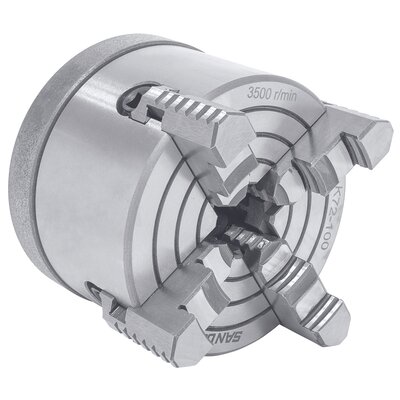

Independent chuck 100 mm f. Hobby 500
Independent chuck 100 mm f. Hobby 500
Art.Nr. : 03-1660

€169.20

incl. 20% VAT

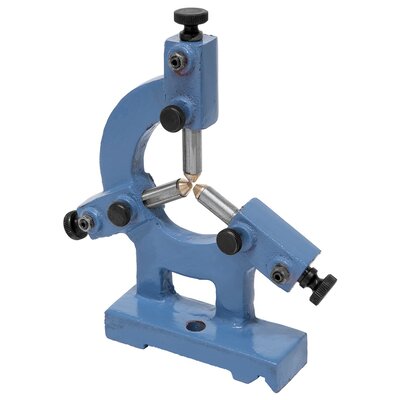

Steady rest f. Hobby 500
Steady rest f. Hobby 500
Art.Nr. : 03-1665

€98.40

incl. 20% VAT

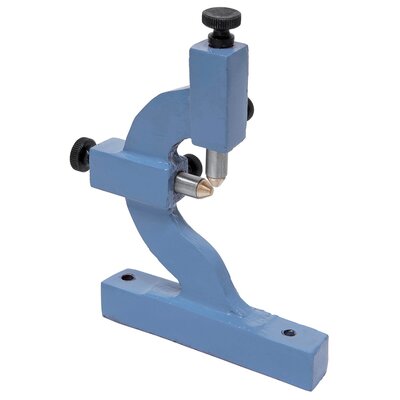

Follow rest f. Hobby 500
