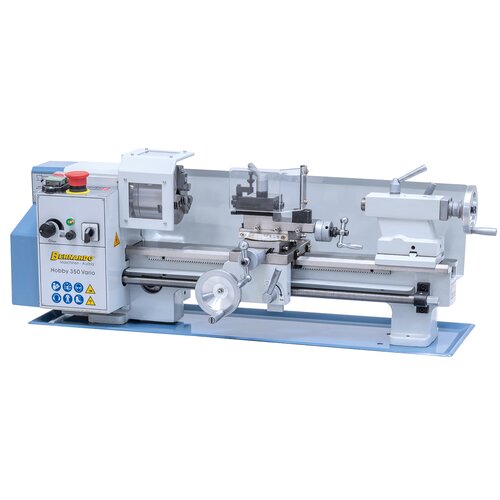

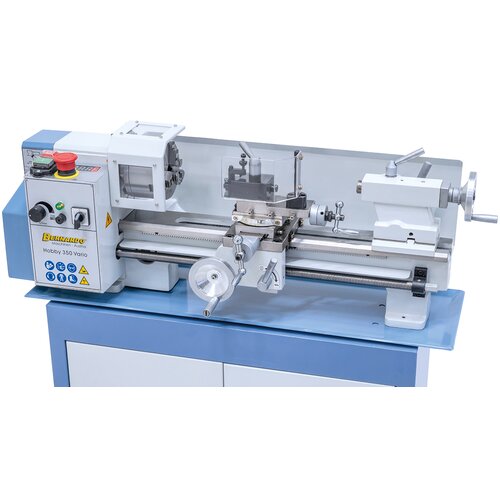

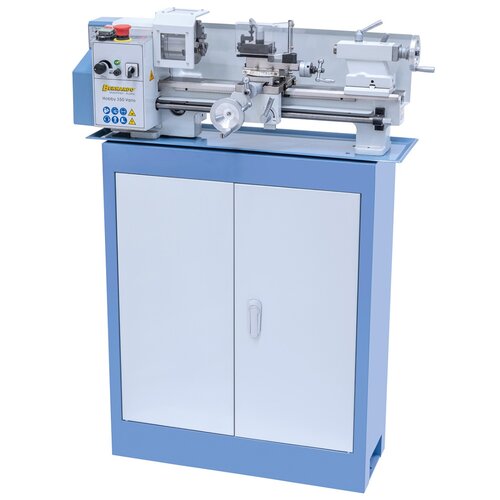

Bench lathe Hobby 350 Vario / 230 V
Art.Nr.: 03-10240The Hobby 350 Vario bench lathe - compared to the Hobby 300 Vario - features a 50 mm greater distance between centres and a slightly more powerful motor. To reduce non-productive time the machine is also available with a 2-axis digital readout.
€1,008.00
incl. 20% VATAvailability
Product Properties
- High-quality ball bearings guarantees high spindle concentricity (≤ 0.015 mm)
- Various applications: thread cutting, longitudinal, face and internal turning etc.
- Ideal for working with steel, non-ferrous metals and plastics
- Stepless speed adjustment of main spindle

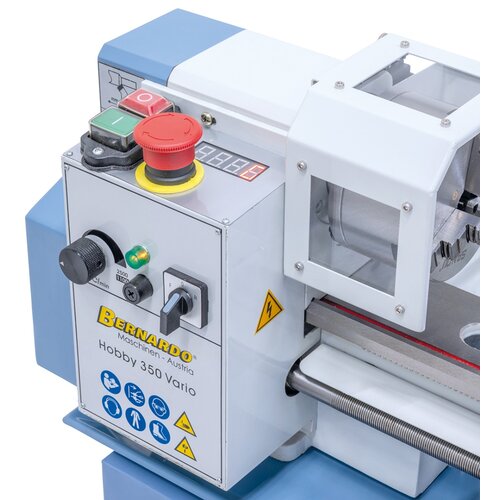

- User-friendly arrangement of control elements
- Leadscrew features automatic longitudinal feed
- Guides adjustable by gibs
- Compact, small construction, optimal price-performance ratio
- Machine bed inductive hardened and polished

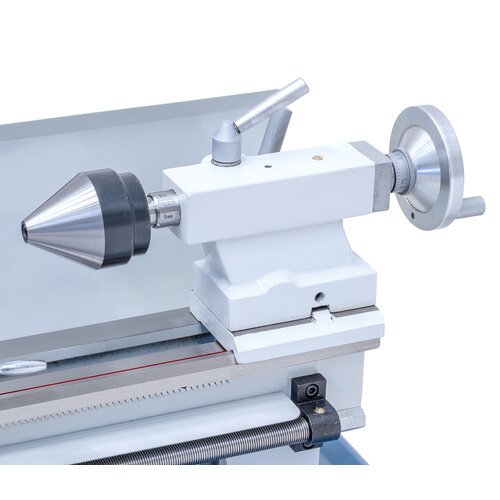

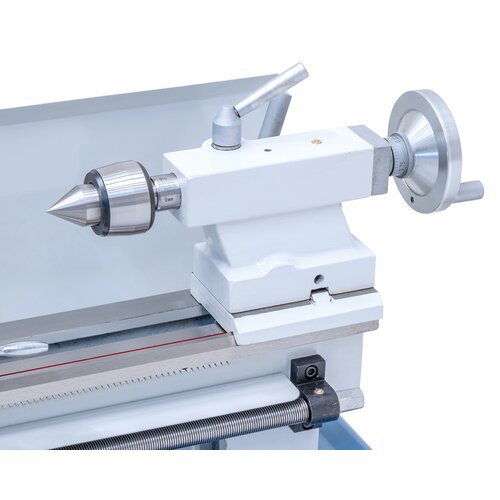

- Adjustable tailstock allows taper turning
Product Specifications
|
Distance between centers |
350 mm |
|
Center height |
90 mm |
|
Swing over bed |
180 mm |
|
Swing over cross slide |
110 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range, stepless |
50 - 1100 / 120 - 2500 rpm |
|
Longitudinal feed |
0,1 / 0,2 mm/rev |
|
Metric thread |
(9) 0,5 - 2,5 mm |
|
Travel of tailstock sleeve |
60 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,50 kW |
|
Motor power input S6 40% |
0,70 kW |
|
Machine dimension (W x D x H)* |
880 x 330 x 300 mm |
|
Weight approx. |
52 kg |
* without stand
Delivery Contents

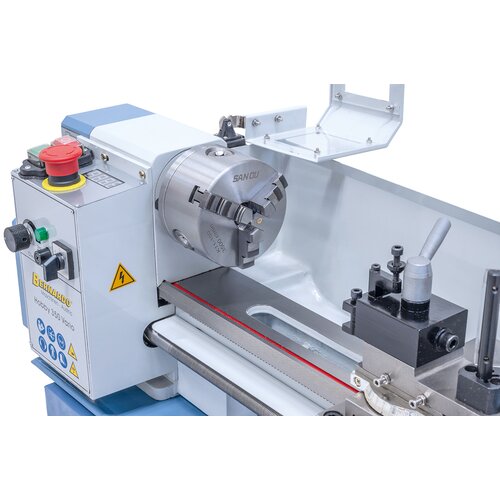

- 3-jaw chuck 100 mm
- Chuck guard

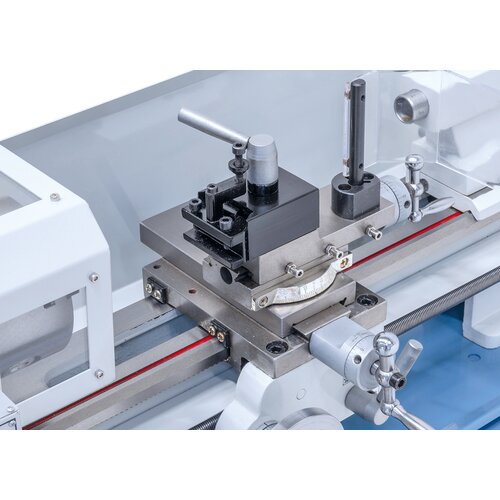

- Quick change tool holder with 4 inserts

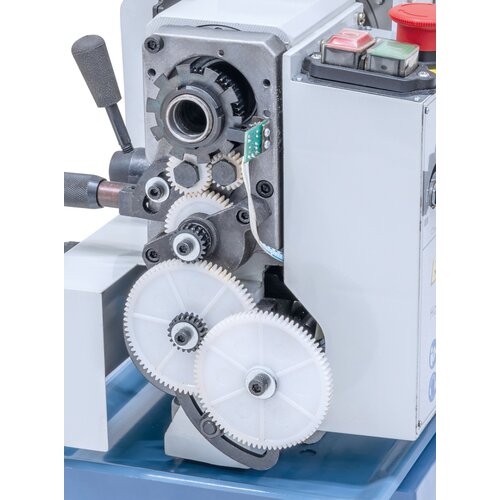

- Change gears
- Splash guard
- Digital speed display
- Hand wheels in metal execution
- Dead centre
- Tools
