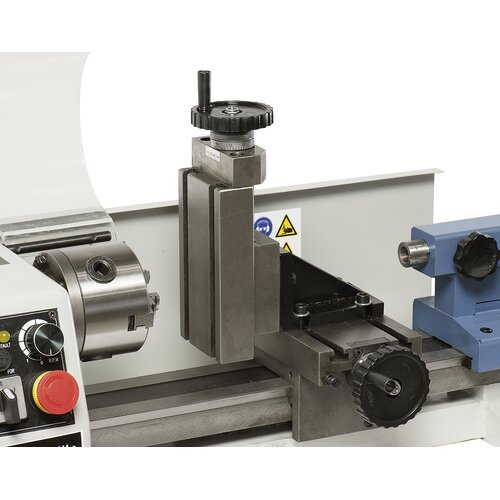

Optionally available: Vertical milling support with surface of 64 x 130 mm.
Optionally available: Vertical milling support with surface of 64 x 130 mm.

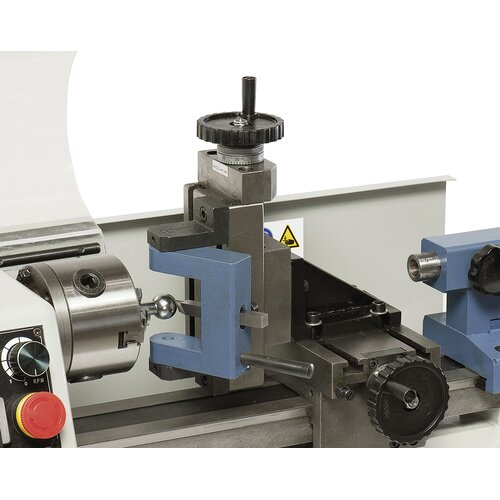

Vertical milling support with mounted ball head cutting set (optional)
Vertical milling support with mounted ball head cutting set (optional)

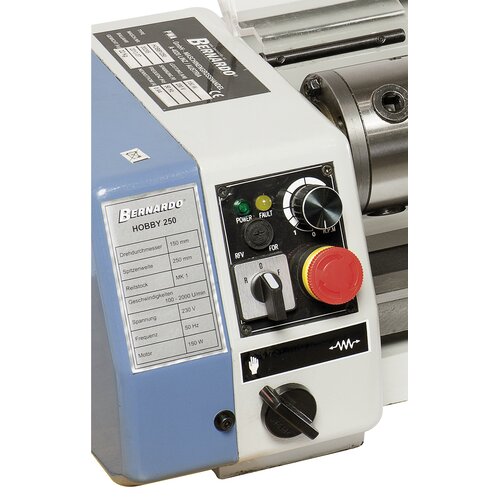

User-friendly operation, control elements centrally positioned on spindle head
User-friendly operation, control elements centrally positioned on spindle head

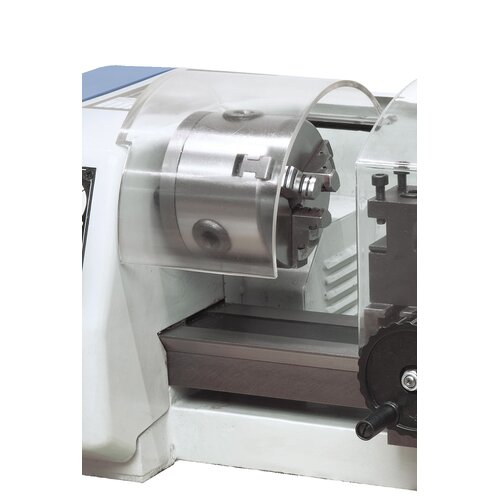

3-jaw chuck 80 mm includes protective cover according to CE-standards
3-jaw chuck 80 mm includes protective cover according to CE-standards

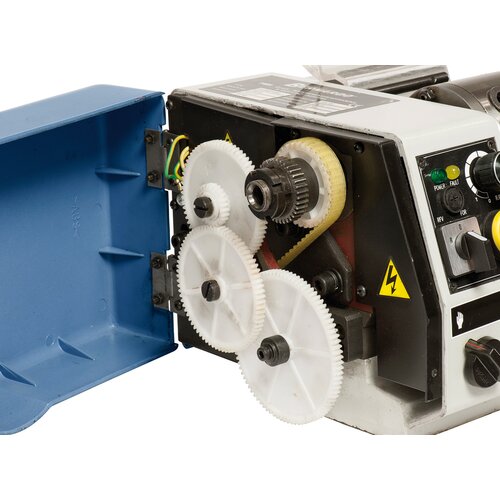

Optional change gears for thread cutting (0,5 - 1,25 mm).
Optional change gears for thread cutting (0,5 - 1,25 mm).
Optionally available: Vertical milling support with surface of 64 x 130 mm.
Vertical milling support with mounted ball head cutting set (optional)
User-friendly operation, control elements centrally positioned on spindle head
3-jaw chuck 80 mm includes protective cover according to CE-standards
Optional change gears for thread cutting (0,5 - 1,25 mm).

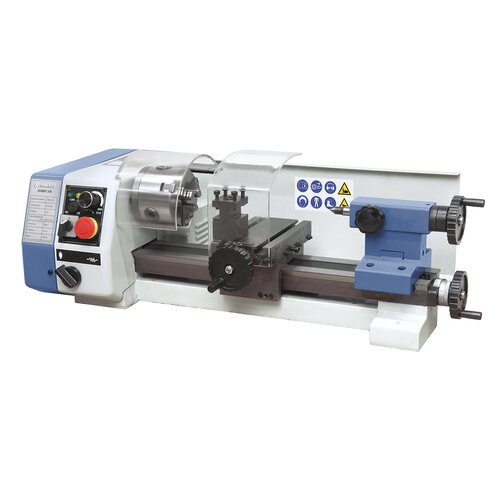

Bench lathe Hobby 250 / 230 V

Art.Nr.: 03-1000
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Hobby 250 is a small and compact table lathe featuring high precision and the possibility of facing, straight turning and thread cutting, making this model ideal for craftsmen and amateurs.



€804.00

incl. 20% VAT

Availability

Deliverable Soon
Deliverable by Jun 30, 2025

Product Properties

  • Stepless speed adjustment of main spindle
  • User-friendly arrangement of control elements
  • Quick and easy speed change
  • Inductive hardened and polished machine bed
  • Switch for manual or automatic longitudinal feed
  • Guides adjustable by gibs
  • Attractive price-to-performance ratio
  • Spindle bedded with 2 adjustable taper roller bearings
  • Small and compact construction eliminates most vibrations
  • High quality ball bearings ensure high spindle concentricity (≤ 0,015 mm)

Product Specifications

Distance between centers

250 mm

Center height

75 mm

Swing over bed

150 mm

Spindle bore

10 mm

Taper at spindle bore

MT 2

Speed range, stepless

100 - 2000 rpm

Metric thread *

(5) 0,5 - 1,25 mm

Inch thread *

(5) 16 - 24 threads/1"

Travel of tailstock sleeve

25 mm

Taper of tailstock sleeve

MT 1

Motor power ouput S1 100%

0,15 kW / 230 V

Motor power input S6 40%

0,20 kW  / 230 V

Machine dimensions (W x D x H)

650 x 350 x 220 mm

Weight approx.

23 kg




* Option

Delivery Contents

  • 3-jaw chuck 80 mm
  • Chuck guard
  • 2-way tool post holder
  • Live centre MT 1
  • Splash guard
  • Tools
