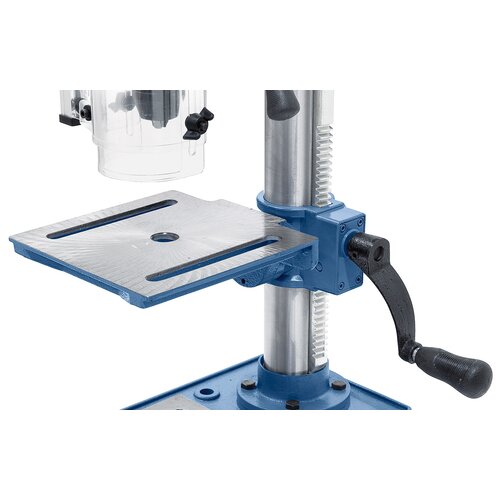

Drill table swivels -45° to +45° and turns 360° around the column.
Drill table swivels -45° to +45° and turns 360° around the column.

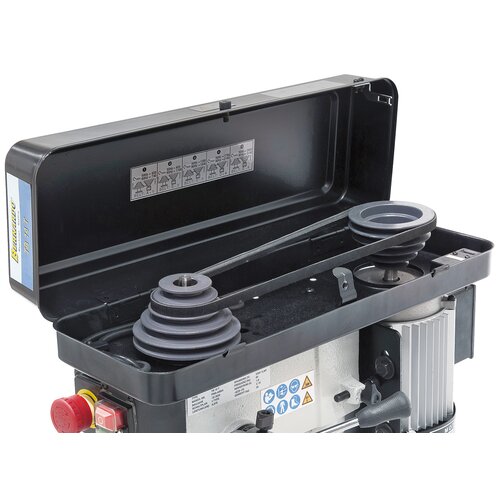

Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Complete with keyless drill chuck 1 – 16 mm / B 16
Complete with keyless drill chuck 1 – 16 mm / B 16
Drill table swivels -45° to +45° and turns 360° around the column.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Complete with keyless drill chuck 1 – 16 mm / B 16

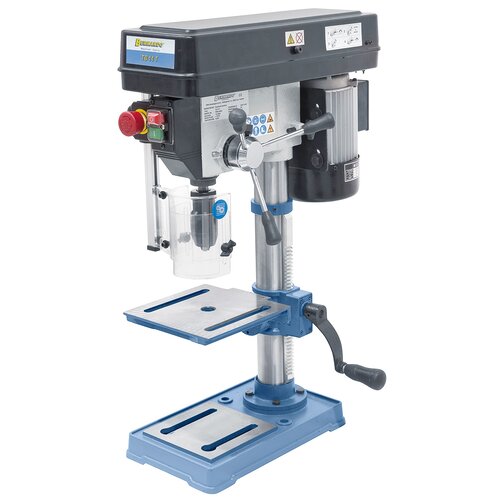

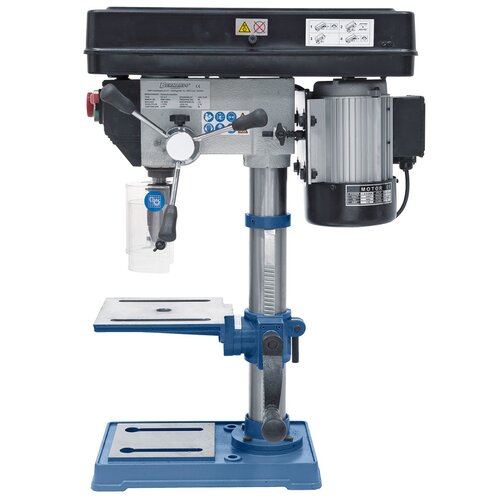

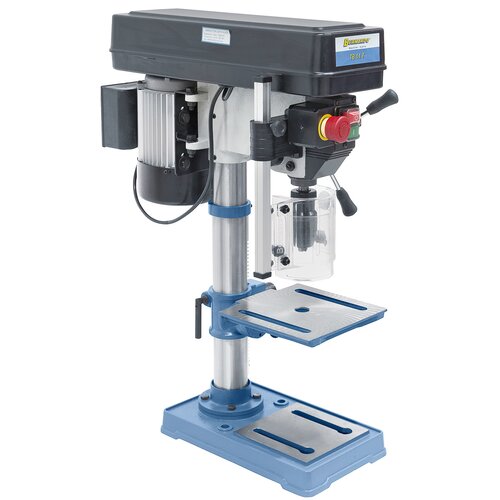

Bench drilling machine TB 14 T / 230 V

Art.Nr.: 01-1026

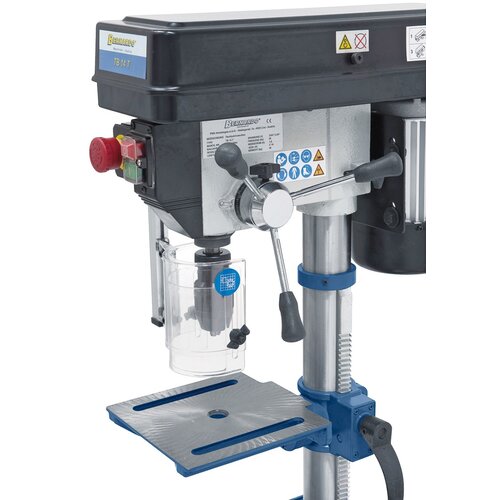

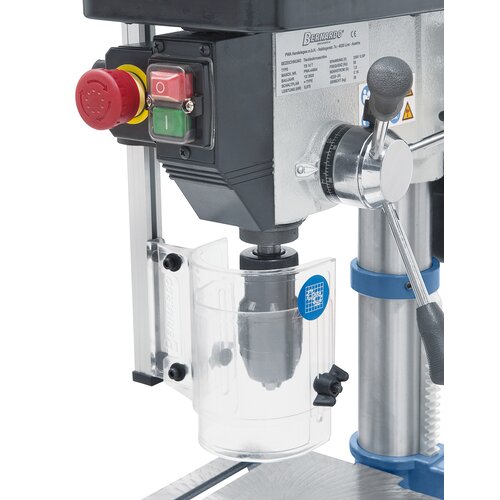

The inexpensive bench drilling machine TB 14 T, featuring a V-belt drive, is available with a drilling capacity of 14 mm. The height adjustable protective cover developed by Bernardo cover the drill as well as the drill chuck completely. This increase the safety and making them particulary suitalbe for craftsmen and training purposes

€290.40

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • High-quality ball bearings ensure high spindle concentricity
  • Balanced drive wheels and high-quality belt ensure extremely smooth operation
  • Drill table swivels (±45°), height adjustable via gear rack
  • Complete with T-slots in polished base plate
  • Powerful, high-torque aluminium motor in accordance with IP 54
  • Ergonomically arranged handles ensure high work comfort
  • Treated base plate allows clamping of oversize work pieces
  • Top precision keyless drill chuck included

Product Specifications

Drilling capacity max.

14 mm

Drill chuck

1 - 13 mm / B 16

Morse taper

steady / B 16

Spindle speeds

(5) 620 - 2620 rpm

Distance spindle to column

130 mm

Table tiltable

-45° to +45°

Distance spindle to table max.

285 mm

Distance spindle to base

395 mm

Spindle stroke

65 mm

Column diameter

58 mm

Table size / T-slot size

185 x 185 mm / 14 mm

Working surface of base

155 x 155 mm

Motor power output S1 100%

0,37 kW / 230 V

Motor power input S6 40%

0,55 kW / 230 V

Machine dimension (W x D x H)

300 x 510 x 690 mm

Weight approx.

26 kg

Delivery Contents

  • Keyless drill chuck 1 - 13 mm / B 16
  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools
