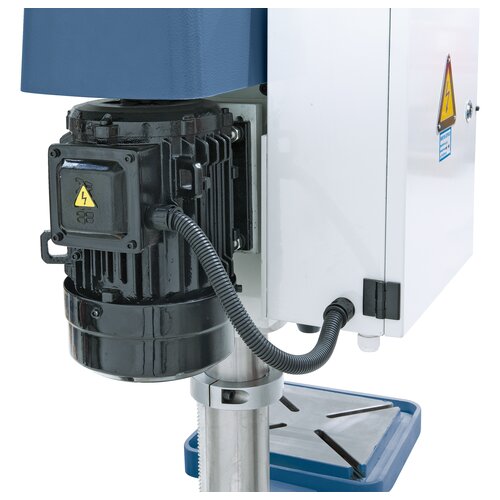

Stepless adjustable spindle feed with separate drive motor
Stepless adjustable spindle feed with separate drive motor

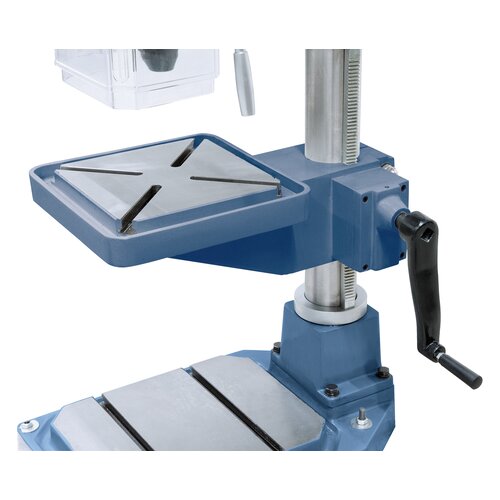

Polished work table features diagonal T-slots.
Polished work table features diagonal T-slots.

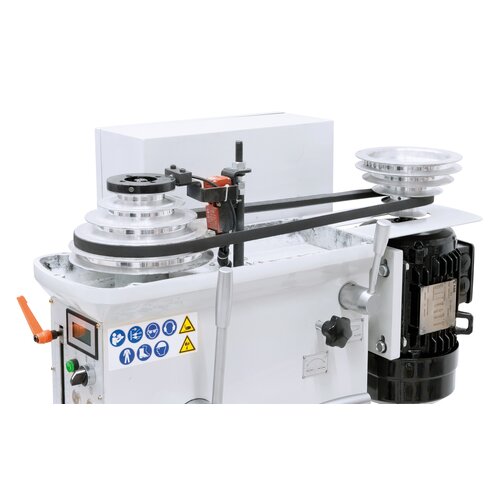

Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Stepless adjustable spindle feed with separate drive motor
Polished work table features diagonal T-slots.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.

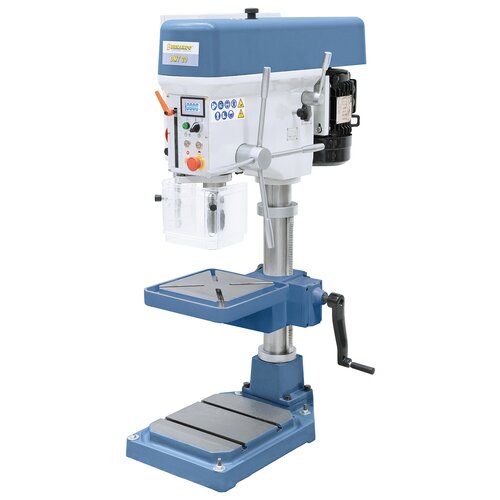

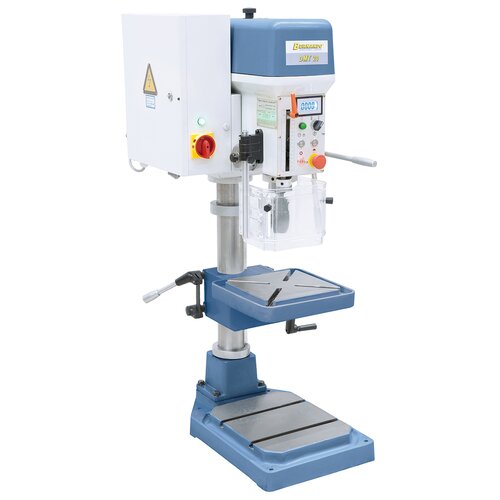

Bench drilling machine DMT 20

Art.Nr.: 01-1186
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The table drilling machine DMT 20 offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.

€2,028.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Protective cover in accordance to CE standards, adjustable to various drill bit sizes
  • Surface treated work table, height adjustable via gear rack and crank
  • Polished base plate features T-slots for mounting of large workpieces
  • Adjustable drill depth stop allows accurate spindle feed
  • High concentricity ≤ 0,02 mm measured at spindle
  • Powerful motor even at continuous operation
  • Solid and powerful drilling machine for high demands
  • Including automatic reverse rotation for thread cutting

Product Specifications

Drilling capacity max.

20 mm

Thread cutting max.

M16

Morse taper

MT 2

Spindle speeds

(5) 320 - 1820 rpm

Distance spindle to column

240 mm

Distance spindle to table max.

360 mm

Distance spindle to base

680 mm

Spindle stroke

135 mm

Column diameter

85 mm

Table size / T-slot size

252 x 252 mm / 14 mm

Working surface of base

367 x 305 mm

Motor power output S1 100%

1,1 kW / 400 V

Motor power input S6 40%

1,5 kW / 400 V

Machine dimension (W x D x H)

470 x 880 x 1270 mm

Weight approx.

192 kg

Delivery Contents

  • Drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18

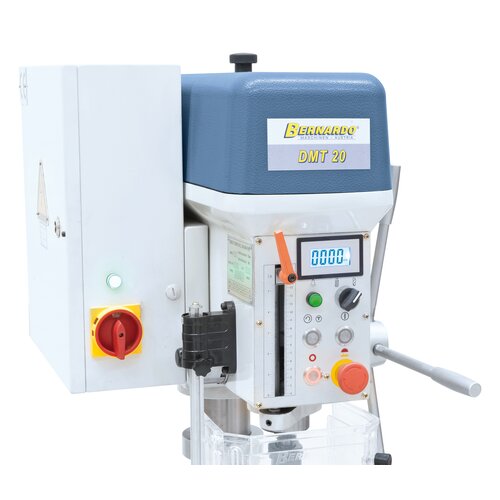

  • Digital readout of speeds
  • Thread cutting device
  • LED-machine light
  • Height adjustable protective cover
