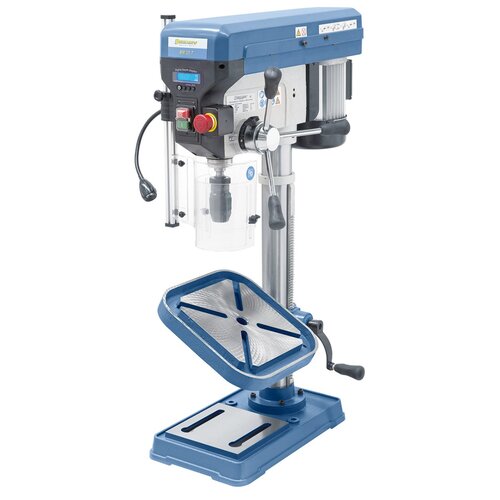

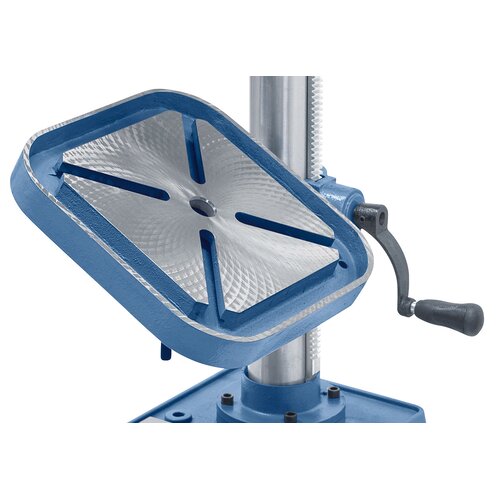

Drill table tilts -45° to +45° and swivels 360° around the column.
Drill table tilts -45° to +45° and swivels 360° around the column.

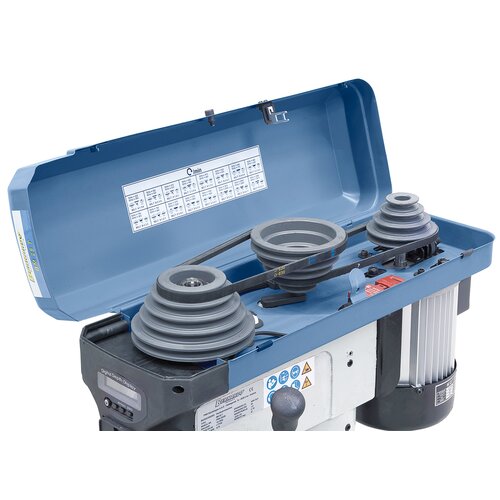

Balanced drive pulleys guarantees smooth running.
Balanced drive pulleys guarantees smooth running.

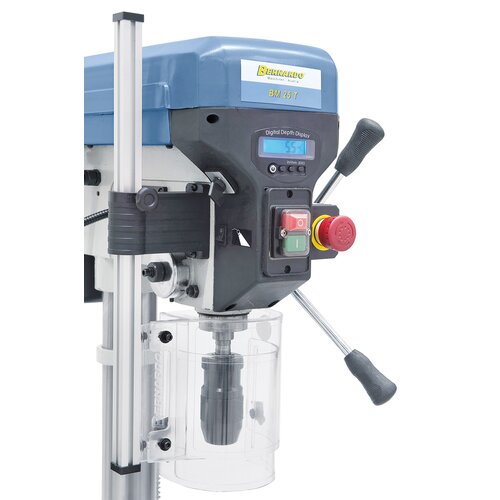

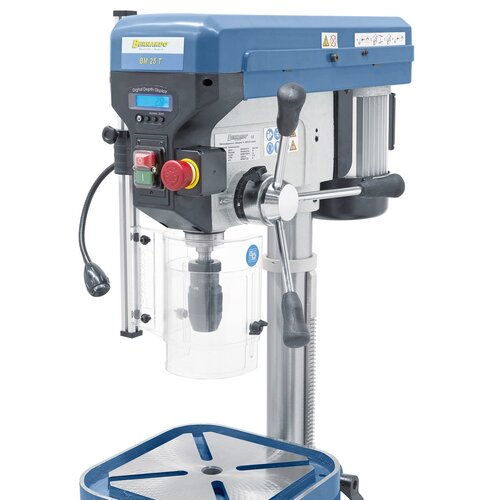

Digital display for drill depth increases comfort and convenience
Digital display for drill depth increases comfort and convenience
Drill table tilts -45° to +45° and swivels 360° around the column.
Balanced drive pulleys guarantees smooth running.
Digital display for drill depth increases comfort and convenience

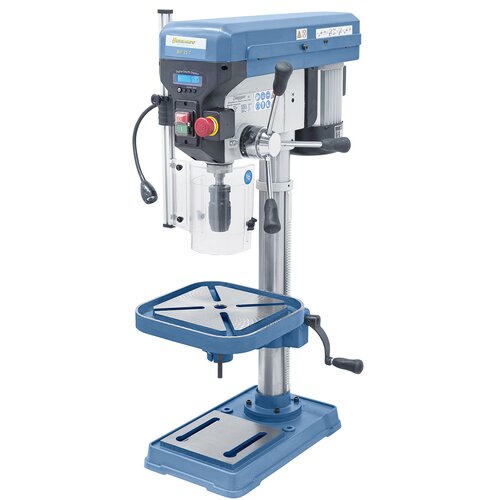

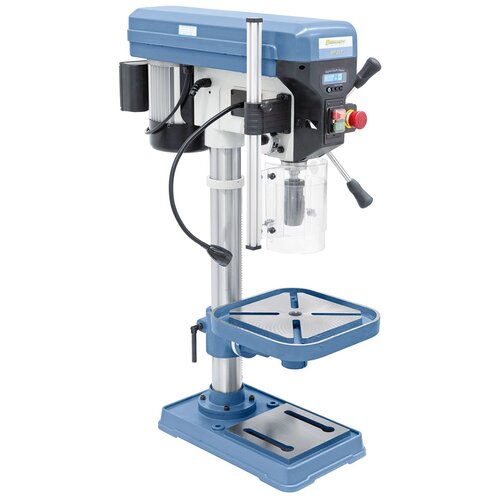

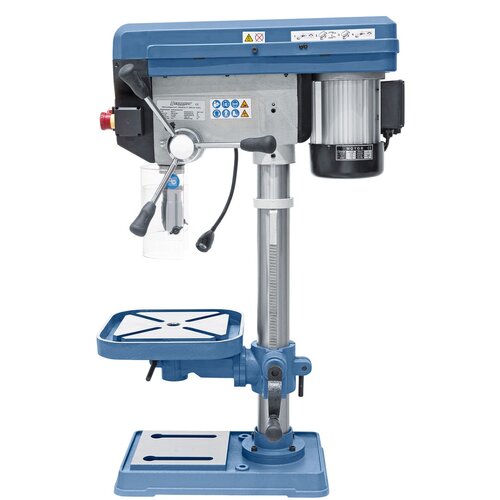

Bench drilling machine BM 25 T / 400 V, R/L

Art.Nr.: 01-1120
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The solid drilling machine BM 25 T with V-belt drive feature high torque at low speed. This model is predominantly used by craftsmen or trainging workshops.

€658.80

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Digital display for spindle stroke and LED-lamp come standard
  • Grey cast iron pulleys ensure smooth run
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), gear rack allows height adjustment
  • Switch controls right / left rotation
  • High performance aluminium motor in accordance with the IP 54 standard
  • Complete with high-quality keyless drill chuck
  • Polished machine base features T-slots
  • Clearly arranged handles ensure high comfort when working

Product Specifications

Drilling capacity steel

25 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed

(16) 220 - 2840 rpm

Distance spindle to column

180 mm

Drilling table tiltable

-45° to +45°

Distance spindle to table max.

415 mm

Distance spindle to base

605 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

305 x 305 mm / 16 mm

Working surface of base

205 x 205 mm

Motor power output S1 100%

0,75 kW / 400 V

Motor power input S6 40%

1,1 kW / 400 V

Machine dimension (W x D x H)

400 x 630 x 990 mm

Weight approx.

57 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • LED machine light
  • Left and right turning
  • T-slot nuts
  • Height adjustable protective cover
  • Tools
